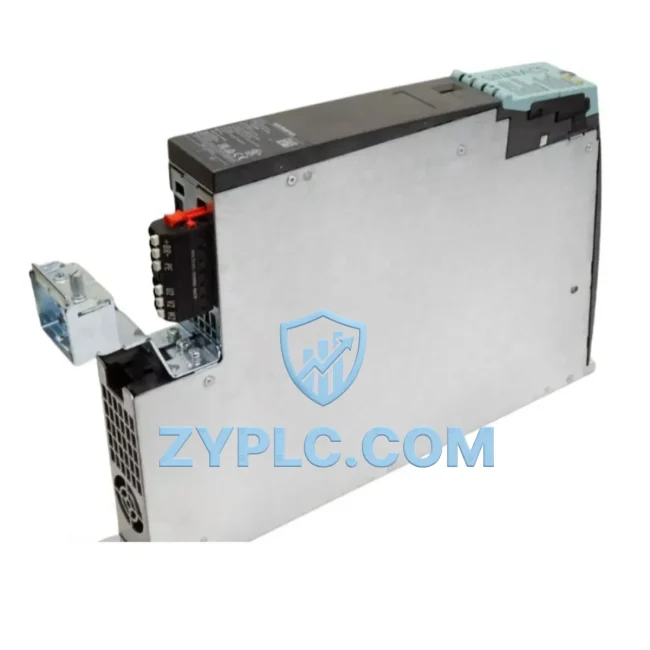

Siemens 6SL3120-1TE13-0AD0 System-Ready Drive for S120 Architecture

Siemens 6SL3120-1TE13-0AD0 System-Ready Drive for S120 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Siemens 6SL3120-1TE13-0AD0 is a Single Motor Module within the SINAMICS S120 booksize drive system, engineered to serve as a precision axis control node in multi-axis automation architectures. Rather than functioning as a standalone inverter, this module is designed from the ground up for contextual integration — operating in close coordination with the Control Unit (CU320-2 DP or CU320-2 PN), the Active Line Module (ALM), the Smart Line Module (SLM), and the DC bus infrastructure that binds the entire drive line together. In layered industrial automation systems, the 6SL3120-1TE13-0AD0 occupies the drive layer, receiving torque and speed setpoints from the controller layer and translating them into precise motor output — making it a foundational component for servo-class motion control in manufacturing, packaging, and process automation environments.

With a rated output current of 3A and compatibility with the SINAMICS S120 booksize form factor, this Single Motor Module is optimized for compact multi-axis cabinet installations where space efficiency, thermal management, and DC bus energy sharing are critical design parameters. Its integration with the DRIVE-CLiQ communication interface ensures deterministic data exchange with the CU320-2 series Control Units, enabling closed-loop vector control, encoder feedback processing, and safety function coordination without additional signal wiring overhead.

Architecture Specification Table

Coordinated Control System Design

The 6SL3120-1TE13-0AD0 achieves its full performance potential only when integrated within a properly configured SINAMICS S120 drive line. At the power supply layer, an Active Line Module (6SL3130 series ALM) or Smart Line Module (6SL3130 series SLM) provides regulated DC bus voltage, enabling energy regeneration and harmonic mitigation across the entire axis group. The DC bus connects all Motor Modules in the booksize assembly, allowing kinetic energy from decelerating axes to be redistributed to accelerating axes — a critical efficiency feature in multi-axis servo systems.

At the control layer, the CU320-2 DP (6SL3040-1MA01-0AA0) or CU320-2 PN (6SL3040-1MA00-0AA0) Control Unit manages all drive objects via DRIVE-CLiQ, coordinating speed, torque, and position loops across multiple Single Motor Modules simultaneously. The DRIVE-CLiQ topology also supports SMC (Sensor Module Cabinet-Mounted) units such as the SMC20 (6SL3055-0AA00-5AA3) for external encoder integration, enabling high-resolution position feedback from linear scales or rotary encoders mounted on the machine axis.

For cabinet power distribution, the SITOP PSU300S 24V DC power supply provides stable control voltage to the CU320-2 and I/O modules, while terminal modules (TM31, TM54F) extend the digital and analog I/O capacity of the control unit for machine-level signal interfacing. In safety-critical applications, the TM54F (6SL3055-0AA00-3AA0) terminal module enables PROFIsafe-based STO and SS1 safety functions across all connected Motor Modules, including the 6SL3120-1TE13-0AD0, without requiring external safety relays.

At the human-machine interface layer, a SIMATIC HMI TP700 Comfort or KTP900 Basic panel connected via PROFINET provides real-time drive status visualization, parameter access, and alarm management. The PROFINET network backbone — managed through a SCALANCE X208 industrial switch — ensures deterministic communication latency between the CU320-2 controller, the HMI, and the upstream SIMATIC S7-1500 PLC, maintaining system synchronization across all automation layers.

Application in Layered Automation Systems

Packaging and Converting Lines: In high-speed packaging machinery, the 6SL3120-1TE13-0AD0 drives servo axes for film feeding, cutting, sealing, and registration control. Its tight integration with the CU320-2 and SIMATIC S7-1500 via PROFINET enables electronic gearing and cam synchronization across multiple axes, replacing mechanical line shafts with flexible, software-defined motion profiles. The booksize form factor allows dense multi-axis configurations within a single control cabinet, reducing footprint and cable complexity.

Automotive and Metal Forming: In press lines and robotic welding cells, the module supports torque-controlled servo axes with fast current loop response times, enabling precise force control during forming operations. The STO safety function integrates directly with the machine safety PLC, ensuring compliant E-stop behavior without additional safety contactors. The 12-Month Warranty and verified spare parts availability support planned maintenance intervals in high-utilization production environments.

Process Control and Water Treatment: In pump and compressor drive applications within water treatment or chemical processing plants, the 6SL3120-1TE13-0AD0 can be configured for speed-controlled induction motor drives using vector control without encoder (sensorless vector), reducing sensor maintenance overhead. Its compatibility with the SINAMICS S120 system’s energy recovery features supports sustainability targets in continuous-process facilities.

Mining and Metallurgy: For conveyor and hoist drive systems in mining environments, the module’s robust DC bus architecture and compatibility with Active Line Modules enables four-quadrant operation — essential for controlled lowering of loaded conveyors and regenerative braking energy recovery. System redundancy can be achieved by configuring hot-standby drive objects within the CU320-2, minimizing unplanned downtime in critical extraction processes.

Architecture Engineering FAQ

Q1: What Line Module is required to power the 6SL3120-1TE13-0AD0 in a booksize configuration?
The 6SL3120-1TE13-0AD0 requires a SINAMICS S120 booksize Line Module — either an Active Line Module (ALM, 6SL3130 series) or a Smart Line Module (SLM, 6SL3130 series) — to supply regulated DC bus voltage. The ALM is recommended for applications requiring energy regeneration or strict harmonic compliance. The Line Module must be sized to cover the total peak power demand of all Motor Modules sharing the DC bus. A 24V DC auxiliary power supply (e.g., SITOP PSU300S) is also required for the Control Unit and signal electronics.

Q2: Is the 6SL3120-1TE13-0AD0 compatible with PROFINET-based control architectures, and how is it commissioned?
Yes. When paired with a CU320-2 PN Control Unit, the 6SL3120-1TE13-0AD0 participates in a PROFINET IRT or RT network, receiving cyclic setpoints from a SIMATIC S7-1500 or S7-300 PLC. Commissioning is performed using Siemens STARTER or SINAMICS Startdrive (TIA Portal integrated), which auto-detects the DRIVE-CLiQ topology and configures drive objects automatically. Encoder assignment, safety parameterization, and axis-level tuning are all managed within the same engineering environment, reducing commissioning time significantly compared to standalone drive configurations.

Q3: What does the 12-Month Warranty cover, and how does Contextual Integration support long-term maintenance?
The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Contextual Integration means the 6SL3120-1TE13-0AD0 is supplied with verified firmware compatibility data, system topology documentation, and application-matched configuration guidance — ensuring the module can be installed as a direct replacement or new axis addition within an existing SINAMICS S120 architecture without compatibility risk. For long-term maintenance planning, our team provides cross-reference support for obsolete or discontinued Siemens drive components, helping engineers maintain system continuity across multi-year production lifecycles.
