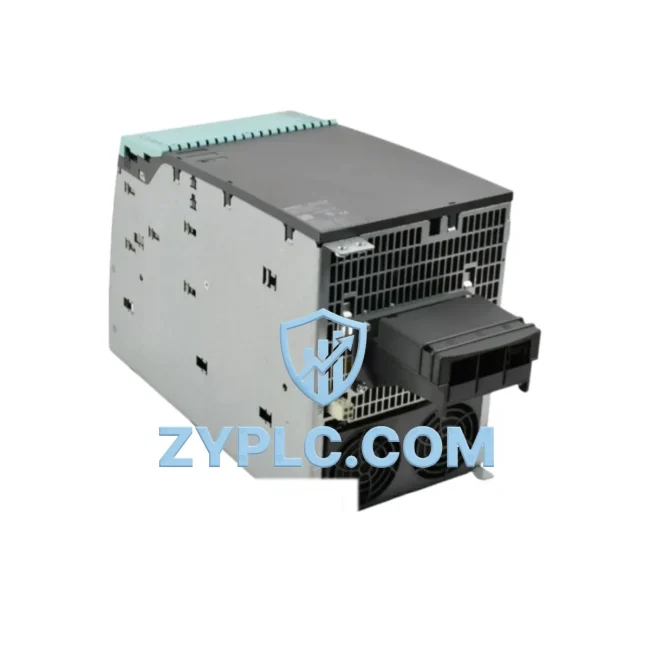

Siemens 6SL3120-1TE28-5AA3 System-Ready Motor Drive for S120 Architecture

Siemens 6SL3120-1TE28-5AA3 System-Ready Motor Drive for S120 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Siemens 6SL3120-1TE28-5AA3 is a booksize-format Single Motor Module designed for seamless integration within the SINAMICS S120 drive system architecture. Rather than functioning as a standalone inverter, this module is engineered to operate as a coordinated node within a multi-axis, multi-layer automation hierarchy — connecting the control layer, power distribution layer, I/O layer, and motor execution layer into a unified, high-performance drive train. In demanding industrial environments such as automotive assembly, continuous process lines, metal forming, and precision packaging machinery, the 6SL3120-1TE28-5AA3 delivers the axis-level torque control, speed regulation, and dynamic response that modern servo-driven systems require.

Within the SINAMICS S120 booksize chassis, this Single Motor Module receives its DC bus power from a shared Line Module — typically a Smart Line Module (SLM) or Active Line Module (ALM) such as the 6SL3130 series — and converts that regulated DC voltage into precisely controlled three-phase AC output for a connected servo or induction motor. This shared DC bus topology is a defining characteristic of the S120 architecture: multiple Single Motor Modules and Double Motor Modules can be mounted on the same booksize chassis, sharing a common power supply and communicating over a unified DRIVE-CLiQ backbone. The result is a compact, scalable, and energy-efficient multi-axis drive system that minimizes cabinet footprint while maximizing axis density.

The 6SL3120-1TE28-5AA3 is rated for a continuous output current suitable for high-dynamic servo applications, making it appropriate for axes requiring rapid acceleration, precise positioning, and consistent torque delivery under variable load conditions. Its integration with the SINAMICS S120 Control Unit — such as the CU320-2 DP or CU320-2 PN — via DRIVE-CLiQ ensures that all parameterization, diagnostics, and real-time control data are exchanged over a deterministic, high-speed digital interface, eliminating the analog signal noise and calibration drift that can affect legacy drive architectures.

Architecture Specification Table

Coordinated Control System Design

The true value of the 6SL3120-1TE28-5AA3 emerges when it is evaluated within the complete SINAMICS S120 system architecture rather than in isolation. A fully coordinated S120 booksize system typically begins with an Active Line Module (ALM) or Smart Line Module (SLM) from the 6SL3130 family, which rectifies incoming three-phase AC supply voltage into a stable, regulated DC bus. This DC bus is then distributed across the booksize chassis to all connected motor modules, including the 6SL3120-1TE28-5AA3, via the DC bus connector and chassis busbar system.

The CU320-2 PN Control Unit (PROFINET variant) or CU320-2 DP (PROFIBUS variant) serves as the central intelligence of the drive system, coordinating all axis modules over DRIVE-CLiQ. The Control Unit communicates upstream with the PLC — typically a Siemens SIMATIC S7-1500 or S7-300 series controller — via PROFINET or PROFIBUS, receiving motion commands, setpoints, and safety signals. Downstream, the CU320-2 distributes these commands to each motor module in real time, enabling synchronized multi-axis motion with microsecond-level cycle times.

For applications requiring encoder feedback and closed-loop position control, the 6SL3120-1TE28-5AA3 interfaces with Sensor Modules such as the SMC20 or SME20, which connect motor encoders to the DRIVE-CLiQ network. This closed-loop feedback architecture enables the precise speed and torque regulation demanded by CNC machining centers, robotic welding cells, and high-speed packaging lines.

Power supply integrity is maintained by the SITOP PSU series 24 VDC power supplies, which provide the control voltage for the Control Unit, I/O modules, and auxiliary circuits. On the I/O layer, SIMATIC ET 200SP or ET 200MP distributed I/O stations connect field devices — sensors, actuators, safety relays, and limit switches — to the control network, feeding real-time process data to the S7-1500 PLC and, through it, to the drive system. For operator interaction, SIMATIC HMI TP series or KTP series panels provide the human-machine interface layer, displaying drive status, fault codes, speed references, and energy consumption data.

In redundancy-critical applications, the S120 architecture supports the integration of Safety Integrated functions directly within the motor module, enabling STO (Safe Torque Off), SS1 (Safe Stop 1), and SLS (Safely Limited Speed) without external safety relays, reducing wiring complexity and improving response time. This safety architecture is fully compatible with the 6SL3120-1TE28-5AA3 when used with a safety-capable Control Unit and appropriately configured safety parameters.

Application in Layered Automation Systems

The 6SL3120-1TE28-5AA3 is deployed across a wide range of industrial sectors where multi-axis coordinated motion, high dynamic response, and long-term system reliability are non-negotiable requirements.

Automotive Manufacturing: In body-in-white welding lines and press transfer systems, multiple S120 Single Motor Modules drive servo axes for part transfer, clamping, and welding gun positioning. The shared DC bus architecture enables regenerative energy exchange between braking and accelerating axes, reducing overall energy consumption and heat dissipation within the control cabinet.

Packaging and Converting: High-speed packaging lines require precise electronic line shafting, where multiple axes must maintain exact phase relationships at speeds exceeding 1,000 cycles per minute. The DRIVE-CLiQ-based synchronization of the S120 system, with the 6SL3120-1TE28-5AA3 as an axis node, delivers the sub-millisecond cycle time consistency required for film registration, cut-to-length control, and label application.

Power Generation and Utilities: In pump and fan drive applications within power plants and water treatment facilities, the S120 Single Motor Module provides variable speed control that reduces energy consumption by up to 50% compared to fixed-speed operation. The module’s robust thermal management and IP20 protection class make it suitable for installation in climate-controlled electrical rooms adjacent to process areas.

Metallurgy and Rolling Mills: Tension control, speed synchronization, and torque limiting across multiple rolling stands demand drive systems with exceptional dynamic stiffness. The 6SL3120-1TE28-5AA3, integrated within a multi-axis S120 system and coordinated by a SIMATIC S7-1500T motion controller, provides the axis-level performance required for cold rolling, wire drawing, and strip processing lines.

Mining and Material Handling: Conveyor drives, hoist systems, and crusher drives in mining applications benefit from the S120 system’s ability to handle high inertia loads, frequent starts and stops, and regenerative braking. The 12-Month Warranty and global spare parts availability of the 6SL3120-1TE28-5AA3 reduce the risk of extended downtime in remote or critical mining operations.

Architecture Engineering FAQ

Q1: Is the 6SL3120-1TE28-5AA3 compatible with both PROFIBUS and PROFINET control architectures?
Yes. The 6SL3120-1TE28-5AA3 Single Motor Module communicates with the Control Unit via DRIVE-CLiQ, which is independent of the fieldbus protocol used between the Control Unit and the PLC. Whether your system uses a CU320-2 DP (PROFIBUS) or CU320-2 PN (PROFINET), the motor module integrates identically. The fieldbus selection affects only the Control Unit variant, not the motor module itself, making the 6SL3120-1TE28-5AA3 suitable for both legacy PROFIBUS installations and modern PROFINET architectures without hardware modification.

Q2: Can this module be added to an existing SINAMICS S120 booksize system without replacing the Line Module or Control Unit?
In most cases, yes — provided the existing Line Module has sufficient DC bus capacity to support the additional axis load. Before expanding an S120 booksize system with the 6SL3120-1TE28-5AA3, engineers should verify the total continuous and peak current demand of all motor modules against the Line Module’s rated output current. The Control Unit firmware should also be checked for compatibility with the new module’s DRIVE-CLiQ component version. Our technical team can assist with system capacity calculations and firmware compatibility verification as part of the pre-sales engineering support included with every order backed by our 12-Month Warranty.

Q3: What does the 12-Month Warranty cover, and how does Contextual Integration support long-term maintenance planning?
The 12-Month Warranty covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions for a period of twelve months from the date of shipment. In the event of a warranty claim, replacement units are dispatched from verified stock to minimize system downtime. Contextual Integration refers to our commitment to supplying the 6SL3120-1TE28-5AA3 with full documentation, parameter backup support, and compatibility guidance for the specific S120 system architecture in which it will be installed. This means that rather than supplying a bare module, we provide the contextual engineering information — firmware version, compatible accessories, known system constraints — that allows maintenance engineers to install, commission, and verify the replacement module with confidence, reducing mean time to repair (MTTR) and supporting long-term system availability planning.
