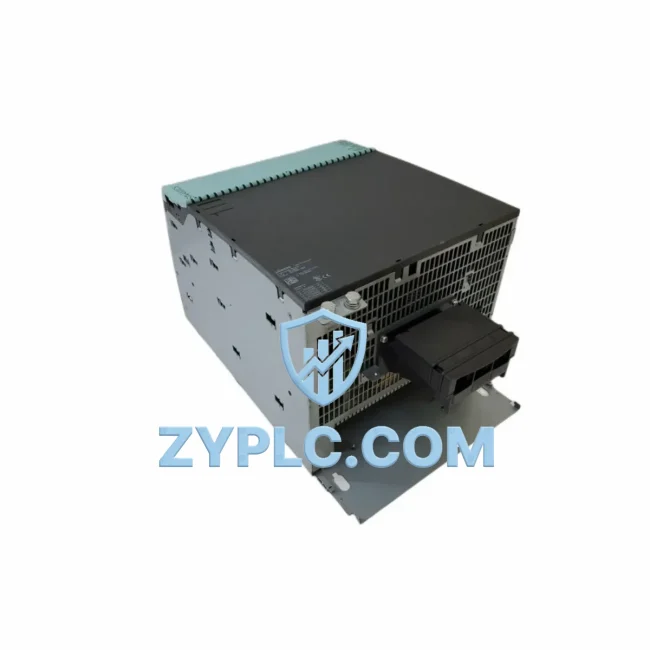

Siemens 6SL3120-1TE31-3AA3 System-Ready Motor Drive for S120 Architecture

Siemens 6SL3120-1TE31-3AA3 System-Ready Motor Drive for S120 Architecture: Control System Architecture and Upstream-Downstream Coordination

The Siemens 6SL3120-1TE31-3AA3 is a booksize-format Single Motor Module designed as a core drive component within the SINAMICS S120 modular drive system. Rather than functioning as a standalone inverter, this module is engineered to operate as an integrated node within a multi-axis control architecture — coordinating with the Control Unit, Line Module, power supply infrastructure, communication backbone, and field-level actuators to deliver precise, synchronized motor control across demanding industrial environments.

In a fully realized SINAMICS S120 system, the 6SL3120-1TE31-3AA3 occupies the drive layer between the central intelligence and the mechanical load. It receives setpoint commands from a CU320-2 DP or CU320-2 PN Control Unit via the DRIVE-CLiQ communication interface, executes vector or servo control algorithms locally, and delivers regulated three-phase output to the connected motor. This tight integration with the Control Unit eliminates the latency and signal degradation associated with analog command chains, enabling sub-millisecond response times critical for coordinated multi-axis motion.

The DC link architecture of the S120 booksize platform allows the 6SL3120-1TE31-3AA3 to share a common DC bus with other Single Motor Modules and Double Motor Modules mounted on the same chassis. This energy-sharing topology — fed by an Active Line Module (ALM) or Basic Line Module (BLM) — enables regenerative braking energy from decelerating axes to be redistributed to accelerating axes, significantly reducing net energy consumption in cyclic applications such as packaging lines, winding systems, and multi-axis machine tools.

From a system architecture perspective, the 6SL3120-1TE31-3AA3 supports both PROFIBUS DP and PROFINET IO communication protocols through the upstream Control Unit, enabling seamless integration into Siemens TIA Portal-based automation environments. Higher-level coordination with a SIMATIC S7-1500 PLC or S7-300 controller is achieved through these fieldbus layers, while the DRIVE-CLiQ topology provides real-time drive parameter exchange, automatic component recognition, and electronic nameplate functionality that dramatically simplifies commissioning and reduces configuration errors.

The module’s compatibility with the SINAMICS S120 Combi and chassis-format systems extends its applicability beyond booksize installations. Engineers designing hybrid architectures — combining booksize Motor Modules with chassis-format power sections for high-power axes — can maintain a unified control platform, reducing the engineering overhead associated with mixed-vendor drive environments. The Starter commissioning tool and TIA Portal Drive Control Chart (DCC) provide graphical programming environments for configuring the 6SL3120-1TE31-3AA3’s control structure, safety functions, and diagnostic behavior.

Safety integration is a key architectural advantage of this module. The 6SL3120-1TE31-3AA3 supports Safely-Limited Speed (SLS), Safe Torque Off (STO), and Safe Stop 1 (SS1) functions in accordance with IEC 62061 and ISO 13849-1, enabling safety-rated drive control without external safety relays. This reduces panel wiring complexity, lowers component count in the control cabinet, and simplifies functional safety validation — a critical consideration in machinery directive compliance across European and international markets.

For system designers specifying components across the full automation hierarchy, the 6SL3120-1TE31-3AA3 fits naturally alongside the following components in a complete S120 architecture: the CU320-2 PN Control Unit for centralized multi-axis management; the Active Line Module 6SL3130 series for regulated DC bus supply with grid feedback capability; Sensor Modules such as the SMC20 or SME20 for encoder signal conditioning; the SINAMICS S120 Smart Line Module for cost-optimized regenerative applications; SIMATIC HMI panels (TP700, TP1200 Comfort) for operator visualization; SIMATIC ET 200SP distributed I/O for field-level signal acquisition; and terminal modules and shield connection kits from the S120 accessories portfolio for compliant cabinet installation. Each of these components communicates through a unified DRIVE-CLiQ or PROFINET backbone, ensuring system-wide diagnostic transparency and reducing mean time to repair (MTTR) during maintenance events.

In layered automation systems, the 6SL3120-1TE31-3AA3 delivers measurable value across multiple industry verticals. In automotive body-in-white welding lines, it provides the torque accuracy and dynamic response required for servo-driven spot welding guns and transfer systems. In petrochemical pump and compressor stations, its robust EMC design and wide ambient temperature tolerance ensure reliable operation in electrically noisy environments. In water treatment facilities, its integrated PID control capability supports closed-loop pressure and flow regulation without requiring a separate process controller. In mining conveyor systems, the module’s overload capacity and thermal management architecture sustain continuous operation under variable load profiles. In metal rolling mills and coil processing lines, coordinated tension control across multiple 6SL3120-1TE31-3AA3 modules — managed by a single CU320-2 Control Unit — enables precise strip tension regulation from uncoiler to recoiler.

Long-term maintainability is a core design principle of the SINAMICS S120 platform. The 6SL3120-1TE31-3AA3’s modular form factor allows hot-swap replacement without disturbing adjacent Motor Modules on the shared DC bus, minimizing production downtime during corrective maintenance. DRIVE-CLiQ-based automatic parameter upload from the Control Unit to a replacement module eliminates manual re-parameterization, reducing the skill requirement for field service personnel. Comprehensive fault and warning history logging, accessible via the Starter tool or TIA Portal, supports root-cause analysis and predictive maintenance scheduling.

All units supplied by ZYPLC are covered by a 12-Month Warranty, with pre-shipment functional verification and full traceability documentation. Our inventory of the 6SL3120-1TE31-3AA3 supports rapid dispatch to support both planned system builds and emergency replacement requirements across global industrial facilities.

Architecture Specification Table

Coordinated Control System Design

A complete SINAMICS S120 system built around the 6SL3120-1TE31-3AA3 typically incorporates the following coordinated components across the control, power, communication, and field layers:

• CU320-2 PN / CU320-2 DP Control Unit — Central multi-axis controller managing up to 6 drives via DRIVE-CLiQ, with PROFINET or PROFIBUS fieldbus uplink to the SIMATIC PLC layer.
• Active Line Module 6SL3130-7TE28-4AA3 — Regulated DC bus supply with grid-side regeneration, feeding the shared DC link for all booksize Motor Modules in the cabinet.
• Smart Line Module 6SL3130-6AE21-0AB0 — Cost-optimized unregulated infeed for applications where grid feedback is not required.
• Double Motor Module 6SL3120-2TE21-8AA3 — Dual-axis drive module sharing the same booksize rail, used for lower-power auxiliary axes within the same cabinet.
• Sensor Module Cabinet-Mounted SMC20 — Encoder signal conditioning for TTL/HTL incremental encoders, connecting motor feedback to the DRIVE-CLiQ topology.
• SIMATIC S7-1500 CPU 1516-3 PN/DP — Upper-level PLC coordinating motion sequences, process interlocks, and safety logic across the full automation cell.
• SIMATIC HMI TP1200 Comfort Panel — Operator interface for drive status visualization, parameter adjustment, and alarm management at the machine level.
• SIMATIC ET 200SP Distributed I/O — Field-level digital and analog I/O acquisition over PROFINET, feeding process signals to the S7-1500 for closed-loop control.
• SITOP PSU8600 Power Supply — 24 V DC control voltage supply for Control Unit, HMI, and I/O infrastructure within the control cabinet.
• S120 Booksize Shield Connection Kit — EMC-compliant motor cable shielding termination, ensuring conducted emission compliance in CE-marked machinery installations.

Application in Layered Automation Systems

The 6SL3120-1TE31-3AA3 is deployed across a broad spectrum of process and discrete manufacturing environments where multi-axis drive coordination, energy efficiency, and long-term serviceability are primary engineering requirements. In automotive assembly, it drives servo axes on transfer systems, press feeders, and robotic positioners within TIA Portal-integrated production cells. In power generation and utilities, it controls auxiliary drive systems including cooling fans, feedwater pumps, and valve actuators in combined-cycle and hydroelectric plants. In petrochemical and refining facilities, its robust EMC design and SIL-rated safety functions support pump and compressor drive applications in Zone 2 classified areas when installed with appropriate enclosures. In water and wastewater treatment, coordinated multi-pump control using multiple 6SL3120-1TE31-3AA3 modules under a single CU320-2 Control Unit enables pressure-zone management and energy-optimized duty/standby switching. In mining and minerals processing, the module’s overload capacity supports conveyor drive applications with high inertia loads and frequent start-stop cycles. In metal processing and rolling mills, synchronized tension control across multiple motor axes — all managed through a common DRIVE-CLiQ topology — enables precise strip tracking from entry to exit of the rolling stand. In packaging and food processing lines, the module’s dynamic response and hygienic cabinet compatibility support high-speed indexing, filling, and sealing axes with the cycle consistency required for OEE optimization.

Architecture Engineering FAQ

Q1: Is the 6SL3120-1TE31-3AA3 compatible with existing SINAMICS S120 booksize installations using a CU320-2 Control Unit?
Yes. The 6SL3120-1TE31-3AA3 is fully compatible with the CU320-2 DP and CU320-2 PN Control Units and integrates into the DRIVE-CLiQ topology automatically upon connection. The Control Unit performs electronic nameplate recognition and uploads the module’s firmware version, enabling plug-and-play replacement in existing multi-axis architectures without manual parameter entry. Compatibility extends to SINAMICS S120 firmware versions V4.7 and above, covering the majority of installed base systems commissioned since 2013.

Q2: Can this module be installed in a mixed booksize and chassis-format S120 cabinet, and what are the DC bus interconnection requirements?
The 6SL3120-1TE31-3AA3 operates on the booksize DC bus rail and cannot be directly connected to a chassis-format DC bus without an appropriate DC bus adapter or separate infeed section. In mixed-format cabinets, the booksize section requires its own Line Module (Active or Smart) feeding the booksize DC link, while the chassis section operates from a separate infeed. Both sections can be coordinated by a single CU320-2 Control Unit via DRIVE-CLiQ, maintaining unified control architecture while respecting the electrical separation between bus formats. Consult the SINAMICS S120 System Manual (6SL3097-4AA00-0BP6) for detailed DC bus topology guidelines.

Q3: What does the 12-Month Warranty cover, and what support is available for commissioning and long-term maintenance?
All 6SL3120-1TE31-3AA3 units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. Pre-shipment testing includes DC link charging verification, DRIVE-CLiQ communication handshake confirmation, and output stage integrity checks. For commissioning support, our technical team provides guidance on DRIVE-CLiQ topology configuration, Control Unit parameter assignment, and Starter/TIA Portal project integration. For long-term maintenance planning, we maintain stock of the 6SL3120-1TE31-3AA3 and associated S120 components to support both scheduled replacement programs and emergency breakdown response. Contact us at plc.sales@zyplc.com or +86 19859288691 for availability and lead time confirmation.
