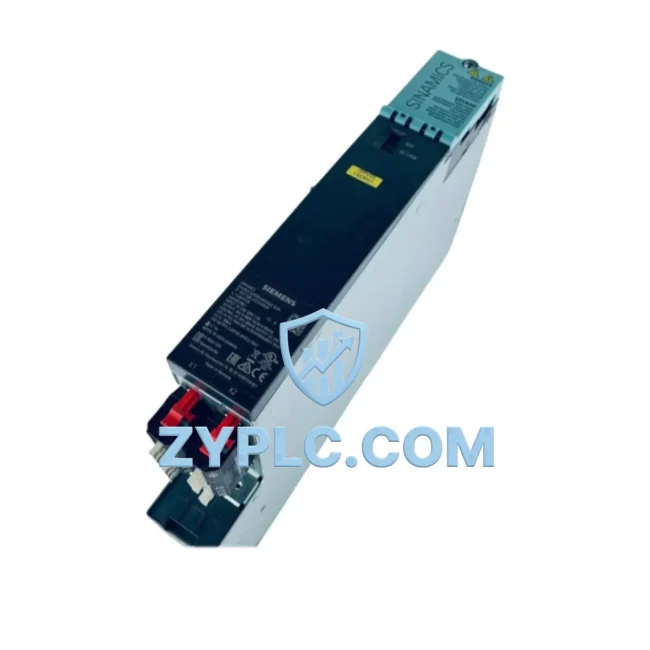

Siemens 6SL3120-2TE13-0AD0 Energy-Saving Motor Module for Optimized SINAMICS S120 Automation

Siemens 6SL3120-2TE13-0AD0 Energy-Saving Motor Module for Optimized SINAMICS S120 Automation

The Siemens 6SL3120-2TE13-0AD0 is a Double Motor Module within the SINAMICS S120 booksize drive system, engineered to deliver precision vector control and measurable energy savings across demanding industrial production environments. Rated at 3 A per axis output current, this compact dual-axis module enables simultaneous control of two servo or induction motors from a single hardware unit, reducing cabinet footprint, wiring complexity, and idle power draw compared to deploying two independent single-axis drives.

In modern manufacturing, energy waste is rarely the result of a single component failure — it accumulates through inefficient motor control, uncoordinated drive sequencing, and poor load matching. The 6SL3120-2TE13-0AD0 addresses these root causes by integrating directly into the SINAMICS S120 booksize architecture, sharing a common DC bus with other modules such as the 6SL3130-7TE21-6AA3 Active Line Module. This shared DC bus topology allows regenerative braking energy from decelerating axes to be redistributed to accelerating axes in real time, reducing net energy consumption at the system level without any additional hardware.

When paired with the SINAMICS S120 Control Unit CU320-2 DP (6SL3040-1MA01-0AA0) or CU320-2 PN, the 6SL3120-2TE13-0AD0 participates in closed-loop speed and torque regulation with millisecond response times. This tight control loop eliminates motor overshoot, reduces thermal stress on windings, and extends motor service life — all of which translate directly into lower maintenance costs and fewer unplanned stoppages on the production line.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6SL3120-2TE13-0AD0 does not operate in isolation — its energy efficiency is fully realized when integrated into a coordinated SINAMICS S120 drive train. The system begins at the power infeed stage, where an Active Line Module such as the 6SL3130-6AE21-0AA0 conditions incoming AC power and feeds a regulated DC bus. This clean, stable DC supply is the foundation for consistent motor performance and reduced harmonic distortion across the entire drive cabinet.

On the control side, the CU320-2 PN Control Unit orchestrates all connected Motor Modules via DRIVE-CLiQ, Siemens’ proprietary high-speed serial interface. DRIVE-CLiQ eliminates the need for separate encoder cables and parameter configuration for each axis, reducing commissioning time and the risk of wiring errors that can cause energy-wasting motor faults. The 6SL3120-2TE13-0AD0 connects directly to the DRIVE-CLiQ ring, reporting real-time current, temperature, and torque data back to the Control Unit for adaptive load management.

For applications requiring precise position feedback, the module is compatible with Siemens SMC20 Sensor Module Cabinet-Mounted (6SL3055-0AA00-5AA3), which interfaces with incremental or absolute encoders mounted on the motor shaft. Accurate position data enables the Control Unit to minimize positioning overshoot, reducing the number of correction cycles per production part and improving overall line throughput without increasing motor speed or energy input.

Power monitoring at the cabinet level is handled by devices such as the SENTRON PAC3200 power meter, which can be integrated into the same control network via PROFIBUS or PROFINET. Real-time kWh data from the PAC3200 allows plant engineers to correlate drive operating modes with energy consumption peaks, identifying opportunities to shift high-load operations to off-peak periods or to reduce acceleration ramps during non-critical production phases.

On the I/O side, a SIMATIC ET 200SP distributed I/O station connected via PROFINET provides the digital and analog signals needed to coordinate the 6SL3120-2TE13-0AD0 with upstream and downstream process equipment — conveyors, clamps, sensors, and safety interlocks. This tight integration ensures that the motor module only draws power when the mechanical load actually demands it, eliminating the idle current losses common in systems with poorly coordinated start/stop sequencing.

For human-machine interaction and energy dashboard visualization, a SIMATIC HMI KTP700 Basic panel connected to the SIMATIC S7-1500 PLC provides operators with real-time drive status, energy consumption trends, and fault diagnostics. When the PLC detects a deviation from the expected energy profile — for example, a gradual increase in motor current indicating bearing wear — it can trigger a predictive maintenance alert before a catastrophic failure occurs, avoiding both the energy waste of a degraded motor and the production loss of an unplanned shutdown.

Power Optimization in Real Production Lines

In a typical servo-driven packaging line, two axes controlled by the 6SL3120-2TE13-0AD0 might manage a horizontal sealing jaw and a film feed roller. These two axes have complementary load profiles: when the sealing jaw decelerates after closing, the film feed roller is accelerating to advance the next package. Through the shared DC bus, the braking energy of the jaw is directly consumed by the roller, with no energy returned to the AC grid and no braking resistor dissipating heat. Over a three-shift production day, this regenerative exchange can reduce drive system energy consumption by 15–30% compared to a conventional PWM drive without DC bus coupling.

In CNC machining centers, the 6SL3120-2TE13-0AD0 can control two auxiliary axes — for example, a tool changer and a coolant pump motor — freeing the primary SINAMICS S120 Motor Modules for the main spindle and feed axes. By consolidating auxiliary axis control into a single double module, the machine builder reduces the number of drive components, simplifies thermal management, and lowers the total installed power of the control cabinet.

Across all applications, the module’s vector control algorithm continuously adjusts the output voltage and frequency to match the actual mechanical load, preventing the motor from drawing excess magnetizing current during light-load phases. This is particularly valuable in applications with variable load cycles — such as winding machines, extruders, or test benches — where the load can vary by 50% or more between production phases. The result is a measurable reduction in kWh per produced unit, which accumulates into significant cost savings over the module’s operational lifetime.

Every unit of the 6SL3120-2TE13-0AD0 supplied by ZYPLC undergoes functional testing prior to shipment, verifying output current symmetry, DRIVE-CLiQ communication integrity, and thermal protection response. Stock is maintained in our warehouse to support fast delivery, and all units are covered by a 12-month warranty from the date of shipment.

Energy Optimization FAQ

Q1: How much energy can the 6SL3120-2TE13-0AD0 save compared to a standard drive?
A: Energy savings depend on the application, but the shared DC bus regenerative topology of the SINAMICS S120 system typically reduces drive-level energy consumption by 15–30% in applications with complementary load profiles on the two axes. Additional savings come from the vector control algorithm, which minimizes reactive current during partial-load operation.

Q2: Is the 6SL3120-2TE13-0AD0 compatible with my existing SINAMICS S120 system?
A: Yes, provided your system uses a booksize format Active Line Module or Smart Line Module and a CU320-2 series Control Unit. The module connects via DRIVE-CLiQ and shares the common DC bus. Firmware compatibility should be verified using the SINAMICS S120 compatibility matrix for your specific CU firmware version.

Q3: Can this module replace a faulty single-axis Motor Module in my existing cabinet?
A: The 6SL3120-2TE13-0AD0 is a double-axis module and is not a direct drop-in replacement for a single-axis module. However, it can be used to consolidate two single-axis modules into one unit during a cabinet upgrade or refurbishment, reducing component count and improving energy efficiency. Consult the SINAMICS S120 hardware installation manual for slot and bus bar compatibility.

Q4: What does the 12-month warranty cover, and how is testing performed?
A: All units supplied by ZYPLC are tested for output current balance, DRIVE-CLiQ communication, and protective function response before shipment. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail during the warranty period are replaced or repaired at no charge. Contact our team at plc.sales@zyplc.com for warranty claims and RMA processing.
