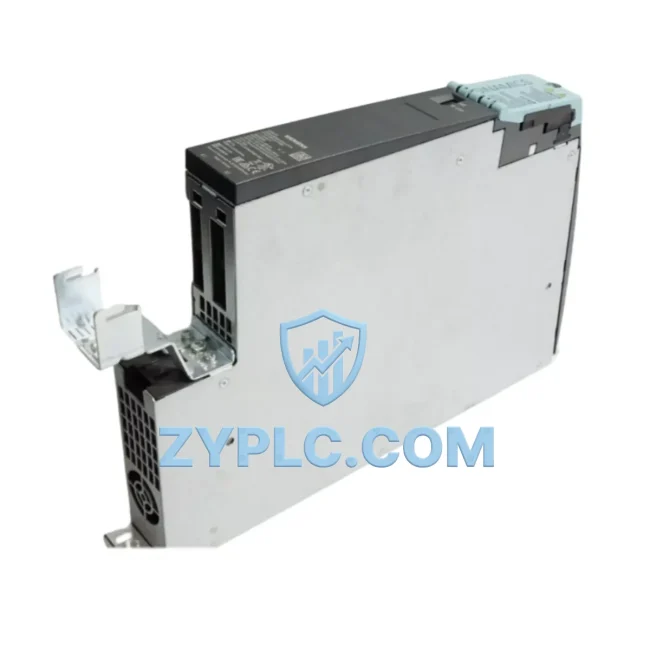

Siemens 6SL3120-2TE21-0AD0 Energy-Saving Double Motor Module S120

Siemens 6SL3120-2TE21-0AD0 Energy-Saving Double Motor Module for Optimized SINAMICS S120 Automation

In modern industrial automation, energy efficiency is no longer a secondary consideration — it is a core engineering requirement. The Siemens 6SL3120-2TE21-0AD0 is a Double Motor Module within the SINAMICS S120 booksize drive system, purpose-built to deliver dual-axis servo control with maximum power utilization and minimum energy waste. By enabling two motor axes to share a single DC bus and a unified power supply infrastructure, this module fundamentally reduces the energy overhead associated with running independent single-axis drives, making it an ideal choice for high-density, multi-axis production environments.

The 6SL3120-2TE21-0AD0 operates at a rated output current of 9A per axis, supporting synchronous and asynchronous servo motors across a wide range of industrial applications. Its integration into the SINAMICS S120 booksize chassis allows it to draw from a shared Active Line Module or Smart Line Module — such as the 6SL3130-7TE21-6AA3 or 6SL3130-6AE21-0AB1 — eliminating redundant rectifier stages and dramatically reducing total system power draw during coordinated multi-axis motion sequences.

Efficiency Performance Table

Energy-Aware Automation Architecture

The true energy advantage of the 6SL3120-2TE21-0AD0 becomes apparent when it is viewed within the full SINAMICS S120 drive architecture rather than as an isolated component. In a typical multi-axis machine — such as a CNC machining center, a packaging line, or a textile winding system — multiple axes must accelerate and decelerate in coordinated sequences. When one axis decelerates and regenerates energy back to the DC bus, another axis drawing power from the same bus can consume that regenerated energy directly, without it ever returning to the AC supply grid. This internal energy recycling, enabled by the shared DC bus architecture of the S120 system, is one of the most effective passive energy-saving mechanisms available in modern servo drive design.

The module connects to the drive system via DRIVE-CLiQ, Siemens’ proprietary high-speed digital interface that links the Control Unit — typically a CU320-2 DP or CU320-2 PN — with all connected Motor Modules, Sensor Modules, and Line Modules. This digital backbone eliminates analog signal degradation, reduces wiring complexity, and enables real-time current, voltage, and temperature monitoring across every axis. The CU320-2 PN, for example, supports PROFINET communication, allowing the drive system to exchange energy consumption data with a SIMATIC S7-1500 PLC or a SIMATIC ET 200SP distributed I/O station, enabling plant-level energy monitoring and demand-side management.

On the power supply side, pairing the 6SL3120-2TE21-0AD0 with an Active Line Module such as the 6SL3130-7TE21-6AA3 enables active front-end rectification with near-unity power factor and full regenerative capability. This means that braking energy from both motor axes can be fed back to the AC grid rather than dissipated as heat through braking resistors, delivering measurable reductions in electricity consumption over the operational lifetime of the machine. For applications where regeneration is not required, a Smart Line Module provides a cost-effective alternative with passive rectification and basic energy recovery.

The SINAMICS S120 system also supports integration with the SIMATIC HMI TP1200 Comfort panel or similar operator interfaces, allowing machine operators to monitor real-time power consumption, axis load distribution, and drive efficiency ratings directly from the production floor. This visibility supports informed decisions about production scheduling, load balancing, and preventive maintenance — all of which contribute to long-term energy savings and improved overall equipment effectiveness (OEE).

Power Optimization in Real Production Lines

In a high-speed packaging line running 24 hours a day, the cumulative energy cost of servo drive systems represents a significant portion of total facility power consumption. By replacing two independent single-axis Motor Modules with a single 6SL3120-2TE21-0AD0 Double Motor Module, engineers can reduce the number of power conversion stages, lower heat generation within the control cabinet, and simplify thermal management requirements — all of which translate directly into reduced cooling loads and lower auxiliary energy consumption.

In CNC machining applications, the dual-axis capability of the 6SL3120-2TE21-0AD0 is particularly valuable for controlling X and Y axes simultaneously from a single module, reducing the physical footprint of the drive cabinet and improving cable management. The DRIVE-CLiQ interface ensures that both axes receive synchronized control signals from the CU320-2, minimizing inter-axis timing errors and enabling tighter contouring accuracy — which in turn reduces scrap rates and rework, indirectly lowering the energy cost per good part produced.

For water treatment and process control applications, where pump and fan loads follow variable demand profiles, the 6SL3120-2TE21-0AD0 can be configured to operate in vector control mode, allowing precise speed regulation that matches motor output to actual process demand rather than running at fixed speed. This load-following capability, combined with the energy recycling of the shared DC bus, can reduce motor energy consumption by 20–40% compared to fixed-speed or contactor-switched alternatives.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing to verify output current accuracy, DRIVE-CLiQ communication integrity, and thermal protection response. Stock availability is maintained to support urgent replacement and project commissioning requirements, and all units are covered by a 12-Month Warranty from the date of shipment.

Energy Optimization FAQ

Q1: How does the 6SL3120-2TE21-0AD0 reduce energy consumption compared to two separate single-axis modules?
The Double Motor Module shares a single DC bus connection between two axes. When one axis regenerates energy during deceleration, the other axis can consume that energy directly from the bus, reducing the net power drawn from the AC supply. This internal energy exchange eliminates the need for braking resistors in many applications and reduces overall system losses compared to two independent single-axis modules each with their own rectifier and DC bus capacitor bank.

Q2: Is the 6SL3120-2TE21-0AD0 compatible with existing SINAMICS S120 booksize installations?
Yes. The 6SL3120-2TE21-0AD0 is fully compatible with the SINAMICS S120 booksize platform and connects via standard DRIVE-CLiQ to any compatible Control Unit, including the CU320-2 DP and CU320-2 PN. It can be added to an existing drive line-up alongside other booksize Motor Modules and Line Modules without requiring changes to the control architecture, provided the Line Module has sufficient power capacity for the additional axes.

Q3: What is the recommended commissioning procedure for this module in a new installation?
Commissioning is performed using Siemens STARTER or SINAMICS Startdrive software, which automatically detects the module via DRIVE-CLiQ and guides the engineer through motor data entry, encoder configuration, and control loop optimization. Both axes should be commissioned individually before running coordinated motion sequences. ZYPLC recommends verifying DC bus voltage stability and thermal performance during initial load testing before handing over to production.

Q4: What does the 12-Month Warranty cover, and how is a warranty claim processed?
The 12-Month Warranty covers manufacturing defects, component failures, and functional faults that arise under normal operating conditions within 12 months of the shipment date. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. To initiate a warranty claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the order reference and a description of the fault. ZYPLC will arrange inspection, repair, or replacement as appropriate.
