Siemens 6SL3120-2TE21-8AA3 System-Ready Dual-Axis Motor Module for S120

Siemens 6SL3120-2TE21-8AA3 System-Ready Dual-Axis Motor Module for S120 Architecture

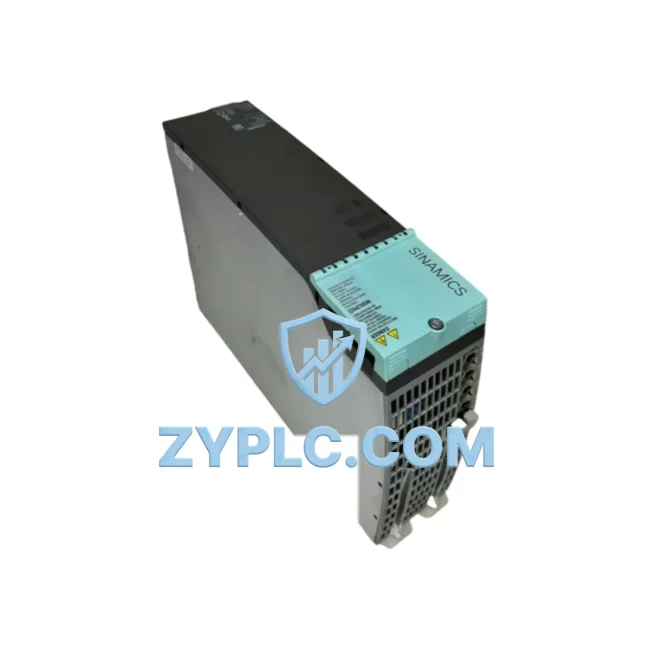

The Siemens 6SL3120-2TE21-8AA3 is a Double Motor Module designed for integration within the SINAMICS S120 booksize drive system. In modern industrial automation, a drive module does not operate in isolation — it functions as a coordinated node within a layered control architecture that spans the controller layer, power supply layer, I/O layer, communication network, human-machine interface, and the final execution layer. The 6SL3120-2TE21-8AA3 occupies the execution layer of this hierarchy, receiving torque and speed setpoints from the CU320-2 Control Unit and converting them into precise motor output for two independent axes simultaneously. This dual-axis capability makes it a highly efficient choice for machine builders seeking to reduce cabinet footprint while maintaining full per-axis control authority.

Within a complete SINAMICS S120 booksize system, the 6SL3120-2TE21-8AA3 is mounted on a shared DC bus backplane alongside the Active Line Module (ALM) — such as the 6SL3130-7TE21-6AA3 — which provides regulated DC link voltage to all connected motor modules. The DC bus architecture eliminates the need for individual AC rectifiers per axis, improving energy efficiency through regenerative braking energy exchange between axes. The Control Unit, typically a 6SL3040-1MA01-0AA0 CU320-2 DP or CU320-2 PN, communicates with the 6SL3120-2TE21-8AA3 via the DRIVE-CLiQ interface, enabling real-time parameter exchange, fault diagnostics, and firmware synchronization across the entire drive line-up.

System consistency is further reinforced through the use of SINAMICS S120 Smart Line Modules or Basic Line Modules in configurations where regenerative feedback to the grid is not required. The 6SL3120-2TE21-8AA3 integrates seamlessly with these upstream power components, maintaining stable DC link voltage under dynamic load conditions. For applications requiring high availability, the module supports redundant control architectures when paired with a SIMATIC S7-400H or S7-1500H controller via PROFIBUS DP or PROFINET IRT, ensuring that a single point of failure in the control layer does not interrupt production.

Architecture Specification Table

Coordinated Control System Design

A complete SINAMICS S120 booksize drive system built around the 6SL3120-2TE21-8AA3 typically includes the following coordinated components:

The 6SL3040-1MA01-0AA0 CU320-2 PN Control Unit serves as the central intelligence of the drive system, managing all axis setpoints, safety functions, and PROFINET communication to the SIMATIC PLC. The 6SL3130-7TE21-6AA3 Active Line Module provides the regulated DC bus voltage shared across all motor modules on the backplane. The 6SL3162-2AA00-0AA0 DRIVE-CLiQ Hub Module extends the DRIVE-CLiQ topology, allowing the CU320-2 to communicate with additional motor modules and encoder systems beyond the direct port limit.

On the I/O layer, the 6ES7521-1BL00-0AB0 SIMATIC ET 200SP Digital Input Module and associated output modules handle field-level signals — limit switches, proximity sensors, and actuator feedback — which are processed by the SIMATIC S7-1500 PLC and translated into drive commands via the PROFINET network. The 6SL3055-0AA00-4CA0 Sensor Module Cabinet-Mounted (SMC) connects motor encoders to the DRIVE-CLiQ bus, providing closed-loop position and speed feedback for each axis driven by the 6SL3120-2TE21-8AA3.

For cabinet power distribution, the 6EP1336-3BA00 SITOP PSU300S Power Supply provides 24 V DC control voltage to the CU320-2, I/O modules, and safety relays. The 3RT2 contactor series handles motor isolation and emergency stop functions in coordination with the drive’s Safe Torque Off (STO) safety function. On the HMI layer, a 6AV2124-0GC01-0AX0 SIMATIC HMI TP700 Comfort Panel provides operators with real-time axis status, fault history, and parameter visualization via PROFINET.

This coordinated architecture ensures that the 6SL3120-2TE21-8AA3 operates not as a standalone inverter, but as a fully integrated execution node within a deterministic, scalable, and maintainable control system.

Application in Layered Automation Systems

Manufacturing and Packaging Lines: In high-speed packaging machinery, the dual-axis capability of the 6SL3120-2TE21-8AA3 allows a single module to control both the infeed conveyor axis and the sealing jaw axis, reducing wiring complexity and cabinet space. The shared DC bus enables energy recovered from the decelerating sealing jaw to be immediately reused by the accelerating infeed axis, improving overall energy efficiency by up to 30% compared to individual drive configurations.

Power Generation and Utilities: In power plant auxiliary systems — such as boiler feed pump drives and induced draft fan controls — the 6SL3120-2TE21-8AA3 provides precise speed regulation under variable load conditions. Its integration with the SIMATIC S7-400H redundant controller via PROFIBUS DP ensures that drive control is maintained even during a PLC CPU switchover, meeting the high-availability requirements of power utility operations.

Petrochemical and Process Industries: In continuous process plants, the module’s STO (Safe Torque Off) and SS1 (Safe Stop 1) safety functions — certified to SIL 2 / PLd — allow safe axis shutdown without the need for external contactors, simplifying the safety circuit design and reducing maintenance intervention points. This is particularly valuable in hazardous area applications where minimizing electrical switching events reduces ignition risk.

Mining and Metallurgy: In ore conveyor and rolling mill applications, the 6SL3120-2TE21-8AA3 supports dynamic braking and regenerative operation, handling the high inertia loads typical of heavy industry. Its robust thermal management and wide ambient temperature tolerance make it suitable for installation in outdoor or semi-outdoor control rooms common in mining environments.

Water and Wastewater Treatment: Pump and blower control applications benefit from the module’s integrated motor identification and auto-tuning functions, which reduce commissioning time during plant startup. The PROFINET connectivity allows integration with SCADA systems for remote monitoring of flow rates, pressure, and drive health parameters, supporting predictive maintenance strategies.

Architecture Engineering FAQ

Q1: Is the 6SL3120-2TE21-8AA3 compatible with both synchronous and asynchronous motors in the same system?
Yes. The SINAMICS S120 platform supports vector control and servo control modes on a per-axis basis. The 6SL3120-2TE21-8AA3 can drive one synchronous servo motor on Axis 1 and one asynchronous induction motor on Axis 2 simultaneously, provided the CU320-2 Control Unit is configured with the appropriate drive objects for each axis. This flexibility is particularly useful in mixed-motion machine architectures where positioning and conveying functions share the same drive cabinet.

Q2: What are the DC bus compatibility requirements when adding the 6SL3120-2TE21-8AA3 to an existing S120 booksize system?
The 6SL3120-2TE21-8AA3 connects to the shared DC bus via the booksize backplane. The total continuous output power of all motor modules on the bus must not exceed the rated output power of the Line Module (Active, Smart, or Basic). When adding this dual-axis module to an existing system, engineers must recalculate the DC bus load balance, accounting for simultaneous peak current demands from all axes. Siemens SIZER for Siemens Drives software is recommended for accurate system sizing and thermal derating calculations.

Q3: What does the 12-Month Warranty cover, and how is long-term maintenance supported?
The 12-Month Warranty covers manufacturing defects, component failures under normal operating conditions, and DRIVE-CLiQ communication faults attributable to the module hardware. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside specified environmental limits. For long-term maintenance, ZYPLC maintains stock of the 6SL3120-2TE21-8AA3 and related S120 components, enabling rapid replacement to minimize unplanned downtime. Customers are advised to maintain one spare module per production line as part of a structured spare parts strategy, particularly for critical axes where downtime costs exceed the module replacement cost within hours of stoppage.
