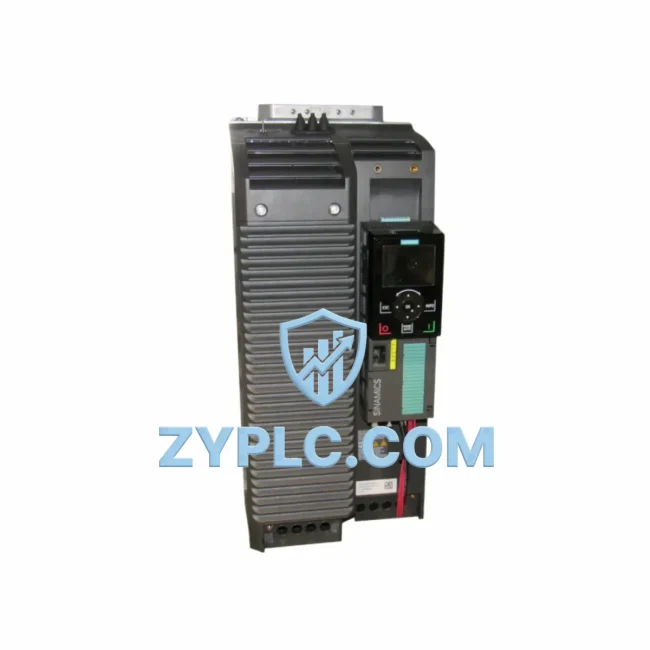

Siemens 6SL3210-1KE15-8UF2 Energy-Saving AC Drive G120C

Siemens 6SL3210-1KE15-8UF2 Energy-Saving AC Drive for Optimized G120C Automation

The Siemens 6SL3210-1KE15-8UF2 is a compact, high-efficiency AC variable frequency drive from the SINAMICS G120C series, rated at 2.2 kW (3 HP) for 3-phase 380–480 V input. Engineered for industrial environments where energy efficiency and motor control precision are critical, this drive delivers measurable reductions in power consumption, heat generation, and mechanical wear across a wide range of production line applications. Whether deployed in conveyor systems, pump stations, compressor banks, or packaging machinery, the 6SL3210-1KE15-8UF2 enables factories to move from fixed-speed operation to fully optimized variable-speed motor control — directly translating into lower electricity bills, reduced downtime, and improved overall equipment effectiveness (OEE).

Sourced from verified supply channels, each unit undergoes outgoing inspection and functional testing prior to shipment. Stock is available for immediate dispatch, backed by a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a modern energy-aware automation architecture, the 6SL3210-1KE15-8UF2 sits at the intersection of drive control and energy optimization. It does not operate in isolation — its full efficiency potential is realized when integrated with a coordinated system of sensing, control, and feedback components.

At the control layer, the drive interfaces seamlessly with the Siemens SIMATIC S7-1200 PLC or S7-1500 PLC via PROFINET or MODBUS RTU, enabling closed-loop speed regulation based on real-time process feedback. The SIMATIC HMI TP700 Comfort panel provides operators with live visibility into drive status, output frequency, and energy consumption trends — eliminating the need for manual inspection and reducing response time to process deviations.

On the power monitoring side, the Siemens SENTRON PAC3200 power meter can be deployed upstream of the drive to capture actual energy draw at the motor circuit level. Combined with the SINAMICS G120C PM240-2 Power Module architecture, this creates a complete energy metering loop that feeds data back to the control system for adaptive load management. For multi-drive installations, the SINAMICS G120 Control Unit CU240E-2 provides expanded I/O and safety functionality, while the SINAMICS G120 BOP-2 Basic Operator Panel allows local parameter configuration and fault diagnostics without a laptop or engineering tool.

At the field level, Siemens SIRIUS 3RW soft starters may be used in parallel circuits where variable speed is not required, while the 6SL3210-1KE15-8UF2 handles the variable-load motors. The SIMATIC ET 200SP distributed I/O system extends digital and analog signal collection from remote field devices — including temperature sensors, pressure transmitters, and flow meters — back to the central PLC, enabling the drive to respond dynamically to process conditions rather than running at fixed setpoints.

For applications requiring precise torque control, the Siemens SIMOTICS S-1FK7 servo motor paired with a SINAMICS S120 drive system can complement the G120C in multi-axis configurations, with the G120C managing auxiliary drives and the S120 handling precision positioning axes. This layered approach ensures that every motor in the system operates at its optimal efficiency point, rather than consuming excess energy through throttling valves, mechanical brakes, or fixed-speed overdriving.

Power Optimization in Real Production Lines

The most significant energy losses in industrial facilities occur not during peak production, but during partial-load operation, idle periods, and uncontrolled motor starts. The Siemens 6SL3210-1KE15-8UF2 directly addresses all three.

Reducing Idle Energy Waste: In conveyor and pump applications, motors running at fixed speed consume near-rated power even when throughput demand is low. By deploying the 6SL3210-1KE15-8UF2 to modulate motor speed in proportion to actual load demand — using feedback from flow sensors or production scheduling signals from the SIMATIC S7 PLC — factories can reduce motor energy consumption by 30–50% during low-demand periods. This is particularly impactful in multi-shift operations where equipment runs continuously but production volume varies by shift.

Eliminating Mechanical Stress and Unplanned Downtime: Across-the-line motor starts generate inrush currents 6–8 times the rated motor current, causing thermal stress on windings, mechanical shock on couplings, and accelerated bearing wear. The G120C’s built-in soft-start and ramp-down functions eliminate these stress events entirely, extending motor service life and reducing the frequency of unplanned maintenance interventions. Predictive maintenance becomes more achievable when the drive’s onboard diagnostics — accessible via the BOP-2 panel or through PROFINET to the SCADA system — provide early warning of motor overload, phase imbalance, or thermal derating conditions.

Optimizing Production Line Rhythm: In packaging and assembly lines, precise speed synchronization between multiple drive axes is essential for maintaining product quality and minimizing waste. The 6SL3210-1KE15-8UF2 supports master-follower speed control configurations via the SIMATIC PLC, allowing line speed to be adjusted centrally without manual intervention at each drive. This reduces changeover time, improves line balance, and ensures that energy is consumed only when and where it is needed.

Inventory Availability and Outgoing Testing: Every 6SL3210-1KE15-8UF2 unit in stock has been subject to functional verification testing prior to dispatch, including input/output voltage checks, parameter initialization, and communication interface validation. Units are shipped with original or equivalent packaging to prevent transit damage. The 12-month warranty covers all confirmed manufacturing defects and operational failures arising under normal industrial operating conditions, with direct technical support available through ZYPLC’s engineering team.

Energy Optimization FAQ

Q1: How much energy can the 6SL3210-1KE15-8UF2 save compared to a direct-on-line motor starter?
In variable-torque applications such as pumps and fans, energy savings of 30–50% are typical when replacing a direct-on-line (DOL) starter with the SINAMICS G120C drive. The actual saving depends on the load profile, duty cycle, and the degree to which motor speed can be reduced below rated speed. Even a 20% reduction in motor speed results in approximately 49% reduction in power consumption, following the affinity laws for centrifugal loads.

Q2: Is the 6SL3210-1KE15-8UF2 compatible with my existing Siemens PLC and SCADA system?
Yes. The drive supports USS and MODBUS RTU communication natively, and can be extended to PROFIBUS DP or PROFINET IO via optional communication modules. It is fully compatible with the SIMATIC S7-300, S7-1200, and S7-1500 PLC families, and can be integrated into TIA Portal-based engineering environments for parameter configuration, diagnostics, and energy monitoring. Existing SCADA systems using OPC-UA or MODBUS can also interface with the drive through the PLC gateway.

Q3: Can this drive replace an older SINAMICS G110 or MICROMASTER 420 unit without rewiring?
In most cases, yes. The SINAMICS G120C is designed as a compact replacement for legacy Siemens drives in the same power class. Terminal assignments for power and control wiring are largely compatible, and parameter migration tools within TIA Portal simplify the configuration transfer process. It is recommended to verify the motor nameplate data and control wiring diagram before replacement, and to perform a no-load test run before returning the motor to production service.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects, component failures, and operational malfunctions arising under normal industrial use conditions. It does not cover damage resulting from incorrect installation, overvoltage events, environmental contamination beyond the drive’s IP rating, or unauthorized modifications. To initiate a warranty claim, contact ZYPLC’s technical support team with the unit serial number, fault code, and a description of the failure mode. Replacement or repair will be arranged within the warranty period at no additional cost to the buyer.
