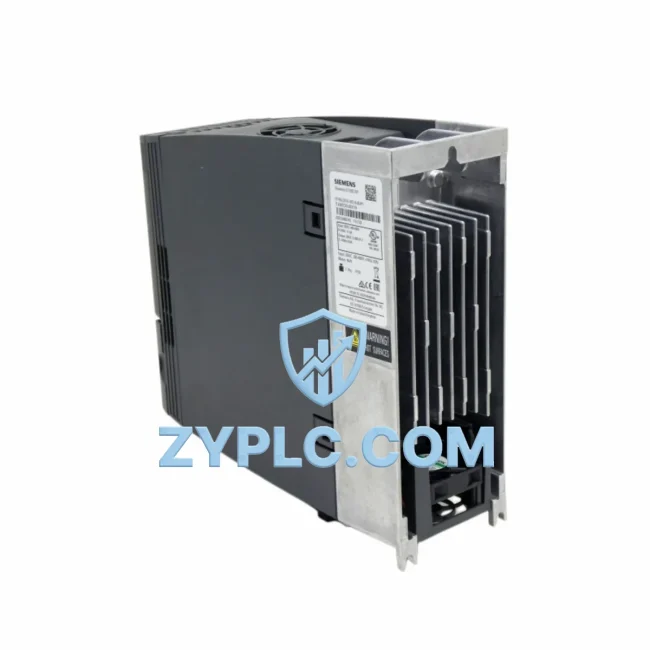

The Siemens 6SL3210-1KE18-8UP1 is a compact, high-efficiency AC inverter drive from the SINAMICS G120C series, rated at 4 kW (5.5 HP) for three-phase 380–480 V applications. Designed for demanding industrial environments, this drive delivers precise motor speed and torque control, enabling factories to dramatically reduce energy consumption, minimize idle losses, and optimize production line throughput — all within a space-saving footprint that integrates seamlessly into existing automation architectures.

In modern manufacturing, uncontrolled motor operation is one of the largest sources of avoidable energy waste. The 6SL3210-1KE18-8UP1 addresses this directly through its built-in energy-saving algorithms, which continuously adapt output frequency and voltage to match actual load demand. Rather than running motors at fixed speed regardless of process requirements, this drive modulates power delivery in real time — reducing reactive power draw, lowering heat generation, and extending motor service life. Facilities that deploy this drive across pump, fan, conveyor, and compressor applications routinely report energy savings of 20–50% compared to direct-on-line motor starts.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6SL3210-1KE18-8UP1 is engineered to function as a core node within a fully integrated, energy-aware automation system. In a typical deployment, a SIMATIC S7-1200 PLC or S7-1500 PLC acts as the central controller, issuing speed setpoints and operational commands to the G120C drive via PROFINET IO or onboard MODBUS RTU. This tight integration eliminates the latency and signal degradation associated with analog control wiring, enabling sub-millisecond response to process changes and ensuring the motor operates only at the speed the process actually demands.

For energy monitoring and power quality analysis, the G120C’s built-in power measurement functions can be supplemented by dedicated instruments such as the SENTRON PAC3200 or PAC4200 power monitoring devices, which log real-time kWh consumption, power factor, and harmonic distortion data. This data feeds back into the SIMATIC controller or a SIMATIC HMI TP700 Comfort panel, giving operators a live dashboard of energy consumption per production zone — a critical capability for ISO 50001 energy management compliance.

On the I/O side, the drive’s digital and analog inputs interface directly with SIMATIC ET 200SP distributed I/O modules, allowing remote start/stop, fault acknowledgment, and speed reference signals to be managed from a centralized control cabinet without running dedicated control cables to each drive. For applications requiring precise positioning — such as servo-driven cutting or indexing stations adjacent to the G120C-controlled conveyor — a SINAMICS S120 servo drive system can operate in parallel, with both drive families sharing a common SINAMICS CU320-2 Control Unit for coordinated motion and energy management.

In facilities running PROFIBUS DP legacy networks, the G120C accommodates a PROFIBUS option module (6SL3255-0AA00-4CA1), enabling seamless integration alongside existing SIMATIC S7-300 or S7-400 controllers without requiring a network infrastructure upgrade. This backward compatibility protects capital investment while still delivering the energy efficiency gains of modern variable-speed drive technology. Additionally, the SINAMICS G120 BOP-2 Basic Operator Panel provides local parameter access and fault diagnostics, reducing the need for laptop-based commissioning tools during routine maintenance visits.

Power Optimization in Real Production Lines

Consider a bottling plant running a 4 kW cooling water circulation pump at fixed speed, 24 hours a day, 365 days a year. With a direct-on-line starter, the pump draws full power regardless of whether the line is running at full capacity or sitting idle between batches. Installing the 6SL3210-1KE18-8UP1 and programming a simple PID loop — with a pressure transmitter as the process variable — allows the drive to reduce pump speed during low-demand periods. At 80% speed, the pump consumes only 51% of its rated power (following the affinity laws for centrifugal loads). Over a year, this translates to thousands of kilowatt-hours saved and a measurable reduction in electricity costs.

Beyond energy savings, variable-speed starting eliminates the mechanical shock of across-the-line motor starts. Belts, couplings, gearboxes, and impellers all experience significantly lower stress, extending mean time between failures (MTBF) and reducing unplanned downtime. Maintenance teams report fewer bearing replacements and seal failures on pump and fan applications after transitioning from fixed-speed to G120C-controlled operation. The drive’s integrated Safe Torque Off (STO) safety function — certified to SIL 2 / PLd — also eliminates the need for external safety contactors in many machine safety circuits, further reducing panel complexity and component count.

For production line throughput optimization, the G120C’s flying restart function allows the drive to reconnect to a spinning motor without stopping it first — critical in applications like large fans or centrifuges where a full stop-and-restart cycle would waste minutes of production time. Combined with the drive’s kinetic buffering capability, which uses the motor’s own inertia to ride through brief power interruptions, the 6SL3210-1KE18-8UP1 helps maintain production line continuity even in facilities with unstable grid supply.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, including power-on verification, parameter integrity check, and output voltage balance measurement across all three phases. Units are shipped in original or equivalent protective packaging with full documentation. A 12-Month Warranty covers manufacturing defects and component failures under normal operating conditions, with technical support available throughout the warranty period.

Energy Optimization FAQ

Q1: How much energy can the 6SL3210-1KE18-8UP1 save compared to a direct-on-line motor starter?
For variable-torque loads such as pumps and fans, energy savings of 20–50% are typical, depending on the load profile and duty cycle. The savings are most significant when the process frequently operates below full speed — for example, a pump running at 70% speed consumes only 34% of its full-load power due to the cubic relationship between speed and power in centrifugal applications.

Q2: Is the 6SL3210-1KE18-8UP1 compatible with SIMATIC S7-1200 and S7-1500 PLCs?
Yes. The SINAMICS G120C communicates natively with SIMATIC S7-1200 and S7-1500 controllers via PROFINET IO using the standard SINAMICS GSD device description file. For PROFIBUS-based systems including S7-300 and S7-400, a PROFIBUS option module is available. Onboard USS and MODBUS RTU interfaces provide additional flexibility for third-party controller integration.

Q3: Can this drive replace an older SINAMICS G110 or Micromaster 420 in an existing installation?
In most cases, yes. The G120C shares the same motor control parameter structure as earlier SINAMICS and Micromaster series drives, and Siemens provides migration guides for common replacement scenarios. Terminal assignments and mounting dimensions may differ, so a brief engineering review is recommended before substitution. ZYPLC’s technical team can assist with compatibility assessment upon request.

Q4: What does the 12-Month Warranty cover, and what is the testing process before shipment?
The 12-Month Warranty covers defects in materials and workmanship under normal operating conditions from the date of shipment. Prior to dispatch, every unit undergoes a pre-shipment test protocol including power-on self-test, parameter default verification, and three-phase output voltage measurement. Units that fail any test criterion are quarantined and not shipped. Warranty claims are processed through ZYPLC’s after-sales support channel, with replacement or repair turnaround typically within 5–10 business days.
