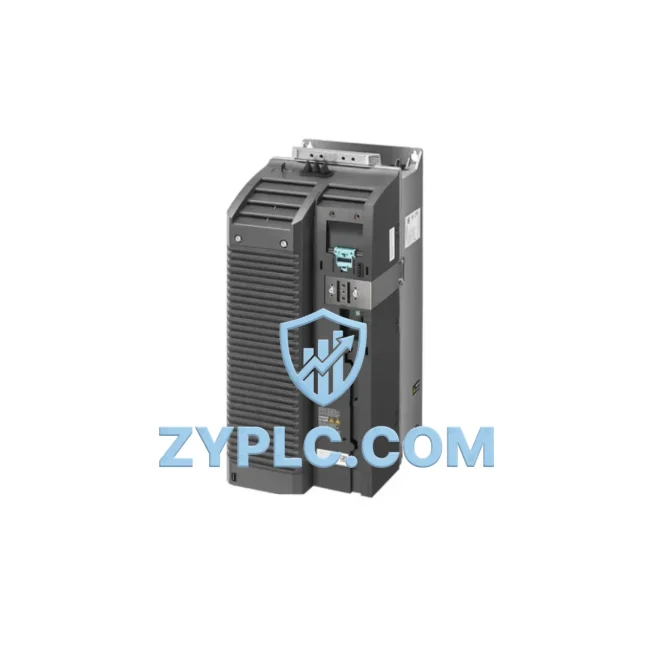

Siemens 6SL3210-1NE31-1UL0 Energy-Saving AC Drive Module

Siemens 6SL3210-1NE31-1UL0 Energy-Saving AC Drive Power Module for Optimized SINAMICS S120 Automation

The Siemens 6SL3210-1NE31-1UL0 is a high-performance AC Drive Power Module from the SINAMICS S120 series, engineered to deliver precise motor control, measurable energy savings, and reliable operation across demanding industrial production environments. Designed for vector control and servo-class drive applications, this power module enables factories to reduce unnecessary energy consumption, improve equipment utilization rates, and optimize production line cycle times — all within a compact, booksize form factor that integrates seamlessly into existing S120 drive architectures.

At ZYPLC, every unit of the 6SL3210-1NE31-1UL0 is sourced from verified supply channels, pre-shipment tested for output performance and thermal stability, and backed by a 12-month warranty. Stock is available for immediate dispatch, supporting urgent maintenance and planned expansion projects alike.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6SL3210-1NE31-1UL0 does not operate in isolation — its energy optimization value is fully realized when integrated into a coordinated SINAMICS S120 drive system. The module connects directly to a SINAMICS S120 Control Unit CU320-2 PN via the DRIVE-CLiQ interface, enabling real-time torque and speed regulation with millisecond response. This tight coupling between the power module and control unit eliminates the energy waste associated with open-loop motor operation.

On the DC bus side, the 6SL3210-1NE31-1UL0 shares a common DC link with other S120 booksize modules, allowing regenerative energy from decelerating axes to be redistributed to accelerating drives — a key feature when paired with a SINAMICS S120 Active Line Module (ALM) such as the 6SL3130-6AE21-0AB1. This active infeed topology not only stabilizes the DC bus voltage but also feeds braking energy back into the plant grid, directly reducing net energy consumption at the cabinet level.

For multi-axis CNC or robotic applications, the power module works in concert with SINAMICS S120 Double Motor Modules (e.g., 6SL3120-2TE21-0AA3) to drive servo axes with synchronized motion profiles. The SIMOTICS S-1FK7 servo motors, commonly paired with S120 drives, benefit from the precise PWM output of the 6SL3210-1NE31-1UL0, achieving higher positioning accuracy while minimizing reactive power losses.

Energy monitoring is handled upstream by the SENTRON PAC3200 power monitoring device, which captures real-time power factor, harmonic distortion, and energy consumption data at the panel level. When this data is fed into a SIMATIC S7-1500 PLC via PROFINET, production engineers gain full visibility into drive-level energy consumption, enabling demand-side management and load-shifting strategies that reduce peak energy costs.

At the field level, SIMATIC ET 200SP distributed I/O modules collect process signals — motor temperature, vibration feedback, and load current — and relay them to the S7-1500 for predictive maintenance logic. This closed-loop architecture means the 6SL3210-1NE31-1UL0 is not just a drive module; it is a data-generating node in a plant-wide energy intelligence system. Complementing this, a SIMATIC HMI TP1200 Comfort Panel provides operators with real-time drive status, energy trend graphs, and alarm management at the machine level, reducing response time to abnormal operating conditions.

For plants running PROFIBUS-DP legacy infrastructure, the 6SL3210-1NE31-1UL0 supports integration via the CU320-2 DP Control Unit, ensuring backward compatibility without sacrificing drive performance. Where network modernization is underway, the module transitions smoothly to PROFINET-based topologies alongside SCALANCE X208 industrial Ethernet switches, maintaining deterministic communication latency critical for coordinated multi-drive motion.

Power Optimization in Real Production Lines

In a typical manufacturing facility running continuous conveyor systems, compressors, or large pump arrays, fixed-speed motor operation represents one of the largest sources of avoidable energy waste. The 6SL3210-1NE31-1UL0 addresses this directly by enabling variable frequency drive (VFD) control of 110 kW induction motors, matching motor output precisely to actual process demand rather than running at full speed regardless of load.

Consider a packaging line where conveyor speed must vary between product changeovers. Without drive control, the motor runs at rated speed continuously, consuming full power even during low-throughput periods. With the 6SL3210-1NE31-1UL0 managing motor speed via the S120 control architecture, conveyor velocity is adjusted dynamically — reducing energy draw proportionally to the cube of speed reduction. A 20% speed reduction translates to approximately 49% less power consumption, a saving that compounds across multiple drives on the same production line.

Beyond energy savings, the module’s integrated motor protection functions — including overcurrent detection, thermal modeling, and stall prevention — reduce unplanned downtime caused by motor failures. Predictive maintenance routines, triggered by the SIMATIC S7-1500 based on drive load history and thermal trends, allow maintenance teams to schedule interventions during planned stops rather than reacting to emergency breakdowns. This shift from reactive to predictive maintenance directly improves Overall Equipment Effectiveness (OEE) and reduces the cost per production hour.

For facilities with multiple S120 drive cabinets, the common DC bus architecture enabled by the 6SL3210-1NE31-1UL0 allows energy regenerated during braking cycles to be consumed by adjacent accelerating drives within the same cabinet. This internal energy recycling reduces the net power drawn from the grid during high-dynamic motion cycles, lowering both energy bills and peak demand charges — a measurable financial benefit in facilities with time-of-use electricity tariffs.

All units supplied by ZYPLC undergo pre-shipment functional testing, including output voltage waveform verification, insulation resistance checks, and thermal run-in, ensuring that the 6SL3210-1NE31-1UL0 arrives ready for installation without additional commissioning delays. Combined with the 12-month warranty and in-stock availability, this makes ZYPLC a reliable supply partner for both planned capital projects and urgent replacement scenarios.

Energy Optimization FAQ

Q1: How much energy can the 6SL3210-1NE31-1UL0 save compared to a direct-on-line motor starter?
In variable-torque applications such as pumps and fans, replacing a direct-on-line (DOL) starter with the 6SL3210-1NE31-1UL0 and SINAMICS S120 drive system can reduce motor energy consumption by 30–50%, depending on the actual load profile. The savings are greatest in applications where the motor previously ran at full speed regardless of process demand.

Q2: Is the 6SL3210-1NE31-1UL0 compatible with existing SINAMICS S120 booksize cabinets?
Yes. The 6SL3210-1NE31-1UL0 is a standard SINAMICS S120 booksize power module and is mechanically and electrically compatible with existing S120 booksize infrastructure, including shared DC bus rails, DRIVE-CLiQ wiring, and CU320-2 control units. No cabinet modifications are required for like-for-like replacement.

Q3: What is the recommended replacement procedure and testing process?
For replacement installations, ZYPLC recommends: (1) de-energize the drive cabinet and discharge the DC bus capacitors per Siemens safety guidelines; (2) disconnect DRIVE-CLiQ, power, and motor cables from the existing module; (3) install the 6SL3210-1NE31-1UL0 and reconnect all cables; (4) restore power and perform a STARTER or TIA Portal commissioning check to verify parameter upload and motor identification. Each unit shipped by ZYPLC has been pre-tested, reducing the risk of commissioning failures.

Q4: What does the 12-month warranty from ZYPLC cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If the 6SL3210-1NE31-1UL0 fails within the warranty period due to a verified product defect, ZYPLC will arrange replacement or repair. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the rated specifications. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 for warranty claims and technical support.
