Siemens 6SL3210-5FE11-5UF0 Energy-Saving Servo Drive S210

Siemens 6SL3210-5FE11-5UF0 Energy-Saving Servo Drive for Optimized S210 Automation

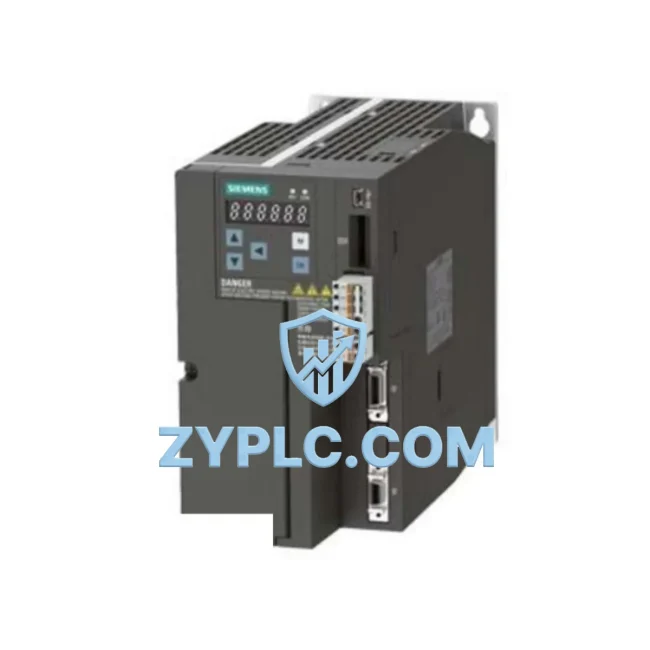

The Siemens 6SL3210-5FE11-5UF0 is a single-axis servo drive power module from the SINAMICS S210 series, rated at 1.5 kW / 5 A. Engineered for precision motion control and energy-conscious industrial automation, this module delivers closed-loop torque and speed regulation that directly reduces unnecessary power draw across production lines. Whether deployed in packaging machinery, CNC tooling stations, or assembly conveyor systems, the 6SL3210-5FE11-5UF0 enables factories to achieve tighter cycle times while measurably cutting energy consumption per production unit.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a fully optimized drive system, the 6SL3210-5FE11-5UF0 does not operate in isolation — it functions as the precision execution layer within a broader energy-aware automation architecture. At the control level, a SIMATIC S7-1500 PLC issues motion commands via PROFINET, coordinating multi-axis positioning with deterministic cycle times. The S210 drive receives these commands through its integrated DRIVE-CLiQ interface, enabling real-time encoder feedback from the paired SIMOTICS S-1FK2 servo motor without additional signal converters, which itself reduces wiring losses and communication latency.

On the power supply side, the SINAMICS S210 system relies on a dedicated single-phase or three-phase Smart Line Module or a compact Power Module to condition incoming AC voltage before it reaches the 6SL3210-5FE11-5UF0. When multiple axes are active, a SINAMICS S210 booksize cabinet kit or a shared DC bus configuration allows regenerative braking energy from decelerating axes to be redistributed to accelerating axes — a direct reduction in net energy drawn from the grid.

For energy monitoring and reporting, integrating a SENTRON PAC3200 power meter or a SIMATIC ET 200SP energy measurement module into the same PROFINET network allows plant engineers to log per-drive power consumption in real time. This data feeds into a SIMATIC Energy Manager or a TIA Portal energy dashboard, where consumption trends per production shift can be analyzed and threshold alerts configured. When paired with a SIMATIC HMI Comfort Panel such as the TP700 or TP1200, operators gain live visibility into drive load, motor temperature, and energy cost per cycle — enabling informed decisions about speed setpoints and torque limits without sacrificing throughput.

At the field level, SIMATIC ET 200SP distributed I/O modules handle digital and analog signals from sensors, limit switches, and safety relays, feeding process state data back to the S7-1500 controller. This closed-loop architecture ensures that the 6SL3210-5FE11-5UF0 only delivers the torque and speed demanded by the actual process load — not a fixed worst-case profile — which is the fundamental mechanism behind its energy efficiency advantage in variable-load applications.

Power Optimization in Real Production Lines

In a typical servo-driven packaging line running 16 hours per day, motor drives operating at fixed speed profiles waste energy during low-demand phases such as product changeovers, label registration pauses, and conveyor indexing delays. The 6SL3210-5FE11-5UF0, operating under closed-loop vector control, continuously adjusts output frequency and voltage to match the instantaneous mechanical load. This dynamic adaptation can reduce energy consumption during partial-load phases by 20–35% compared to open-loop or fixed-speed alternatives, depending on the duty cycle profile.

Beyond energy savings, the S210’s integrated safety functions — including Safe Torque Off (STO) and Safe Stop 1 (SS1) — eliminate the need for external safety contactors on many machine designs. Fewer contactors mean fewer switching losses, reduced panel heat generation, and lower cooling energy requirements for the electrical cabinet. This cascading efficiency benefit is often overlooked in simple drive-level energy audits but becomes significant at the system level across a multi-axis machine.

Predictive maintenance is another dimension where the 6SL3210-5FE11-5UF0 contributes to operational efficiency. The drive continuously monitors motor current signatures, thermal load, and encoder feedback quality. Deviations from baseline patterns — such as rising current draw at constant load, which may indicate bearing wear or mechanical misalignment — can be surfaced as diagnostic alarms through PROFINET to the SIMATIC S7-1500 controller, allowing maintenance teams to schedule interventions during planned downtime rather than responding to unplanned failures. This shift from reactive to predictive maintenance directly reduces mean downtime per year and improves overall equipment effectiveness (OEE).

For production lines with frequent recipe changes or product variants, the S210’s fast commissioning via the SINAMICS Startdrive tool in TIA Portal allows engineers to re-parameterize speed profiles, torque limits, and ramp times in minutes rather than hours. This agility reduces the energy wasted during extended manual tuning sessions and shortens the time between production runs.

Every unit of the 6SL3210-5FE11-5UF0 supplied by ZYPLC undergoes a pre-shipment functional test covering input/output voltage verification, DRIVE-CLiQ communication handshake, and load simulation at rated current. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Stock is maintained for immediate dispatch, supporting both urgent replacement requirements and planned system expansions.

Energy Optimization FAQ

Q1: How much energy can the 6SL3210-5FE11-5UF0 save compared to a standard induction motor starter?
In variable-load servo applications, closed-loop vector control in the S210 drive eliminates the constant full-voltage excitation typical of direct-on-line starters. Depending on the load profile, energy savings of 20–40% per axis are achievable in intermittent-duty cycles. Actual savings depend on duty cycle, load variation, and baseline motor sizing.

Q2: Is the 6SL3210-5FE11-5UF0 compatible with existing SIMATIC S7-300 or S7-400 controllers?
The S210 series is optimized for SIMATIC S7-1500 and S7-1200 via PROFINET IRT. Integration with S7-300/400 systems is possible via PROFINET but may require additional configuration in STEP 7 or a protocol gateway. For legacy system compatibility, consult the SINAMICS S210 function manual or contact ZYPLC technical support for application-specific guidance.

Q3: What is the recommended replacement or upgrade path if the original 6SL3210-5FE11-5UF0 is discontinued or damaged?
The 6SL3210-5FE11-5UF0 is a current-production Siemens part. In the event of physical damage, ZYPLC maintains stock for direct replacement. For capacity upgrades, the next power tier in the S210 series — such as the 6SL3210-5FE12-0UF0 (2.0 kW) — offers a pin-compatible form factor with the same DRIVE-CLiQ and PROFINET interfaces, minimizing re-engineering effort.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All units supplied by ZYPLC are tested prior to shipment for input voltage acceptance, output current delivery, DRIVE-CLiQ communication integrity, and thermal performance under simulated load. The 12-month warranty covers functional failures attributable to manufacturing defects or component failure under normal operating conditions. It does not cover damage from incorrect installation, overvoltage events, or unauthorized modification. Warranty claims are processed directly through ZYPLC with a target response time of 48 hours.
