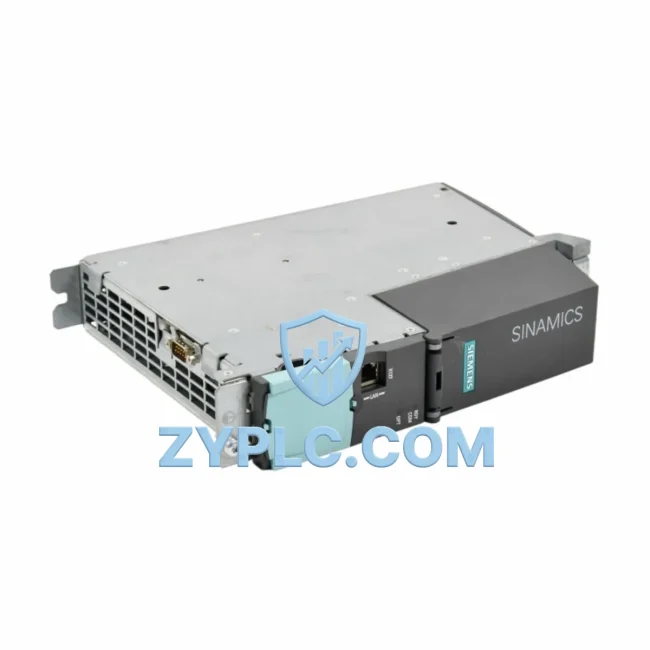

Siemens 6SL3217-0CE27-5UA1 Energy-Saving Inverter SINAMICS V10

Siemens 6SL3217-0CE27-5UA1 Energy-Saving Inverter SINAMICS V10: Precision Motor Control for Optimized Production Lines

The Siemens 6SL3217-0CE27-5UA1 is a 7.5 kW variable frequency drive (VFD) from the SINAMICS V10 series, engineered to deliver measurable energy savings and reliable motor control in demanding industrial environments. Designed for three-phase induction motor applications, this inverter enables factories to reduce unnecessary power consumption, extend motor service life, and maintain consistent production line throughput — all within a compact, DIN-rail-mountable enclosure.

Unlike fixed-speed motor starters, the 6SL3217-0CE27-5UA1 continuously adjusts output frequency and voltage to match actual load demand. In pump, fan, conveyor, and compressor applications, this variable-speed operation alone can reduce energy consumption by 30–50% compared to throttle-valve or damper-based control methods. Every unit shipped by ZYPLC undergoes full functional testing and is backed by a 12-month warranty.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6SL3217-0CE27-5UA1 does not operate in isolation — its full energy-saving potential is realized when integrated into a well-designed automation architecture. In a typical SINAMICS V10 deployment, the drive receives speed reference signals from a SIMATIC S7-1200 PLC via the onboard USS protocol interface, allowing the controller to dynamically adjust motor speed based on real-time process feedback. For more complex multi-axis or multi-drive systems, the SIMATIC S7-1500 with PROFINET communication provides centralized coordination across multiple inverter nodes.

On the field level, SIMATIC ET 200SP distributed I/O modules collect analog signals from pressure transmitters, flow meters, and temperature sensors, feeding process data back to the PLC. This closed-loop feedback ensures the 6SL3217-0CE27-5UA1 operates at the minimum speed necessary to meet process demand — eliminating the energy waste associated with constant-speed operation. When paired with a SENTRON PAC3200 power monitoring device, operators gain real-time visibility into active power draw, power factor, and harmonic distortion at the drive output, enabling data-driven energy audits.

For operator interaction, a SIMATIC HMI KTP700 Basic panel provides a clear interface for setting speed references, monitoring drive status, and acknowledging faults — reducing the need for manual intervention on the production floor. In applications where the 6SL3217-0CE27-5UA1 drives a pump or fan in parallel with other units, the SINAMICS V20 series can serve as a cost-effective companion drive for auxiliary motors, maintaining system balance without over-specifying the main drive. For servo-driven positioning axes on the same production line, the SINAMICS S120 drive system handles high-dynamic motion control while the V10 manages the energy-intensive bulk-flow loads.

Communication integrity is maintained through Modbus RTU over RS-485, which the 6SL3217-0CE27-5UA1 supports natively, enabling seamless integration with SCADA systems and third-party energy management platforms. A SITOP PSU100S 24V DC power supply provides stable control-circuit voltage to the drive’s logic board and connected I/O, protecting against voltage fluctuations that could trigger nuisance trips and unplanned downtime.

Power Optimization in Real Production Lines

In a bottling plant running a 7.5 kW centrifugal pump, replacing a direct-on-line starter with the Siemens 6SL3217-0CE27-5UA1 and reducing average pump speed from 100% to 80% of rated speed reduces power consumption to approximately 51% of full-load demand — a direct consequence of the affinity laws governing centrifugal machines. Over a three-shift, 6,000-hour annual operating cycle, this translates to tens of thousands of kWh saved per motor, with payback periods typically under 18 months.

Beyond energy savings, variable-speed starting eliminates the high inrush currents associated with direct-on-line starting, reducing mechanical stress on couplings, gearboxes, and conveyor belts. This directly extends mean time between failures (MTBF) for driven equipment and reduces unplanned maintenance events. The drive’s built-in motor protection functions — including overcurrent, overvoltage, undervoltage, and overtemperature monitoring — act as a first line of defense, catching fault conditions before they escalate into costly motor burnouts or production stoppages.

For predictive maintenance integration, the drive’s fault history and operating hour counters can be polled via Modbus RTU by a SCADA or MES system, providing early warning indicators for bearing wear, belt slip, or pump cavitation. This data-driven approach shifts maintenance from reactive to condition-based, reducing spare parts consumption and improving overall equipment effectiveness (OEE). ZYPLC maintains ready stock of the 6SL3217-0CE27-5UA1 to support rapid replacement in the event of drive failure, minimizing production downtime. All units are tested prior to dispatch and covered by a 12-month warranty.

Energy Optimization FAQ

Q1: How much energy can the 6SL3217-0CE27-5UA1 save compared to a direct-on-line motor starter?
In variable-torque applications such as pumps and fans, energy savings of 30–50% are typical when average operating speed is reduced by 20–30% of rated speed. The cubic relationship between speed and power in centrifugal loads means even modest speed reductions yield significant energy reductions. Actual savings depend on load profile, duty cycle, and baseline operating conditions.

Q2: Is the 6SL3217-0CE27-5UA1 compatible with Siemens SIMATIC S7 PLCs and Modbus RTU systems?
Yes. The SINAMICS V10 series supports USS protocol over RS-485 for direct integration with SIMATIC S7-1200 and S7-300 controllers. Modbus RTU is also supported, enabling connectivity with third-party PLCs, SCADA platforms, and energy management systems. Parameter configuration can be performed via the BOP (Basic Operator Panel) or through STARTER / Startdrive commissioning software.

Q3: Can this drive replace an older SINAMICS V10 or Micromaster 420 unit without rewiring?
The 6SL3217-0CE27-5UA1 is dimensionally and functionally compatible with other SINAMICS V10 7.5 kW variants. When replacing a Micromaster 420 (6SE6420 series), terminal mapping and parameter migration should be reviewed, as control terminal assignments differ. ZYPLC recommends consulting the SINAMICS V10 operating instructions and, where needed, our technical team can advise on parameter transfer and wiring adaptation.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every 6SL3217-0CE27-5UA1 unit supplied by ZYPLC is tested under load conditions prior to shipment to verify correct output frequency, voltage regulation, fault response, and communication function. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with protective packaging to prevent transit damage. For warranty claims or technical support, contact ZYPLC at [email protected] or +86 19859288691.
