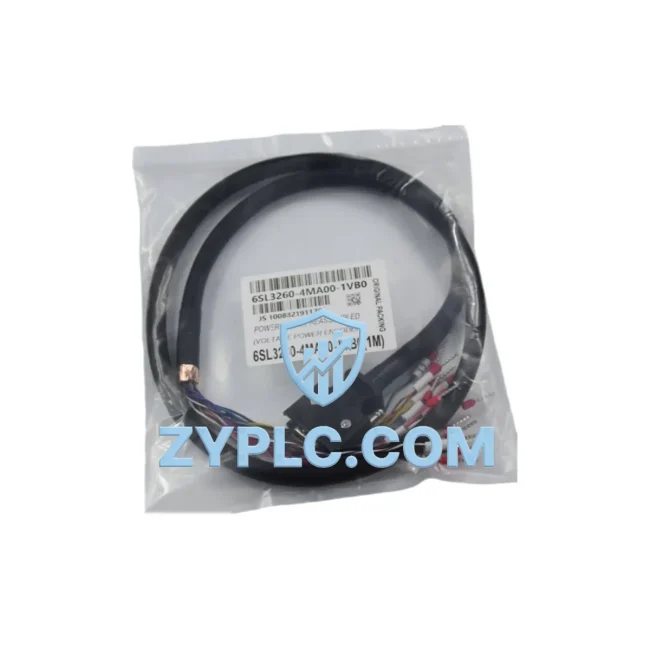

Siemens 6SL3260-4MA00-1VB0 System-Ready I/O Cable for S120 Architecture

Siemens 6SL3260-4MA00-1VB0 System-Ready I/O Cable for S120 Architecture: Precision Signal Routing Across the Control System Data Chain

In modern industrial automation, the integrity of a drive system depends not only on the intelligence of its controllers but equally on the physical signal pathways that bind every layer of the architecture together. The Siemens 6SL3260-4MA00-1VB0 is a factory-engineered I/O signal cable designed specifically for the SINAMICS S120 drive platform, providing a reliable, low-noise, and mechanically robust connection between the Control Unit and its associated I/O expansion modules. Far from being a passive component, this cable is a precision-engineered element of the S120 system architecture — one that directly influences signal fidelity, commissioning speed, and long-term maintenance efficiency across the full control hierarchy.

The SINAMICS S120 platform is built around a modular, booksize architecture in which the Control Unit — such as the CU320-2 DP or CU320-2 PN — coordinates multiple Motor Modules, Power Modules, and I/O expansion boards through a tightly integrated signal and power backbone. The 6SL3260-4MA00-1VB0 cable serves as the physical link between the Control Unit and terminal expansion boards such as the TB30 Terminal Board or the TM31 Terminal Module, enabling the system to extend its digital and analog I/O capacity without compromising signal timing or electrical isolation. This is particularly critical in multi-axis configurations where the CU320-2 must simultaneously manage encoder feedback, safety signals, and process I/O across several drive axes.

Architecture Specification Table

Coordinated Control System Design

The 6SL3260-4MA00-1VB0 does not operate in isolation — it is a structural element within a coordinated S120 drive system. Understanding its role requires mapping the full signal flow from the upper control layer down to the actuator level.

At the top of the architecture, a Siemens SIMATIC S7-1500 PLC or S7-300 CPU communicates with the SINAMICS S120 Control Unit via PROFIBUS DP or PROFINET IO, issuing speed references, torque commands, and process setpoints. The CU320-2 PN Control Unit receives these commands and distributes them across the drive axes through the DRIVE-CLiQ communication backbone — a proprietary high-speed serial interface that connects the Control Unit to Smart Line Modules, Motor Modules, and encoder systems without additional wiring complexity.

The 6SL3260-4MA00-1VB0 cable enters the architecture at the I/O expansion layer. When the CU320-2 requires additional digital inputs for external interlocks, emergency stop circuits, or process feedback signals, or additional analog outputs for setpoint transmission to downstream actuators, the TM31 Terminal Module or TB30 Terminal Board is mounted in the drive rack and connected to the Control Unit via this cable. The cable carries both the I/O signals and the internal power supply for the terminal module, simplifying cabinet wiring and reducing the number of separate power feeds required.

In multi-axis servo systems — for example, a packaging machine with six coordinated servo axes — the CU320-2 DP manages all axes simultaneously while the TM41 Terminal Module (connected via the 6SL3260-4MA00-1VB0) provides the encoder simulation output needed to synchronize the S120 drive with an upstream master encoder or a Siemens SIMOTION D motion controller. This integration is essential for electronic gearing and cam synchronization applications where microsecond-level timing accuracy is required.

At the power layer, the S120 system relies on a Smart Line Module or Basic Line Module to provide the DC bus voltage shared across all Motor Modules in the booksize rack. The stability of this DC bus directly affects the quality of the I/O signals carried by the 6SL3260-4MA00-1VB0, making proper line filter selection — such as the Siemens 6SL3000 series line filters — an important consideration during system design. At the field level, Siemens SIMOTICS servo motors with integrated DRIVE-CLiQ encoders feed back position and speed data to the Control Unit, completing the closed-loop control chain.

For human-machine interface integration, a Siemens SIMATIC HMI panel — such as the KTP700 Basic or TP1500 Comfort — connects to the S7-1500 PLC via PROFINET, providing operators with real-time visibility into drive status, fault codes, and process variables. The I/O signals routed through the 6SL3260-4MA00-1VB0 cable — including digital status outputs and analog feedback channels — are mapped into the PLC’s process image and made available to the HMI for display and alarm management.

Application in Layered Automation Systems

The 6SL3260-4MA00-1VB0 finds application across a wide range of industries where the SINAMICS S120 platform is deployed as the primary drive solution.

In automotive manufacturing, S120 multi-axis systems control welding robots, transfer lines, and press feeders. The I/O expansion provided by the TM31 — connected via the 6SL3260-4MA00-1VB0 — handles the discrete signals from safety light curtains, part-present sensors, and pneumatic valve feedback, integrating them directly into the drive’s safety logic without routing through a separate safety PLC.

In paper and printing machinery, web tension control requires precise analog setpoint transmission between the master controller and individual drive axes. The analog I/O channels of the TM31 Terminal Module, accessed through the 6SL3260-4MA00-1VB0 cable, provide the ±10 V reference signals needed for tension regulation across unwind, draw, and rewind sections.

In water and wastewater treatment, S120 drives control high-power pump and blower motors. The I/O expansion modules connected via the 6SL3260-4MA00-1VB0 provide the digital status outputs needed for SCADA integration — reporting run/stop status, fault conditions, and energy consumption data to the plant’s distributed control system.

In petrochemical and process industries, where continuous operation is mandatory, the ability to replace the 6SL3260-4MA00-1VB0 cable during a planned maintenance window — without disturbing the Control Unit or the terminal module — significantly reduces downtime risk. The pre-assembled, keyed connectors ensure correct reinstallation without the possibility of miswiring.

In mining and heavy industry, where vibration and thermal cycling are constant stressors, the cable’s industrial-grade construction and fully shielded design maintain signal integrity even in harsh cabinet environments, supporting the long-term reliability that these applications demand.

Architecture Engineering FAQ

Q1: Is the 6SL3260-4MA00-1VB0 compatible with all SINAMICS S120 Control Units?
The 6SL3260-4MA00-1VB0 is designed for use with the SINAMICS S120 booksize Control Units, including the CU320-2 DP, CU320-2 PN, and CU310-2 variants. It connects the Control Unit to I/O expansion modules such as the TB30, TM31, TM41, TM120, and TM150. Compatibility with chassis-format Control Units should be verified against the specific system configuration using the SINAMICS S120 system manual or SIZER for Siemens Drives configuration tool.

Q2: Can this cable be used in Safety Integrated applications?
The 6SL3260-4MA00-1VB0 carries the signal interface between the Control Unit and terminal modules, which may include Safe Torque Off (STO) and other Safety Integrated signals depending on the terminal module type. For safety-critical applications, the complete wiring installation must be validated according to IEC 62061 or ISO 13849 requirements, and the safety function must be commissioned and tested using the SINAMICS Startdrive or STARTER commissioning tool.

Q3: What warranty and supply conditions apply to this cable?
All units of the 6SL3260-4MA00-1VB0 supplied by ZYPLC carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Units are dispatched from verified inventory with full traceability documentation. Pre-shipment functional checks are performed to confirm connector integrity and cable continuity. For urgent project requirements, expedited shipping via DHL Express or FedEx International Priority is available. Contact our team at plc.sales@zyplc.com or +86 19859288691 for lead time confirmation and volume pricing.
