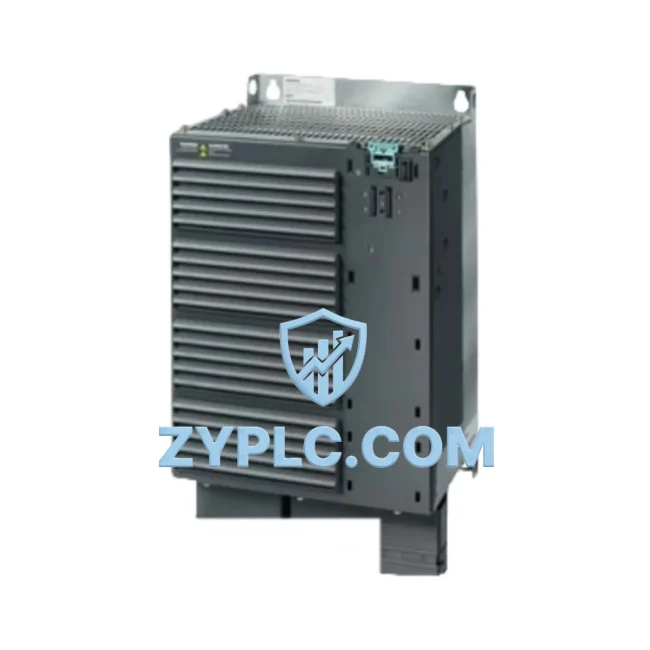

Siemens 6SL3353-7AG41-7AA0 System-Ready Drive for S120 Architecture

Siemens 6SL3353-7AG41-7AA0 System-Ready Drive for S120 Architecture: Control System Architecture and Upstream–Downstream Coordination

The Siemens 6SL3353-7AG41-7AA0 is a high-performance drive module engineered for seamless integration within the SINAMICS S120 modular drive system. Rather than functioning as a standalone component, this module is designed from the ground up to operate as a coordinated element within a layered automation architecture — spanning the control layer, I/O layer, network layer, power layer, HMI layer, and actuation layer. Its role within the S120 booksize or chassis format ensures that engineers can build scalable, redundant, and maintainable drive systems without compromising signal integrity or communication stability.

In modern industrial automation, the drive module is not merely a power conversion device — it is a critical node in the system’s data and energy flow. The 6SL3353-7AG41-7AA0 interfaces directly with the SINAMICS S120 Control Unit (such as the CU320-2 DP or CU320-2 PN), receiving torque and speed setpoints via DRIVE-CLiQ, Siemens’ proprietary high-speed serial communication protocol. This tight integration eliminates the need for external encoder interfaces and reduces wiring complexity across multi-axis configurations. When paired with the Active Line Module (ALM) or Smart Line Module (SLM) for DC bus supply, the 6SL3353-7AG41-7AA0 participates in a shared energy architecture that supports regenerative braking and dynamic load balancing across axes.

System architects deploying this module in servo or vector control applications will find that it supports both closed-loop speed control and torque control modes, making it suitable for demanding applications in machine tools, packaging lines, printing presses, and material handling systems. Its compatibility with the S120 booksize power section family means it can be mounted on a shared DC bus rail alongside other Motor Modules, reducing cabinet footprint and simplifying thermal management. The module’s integrated safety functions — including Safe Torque Off (STO) and Safe Stop 1 (SS1) — align with IEC 62061 and ISO 13849 requirements, enabling compliance-ready machine design without additional external safety relays.

From a maintenance and lifecycle perspective, the 6SL3353-7AG41-7AA0 supports SINAMICS S120’s parameter cloning and upload/download functionality via the Starter or TIA Portal commissioning environment. This means that in the event of a module replacement, engineers can restore drive parameters within minutes, minimizing unplanned downtime. Combined with a 12-Month Warranty and verified pre-shipment testing, this module represents a reliable spare parts and system expansion solution for facilities managing long-term automation infrastructure.

Architecture Specification Table

Coordinated Control System Design

The 6SL3353-7AG41-7AA0 achieves its full performance potential when deployed within a coordinated S120 system architecture. At the control layer, the SINAMICS S120 CU320-2 PN Control Unit manages axis coordination, issuing cyclic setpoints to each Motor Module via DRIVE-CLiQ. The control unit connects upstream to a SIMATIC S7-1500 PLC or S7-300 PLC via PROFINET or PROFIBUS, enabling deterministic motion sequencing and process interlocking across the production line.

At the power layer, the SINAMICS S120 Active Line Module (6SL3130 series) provides regulated DC bus voltage to the 6SL3353-7AG41-7AA0 and other Motor Modules on the shared rail. The Active Line Module also handles grid-side harmonic filtering and energy regeneration, reducing overall energy consumption in multi-axis systems. For applications with lower regenerative requirements, the Smart Line Module (6SL3130-6AE series) offers a cost-optimized alternative.

Encoder feedback from the connected servo motor is transmitted directly to the 6SL3353-7AG41-7AA0 via the DRIVE-CLiQ encoder interface, eliminating the need for a separate SMC (Sensor Module Cabinet-Mounted) in many configurations. Where legacy motors with TTL or HTL encoders are used, the SMC30 Sensor Module provides the necessary signal conversion and connects to the Motor Module via DRIVE-CLiQ.

At the I/O layer, the SIMATIC ET 200SP distributed I/O system handles field-level digital and analog signals, communicating with the S7-1500 controller via PROFINET. Terminal modules within the ET 200SP rack — such as the BaseUnit BU15-P16+A0+2D — provide the physical connection points for sensors, actuators, and safety devices. This distributed architecture reduces main cabinet wiring and improves system modularity.

For human-machine interface, the SIMATIC HMI TP1200 Comfort Panel or KTP700 Basic Panel provides operators with real-time drive status visualization, fault diagnostics, and parameter monitoring via PROFINET. Integration with TIA Portal ensures that HMI screens and drive parameters share a unified engineering environment, reducing commissioning time and configuration errors.

In redundant or high-availability architectures, the SINAMICS S120 Cabinet Module format supports hot-swap capability and redundant cooling, ensuring that a single module failure does not interrupt production. The 6SL3353-7AG41-7AA0’s compatibility with this cabinet format makes it a suitable choice for continuous-process industries where unplanned downtime carries significant operational cost.

Application in Layered Automation Systems

Manufacturing & Machine Tools: In CNC machining centers and multi-axis grinding machines, the 6SL3353-7AG41-7AA0 provides the precise torque and speed control required for contouring and interpolation. Its DRIVE-CLiQ interface ensures sub-millisecond feedback latency, supporting surface finish quality and dimensional accuracy across high-speed cutting operations.

Packaging Lines: In horizontal flow wrappers, cartoners, and palletizers, the module coordinates with other S120 Motor Modules on a shared DC bus to synchronize film feed, sealing jaw motion, and product indexing. The integrated STO safety function enables rapid axis shutdown during jam clearance without full system power-down, improving line availability.

Power Generation & Utilities: In pump and fan drive applications within power plants or water treatment facilities, the 6SL3353-7AG41-7AA0 supports energy-efficient variable-speed operation. Its compatibility with the SINAMICS S120 Active Line Module’s regenerative capability allows energy recovery during deceleration phases, contributing to facility-wide energy management targets.

Petrochemical & Process Industries: In compressor drives and extruder applications, the module’s vector control mode delivers high starting torque and stable speed regulation under variable load conditions. Its IP20 cabinet-mount design integrates cleanly into Ex-rated control rooms when paired with appropriate enclosure solutions.

Metallurgy & Mining: In rolling mill drives and conveyor systems, the 6SL3353-7AG41-7AA0 supports high-inertia load management and dynamic braking via the shared DC bus. Its robust design and 12-Month Warranty make it a dependable choice for facilities operating in harsh environments with demanding duty cycles.

Architecture Engineering FAQ

Q1: Is the 6SL3353-7AG41-7AA0 compatible with existing SINAMICS S120 booksize infrastructure, and can it share a DC bus with other Motor Modules?
Yes. The 6SL3353-7AG41-7AA0 is designed for the SINAMICS S120 booksize architecture and is fully compatible with the shared DC bus rail system. It can operate alongside other S120 Motor Modules powered by a common Active Line Module or Smart Line Module. Engineers should verify DC bus current capacity and ensure the Line Module is sized for the total connected motor load. Contextual Integration with existing S120 infrastructure is supported without hardware modification in most configurations.

Q2: What commissioning tools are required, and how long does parameter restoration take after a module replacement?
Commissioning and parameter management are performed via Siemens TIA Portal (V14 or later) or the legacy STARTER software. Drive parameters can be saved to a memory card or uploaded to the engineering station. Upon module replacement, parameter download typically takes 5–15 minutes depending on axis count and configuration complexity. The 12-Month Warranty covers the replacement unit, and pre-shipment functional testing ensures the module is ready for immediate commissioning upon arrival.

Q3: What is the warranty coverage, and how does ZYPLC support long-term spare parts availability for this module?
All units supplied by ZYPLC carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. ZYPLC maintains verified stock of the 6SL3353-7AG41-7AA0 and related S120 components to support planned maintenance schedules and emergency replacement requirements. For long-term supply agreements or system-level spare parts planning, contact our technical sales team at plc.sales@zyplc.com or +86 19859288691.
