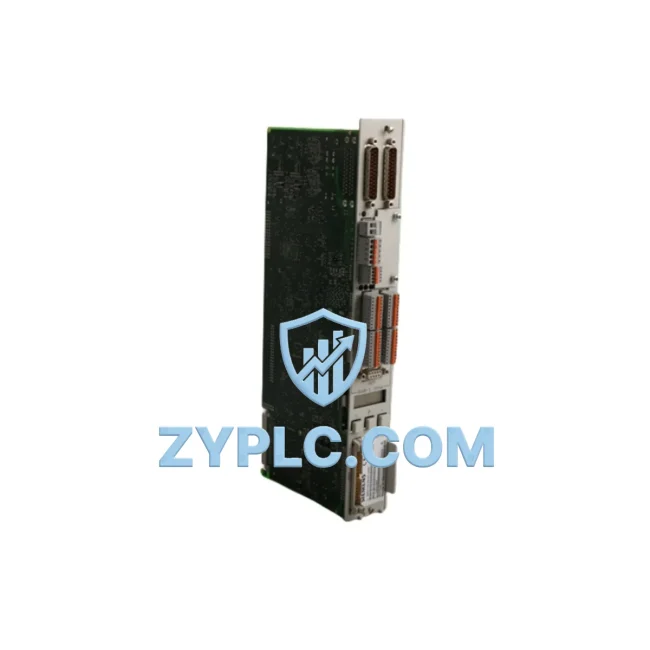

Siemens 6SN1118-0NH01-0AA1 System-Ready Drive Control for SIMODRIVE 611 Architecture

Siemens 6SN1118-0NH01-0AA1 System-Ready Drive Control for SIMODRIVE 611 Architecture

The Siemens 6SN1118-0NH01-0AA1 is a precision-engineered drive control module purpose-built for integration within the SIMODRIVE 611 servo and spindle drive platform. In modern industrial automation environments — spanning CNC machining centers, coordinated motion systems, and high-throughput manufacturing lines — the drive control layer is the critical interface between the programmable logic controller and the physical motion axes. This module occupies that exact position, translating command signals from the upper control layer into precise, real-time current and velocity regulation at the motor level.

Unlike standalone drive components, the 6SN1118-0NH01-0AA1 is designed from the ground up for contextual integration within a layered automation architecture. Its value is not realized in isolation but through its coordinated role alongside power supply modules, axis control boards, communication interfaces, and supervisory controllers. Engineers specifying this module for a new installation or a retrofit project benefit from its compatibility with the established SIMODRIVE 611 ecosystem, reducing integration risk and shortening commissioning timelines.

This module is available with a 12-Month Warranty, ensuring long-term operational confidence for both OEM builders and end-user maintenance teams managing critical production assets.

Architecture Specification Table

Coordinated Control System Design

The 6SN1118-0NH01-0AA1 does not operate as a standalone unit. Its full capability is expressed when deployed within a complete SIMODRIVE 611 control cabinet architecture, where each layer of the system contributes to overall motion precision, fault tolerance, and maintainability.

At the power supply layer, the Siemens 6SN1146-1BB00-0BA1 infeed/regenerative module provides the DC link voltage that feeds the power sections of each drive axis. The 6SN1118-0NH01-0AA1 control module interfaces directly with the corresponding 6SN1123 or 6SN1124 series power modules, forming a tightly coupled control-power pair that governs each servo or spindle axis. This pairing is fundamental to the SIMODRIVE 611 modular design philosophy.

At the controller layer, the Siemens SINUMERIK 840D sl CNC system issues interpolated position commands via the PROFIBUS-DP fieldbus or the internal drive bus, which the 6SN1118-0NH01-0AA1 receives and converts into real-time current setpoints. The 6SN1118-0AA11-0AA1 (NE/monitoring module) provides system-level monitoring and safe shutdown coordination, ensuring that all drive axes respond consistently to E-stop and safety interlock signals.

For multi-axis systems, the 6SN1111-0AA01-1CA0 bus connector and associated backplane components link multiple drive control modules across a shared DC bus, enabling synchronized motion across X, Y, Z, and spindle axes simultaneously. The 6FC5203-0AB20-0AA2 SINUMERIK operator panel at the HMI layer provides the operator interface for axis jogging, program execution, and drive diagnostics, closing the loop between the machine operator and the drive control layer.

At the I/O layer, Siemens ET 200SP distributed I/O modules connected via PROFINET handle peripheral signals — tool change confirmations, axis limit switches, and coolant control — while the drive control module manages the high-speed servo loop independently, ensuring that peripheral I/O latency does not affect motion accuracy. Terminal modules such as the 6ES7193-6BP20-0DC0 provide the physical wiring interface for these distributed signals within the control cabinet.

This architecture — spanning the 6SN1118-0NH01-0AA1 drive control module, power supply modules, CNC controller, HMI panel, distributed I/O, and backplane bus components — represents a complete, validated motion control solution suitable for multi-axis CNC machining, coordinated robotics, and high-speed packaging lines.

Application in Layered Automation Systems

The 6SN1118-0NH01-0AA1 finds application across a broad range of industrial sectors where precise, reliable motion control is non-negotiable.

In CNC machining and metalworking, this module governs the servo axes of milling centers, turning machines, and grinding systems, where positional accuracy at the micron level directly determines part quality and scrap rates. Its integration with the SINUMERIK 840D sl controller enables advanced functions such as look-ahead interpolation, electronic gearbox, and synchronous spindle operation.

In power generation and heavy industry, SIMODRIVE 611 systems equipped with this control module are deployed in turbine test rigs, rolling mill drives, and large-format press lines, where the combination of high dynamic response and robust fault detection ensures continuous production uptime.

In petrochemical and process industries, the module supports pump and compressor drive systems where controlled ramp-up, speed regulation under variable load, and safe coast-down behavior are critical to process integrity and equipment longevity.

In water treatment and utilities, SIMODRIVE 611 architectures incorporating this control module manage variable-speed pump drives and aeration blower systems, where energy efficiency and remote diagnostics via PROFIBUS reduce operational costs over multi-year service cycles.

In packaging and material handling, the module enables coordinated multi-axis motion for pick-and-place systems, conveyor synchronization, and servo-driven filling lines, where the tight integration between the drive control layer and the PLC/CNC supervisory layer ensures repeatable cycle times and minimal changeover downtime.

Across all these applications, the availability of a 12-Month Warranty and verified stock provides procurement and maintenance teams with the confidence to specify this module for both new installations and emergency replacement scenarios.

Architecture Engineering FAQ

Q1: Is the 6SN1118-0NH01-0AA1 compatible with both analog and digital SIMODRIVE 611 system variants?
The 6SN1118-0NH01-0AA1 is designed for the digital SIMODRIVE 611D (digital) platform, which communicates via the internal drive bus and PROFIBUS-DP interface. It is not directly interchangeable with analog SIMODRIVE 611A modules. When retrofitting or expanding an existing system, engineers should verify the system variant (611D vs. 611A) and confirm that the power module, NE module, and CNC controller firmware are all aligned to the digital architecture before installation.

Q2: What commissioning steps are required when replacing this module in an existing SIMODRIVE 611 system?
Replacement of the 6SN1118-0NH01-0AA1 in a live system requires downloading the axis-specific drive parameters from the SINUMERIK 840D sl controller (or from a backup file) and uploading them to the new module via the STARTER or SINAMICS Scout commissioning tool. Motor data, encoder configuration, current controller gains, and speed controller parameters must all be verified and, if necessary, re-optimized using the automatic drive optimization function. A full functional test — including reference point approach, axis limit switch verification, and E-stop response — should be completed before returning the machine to production. Our team provides pre-sales technical support to assist with parameter backup and commissioning planning.

Q3: What does the 12-Month Warranty cover, and how does it support long-term maintenance planning?
The 12-Month Warranty covers functional and electrical integrity of the 6SN1118-0NH01-0AA1 from the date of delivery. Any module that fails to perform within its specified operating parameters during the warranty period will be repaired or replaced at no additional cost. For maintenance teams managing aging SIMODRIVE 611 installations, this warranty provides a structured replacement cycle that aligns with annual maintenance budgets and reduces the risk of unplanned downtime caused by drive control failures. Combined with our verified stock availability, this warranty policy supports both planned preventive maintenance and emergency breakdown response strategies.
