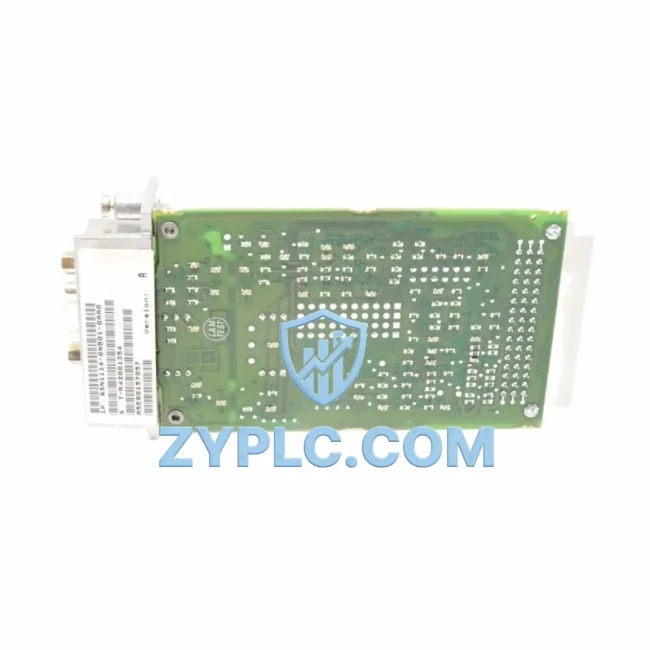

Siemens 6SN1123-1AA00-0HA1 Energy-Saving Power Module SIMODRIVE 611

Siemens 6SN1123-1AA00-0HA1 Energy-Saving Power Module for SIMODRIVE 611 Automation

The Siemens 6SN1123-1AA00-0HA1 is a high-efficiency infeed/regenerative feedback power module designed for the SIMODRIVE 611 drive system. In modern manufacturing environments where energy costs and equipment uptime directly impact profitability, this power module plays a central role in reducing unnecessary power consumption, stabilizing DC bus voltage, and enabling precise motor control across multi-axis CNC and servo-driven production lines. Whether integrated into a turning center, machining cell, or automated assembly station, the 6SN1123-1AA00-0HA1 delivers consistent, measurable improvements in drive-side energy efficiency.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6SN1123-1AA00-0HA1 does not operate in isolation — its energy efficiency contribution is amplified when it functions as part of a coordinated SIMODRIVE 611 drive architecture. On the DC bus side, it works in tandem with SIMODRIVE 611 axis modules such as the 6SN1123-1AB00-0HA1 and 6SN1124-1AA00-0BA0 to distribute power across multiple servo axes without redundant energy conversion losses. This shared DC bus topology is one of the most effective strategies for reducing total drive-system energy consumption in multi-spindle or multi-axis configurations.

On the control side, the power module interfaces directly with the SINUMERIK 840D sl CNC controller, which provides real-time axis coordination, adaptive feedrate control, and energy-optimized motion profiles. When paired with SINAMICS S120 drive components in hybrid retrofit architectures, the 6SN1123-1AA00-0HA1 can serve as the primary infeed stage while newer axis modules handle high-dynamic servo tasks — a cost-effective approach to phased energy upgrades without full system replacement.

For power quality monitoring, the module integrates with SENTRON PAC3200 power meters and SIMATIC ET 200SP I/O modules to provide real-time visibility into energy draw at the drive level. This data feeds into SIMATIC S7-1500 PLC logic for demand-side load management — automatically shedding non-critical axes during peak tariff windows or production lulls. The result is a measurable reduction in peak demand charges without sacrificing throughput.

Communication is handled via PROFIBUS DP, enabling the 6SN1123-1AA00-0HA1 to report drive status, fault codes, and energy metrics to the plant SCADA layer. When combined with SIMATIC WinCC SCADA software, operators gain a unified dashboard for monitoring drive efficiency KPIs, scheduling predictive maintenance windows, and benchmarking energy consumption across production shifts.

Power Optimization in Real Production Lines

In a typical CNC machining cell running three-shift operations, the regenerative feedback capability of the 6SN1123-1AA00-0HA1 delivers its most tangible energy savings during deceleration-heavy cycles — such as rapid axis reversals in milling operations or spindle braking between tool changes. Rather than dissipating kinetic energy as heat through braking resistors, the module feeds recovered energy back to the AC mains, directly reducing the facility’s net energy consumption and lowering heat load in the electrical cabinet — which in turn reduces cooling system runtime.

From a production line rhythm (takt time) perspective, the stable DC bus voltage maintained by this power module prevents voltage sag events that can cause axis following errors or emergency stops. Unplanned stops in a high-mix, low-volume machining environment can cost significantly more in lost production time than the energy savings themselves — making DC bus stability a dual-benefit feature that improves both energy efficiency and OEE (Overall Equipment Effectiveness).

Predictive maintenance integration is another key operational advantage. By monitoring the module’s internal temperature sensors and fault log history through the SINUMERIK 840D diagnostic interface, maintenance teams can identify degrading capacitors or fan performance before they cause unplanned downtime. Scheduled maintenance during planned production gaps — rather than reactive repairs during peak hours — reduces both maintenance labor costs and the energy waste associated with emergency restart cycles.

Every unit of the 6SN1123-1AA00-0HA1 supplied by ZYPLC undergoes full functional testing prior to shipment, including DC bus charge/discharge verification, regenerative feedback validation, and thermal performance checks. Stock is maintained for immediate dispatch, and all units are covered by a 12-month warranty — ensuring that your production line energy optimization investment is protected from day one.

Energy Optimization FAQ

Q1: How much energy can the 6SN1123-1AA00-0HA1 save compared to a resistive braking module?
In deceleration-intensive applications such as CNC axis reversals or spindle braking, the regenerative feedback design of the 6SN1123-1AA00-0HA1 can recover and return up to 30% of braking energy to the mains grid. Actual savings depend on cycle frequency, axis load, and deceleration ramp settings configured in the SINUMERIK 840D controller.

Q2: Is the 6SN1123-1AA00-0HA1 compatible with both SINUMERIK 840D and 810D systems?
Yes. The module is designed for the SIMODRIVE 611 platform, which is compatible with both SINUMERIK 840D and SINUMERIK 810D CNC controllers. It can also be integrated into SIMATIC S7-based automation architectures via PROFIBUS DP for broader plant-level energy monitoring and control.

Q3: What is the recommended replacement or upgrade path if this module is being retired from service?
For new installations, Siemens recommends migrating to the SINAMICS S120 platform, which offers higher energy efficiency ratings and integrated safety functions. However, for existing SIMODRIVE 611 systems where a full platform migration is not yet planned, the 6SN1123-1AA00-0HA1 remains the correct like-for-like replacement and is available from ZYPLC stock with immediate shipment capability.

Q4: What does the 12-month warranty cover, and what testing is performed before shipment?
All units supplied by ZYPLC are tested for DC bus functionality, regenerative feedback performance, communication interface integrity, and thermal operation prior to dispatch. The 12-month warranty covers component failure under normal operating conditions and includes technical support for installation and commissioning queries. Contact our team at plc.sales@zyplc.com or +86 19859288691 for warranty claims or pre-sales technical consultation.
