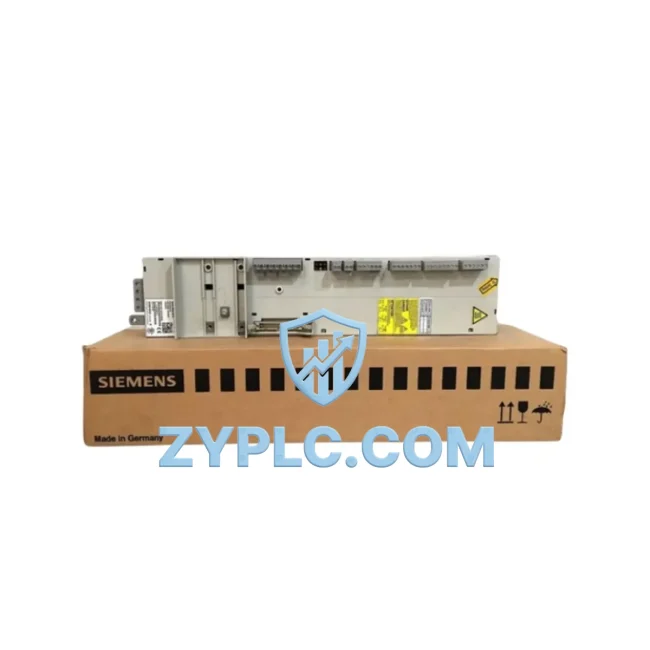

Siemens 6SN1145-1AA01-0AA2 Energy-Saving Infeed SIMODRIVE 611

Siemens 6SN1145-1AA01-0AA2 Energy-Saving Infeed SIMODRIVE 611: Precision Energy Control for Industrial Automation

The Siemens 6SN1145-1AA01-0AA2 is a high-efficiency infeed/regenerative feedback module designed for the SIMODRIVE 611 drive system — one of Siemens’ most widely deployed servo and spindle drive platforms in CNC machining, automated assembly, and precision manufacturing environments. This module serves as the power supply backbone of the SIMODRIVE 611 drive group, converting incoming AC line power into a stable DC bus voltage while simultaneously enabling regenerative energy feedback to the grid during motor deceleration phases. The result is a measurable reduction in net energy consumption across the entire drive line, directly lowering electricity costs and reducing thermal stress on downstream components.

In modern production lines where energy efficiency is a key performance indicator, the 6SN1145-1AA01-0AA2 plays a central role. Rather than dissipating braking energy as heat through resistors — as conventional non-regenerative modules do — this infeed module feeds that energy back into the supply network. For high-cycle applications such as CNC turning centers, grinding machines, and robotic welding lines, this regenerative capability can reduce drive-related energy consumption by 15–30%, depending on duty cycle and load profile.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6SN1145-1AA01-0AA2 does not operate in isolation — its energy efficiency impact is amplified when integrated within a well-designed SIMODRIVE 611 drive group. In a typical CNC machining cell, this infeed module supplies the DC bus shared by multiple SIMODRIVE 611 axis modules, such as the 6SN1123-1AA00-0CA1 single-axis power module and the 6SN1118-0DM33-0AA1 control board. Each axis module draws from the common DC link, and during deceleration, the regenerated energy flows back through the 6SN1145-1AA01-0AA2 to the grid rather than being wasted.

At the control level, the SINUMERIK 840D sl CNC controller coordinates motion profiles across all axes, enabling optimized acceleration and deceleration ramps that minimize peak current draw and reduce energy spikes. The SIMODRIVE 611 system communicates with the controller via the PROFIBUS-DP protocol, allowing real-time feedback on drive status, load current, and fault conditions. This closed-loop communication is essential for predictive maintenance strategies — abnormal current signatures detected by the 6SN1145-1AA01-0AA2 can trigger early warnings before a drive failure occurs.

For energy monitoring at the plant level, the infeed module integrates naturally with Siemens SENTRON PAC3200 power monitoring devices, which measure active power, reactive power, and harmonic distortion at the panel level. When combined with the SIMATIC S7-1500 PLC and TIA Portal engineering environment, plant engineers can log energy consumption per machine cycle, identify inefficient operating windows, and implement demand-response strategies during peak tariff periods.

On the I/O side, the SIMATIC ET 200SP distributed I/O system connects field sensors — temperature, vibration, and current transducers — back to the control system, providing the data layer needed for condition-based maintenance. The 6SN1145-1AA01-0AA2’s internal monitoring circuits complement this by tracking DC bus voltage stability and input current balance, flagging asymmetric supply conditions that could degrade drive performance over time.

For human-machine interaction, the SIMATIC HMI TP1200 Comfort Panel provides operators with real-time visibility into drive group status, energy consumption trends, and alarm histories — enabling faster response to process deviations and reducing unplanned downtime. The 6SN1118-0DJ23-0AA1 monitoring module further extends diagnostic depth by capturing axis-level current and temperature data, feeding it back to the SINUMERIK controller for adaptive motion optimization. Together, these components form a cohesive, energy-aware automation architecture where the 6SN1145-1AA01-0AA2 serves as the efficient power foundation.

Power Optimization in Real Production Lines

In high-throughput manufacturing environments, energy waste is rarely the result of a single inefficient component — it accumulates across dozens of drive cycles per hour, multiplied by hundreds of operating hours per month. The Siemens 6SN1145-1AA01-0AA2 addresses this at the source by ensuring that every deceleration event in the drive group contributes energy back to the supply network rather than generating heat.

Consider a CNC machining center running a 45-second cycle with three servo axes and one spindle drive. Each cycle involves multiple acceleration and deceleration events. Without regenerative infeed, all braking energy is dissipated through braking resistors, increasing cabinet temperature and accelerating component aging. With the 6SN1145-1AA01-0AA2 in place, that braking energy is recovered and returned to the grid, reducing both energy costs and thermal load on the drive cabinet. Lower operating temperatures directly extend the service life of capacitors, IGBTs, and control electronics within the drive group.

From a production line rhythm (takt time) perspective, the stable DC bus maintained by the 6SN1145-1AA01-0AA2 ensures that voltage sags during heavy acceleration do not cause axis following errors or spindle speed deviations — both of which can trigger cycle interruptions and scrap parts. Consistent DC bus voltage translates to more predictable axis response, tighter tolerances, and fewer quality escapes.

Maintenance cost reduction is another measurable benefit. Because the regenerative infeed module reduces thermal cycling within the drive cabinet, the mean time between failures (MTBF) for associated components increases. Planned maintenance intervals can be extended, and the risk of unplanned downtime — which typically costs far more than the energy savings alone — is significantly reduced. Every unit shipped from our facility undergoes functional testing and load verification before dispatch, and is backed by a 12-month warranty, ensuring that the module performs to specification from day one of installation.

Energy Optimization FAQ

Q1: How much energy can the 6SN1145-1AA01-0AA2 save compared to a standard non-regenerative infeed module?
In typical CNC and servo press applications with frequent acceleration/deceleration cycles, the regenerative feedback capability of the 6SN1145-1AA01-0AA2 can reduce net drive energy consumption by 15–30%. Actual savings depend on duty cycle, load inertia, and cycle frequency. High-inertia loads with short cycle times yield the greatest savings.

Q2: Is the 6SN1145-1AA01-0AA2 compatible with my existing SIMODRIVE 611 drive group?
Yes. The 6SN1145-1AA01-0AA2 is designed as a direct replacement within the SIMODRIVE 611 system architecture. It is compatible with SIMODRIVE 611 axis modules, SINUMERIK 840D and 810D CNC controllers, and standard 3-phase AC supplies in the 380–480 V range. Always verify the DC bus current rating matches your drive group’s total power demand before installation.

Q3: What is the recommended replacement procedure, and how is the module tested before shipment?
Replacement follows standard SIMODRIVE 611 commissioning procedures: isolate the drive group, discharge the DC bus, swap the infeed module, and recommission via SINUMERIK or STARTER software. Each 6SN1145-1AA01-0AA2 unit we supply is functionally tested under load conditions prior to shipment, with DC bus output voltage, input current balance, and regenerative feedback circuits verified. A test report is available upon request.

Q4: What does the 12-month warranty cover, and what is the support process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or repair at no additional cost. Our technical support team can assist with fault diagnosis, compatibility verification, and installation guidance. Contact us at [email protected] or +86 19859288691 for warranty claims and technical inquiries.
