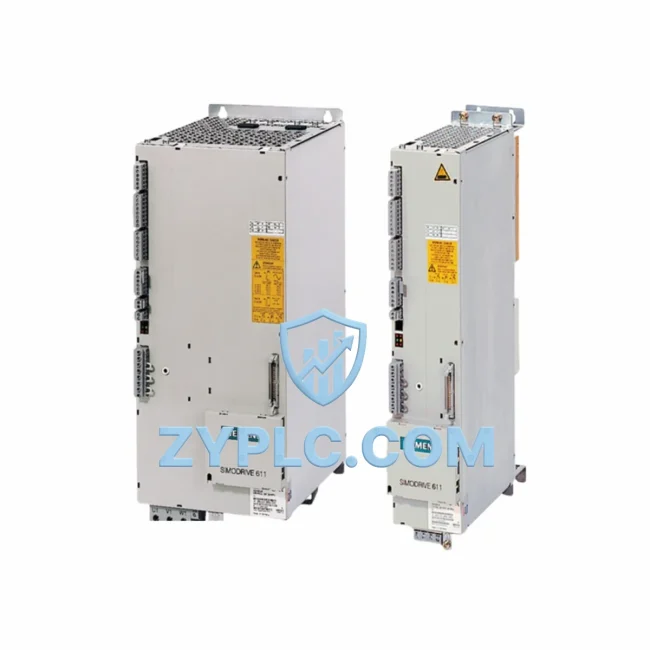

Siemens 6SN1145-1BB00-0FA0 Energy-Saving Infeed Module SIMODRIVE 611

Siemens 6SN1145-1BB00-0FA0 Energy-Saving Infeed Module SIMODRIVE 611: Precision Energy Control for Industrial Automation

In modern manufacturing environments where energy costs and equipment uptime directly impact profitability, the Siemens 6SN1145-1BB00-0FA0 stands as a critical component in the SIMODRIVE 611 drive system architecture. This infeed and regenerative feedback module is engineered to regulate DC bus power supply with high efficiency, enabling CNC machine tools, transfer lines, and multi-axis servo systems to operate with minimized energy waste and maximized throughput consistency.

The 6SN1145-1BB00-0FA0 functions as the power gateway for the SIMODRIVE 611 modular drive system. By managing the energy flow between the AC supply network and the DC bus shared across multiple drive modules, it ensures that braking energy generated by servo axes — such as those driven by the SIMODRIVE 611 power module 6SN1123 series — is fed back into the DC bus or returned to the supply grid rather than dissipated as heat. This regenerative capability directly reduces net energy consumption per production cycle, lowering utility costs in high-duty-cycle applications such as automotive body welding lines, precision grinding machines, and multi-spindle machining centers.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 6SN1145-1BB00-0FA0 does not operate in isolation — its energy efficiency value is fully realized when integrated within a well-designed SIMODRIVE 611 system architecture. On the drive side, SIMODRIVE 611 power modules such as the 6SN1123-1AA00-0CA2 and 6SN1124-1AA00-0CA1 receive conditioned DC bus power from this infeed module and convert it into precise torque commands for spindle and feed axis motors. The quality of the DC bus voltage directly affects the dynamic response and thermal efficiency of these downstream modules.

On the control side, the SINUMERIK 840D sl CNC controller coordinates axis motion profiles to minimize simultaneous peak power demand — a strategy known as motion synchronization for power leveling. When the 840D sl commands deceleration on one axis while accelerating another, the regenerated energy from the decelerating axis is consumed by the accelerating axis through the shared DC bus managed by the 6SN1145-1BB00-0FA0, reducing the net draw from the supply network.

For energy monitoring and power quality analysis, the system can be complemented by SENTRON PAC3200 power monitoring devices installed at the cabinet feed point. These devices log real-time kW demand, power factor, and harmonic distortion data, providing the baseline measurements needed to quantify the energy savings delivered by the regenerative infeed module. Integration with SIMATIC S7-300 or SIMATIC S7-1500 PLCs via PROFIBUS DP or PROFINET allows this power data to feed into production MES systems for energy cost allocation per part or per shift.

I/O coordination between the infeed module and the broader control system is handled through the SIMODRIVE 611 control module interface, which communicates drive status, fault codes, and DC bus voltage levels to the CNC. Supplementary SIMATIC ET 200SP distributed I/O stations can relay cabinet temperature, cooling fan status, and door interlock signals to the S7-1500 controller, enabling predictive maintenance routines that prevent thermal-related drive faults before they cause unplanned downtime.

For human-machine interface needs, a SIMATIC HMI TP1200 Comfort panel running on the same PROFINET network can display real-time energy dashboards, drive efficiency trends, and maintenance alerts — giving operators and maintenance engineers immediate visibility into system health without requiring access to the drive cabinet.

Power Optimization in Real Production Lines

In a typical CNC machining cell running three-shift operations, the regenerative feedback capability of the 6SN1145-1BB00-0FA0 can reduce energy consumption during rapid traverse and deceleration phases by returning braking energy to the supply bus rather than burning it off through braking resistors. Over a full production shift, this translates to measurable reductions in peak demand charges — a significant cost factor in industrial electricity tariffs.

Beyond energy recovery, the module contributes to production line rhythm optimization by maintaining a stable DC bus voltage under varying load conditions. Voltage sag on the DC bus during simultaneous multi-axis acceleration can cause torque ripple in servo motors, leading to surface finish defects in precision machining. The 6SN1145-1BB00-0FA0’s active front-end design compensates for these transient loads, ensuring that feed axes maintain programmed velocity profiles and that spindle speed remains constant under cutting load changes — directly improving part quality consistency and reducing scrap rates.

From a maintenance cost perspective, the regenerative design eliminates the need for braking resistors and their associated thermal management hardware. Braking resistors are wear items that require periodic inspection and replacement; removing them from the energy dissipation path reduces both component cost and maintenance labor. The module’s built-in diagnostics, accessible via the SINUMERIK operator panel or through STEP 7 / TIA Portal drive configuration tools, provide fault history and operating hour logs that support condition-based maintenance scheduling.

Every 6SN1145-1BB00-0FA0 unit supplied by ZYPLC undergoes functional load testing prior to shipment, verifying DC bus output voltage, regenerative feedback operation, and communication interface integrity. This pre-shipment testing protocol ensures that replacement modules can be installed and commissioned with minimal production interruption — a critical requirement for facilities where unplanned downtime costs exceed the component value within hours.

Energy Optimization FAQ

Q1: How much energy can the 6SN1145-1BB00-0FA0 save compared to a non-regenerative infeed module?
A: In applications with frequent deceleration cycles — such as rapid traverse in CNC machining or press brake operations — regenerative infeed modules typically recover 15–30% of braking energy that would otherwise be dissipated as heat. Actual savings depend on duty cycle, axis count, and load profile. SENTRON PAC power meters can be used to measure baseline and post-installation consumption for precise quantification.

Q2: Is the 6SN1145-1BB00-0FA0 compatible with existing SIMODRIVE 611 installations?
A: Yes. The 6SN1145-1BB00-0FA0 is designed for the SIMODRIVE 611 modular system and is compatible with standard 611 power modules and control modules sharing the same DC bus rail. Verify the supply voltage rating and DC bus current capacity against your existing system configuration before installation. SINUMERIK 840D and 810D controllers are fully compatible.

Q3: What is the recommended replacement procedure to minimize downtime?
A: Prior to replacement, record all drive parameters using STEP 7 or TIA Portal. Isolate the cabinet, discharge the DC bus capacitors per Siemens safety guidelines, swap the module, and restore parameters. ZYPLC supplies tested units with verified functionality, reducing commissioning time. Most experienced maintenance teams complete the swap within 2–4 hours.

Q4: What warranty and testing does ZYPLC provide for this module?
A: All 6SN1145-1BB00-0FA0 units are covered by a 12-month warranty from the date of shipment. Each unit is functionally tested under load conditions before dispatch, with test records available upon request. Post-sale technical support is available to assist with installation, parameter configuration, and fault diagnosis.
