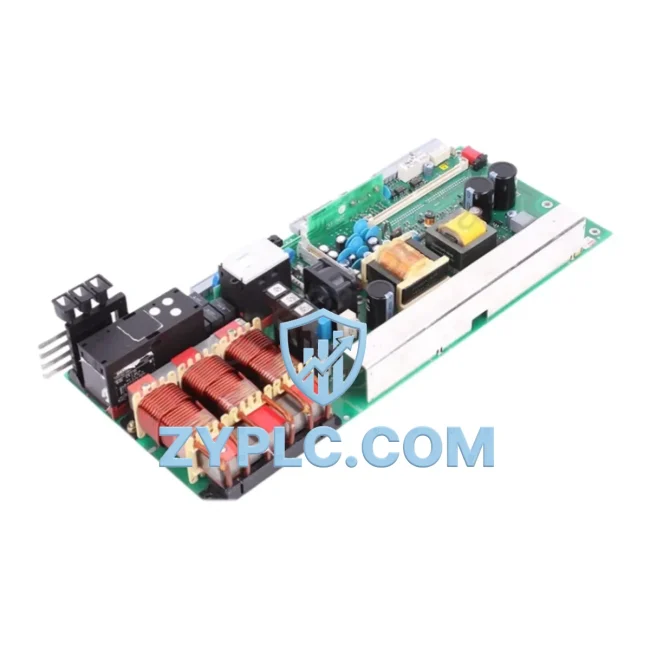

Siemens A5E00130391 C98043-A1716-L20 System-Ready Power Supply for SIMOREG DC Master Control Architecture

In high-performance industrial automation, the reliability of a DC drive system is determined not only by the converter stack itself, but by the precision and stability of every internal power supply module that sustains the control electronics hierarchy. The Siemens A5E00130391 C98043-A1716-L20 is a system-ready power supply module engineered specifically for the SIMOREG DC Master series — Siemens’ flagship platform for closed-loop DC motor control in demanding process and manufacturing environments. This module is not a standalone component; it is a foundational control-layer element that enables voltage regulation, signal conditioning, and control power distribution across the entire drive system architecture, ensuring contextual integration between the power layer, control layer, communication layer, and human-machine interface layer.

The SIMOREG DC Master architecture is built around a layered control philosophy. The central converter unit manages armature and field current regulation, while auxiliary modules — including power supply boards, firing pulse cards, and interface electronics — ensure that every subsystem receives stable, conditioned power at the correct voltage level. The A5E00130391 C98043-A1716-L20 fulfills this role by delivering regulated DC supply rails to the internal electronics of the SIMOREG converter, enabling consistent gate firing, feedback signal processing, and communication interface operation even under fluctuating mains conditions. Its contextual integration within the SIMOREG chassis makes it indispensable for system uptime and long-term maintenance efficiency.

From a system architecture perspective, this module sits at the intersection of the power layer and the control layer. It interfaces directly with the main converter board and provides the low-voltage DC rails that power the microprocessor control section, the analog signal conditioning circuits, and the serial communication interfaces. Without a properly functioning power supply module, the entire SIMOREG unit loses its ability to execute closed-loop speed and torque control, making this component mission-critical for system continuity, redundancy design, and engineering commissioning workflows.

Architecture Specification Table

Coordinated Control System Design

The A5E00130391 C98043-A1716-L20 is most accurately understood within the context of the complete SIMOREG DC Master system architecture. In a typical 6RA70 series installation, the converter chassis houses multiple interdependent boards: the C98043-A1716-L1 main electronics board handles the core closed-loop control algorithms, while the C98043-A1716-L26 firing pulse board generates the precise thyristor gate signals that regulate armature current. Both of these boards depend on stable, low-ripple DC supply rails — which is exactly what the C98043-A1716-L20 power supply module provides through its contextual integration within the drive chassis.

At the field interface level, the SIMOREG system connects to tachogenerator feedback modules and encoder interface cards that continuously report motor speed to the control processor. These signal-level components are highly sensitive to power supply noise; even minor voltage fluctuations on the internal DC rails can introduce measurement errors that degrade speed regulation accuracy. The A5E00130391 module’s regulated output ensures that these feedback paths remain clean and stable throughout the operating cycle, supporting both normal operation and redundancy switchover scenarios.

On the communication side, SIMOREG DC Master converters are commonly integrated into plant-wide automation networks via PROFIBUS-DP using the CBP2 communication board, or via USS protocol through the standard RS-485 serial interface. The power supply module sustains the communication electronics that enable the SIMOREG to exchange speed setpoints, torque limits, and status data with upstream controllers — typically a Siemens SIMATIC S7-300 or S7-400 PLC acting as the network master. In larger distributed installations, a SIMATIC ET 200M remote I/O station handles local signal acquisition, with the PLC coordinating drive commands across multiple SIMOREG units on the same PROFIBUS segment.

For operator interaction, a Siemens TP177 or OP7 HMI panel is typically mounted on the control cabinet door, providing real-time display of drive status, fault codes, and process variables. The HMI communicates with the S7 PLC, which in turn manages the SIMOREG via PROFIBUS — creating a coherent, multi-layer automation architecture where the power supply module’s reliability underpins every layer above it. In redundant drive configurations, a standby SIMOREG unit may be held in warm-standby mode with automatic switchover managed by PLC logic, further emphasizing the importance of maintaining verified spare modules such as the A5E00130391 C98043-A1716-L20 in inventory for rapid deployment.

Application in Layered Automation Systems

The SIMOREG DC Master platform — and by extension, the A5E00130391 C98043-A1716-L20 power supply module — is deployed across a wide range of heavy industrial sectors where DC motor drives remain the preferred solution for high-torque, wide-speed-range applications requiring precise closed-loop control.

In steel and metals processing, SIMOREG converters drive rolling mill main drives, coiler and uncoiler motors, and tension control systems. These applications demand precise torque regulation across a speed range of 1:100 or greater, with rapid dynamic response to load changes. The power supply module must maintain stable control board operation even during the high-current transients associated with billet entry and exit events. Planned maintenance windows in steel plants are extremely limited, making verified spare modules essential for minimizing unplanned downtime and supporting predictive maintenance programs.

In paper and pulp manufacturing, SIMOREG drives control section drives on paper machines, where speed synchronization between multiple drive sections is critical to web tension and sheet quality. The control architecture typically involves a master speed reference distributed via PROFIBUS to all section drives, with each SIMOREG executing local closed-loop control. A failed power supply module in any section drive can cause a web break and significant production loss, reinforcing the value of maintaining tested spare boards with a confirmed 12-Month Warranty.

In mining and mineral processing, SIMOREG converters power conveyor drives, hoist motors, and crusher drives. These environments are characterized by high ambient temperatures, heavy vibration, and dusty conditions — all of which accelerate the aging of internal electronic components. Regular inspection and proactive replacement of power supply modules is a standard element of predictive maintenance programs in these facilities, and having a pre-tested, warranted replacement module available significantly reduces mean time to repair.

In water and wastewater treatment, DC drives on pump and blower motors benefit from the SIMOREG’s precise flow control capability. The power supply module’s role in sustaining the control electronics is equally important here, as these facilities often operate continuously with minimal on-site staffing, making remote diagnostics via PROFIBUS and reliable hardware with long-term warranty coverage essential for operational continuity.

In petrochemical and refinery applications, SIMOREG DC Master drives are used on extruder drives, compressor auxiliaries, and agitator motors where process consistency and drive availability are directly linked to production yield. The layered architecture — from the S7 PLC control layer through the PROFIBUS network layer to the SIMOREG power and execution layer — depends on every internal module performing within specification, making the A5E00130391 C98043-A1716-L20 a critical inventory item for maintenance engineers responsible for drive system uptime.

Architecture Engineering FAQ

Q1: Is the A5E00130391 C98043-A1716-L20 compatible with all SIMOREG DC Master 6RA70 variants, and how do I verify contextual integration with my existing system?
The C98043-A1716-L20 is designed for use within the SIMOREG DC Master 6RA70 series converter family. Compatibility depends on the specific converter rating and hardware revision level. Before installation, verify the existing board revision on your converter’s main electronics board (C98043-A1716-L1) and cross-reference with the Siemens spare parts documentation for your unit’s order number. Our technical team can assist with compatibility verification and contextual integration assessment prior to shipment, ensuring the module is correctly matched to your system architecture.

Q2: What does the 12-Month Warranty cover, and what is the testing and inspection process before shipment?
Every A5E00130391 C98043-A1716-L20 unit supplied by ZYPLC undergoes functional testing prior to shipment, including verification of output voltage rails, load regulation performance, and visual inspection for component-level defects. The 12-Month Warranty covers failures attributable to manufacturing defects or latent component faults under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the module’s rated specifications. Warranty claims are processed promptly with replacement or repair options available, supporting your long-term maintenance and inventory planning.

Q3: How should this module be installed and commissioned within an existing SIMOREG system, and what post-installation checks are required?
Installation requires de-energizing the converter and following Siemens’ lockout/tagout procedures for the 6RA70 series. The module connects via board-to-board connectors within the converter chassis; no external wiring is required beyond the existing internal harness. After installation, perform a power-on self-test and verify that all internal DC rail voltages are within specification using the SIMOREG’s built-in diagnostic functions or a calibrated multimeter. Parameter settings stored in the control board’s EEPROM are not affected by power supply module replacement. If the converter was previously in fault state due to a power supply failure, clear active faults via the operator panel or PROFIBUS interface before resuming operation. For systems with redundancy configurations, verify that the standby switchover logic functions correctly after module replacement.
