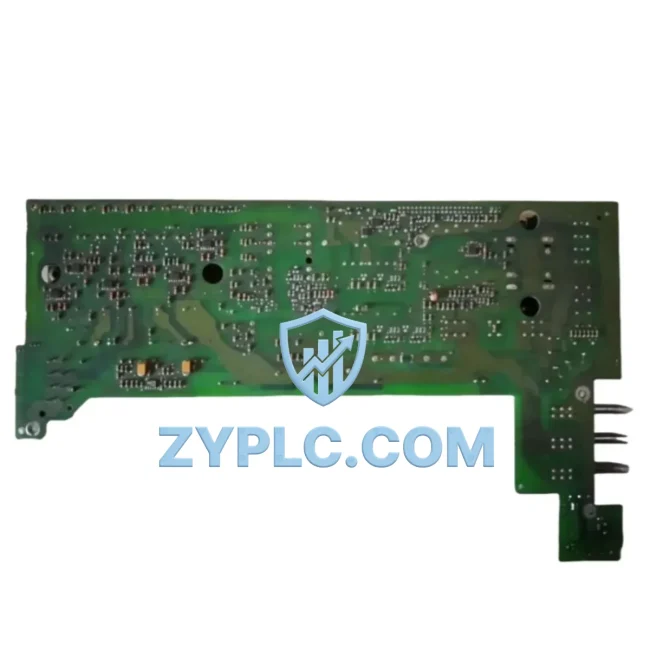

Siemens A5E00161213 System-Ready Power Supply for TP/EP Architecture

Siemens A5E00161213 System-Ready Power Supply for TP/EP Control Architecture

In modern industrial automation, the reliability of a control system is only as strong as its power infrastructure. The Siemens A5E00161213 is a dedicated HMI power supply module engineered to deliver stable, conditioned DC power to SIMATIC TP and EP panel families — including TP170, TP270, EP50, EP60, and EP70 series — within layered automation architectures. Rather than functioning as a standalone component, the A5E00161213 is designed as a system-level element that anchors the human-machine interface layer to the broader control hierarchy, ensuring consistent voltage delivery, signal integrity, and operational continuity across the entire automation stack.

In a well-structured control system, the HMI layer sits between the operator and the controller. The A5E00161213 ensures that this interface layer remains energized and stable regardless of fluctuations in the upstream power distribution network. When paired with a SIMATIC S7-300 or S7-400 CPU — such as the 6ES7315-2AG10-0AB0 or 6ES7416-3XR05-0AB0 — the power supply module supports uninterrupted panel operation during controller scan cycles, communication polling, and alarm processing. This is particularly critical in process environments where HMI downtime translates directly to operator blindness and potential safety incidents.

The A5E00161213 integrates seamlessly into control cabinet designs that also incorporate SIMATIC power supply units such as the 6EP1333-3BA00 SITOP PSU100S, which provides regulated 24 VDC rail power to the broader I/O and communication infrastructure. By separating HMI power from the main 24 VDC bus, engineers can implement power zoning strategies that isolate panel faults from controller operation — a fundamental principle of fault-tolerant system design. This architecture also simplifies maintenance, as the HMI power circuit can be de-energized independently without interrupting PLC scan or field device communication.

From a communication architecture perspective, the panels powered by the A5E00161213 typically interface with the controller layer via MPI, PROFIBUS DP, or Ethernet/PROFINET, depending on the panel generation and project configuration. In PROFIBUS-based systems, the HMI panel acts as a master or slave node on the DP network, exchanging process data with the CPU and distributed I/O modules such as the 6ES7153-1AA03-0XB0 ET 200M interface module or 6ES7321-1BL00-0AA0 digital input modules. Stable HMI power is essential to maintain consistent PROFIBUS cycle times and prevent spurious communication errors that can trigger false alarms or process interruptions.

In redundant system architectures — common in power generation, water treatment, and petrochemical applications — the A5E00161213 supports HMI panels that must remain operational during CPU switchover events. When the primary S7-400H redundant CPU executes a hot-standby transfer, the HMI panel must maintain its display state and communication link without interruption. The A5E00161213’s stable power output ensures that the panel’s internal processor and communication interface remain active throughout the switchover window, preserving operator visibility during the most critical moments of system transition.

For cabinet-level integration, the A5E00161213 is typically mounted within the same enclosure as the SIMATIC panel, often alongside SIRIUS 3RV motor protection circuit breakers, 3RT contactors, and terminal block assemblies from the WAGO 750 or Phoenix Contact CLIPLINE families. The module’s compact form factor and standard DIN rail compatibility allow it to be positioned close to the panel’s power input terminals, minimizing cable runs and reducing voltage drop across the supply circuit. This is particularly important in large cabinets where long cable distances can introduce measurable resistance and degrade supply accuracy.

From a maintenance and lifecycle perspective, the A5E00161213 is a field-replaceable unit that can be swapped without specialized tooling. Maintenance engineers familiar with the SIMATIC panel ecosystem will recognize the module’s connector interface and installation procedure, reducing mean time to repair (MTTR) in the event of a power supply fault. Stocking the A5E00161213 as a critical spare — alongside CPU backup batteries, PROFIBUS connectors such as the 6ES7972-0BB52-0XA0, and spare I/O modules — is a standard practice in facilities that operate continuous production processes where unplanned downtime carries significant financial consequences.

The A5E00161213 is also relevant in system upgrade and migration projects. As facilities transition from older SIMATIC S5 or early S7-300 architectures to more modern SIMATIC S7-1500 or TIA Portal-based platforms, the intermediate HMI infrastructure often remains in service during the transition period. The A5E00161213 supports continued operation of legacy TP and EP panels during phased migration, allowing engineering teams to upgrade the controller layer without simultaneously replacing the entire HMI infrastructure. This staged approach reduces project risk and capital expenditure while maintaining operational continuity.

Supply chain reliability is a critical consideration for industrial procurement teams. The A5E00161213 is available through authorized distribution channels with verified provenance, functional testing, and full traceability documentation. Each unit supplied by ZYPLC undergoes incoming inspection and functional verification prior to dispatch, and is covered by a 12-Month Warranty that reflects our confidence in component quality and our commitment to long-term customer support. Fast global shipping and in-stock availability ensure that critical spare requirements can be fulfilled without extended lead times.

Architecture Specification Table

Coordinated Control System Design

The A5E00161213 operates most effectively when specified as part of a coordinated system design rather than as an isolated replacement part. In a typical SIMATIC-based automation cell, the control architecture includes a 6ES7315-2AG10-0AB0 S7-300 CPU managing process logic, a 6EP1333-3BA00 SITOP power supply providing 24 VDC rail power, and distributed I/O via 6ES7321-1BL00-0AA0 digital input and 6ES7322-1BL00-0AA0 digital output modules mounted on a 6ES7390-1AE80-0AA0 S7-300 rail. The HMI panel — powered by the A5E00161213 — connects to the CPU via a 6ES7972-0BB52-0XA0 PROFIBUS connector, enabling real-time process visualization and operator control. In larger systems, a 6GK7343-1EX30-0XE0 CP 343-1 Ethernet communication processor extends connectivity to the plant SCADA network, while SIRIUS 3RV2011 motor protection breakers and 3RT2015 contactors handle the field execution layer. This integrated architecture — from power distribution through controller, I/O, communication, and HMI — represents the design philosophy that the A5E00161213 is built to support.

Application in Layered Automation Systems

The A5E00161213 finds application across a broad range of industrial sectors where SIMATIC TP and EP panels are deployed as the primary operator interface. In manufacturing and assembly lines, the module supports continuous HMI operation during multi-shift production, ensuring that operators maintain real-time visibility of line status, alarm conditions, and production counts. In power generation and electrical substation environments, the stable power output of the A5E00161213 is essential for panels that display protection relay status, breaker positions, and load flow data — information that must be available at all times, including during grid disturbances. In petrochemical and refinery applications, the module supports HMI panels installed in classified areas or remote field panels, where power supply reliability directly affects process safety. Water and wastewater treatment facilities rely on SIMATIC panels for pump control, flow monitoring, and chemical dosing visualization; the A5E00161213 ensures these panels remain operational through utility power fluctuations common in remote installations. In mining and metallurgical operations, where vibration, dust, and temperature extremes challenge component reliability, the A5E00161213’s robust design supports extended service intervals. Packaging and material handling lines benefit from the module’s compatibility with high-cycle HMI applications where panels are accessed frequently by operators performing recipe changes, format adjustments, and production reporting.

Architecture Engineering FAQ

Q1: Is the A5E00161213 compatible with both TP and EP series SIMATIC panels, and can it be used as a direct replacement in existing installations?
The A5E00161213 is designed for use with Siemens SIMATIC TP and EP panel families, including TP170, TP270, EP50, EP60, and EP70 series. As a replacement unit, it should be verified against the original panel’s power input specification and connector type before installation. ZYPLC recommends cross-referencing the panel’s service documentation or contacting our technical team to confirm compatibility for your specific installation. All units supplied carry a 12-Month Warranty and have been functionally tested prior to dispatch.

Q2: How does the A5E00161213 integrate into a redundant S7-400H control architecture, and what are the key considerations for HMI power design in redundant systems?
In S7-400H redundant architectures, the HMI panel powered by the A5E00161213 must maintain continuous operation during CPU switchover events. The key design consideration is ensuring that the HMI power supply circuit is fed from a UPS-backed or redundant 24 VDC source, independent of the primary process power bus. This prevents HMI dropout during power supply transitions and ensures that the operator interface remains active throughout the redundancy switchover window. Additionally, the PROFIBUS or MPI communication link between the panel and the H-CPU should be configured with appropriate timeout parameters to tolerate the brief communication interruption that may occur during switchover.

Q3: What is the recommended spare parts strategy for the A5E00161213 in a continuous process facility, and what does the 12-Month Warranty cover?
For continuous process facilities, we recommend maintaining at least one A5E00161213 as a critical spare, particularly in installations where HMI panel downtime would require process shutdown or manual operation. The module’s field-replaceable design allows trained maintenance personnel to perform swap-out without specialized tools, minimizing MTTR. The 12-Month Warranty provided by ZYPLC covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are supported by our technical team at plc.sales@zyplc.com, and replacement units can be dispatched rapidly from our in-stock inventory.
