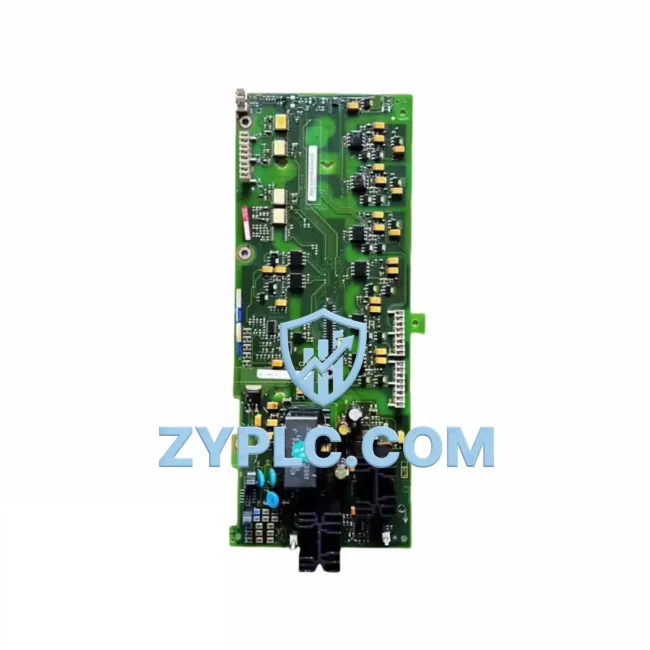

Siemens A5E00301347 System-Ready Power Board for SINAMICS

Siemens A5E00301347 System-Ready Power Board for SINAMICS Architecture: Control System Coordination and Contextual Integration

The Siemens A5E00301347 is a drive power control board engineered for deployment within SINAMICS variable-speed drive systems. In modern industrial automation, no component operates in isolation — every power board, CPU module, I/O card, and communication gateway must function as part of a coherent, layered control architecture. The A5E00301347 occupies a critical position within the power conversion layer of SINAMICS drive platforms, providing stable DC bus management, gate drive signal distribution, and power stage coordination that directly influences the reliability of the entire drive system.

Understanding the A5E00301347 requires viewing it not as a standalone replacement part, but as a contextually integrated element within a broader SINAMICS control hierarchy. From the control layer down through the I/O layer, network layer, power layer, HMI layer, and into the execution layer, this board serves as the electrical backbone that translates control commands into precise motor actuation. Its design supports the system consistency, scalability, redundancy, and long-term maintainability that demanding industrial environments require.

Architecture Specification Table

Coordinated Control System Design

The A5E00301347 does not function independently — it is designed to operate within a tightly coordinated SINAMICS drive architecture where every module contributes to system-level performance. In a typical SINAMICS S120 multi-axis drive system, the Control Unit (such as the 6SL3040-1MA01-0AA0 CU320-2 DP or 6SL3040-1MA00-0AA0 CU320-2 PN) serves as the master controller, issuing torque and speed commands via DRIVE-CLiQ to each axis module. The A5E00301347 power board resides within the Motor Module or Power Module, receiving these commands and translating them into precise IGBT gate signals that drive the connected motor.

On the power supply side, the 6SL3130-6AE21-0AB1 Active Line Module or a 6SL3130-7TE21-6AA3 Smart Line Module feeds regulated DC bus voltage to the drive system. The A5E00301347 interfaces with this DC bus, managing energy flow to the power semiconductors. Alongside it, the A5E00677666 driver board and A5E00297621 interface board are commonly found in the same drive chassis, forming a complete power electronics assembly that handles both signal conditioning and high-current switching.

For I/O integration, the SINAMICS architecture relies on 6SL3055-0AA00-5AA3 Terminal Module TM31 or TM15 terminal modules to expand analog and digital I/O capacity. These modules connect via DRIVE-CLiQ to the Control Unit, allowing the A5E00301347-equipped drive to receive process feedback signals — speed references, torque limits, fault acknowledgments — from the plant-level PLC or DCS. In Siemens-integrated plants, this PLC is often a SIMATIC S7-300 or S7-1500 series CPU, communicating over PROFIBUS DP or PROFINET IO to the SINAMICS Control Unit.

At the HMI layer, operators interact with the drive system through a SINAMICS Intelligent Operator Panel (IOP) or a SIMATIC HMI TP700 Comfort Panel, monitoring drive status, fault codes, and energy consumption in real time. The A5E00301347’s health directly affects the fault-free operation visible at this layer — a degraded power board will manifest as overcurrent trips, DC bus undervoltage alarms, or asymmetric phase output errors that operators must diagnose and resolve.

For redundancy-critical applications, SINAMICS supports parallel Motor Module configurations where multiple A5E00301347-equipped modules share load across a common DC bus. This architecture is common in steel rolling mills, paper machine drives, and large pump stations where unplanned downtime carries significant production cost. Maintaining a stocked spare A5E00301347 is a standard practice in these facilities, ensuring rapid board-swap recovery without waiting for extended lead times.

Application in Layered Automation Systems

The A5E00301347 finds application across a wide range of process and discrete manufacturing industries where SINAMICS drives are the preferred motion control platform.

In power generation and utilities, SINAMICS drives equipped with this power board control boiler feed pumps, induced draft fans, and cooling water circulation systems. The board’s stable gate drive performance ensures smooth motor acceleration and deceleration, reducing mechanical stress on pump impellers and fan blades while maintaining process flow targets.

In petrochemical and refinery applications, the A5E00301347 supports compressor drives and extruder motor control where continuous, uninterrupted operation is mandatory. The SINAMICS architecture’s built-in fault diagnostics — enabled by the power board’s signal integrity — allows maintenance teams to detect early-stage IGBT degradation before catastrophic failure occurs.

In mining and metallurgy, conveyor belt drives, hoist systems, and ore crusher motors rely on SINAMICS Motor Modules containing this power board. The harsh electrical environment — characterized by voltage transients, harmonic distortion, and high ambient temperatures — demands a power board with robust design margins, which the A5E00301347 provides within its rated operating envelope.

In water treatment and municipal infrastructure, variable-speed pump drives using SINAMICS G150 or S120 platforms with A5E00301347 power boards enable precise flow control, reducing energy consumption by 20–40% compared to fixed-speed operation. The 12-Month Warranty provided by ZYPLC ensures that replacement boards meet OEM performance standards, maintaining system certification compliance.

In packaging and discrete manufacturing lines, servo-coordinated motion systems use SINAMICS S120 booksize Motor Modules where the A5E00301347 manages individual axis power stages. Precise synchronization between axes — critical for label application, filling, and sealing operations — depends on the power board’s consistent gate timing and low-latency response to Control Unit commands.

Architecture Engineering FAQ

Q1: Is the A5E00301347 compatible with both SINAMICS S120 and G120 drive platforms?
The A5E00301347 is primarily associated with SINAMICS S120 chassis-format Motor Modules and certain SINAMICS G150 cabinet drive assemblies. Compatibility depends on the specific drive variant and power rating. Before installation, verify the drive’s bill of materials or contact ZYPLC technical support to confirm cross-compatibility with your exact drive model. The 12-Month Warranty covers boards supplied for confirmed compatible applications.

Q2: How does replacing the A5E00301347 affect system architecture integrity and DRIVE-CLiQ topology?
The A5E00301347 is an internal power stage board and does not directly participate in DRIVE-CLiQ topology enumeration — that function belongs to the Motor Module’s integrated sensor module or the Control Unit. Replacing the power board does not alter the DRIVE-CLiQ device list visible to the Control Unit, provided the replacement board is installed correctly and the Motor Module firmware version is compatible. After replacement, perform a drive commissioning check using STARTER or TIA Portal to verify fault-free operation and confirm that all axis parameters remain within specification.

Q3: What is covered under the 12-Month Warranty, and how does ZYPLC support long-term maintenance planning?
ZYPLC’s 12-Month Warranty covers the A5E00301347 against manufacturing defects and premature failure under normal operating conditions. Warranty claims are processed through direct contact with the ZYPLC technical team. For long-term maintenance planning, ZYPLC recommends maintaining at least one spare A5E00301347 per drive system cluster, particularly in high-availability applications. ZYPLC also supports Contextual Integration planning — helping engineering teams map spare part requirements to their specific SINAMICS architecture, ensuring that the correct boards, firmware revisions, and associated components are available when needed.
