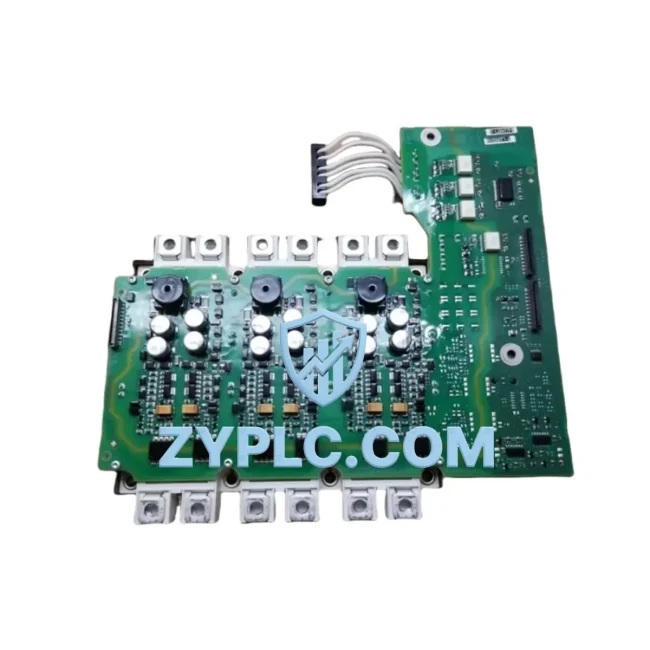

Siemens A5E00768956 Energy-Saving Inverter Board SINAMICS

Siemens A5E00768956 Energy-Saving Inverter Trigger Board for Optimized SINAMICS Automation

The Siemens A5E00768956 is a precision-engineered inverter trigger board designed for the SINAMICS drive series, delivering measurable improvements in motor control efficiency, energy consumption reduction, and production line throughput. As a core firing circuit component within the SINAMICS S120 and G120 drive platforms, the A5E00768956 governs the gate-triggering logic of IGBT power modules, directly influencing switching accuracy, harmonic distortion levels, and overall drive energy efficiency. In modern industrial environments where energy costs and equipment uptime are critical KPIs, this board plays a foundational role in achieving optimized automation performance.

Efficiency Performance Table

Energy-Aware Automation Architecture

The A5E00768956 trigger board does not operate in isolation — it is the precision timing core of a broader energy-aware drive architecture. Within a SINAMICS S120 multi-axis system, the trigger board interfaces directly with the SINAMICS S120 Control Unit CU320-2 PN, which manages axis coordination, energy flow distribution, and regenerative braking logic across multiple motor axes. The CU320-2 PN communicates via DRIVE-CLiQ, ensuring that firing commands from the A5E00768956 are synchronized with real-time torque and speed demands, eliminating unnecessary energy draw during partial-load cycles.

On the power side, the SINAMICS S120 Active Line Module (ALM) works in tandem with the trigger board’s output stage to enable four-quadrant operation and feed regenerative energy back to the DC bus — a critical feature in applications such as hoisting, centrifuges, and high-inertia conveyor systems. The A5E00768956 ensures that IGBT switching events are precisely timed to minimize reactive power and reduce total harmonic distortion (THD), which directly lowers transformer and cable losses upstream.

For energy monitoring and power quality analysis, the SIEMENS SENTRON PAC3200 power monitoring device is commonly deployed alongside SINAMICS drive systems. It captures real-time kWh consumption, power factor, and demand peaks — data that, when correlated with drive operating logs from the SIMATIC S7-1500 PLC, enables engineers to identify inefficient operating windows and schedule predictive maintenance before energy waste escalates into unplanned downtime.

The SIMATIC S7-1500 PLC, communicating via PROFINET with the SINAMICS G120 or S120 platform, executes energy-optimized motion profiles that reduce acceleration ramp energy peaks. The A5E00768956 trigger board faithfully executes these profiles at the hardware level, translating PLC speed setpoints into precise gate pulses that drive the motor with minimal overshoot and thermal stress. This is particularly valuable in multi-pump and multi-fan systems where the SINAMICS G120C drive — a compact variant sharing the same trigger architecture — manages parallel motor loads with dynamic load balancing.

At the field level, SIMATIC ET 200SP distributed I/O modules collect process feedback — temperature, pressure, flow rate — and relay this data to the S7-1500 for closed-loop energy optimization. The A5E00768956, as the final execution element in this chain, ensures that every control decision made at the PLC level is translated into energy-efficient motor action at the drive output stage. Additionally, the SINAMICS S120 Booksize Power Module PM340 provides the DC link voltage that the trigger board regulates, and its health directly affects the firing board’s operating stability.

For HMI visualization and operator energy dashboards, the SIMATIC HMI TP1200 Comfort Panel integrates with the SINAMICS drive system to display real-time energy consumption trends, drive fault histories, and efficiency KPIs — giving plant operators actionable insight into where the A5E00768956-equipped drives are performing optimally and where further tuning is needed.

Power Optimization in Real Production Lines

In real-world production environments, the Siemens A5E00768956 inverter trigger board contributes to energy optimization across several dimensions. In automotive body-in-white welding lines, SINAMICS S120 drives equipped with this trigger board control servo axes on robotic welding positioners. Precise IGBT firing reduces switching losses during high-cycle-rate operations, where even a 1–2% improvement in drive efficiency translates to significant annual energy savings across dozens of axes running 24/7.

In water treatment and HVAC applications, the A5E00768956 supports SINAMICS G120-based pump and fan drives operating under variable torque loads. By ensuring accurate gate triggering at partial speeds — where drives spend the majority of their operating hours — the board minimizes harmonic injection into the power grid and reduces motor heating, extending motor insulation life and lowering cooling energy requirements. Plants report 15–30% energy reduction compared to fixed-speed operation when SINAMICS drives with properly functioning trigger boards are deployed in these applications.

In packaging and material handling lines, the trigger board’s role in maintaining consistent DC bus voltage during rapid acceleration and deceleration cycles prevents voltage spikes that would otherwise cause nuisance trips and production stoppages. Fewer unplanned stops mean higher Overall Equipment Effectiveness (OEE) and lower energy waste from restart transients. The A5E00768956 is also a key component in reducing mean time to repair (MTTR): because it is a modular, field-replaceable board, maintenance teams can restore drive functionality within minutes rather than hours, keeping production lines running and avoiding the energy cost of cold restarts on large thermal processes.

All units supplied by ZYPLC undergo pre-shipment functional testing that validates gate signal integrity, timing accuracy, and thermal performance under load simulation. This ensures that the A5E00768956 you receive is ready to deliver its rated efficiency contribution from day one, with a 12-month warranty covering any manufacturing or component defects discovered during normal industrial operation.

Energy Optimization FAQ

Q1: How does the A5E00768956 contribute to measurable energy savings in a SINAMICS drive system?
The A5E00768956 controls the gate firing timing of the drive’s IGBT power modules. Accurate firing timing minimizes switching losses, reduces reactive power, and lowers total harmonic distortion — all of which directly reduce energy consumption at the drive level. When combined with variable speed control via the SINAMICS G120 or S120 platform, the energy savings versus fixed-speed operation can reach 20–40% in pump, fan, and compressor applications.

Q2: Which SINAMICS drive models is the A5E00768956 compatible with?
The A5E00768956 is designed for the SINAMICS S120 and G120 drive families, including Booksize and Chassis format power modules. It is also applicable in SINAMICS G130 and G150 cabinet drives that share the same IGBT trigger architecture. Always verify the exact drive model and firmware version with your engineering team or contact ZYPLC for a compatibility confirmation before ordering.

Q3: What is the recommended replacement procedure, and how does ZYPLC support the process?
Replacement of the A5E00768956 should follow Siemens SINAMICS service documentation, including proper ESD precautions, DC bus discharge verification, and post-installation parameter validation via STARTER or TIA Portal Drive Wizard. ZYPLC provides tested replacement boards with a 12-month warranty and can supply technical datasheets and installation guidance upon request. Our team can also advise on compatible spare parts within the SINAMICS ecosystem to minimize future downtime risk.

Q4: Does ZYPLC test the A5E00768956 before shipment, and what does the 12-month warranty cover?
Yes. Every A5E00768956 unit undergoes functional testing prior to shipment, validating gate signal output, timing accuracy, and board integrity. The 12-month warranty covers defects in materials and workmanship under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental parameters. For warranty claims or technical support, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691.
