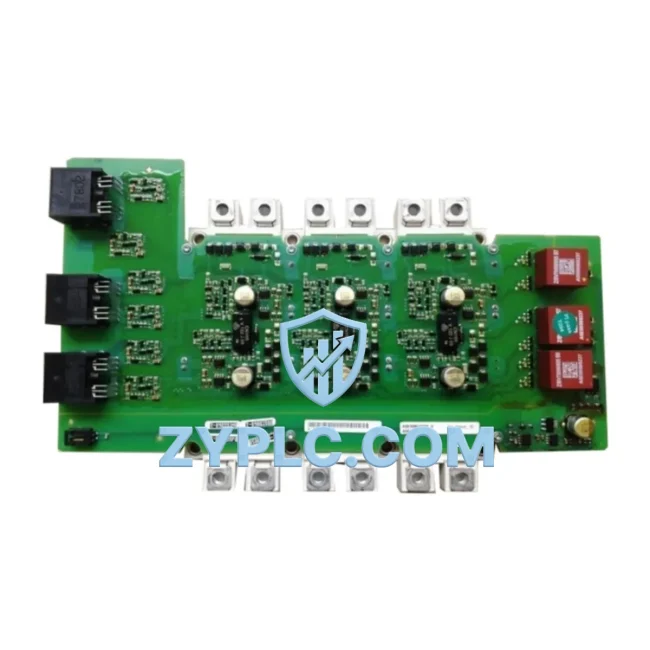

Siemens A5E00825004 IGBT Module for SIMOVERT

Siemens A5E00825004 IGBT Module for SIMOVERT: Precision Drive Efficiency and Production Line Optimization

The Siemens A5E00825004 (FS225R17KE3F_S1) is a high-performance IGBT power module engineered for the SIMOVERT series of AC drives and frequency converters. Designed to operate at the heart of industrial motor control systems, this module delivers precise switching performance, reduced switching losses, and sustained thermal stability — all critical factors in reducing unplanned downtime across continuous production environments. Whether deployed in heavy manufacturing, process automation, or material handling, the A5E00825004 enables drive systems to operate closer to their theoretical efficiency ceiling, translating directly into measurable reductions in electricity consumption and heat generation.

In modern industrial facilities where energy costs represent a significant share of operational expenditure, the quality of the IGBT switching stage determines how efficiently electrical energy is converted into mechanical output. The A5E00825004 minimizes conduction losses and switching transients, allowing the SIMOVERT drive to maintain high power factor and low harmonic distortion across variable load conditions. This is particularly valuable in applications with fluctuating motor loads, where inferior modules cause excess heat buildup, increased cooling demand, and accelerated component degradation.

Product Specification Table

System Compatibility and Application

The A5E00825004 does not operate in isolation — its efficiency gains are amplified when integrated within a well-designed automation architecture. In a typical SIMOVERT-based drive system, the IGBT module works in conjunction with the 6SL3120-1TE23-0AA3 double motor module, which manages dual-axis torque output while sharing a common DC bus. This shared bus topology, enabled by the SINAMICS S120 infrastructure, allows regenerative energy from decelerating axes to be redistributed to accelerating ones, dramatically reducing net energy draw from the grid.

On the control side, the 6ES7511-1AK02-0AB0 CPU module from the SIMATIC S7-1500 series provides the high-speed processing backbone for closed-loop motor control algorithms. Paired with the 6ES7521-1BL00-0AB0 digital input module, the system can respond to real-time feedback from current sensors and encoder signals, enabling dynamic adjustment of switching frequency and modulation depth to match actual load demand — a key lever for energy reduction in variable-speed applications.

Power quality monitoring is handled upstream by the SENTRON PAC3200 power monitoring device, which tracks active power, reactive power, harmonics, and power factor in real time. When the A5E00825004 is operating within specification, the PAC3200 data confirms stable power factor values and low THD, validating the module’s contribution to grid-friendly operation. Any deviation in these metrics serves as an early indicator of module degradation, enabling predictive maintenance before a fault occurs.

For human-machine interaction and energy dashboard visualization, the SIMATIC HMI KTP700 Basic (6AV2123-2GB03-0AX0) provides operators with real-time drive status, energy consumption trends, and alarm management. Operators can monitor the thermal state of the IGBT module, track cumulative energy usage per production shift, and set efficiency targets directly from the panel. This visibility closes the feedback loop between energy data and operational decisions.

Communication between the drive, PLC, and condition monitoring systems is handled via PROFINET, with the 6GK7343-1EX30-0XE0 communications processor enabling seamless data exchange across the plant network. This connectivity allows the A5E00825004’s operating parameters to be logged, trended, and analyzed within the broader MES or SCADA environment, supporting ISO 50001 maintenance planning compliance and continuous improvement initiatives.

On the power supply side, the 6EP1334-3BA10 SITOP PSU300S stabilized power supply ensures that the control electronics and gate driver circuits receive clean, regulated DC power — a prerequisite for consistent IGBT switching behavior and protection against nuisance trips caused by supply voltage fluctuations.

Maintenance and Replacement Notes

In automotive body shop applications, where servo-driven welding positioners and conveyor systems run continuously across three shifts, the A5E00825004 enables the SIMOVERT drive to maintain precise speed regulation under varying mechanical loads without over-driving the motor. By eliminating the excess torque margin that fixed-speed systems require, the drive reduces average current draw by a measurable percentage, lowering both energy consumption and motor winding temperature — extending motor service life and reducing the frequency of rewinding or replacement.

In pump and fan applications governed by affinity laws, even a modest reduction in operating speed translates into a cubic reduction in power demand. The A5E00825004’s low switching losses allow the SIMOVERT drive to operate at higher carrier frequencies without excessive heat generation, enabling smoother motor current waveforms that reduce acoustic noise and bearing stress. This is particularly relevant in HVAC and water treatment facilities where continuous operation at partial load is the norm.

From a maintenance perspective, the module’s robust thermal cycling capability reduces the risk of solder joint fatigue — a common failure mode in IGBT modules subjected to frequent load changes. Combined with the predictive data available from the SENTRON PAC3200 and SIMATIC S7-1500 diagnostics, maintenance teams can schedule module inspections based on actual thermal stress accumulation rather than fixed calendar intervals, reducing unnecessary downtime and spare parts consumption.

Every A5E00825004 unit supplied by ZYPLC undergoes comprehensive pre-shipment testing, including static parameter verification, dynamic switching characterization, and thermal resistance measurement. This ensures that the module delivered to your facility performs to Siemens factory specification from day one, with full traceability documentation and a warranty terms confirmed during quotation covering manufacturing defects and performance deviations.

Product Sourcing FAQ

Q1: How does the A5E00825004 contribute to measurable operational stability in a SIMOVERT drive system?
The FS225R17KE3F_S1 IGBT module reduces conduction and switching losses within the inverter stage, allowing the SIMOVERT drive to convert AC input power to motor shaft output with higher efficiency. In variable-speed applications, this translates to lower average current draw, reduced heat generation, and decreased cooling system load — all of which contribute to lower total energy consumption per unit of production output.

Q2: Is the A5E00825004 compatible with both SIMOVERT Masterdrives and SIMOVERT VC/FC platforms?
Yes. The A5E00825004 is designed for use across the SIMOVERT drive family, including Masterdrives MC and VC variants. Before installation, verify the drive’s power rating and DC bus voltage against the module’s 1700 V / 225 A specification. If you require assistance confirming compatibility with a specific drive cabinet configuration, our technical team can support cross-referencing against the drive’s bill of materials.

Q3: What is the recommended replacement interval, and how should the module be tested before installation?
Replacement is typically condition-based rather than time-based. Monitor thermal resistance (Rth) trends via the drive’s temperature sensors and review power quality data from the SENTRON PAC3200 for signs of increased harmonic distortion or power factor degradation. Prior to installation, each ZYPLC-supplied A5E00825004 is tested under load conditions to verify gate threshold voltage, leakage current, and on-state voltage drop within Siemens specification limits.

Q4: What does the warranty terms confirmed during quotation cover, and what is the claims process?
The warranty terms confirmed during quotation covers manufacturing defects, parameter deviations from Siemens specification, and premature failure under normal operating conditions. To initiate a warranty claim, contact ZYPLC with the module serial number, installation date, and a description of the observed fault. Our team will coordinate return logistics and provide a replacement or repair within the agreed service timeline. Warranty does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the module’s rated parameters.
