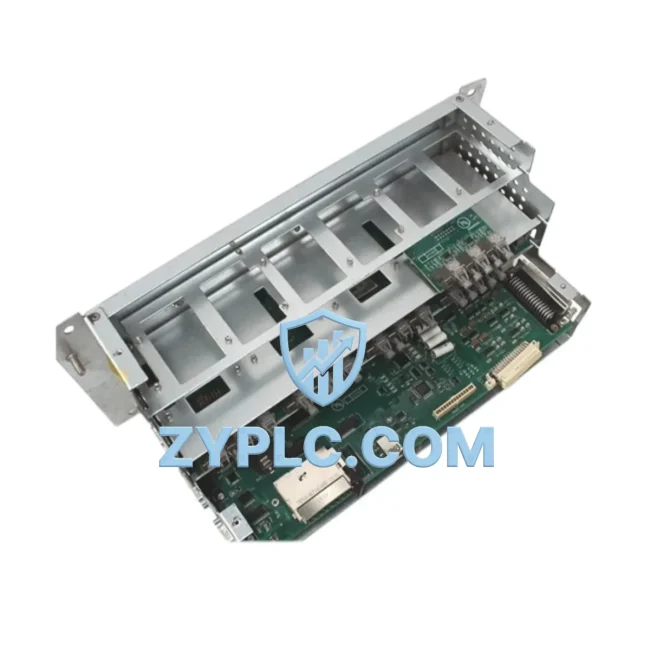

Siemens A5E37764770/A5E03965230A System-Ready Analog Input for SIMATIC Architecture

Siemens A5E37764770/A5E03965230A System-Ready Analog Input Module: Control System Architecture and Upstream-Downstream Coordination

The Siemens A5E37764770/A5E03965230A is a precision analog input module engineered for seamless integration within SIMATIC-based distributed control system (DCS) and programmable logic controller (PLC) architectures. Rather than functioning as a standalone component, this module is designed to occupy a defined role within a layered automation hierarchy — bridging the physical process layer and the digital control layer with high-fidelity signal acquisition. Its architecture-ready design ensures that engineers can deploy it across a wide range of industrial environments, from continuous process control in petrochemical plants to discrete manufacturing lines, without compromising system consistency, scalability, or long-term maintainability.

In a complete SIMATIC control system, the A5E37764770/A5E03965230A analog input module connects directly to the S7-300 or compatible backplane rack, occupying a standard module slot alongside CPU modules such as the CPU 315-2 DP or CPU 317-2 PN/DP. The module receives 4–20 mA or 0–10 V analog signals from field instruments — including pressure transmitters, temperature sensors, and flow meters — and converts them into digital values that the CPU processes in real time. This signal chain is fundamental to closed-loop control strategies, where accurate analog acquisition directly determines the quality of PID regulation, cascade control, and feedforward compensation.

From a system architecture perspective, the A5E37764770/A5E03965230A integrates into the I/O layer of a multi-tier automation pyramid. At the field level, it interfaces with sensors and transducers. At the control level, it communicates with the CPU via the S7-300 backplane bus, ensuring deterministic data transfer with minimal latency. At the supervisory level, the processed data is forwarded through PROFIBUS DP or PROFINET communication gateways — such as the CP 342-5 or CP 343-1 — to SCADA systems or historian servers, enabling real-time monitoring, alarm management, and data logging. This layered signal flow ensures that every analog measurement taken at the field level is accurately represented at the operator interface level, whether through a SIMATIC HMI panel such as the TP700 Comfort or a WinCC-based supervisory workstation.

Power integrity is a critical consideration in any analog signal acquisition system. The A5E37764770/A5E03965230A is powered through the S7-300 rack’s integrated power distribution bus, which is supplied by a PS 307 power supply module. Maintaining stable 24 VDC rail voltage is essential for preserving analog measurement accuracy, as voltage fluctuations can introduce offset errors and noise into the signal chain. In redundant power architectures, dual PS 307 units with diode decoupling are commonly deployed to ensure uninterrupted module operation during power supply maintenance or failure events.

The module’s compatibility with the S7-300 modular rack system means it can coexist with a broad range of I/O modules on the same backplane, including digital input modules (SM 321), digital output modules (SM 322), analog output modules (SM 332), and function modules (FM 350, FM 355) for high-speed counting and closed-loop control. This modular coexistence allows system architects to design compact, high-density control panels that consolidate analog acquisition, digital I/O, and specialized control functions within a single rack assembly, reducing cabinet footprint and wiring complexity.

For applications requiring system redundancy, the A5E37764770/A5E03965230A can be incorporated into fault-tolerant architectures using the S7-400H redundant CPU platform or through software-based redundancy strategies in S7-300 systems. In such configurations, analog input data is mirrored across redundant CPU modules, ensuring that a single module failure does not interrupt process monitoring or control. This redundancy capability is particularly valuable in critical infrastructure applications such as power generation, water treatment, and oil and gas processing, where unplanned downtime carries significant operational and safety consequences.

Engineering commissioning of the A5E37764770/A5E03965230A is performed using SIMATIC STEP 7 or TIA Portal, where the module is configured through the hardware configuration editor. Engineers define channel types (voltage or current), measurement ranges, filter time constants, and diagnostic alarm thresholds directly within the software environment. The module supports hardware interrupts, enabling the CPU to respond immediately to out-of-range analog values without relying on cyclic polling — a feature that enhances system responsiveness in time-critical process control scenarios.

Long-term maintenance of the A5E37764770/A5E03965230A is simplified by its hot-swap compatibility within the S7-300 rack (subject to system configuration) and its standardized form factor, which allows direct replacement without rack modification or rewiring. Spare module availability is supported through ZYPLC’s inventory management program, ensuring that replacement units are accessible with minimal lead time. All units supplied by ZYPLC are covered by a 12-Month Warranty, providing assurance of module functionality and supporting the total cost of ownership calculations that maintenance engineers rely on for long-term asset management planning.

The A5E37764770/A5E03965230A also supports Contextual Integration within existing SIMATIC architectures, meaning it can be introduced into operational systems without requiring firmware upgrades, rack redesign, or CPU replacement. This plug-and-play compatibility reduces integration risk and accelerates deployment timelines, which is a critical advantage in brownfield modernization projects where minimizing production interruption is a primary engineering constraint.

Architecture Specification Table

Coordinated Control System Design

The A5E37764770/A5E03965230A achieves its full operational value when deployed as part of a coordinated SIMATIC control system. In a typical architecture, the module shares the S7-300 rack with a CPU 315-2 DP or CPU 317-2 PN/DP, which serves as the central processing unit for all I/O data acquired by the module. The rack is powered by a PS 307 10A power supply module, which provides stable 24 VDC to all installed modules. Digital I/O requirements within the same panel are handled by SM 321 digital input modules and SM 322 digital output modules, which share the backplane with the analog input module and are managed by the same CPU scan cycle.

For process control applications requiring analog output — such as valve positioner control or variable speed drive setpoint transmission — the SM 332 analog output module is deployed alongside the A5E37764770/A5E03965230A, forming a complete analog I/O subsystem within a single rack. Network connectivity to the plant SCADA or DCS supervisory layer is established through a CP 343-1 PROFINET communication processor, which enables Ethernet-based data exchange with WinCC or third-party SCADA platforms. In PROFIBUS-based architectures, the CP 342-5 PROFIBUS DP master module provides equivalent connectivity to distributed I/O stations and field devices.

Operator interface is provided through a SIMATIC TP700 Comfort HMI panel or equivalent, connected to the CPU via PROFINET or MPI, displaying real-time analog values, trend graphs, and alarm states derived from the module’s channel data. For high-speed or specialized control functions, FM 355 closed-loop control modules can be installed in the same rack to handle PID regulation independently of the CPU, offloading control computation and improving response times in fast process loops.

Application in Layered Automation Systems

The A5E37764770/A5E03965230A is deployed across a broad spectrum of industrial automation applications where reliable analog signal acquisition is a system-critical requirement. In power generation and electrical substation automation, the module acquires current and voltage analog signals from instrument transformers and transmitters, feeding real-time electrical measurements to the control CPU for load management, protection relay coordination, and energy metering. In petrochemical and refinery process control, it monitors pressure, temperature, and flow analog signals across distillation columns, heat exchangers, and reactor vessels, supporting continuous closed-loop control strategies that maintain product quality and process safety.

In water and wastewater treatment plants, the module interfaces with level transmitters, pH sensors, and turbidity analyzers, providing the analog data necessary for dosing control, pump sequencing, and effluent quality monitoring. In metallurgical and mining operations, it acquires analog signals from load cells, vibration sensors, and temperature probes on conveyor systems, crushers, and smelting furnaces, enabling predictive maintenance strategies and process optimization. In packaging and discrete manufacturing lines, the module supports analog tension control, web guiding, and fill-level verification systems, where precise analog measurement directly impacts product consistency and line throughput.

Across all these application domains, the A5E37764770/A5E03965230A contributes to system architecture goals of signal integrity, modular expandability, and long-term maintainability — three pillars that define the engineering value of a well-specified analog input module in a SIMATIC-based control system.

Architecture Engineering FAQ

Q1: Is the A5E37764770/A5E03965230A compatible with both STEP 7 Classic and TIA Portal configuration environments?
A: Yes. The module is configurable within SIMATIC STEP 7 (v5.x) and TIA Portal (v13 and above) hardware configuration editors. In both environments, engineers can define channel measurement types, input ranges, filter constants, and diagnostic alarm parameters. Existing STEP 7 projects can be migrated to TIA Portal using the integrated migration wizard, preserving hardware configuration data including analog module channel assignments.

Q2: Can this module be integrated into an existing S7-300 rack without replacing the CPU or modifying the backplane?
A: Yes. The A5E37764770/A5E03965230A supports direct Contextual Integration into existing S7-300 rack assemblies. It occupies a standard module slot and communicates via the existing backplane bus without requiring CPU firmware updates or rack hardware modifications. After physical installation, the module must be added to the hardware configuration in STEP 7 or TIA Portal and the project downloaded to the CPU. No production interruption is required for configuration download in systems supporting online change.

Q3: What does the 12-Month Warranty cover, and how is a warranty claim processed through ZYPLC?
A: The 12-Month Warranty provided by ZYPLC covers manufacturing defects and functional failures under normal operating conditions for a period of twelve months from the date of shipment. In the event of a module failure within the warranty period, customers contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 to initiate a return merchandise authorization (RMA). ZYPLC will arrange module inspection and, upon confirmation of a warranty-covered defect, provide a replacement unit or repair service at no additional cost. Warranty coverage does not extend to damage caused by incorrect installation, overvoltage events, or operation outside specified environmental conditions.
