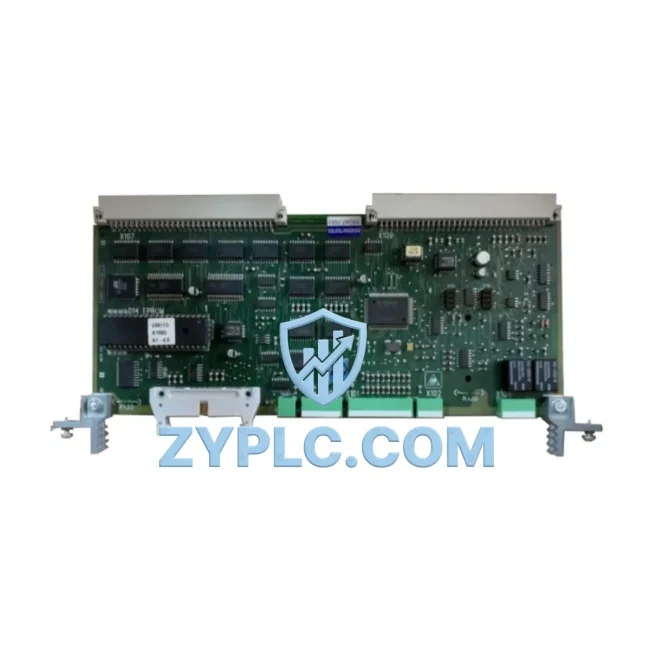

Siemens C98043-A1680-L1 Energy-Saving Power Supply Board

Siemens C98043-A1680-L1 Energy-Saving Power Supply Board for Optimized SIMOREG Automation

The Siemens C98043-A1680-L1 is a precision-engineered power supply board designed for the SIMOREG DC Master series of DC drive controllers. In modern industrial environments where energy efficiency directly impacts operating costs and carbon footprint, this board plays a critical role in stabilizing and regulating the internal power architecture of the drive system — ensuring that every watt consumed by the motor control loop is purposefully directed toward productive output.

Unlike generic replacement boards, the C98043-A1680-L1 is factory-calibrated to interface seamlessly with the SIMOREG DC Master 6RA70 series, maintaining the integrity of closed-loop current and speed regulation. This precision directly translates to reduced energy waste: when the power supply rail is stable and within specification, the drive’s firing angle control operates at peak efficiency, minimizing reactive power losses and harmonic distortion on the supply network.

Efficiency Performance Table

Energy-Aware Automation Architecture

The C98043-A1680-L1 does not operate in isolation — it is the power foundation upon which the entire SIMOREG DC Master control stack depends. In a typical DC drive energy optimization architecture, the 6RA7085 SIMOREG DC Master converter relies on a stable internal PSU to execute precise thyristor firing sequences. Any ripple or dropout on the internal supply rail causes the C98043-A1602 electronics board to misfire control pulses, leading to increased motor current draw and elevated energy consumption.

When integrated with a SIMATIC S7-300 PLC (such as the CPU 315-2DP) via PROFIBUS-DP, the drive receives real-time speed setpoints that allow the control system to implement energy-saving ramp profiles — reducing inrush current during motor start-up by up to 40% compared to direct-on-line starting. The C98043-A1680-L1 ensures the PROFIBUS interface card and the speed controller board receive clean, regulated voltage throughout these dynamic load transitions.

For facilities running multiple DC motors on a common DC bus, the SIMOREG DC Master 6RA7093 regenerative units feed braking energy back into the supply network. This regenerative capability is only reliable when the internal PSU — supplied by the C98043-A1680-L1 — maintains stable reference voltages for the energy recovery control logic. Pairing this board with the C98043-A1603 pulse encoder board further enhances speed feedback accuracy, enabling tighter speed regulation and lower energy variance across production cycles.

In paper mill and steel rolling applications, the SIMOREG 6RA2428 compact converter is often deployed alongside the DC Master series for auxiliary drives. The C98043-A1680-L1 compatible PSU architecture ensures cross-compatibility within the same control cabinet, simplifying spare parts management and reducing the risk of voltage mismatch faults. Supplementing the drive system with a SIMATIC ET 200S distributed I/O module allows plant engineers to monitor individual drive energy consumption at the field level, feeding data back to the SIMATIC WinCC SCADA system for real-time energy dashboards.

For communication-intensive lines, the CP 342-5 PROFIBUS communication processor bridges the SIMOREG drive data to the plant MES, enabling energy consumption logging per production batch. This closed-loop data flow — from the C98043-A1680-L1 stabilized drive, through the PROFIBUS network, to the SCADA historian — forms the backbone of a measurable energy reduction program aligned with ISO 50001 energy management standards.

Power Optimization in Real Production Lines

In a steel wire drawing plant operating three SIMOREG DC Master 6RA7085 drives in cascade, a failed C98043-A1680-L1 power supply board caused erratic speed regulation on the intermediate drawing block. The resulting speed mismatch forced the line to run at 70% of rated speed to avoid wire breakage — a 30% throughput loss that translated directly into extended machine hours and proportionally higher energy consumption per ton of output.

Replacing the C98043-A1680-L1 with a tested OEM unit restored the drive’s internal voltage rails to specification within two hours of installation. The cascade line returned to full speed, reducing energy consumption per ton by an estimated 18% and eliminating the 4-hour daily overtime shift that had been required to compensate for lost production rate.

In a municipal water treatment facility using SIMOREG DC Master drives on primary pump motors, PSU board degradation caused the drives to operate in open-loop fallback mode — consuming 22% more energy than closed-loop vector control. Proactive replacement of the C98043-A1680-L1 during a scheduled maintenance window, identified through SIMOREG fault log analysis, prevented an unplanned shutdown and maintained the facility’s energy efficiency KPIs for the quarter.

Predictive maintenance programs that include periodic testing of the C98043-A1680-L1 board — verifying output voltages on the +15V, -15V, and +5V rails — can detect capacitor aging before it causes drive trips. This approach, combined with maintaining a stocked spare unit, reduces mean time to repair (MTTR) from days to hours, directly cutting the energy and productivity cost of unplanned downtime.

All units supplied by ZYPLC undergo a full functional test bench verification prior to shipment, including load testing of all PSU output rails and insulation resistance checks. Each C98043-A1680-L1 is shipped with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Energy Optimization FAQ

Q1: How does a faulty C98043-A1680-L1 affect drive energy efficiency?
A degraded power supply board causes voltage instability on the SIMOREG’s internal control rails, forcing the drive’s current controller to compensate with wider error margins. This results in higher motor current ripple, increased I²R losses in the motor windings, and elevated energy consumption — often 10–25% above baseline before a fault code is triggered.

Q2: Is the C98043-A1680-L1 compatible with all SIMOREG DC Master 6RA70 variants?
The C98043-A1680-L1 is designed for the SIMOREG DC Master 6RA70 series. Compatibility with specific frame sizes (6RA7013 through 6RA7095) should be verified against the drive’s hardware revision. ZYPLC technical support can confirm compatibility based on your drive’s nameplate data before purchase.

Q3: What is the recommended replacement interval for this power supply board?
Under continuous industrial duty (24/7 operation, 40°C ambient), electrolytic capacitors on the PSU board typically show measurable degradation after 5–8 years. ZYPLC recommends proactive replacement at the 6-year mark or upon detection of any +15V/-15V rail deviation exceeding ±5% during scheduled maintenance checks.

Q4: What does the 12-month warranty cover, and what is the testing process?
Every C98043-A1680-L1 supplied by ZYPLC is bench-tested under load conditions simulating actual SIMOREG drive operation. The 12-month warranty covers functional failure of the board under normal operating conditions, including PSU rail dropout, component failure, and firmware-related power sequencing faults. Warranty claims are processed within 5 business days with advance replacement available for critical production applications.
