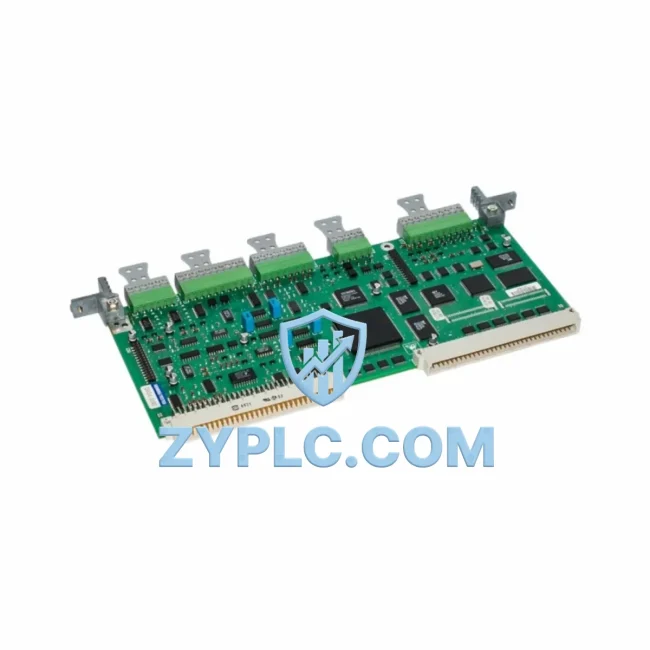

The Siemens C98043-A7001-L2 is a precision-engineered DC drive control board designed for seamless integration within the Simoreg DC Master drive platform. Rather than functioning as a standalone component, this module occupies a critical position within a layered industrial automation architecture — bridging the control layer, power conversion layer, and field device layer in a unified, deterministic control environment. For system integrators, OEM machine builders, and plant maintenance engineers, understanding the C98043-A7001-L2 within its full architectural context is essential to achieving reliable, scalable, and maintainable DC drive systems.

In a complete Simoreg-based control architecture, the C98043-A7001-L2 serves as the electronics board responsible for closed-loop speed and current regulation of the DC motor. It interfaces directly with the Simoreg DC Master 6RA70 series converter, receiving setpoint signals from the upper control layer — typically a Simatic S7-300 or S7-400 PLC — via PROFIBUS-DP or analog reference channels. The board processes encoder feedback, armature current feedback, and field current signals to maintain precise motor control across the full speed range, making it indispensable in applications where torque linearity and dynamic response are non-negotiable.

From a system hierarchy perspective, the C98043-A7001-L2 sits at the drive intelligence layer, coordinating upward with the automation controller and downward with the power thyristor bridge. Above it, a Simatic S7-400 CPU or a distributed control system (DCS) such as the Siemens PCS 7 platform issues speed references and operational commands. Below it, the thyristor firing circuits respond to the board’s pulse generation signals to regulate armature voltage. This vertical integration ensures that the entire drive system — from operator command to motor shaft rotation — operates with sub-millisecond response consistency.

Horizontal integration is equally important. Within the same control cabinet, the C98043-A7001-L2 operates alongside the Simoreg CUD1 central unit board, the ADB analog-digital interface board, and the SLB serial link board for PROFIBUS communication. Power supply stability is maintained by dedicated 24 VDC SITOP PSU power supply units, which provide clean, regulated voltage to the electronics boards and prevent control disruptions caused by mains fluctuations. Terminal modules such as the Siemens SIRIUS 3RT contactors and 3RV circuit breakers in the upstream power distribution section protect the drive system from overload and short-circuit conditions.

For multi-drive architectures — common in steel rolling mills, paper machines, winding lines, and large-scale pump stations — the C98043-A7001-L2 enables coordinated master-follower drive configurations. A master Simoreg unit equipped with this board generates the speed reference that follower drives track via the peer-to-peer serial link or PROFIBUS network, ensuring synchronized torque distribution across multiple DC motors. This architecture eliminates mechanical coupling requirements and allows independent tension control in web-handling applications.

Redundancy and fault tolerance are built into the system design philosophy. In critical process applications, engineers often deploy a hot-standby Simoreg unit with an identical C98043-A7001-L2 board, switchable via a Siemens SIRIUS 3KC transfer switch or a custom PLC-controlled changeover relay. The board’s diagnostic outputs — fault codes, alarm bits, and analog monitoring signals — are mapped to the S7 PLC’s I/O modules (such as the SM 321 digital input module and SM 331 analog input module) for real-time condition monitoring and predictive maintenance integration via Simatic WinCC SCADA.

From a commissioning perspective, the C98043-A7001-L2 is parameterized using the Simoreg DriveMonitor software or the OP1S operator panel, allowing engineers to configure speed controller gains, current limits, ramp rates, and field weakening curves without hardware modifications. This software-defined flexibility reduces commissioning time significantly compared to older analog drive platforms and supports rapid adaptation to changing process requirements.

Long-term maintainability is a core advantage of sourcing the C98043-A7001-L2 through a verified industrial parts supplier. With a 12-Month Warranty covering functional integrity and electrical performance, and with Contextual Integration support ensuring compatibility verification against the target Simoreg platform version, procurement teams can plan maintenance cycles with confidence. Stocking a spare C98043-A7001-L2 board as part of a critical spares inventory strategy reduces mean time to repair (MTTR) from days to hours in the event of a drive electronics failure.

Architecture Specification Table

Coordinated Control System Design

A complete Simoreg-based DC drive system built around the C98043-A7001-L2 typically incorporates the following coordinated components across multiple system layers:

At the control layer, a Simatic S7-400 CPU 414-3 PN/DP or S7-300 CPU 315-2 DP issues speed setpoints and operational mode commands to the Simoreg drive via PROFIBUS-DP. The PLC’s SM 331 analog input module monitors armature current feedback and motor temperature signals for process supervision. At the drive intelligence layer, the C98043-A7001-L2 board works in conjunction with the Simoreg CUD1 central unit board and the ADB analog-digital interface board to execute the speed and current control algorithms. The SLB serial link board handles PROFIBUS communication between the drive and the PLC network.

At the power layer, the Simoreg 6RA7085 or 6RA7093 converter chassis houses the thyristor bridge that the C98043-A7001-L2 controls. Upstream power protection is provided by Siemens SIRIUS 3RV1 motor circuit breakers and 3RT2 contactors. The SITOP PSU300S 24 VDC power supply ensures stable electronics supply voltage. At the HMI layer, a Simatic TP700 Comfort Panel or OP1S operator panel provides local drive parameter access and fault diagnostics. At the field device layer, incremental encoders and DC tachogenerators feed speed signals back to the C98043-A7001-L2 for closed-loop regulation, completing the full control loop from operator command to motor shaft.

Application in Layered Automation Systems

The C98043-A7001-L2 finds application across a broad range of heavy industrial and process automation environments. In steel and metals processing, it controls the main drive motors of rolling mill stands, coilers, and uncoilers where precise tension and speed coordination between multiple DC drives is critical to product quality. In paper and pulp manufacturing, it manages the speed of dryer section rolls and winder drives, where web tension control directly impacts product consistency and waste reduction.

In petrochemical and refinery applications, the board drives large DC motors on compressors, extruders, and agitators where variable speed control reduces energy consumption and process variability. In mining and mineral processing, it controls conveyor drives, hoist motors, and crusher drives in environments characterized by high ambient temperatures, dust, and vibration — conditions that the Simoreg platform is specifically rated to withstand. In water and wastewater treatment, legacy DC pump and blower drives equipped with Simoreg systems continue to operate reliably with properly maintained electronics boards, making the C98043-A7001-L2 a critical spare for plant continuity. In packaging and converting lines, the board enables precise register control and tension management in multi-section DC drive trains, supporting high-speed production with minimal downtime.

Architecture Engineering FAQ

Q1: Is the C98043-A7001-L2 compatible with all variants of the Simoreg DC Master 6RA70 series?
The C98043-A7001-L2 is designed for specific hardware revisions within the Simoreg 6RA70 platform. Compatibility depends on the drive’s rated current, firmware version, and existing board configuration (CUD1/CUD2 combination). Before installation, verify the drive’s order number suffix and existing board revision against the Simoreg hardware compatibility matrix. Our Contextual Integration support service includes pre-shipment compatibility verification to ensure the board matches your specific drive chassis configuration.

Q2: Can this board be installed and commissioned without Siemens factory support?
Yes. The C98043-A7001-L2 can be installed by qualified drive engineers familiar with the Simoreg 6RA70 platform. Commissioning is performed using the DriveMonitor software (free download from Siemens Industry Online Support) or the OP1S operator panel. Key commissioning steps include motor data entry, encoder configuration, speed controller optimization, and field controller setup. All parameter settings from the previous board should be backed up via DriveMonitor before replacement to minimize recommissioning time. Our technical team can provide parameter backup templates and commissioning checklists upon request.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims?
The 12-Month Warranty covers all functional and electrical failures under normal operating conditions, including control circuit failures, communication interface faults, and feedback signal processing errors. Physical damage caused by incorrect installation, overvoltage events, or environmental contamination beyond the board’s rated specifications is excluded. To initiate a warranty claim, contact our technical support team with the board’s serial number, a description of the fault symptom, and the drive’s fault code log. Replacement boards are dispatched within 3 business days of claim approval, minimizing system downtime.
