Siemens C98043-A7002-L4-13 Energy-Saving DC Drive for SIMOREG

Siemens C98043-A7002-L4-13 Energy-Saving DC Drive for SIMOREG Automation

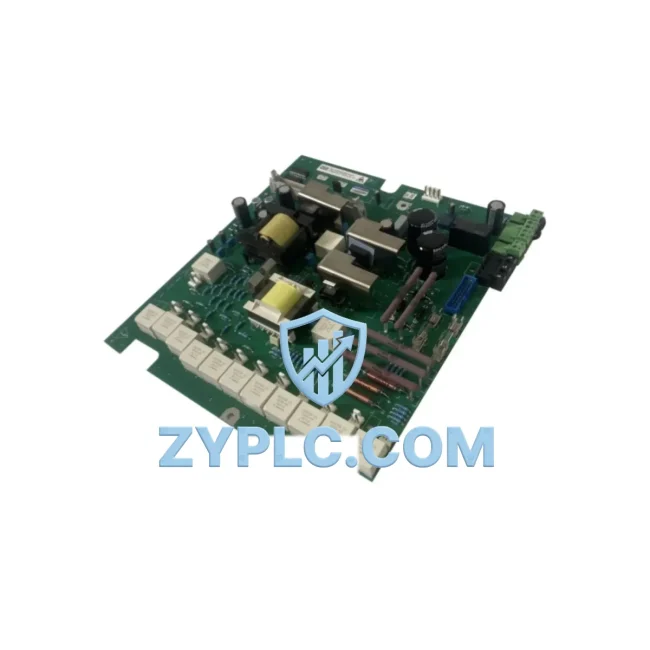

The Siemens C98043-A7002-L4-13 is a high-performance DC drive control module engineered for the SIMOREG drive family, purpose-built to deliver precision motor control, measurable energy savings, and reliable continuous operation in demanding industrial environments. As factories face increasing pressure to reduce energy consumption, improve equipment utilization, and minimize unplanned downtime, this control module serves as a critical component in achieving those operational goals. Whether deployed in steel processing lines, paper mills, crane systems, or extruder drives, the C98043-A7002-L4-13 provides the closed-loop control intelligence that keeps DC motor systems running at peak efficiency.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a modern energy-aware production facility, the C98043-A7002-L4-13 does not operate in isolation — it functions as the control intelligence within a broader automation ecosystem. When paired with the SIMOREG DC Master 6RA7085 or 6RA7090 base drive unit, this control board manages armature current regulation and field excitation with millisecond-level response, ensuring that the connected DC motor draws only the power required for the actual load condition at any given moment. This dynamic load-following behavior is one of the most effective ways to eliminate idle energy waste in continuous process lines.

On the signal acquisition side, integration with Siemens SENTRON PAC3200 or PAC4200 power monitoring devices allows plant engineers to capture real-time energy consumption data at the drive level. This data feeds into the SIMATIC S7-1500 PLC or S7-300 controller via PROFIBUS-DP, enabling the control program to make adaptive decisions — adjusting motor speed references, modifying field current setpoints, or triggering energy-saving standby modes during production gaps. The result is a closed-loop energy management architecture that responds to actual process demand rather than running at fixed parameters.

For multi-axis or multi-drive installations, the C98043-A7002-L4-13 can be coordinated with SINAMICS G120 or SINAMICS S120 frequency inverters handling auxiliary AC motor loads — ventilation fans, cooling pumps, and conveyor sub-drives — through a shared PROFIBUS or PROFINET backbone managed by the SIMATIC ET 200SP distributed I/O system. This mixed-drive topology allows a single control platform to optimize both DC main drives and AC auxiliary drives simultaneously, reducing total system energy consumption across the production line.

The SIMATIC HMI TP1500 or KTP900 panel provides operators with a real-time dashboard of drive status, energy consumption trends, and fault diagnostics, enabling rapid intervention when efficiency deviates from baseline. Combined with the SIMOREG’s built-in parameter memory and the C98043-A7002-L4-13’s stable control loop performance, this architecture supports predictive maintenance scheduling based on actual operating hours and thermal load history rather than fixed calendar intervals.

Power Optimization in Real Production Lines

In a steel rolling mill application, the C98043-A7002-L4-13 controls the main DC drive motor on the roughing stand. By precisely regulating armature current during acceleration and deceleration phases, the module eliminates the energy spikes that occur when drives are controlled with less sophisticated open-loop methods. Over a three-shift production cycle, this translates to measurable reductions in peak demand charges — a significant cost factor in industrial electricity tariffs.

In paper and board manufacturing, where web tension control is critical to product quality and material waste reduction, the C98043-A7002-L4-13 enables tight torque regulation across winding and unwinding sections. Consistent torque control reduces web breaks, which in turn reduces the energy and time cost of line restarts. Each avoided restart saves not only the energy consumed during the restart sequence but also the production time lost — directly improving overall equipment effectiveness (OEE).

For crane and hoist applications, the module’s regenerative braking capability allows kinetic energy from lowering loads to be returned to the DC bus, reducing net energy consumption per lift cycle. In high-cycle crane operations — such as those found in automotive stamping plants or container terminals — this regenerative contribution can reduce drive-level energy consumption by 15–25% compared to resistive braking systems.

From a maintenance perspective, the C98043-A7002-L4-13’s stable control performance reduces thermal stress on motor windings and commutator assemblies by avoiding overcurrent conditions during transient load changes. Lower thermal stress directly extends motor service life and reduces the frequency of brush and commutator maintenance — two of the highest recurring maintenance costs in DC drive systems. All units supplied by ZYPLC are tested prior to shipment and covered by a 12-month warranty, ensuring that replacement modules perform to specification from day one of installation.

Energy Optimization FAQ

Q1: How does the C98043-A7002-L4-13 contribute to measurable energy savings in a production environment?
The module optimizes armature current and field excitation in real time, ensuring the DC motor draws only the power required for the actual load. This eliminates the constant over-excitation common in fixed-parameter drive systems and reduces idle losses during low-load periods. When integrated with a SENTRON power meter and SIMATIC PLC, the savings can be quantified at the drive level and reported to energy management systems.

Q2: Is the C98043-A7002-L4-13 compatible with existing SIMOREG DC Master installations?
Yes. This control module is designed for the SIMOREG DC Master series, including the 6RA70 platform. It is compatible with base drive units such as the 6RA7085 and 6RA7090, and supports PROFIBUS-DP communication for integration with SIMATIC S7 controllers. Always verify the exact hardware revision of your base unit before installation to confirm pin and firmware compatibility.

Q3: What is the recommended replacement procedure, and how long does commissioning take?
Replacement involves powering down the drive, documenting existing parameter settings via the SIMOREG operator panel or DriveMonitor software, swapping the control board, and restoring parameters. For experienced drive technicians, the physical swap typically takes 30–60 minutes. Parameter restoration and functional testing add 1–2 hours depending on the complexity of the application. ZYPLC recommends performing a full no-load and loaded test run before returning the drive to production service.

Q4: What does the 12-month warranty cover, and what testing is performed before shipment?
All C98043-A7002-L4-13 modules supplied by ZYPLC undergo functional testing prior to shipment, including power-on verification and control loop response checks. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the module’s rated parameters. Warranty claims are supported directly through ZYPLC’s technical team.
