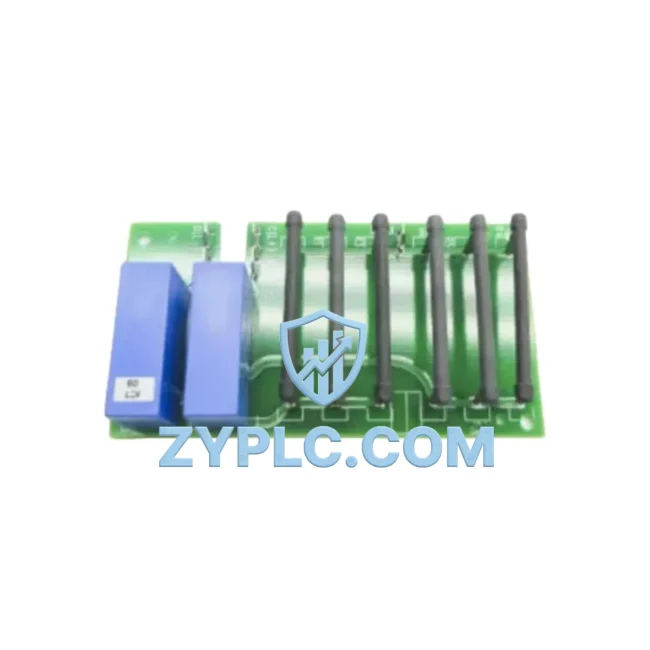

Siemens C98043-A7007-L4 Energy-Saving DC Drive Board SIMOREG

Siemens C98043-A7007-L4 Energy-Saving DC Drive Control Board for Optimized SIMOREG Automation

The Siemens C98043-A7007-L4 (also referenced as 6RY1703-0FA04) is a high-performance DC drive control board engineered for the SIMOREG DC Master drive series. Designed to deliver precise armature current regulation and field excitation control, this board sits at the heart of energy-aware motor management in demanding industrial environments. Whether deployed in steel rolling mills, paper machines, extruders, or heavy-duty conveyor systems, the C98043-A7007-L4 enables plant engineers to achieve measurable reductions in energy consumption while maintaining tight control over motor speed, torque, and dynamic response.

Unlike generic replacement boards, the C98043-A7007-L4 is purpose-built for the SIMOREG 6RA70 and compatible DC converter platforms. Its closed-loop control architecture integrates directly with the drive’s firing pulse generation circuitry, ensuring that thyristor switching is precisely timed to minimize reactive power losses and reduce harmonic distortion on the supply network. In production environments where multiple DC motors operate in coordinated sequences — such as multi-stand rolling lines or winding/unwinding stations — this level of control precision directly translates into lower peak demand charges and improved power factor across the facility.

Efficiency Performance Table

Energy-Aware Automation Architecture

In a fully optimized SIMOREG-based drive system, the C98043-A7007-L4 control board does not operate in isolation. It functions as the intelligence layer within a broader energy management and motion control architecture. On the supervisory side, a Siemens SIMATIC S7-300 or S7-400 PLC typically handles production sequencing, setpoint generation, and fault management. The PLC communicates with the SIMOREG drive via a PROFIBUS-DP fieldbus interface — often implemented through a CBP2 communications board — delivering real-time speed and torque references to the C98043-A7007-L4’s control loop with cycle times well under 10 ms.

For energy monitoring at the drive level, the system is frequently paired with a Siemens SENTRON PAC3200 or PAC4200 power monitoring device, which captures active power, reactive power, and harmonic content at the motor feeder. This data feeds back into the plant’s energy management system, allowing maintenance teams to benchmark drive efficiency over time and identify degradation in the control board’s firing angle accuracy before it results in measurable energy waste.

On the output side, the C98043-A7007-L4 governs the gate firing signals sent to the drive’s thyristor stack. When the board is functioning correctly, firing angles are optimized for the actual load condition — reducing conduction losses during light-load periods and enabling smooth four-quadrant operation for applications requiring regenerative braking. In winding and unwinding applications, this regenerative capability allows kinetic energy from decelerating rolls to be returned to the DC bus or fed back to the supply network, directly reducing net energy consumption per production cycle.

Operator interaction with the SIMOREG system is typically managed through a Siemens OP1S operator panel or, in more modern retrofits, a SIMATIC HMI TP700 Comfort touch panel. These interfaces allow production staff to monitor drive parameters — including output current, motor speed, field current, and fault codes — without requiring access to the control cabinet. For distributed I/O expansion, Siemens ET 200S or ET 200M remote I/O stations handle digital and analog signal interfacing between the drive system and field instrumentation such as encoders, temperature sensors, and limit switches.

In multi-drive installations, the C98043-A7007-L4 boards across multiple SIMOREG units are coordinated through a SIMATIC S7 master controller running a load-sharing or tension-control program. This coordination ensures that no single drive operates at unnecessarily high current levels while adjacent drives run lightly loaded — a common source of avoidable energy waste in uncoordinated multi-motor systems. The addition of a Siemens SINAMICS S120 AC drive in hybrid drive architectures further extends energy optimization opportunities, particularly where auxiliary motors can be switched to variable-speed AC control while the main DC drives handle precision torque tasks.

Power Optimization in Real Production Lines

The practical energy impact of a correctly functioning C98043-A7007-L4 becomes most visible in continuous production environments where DC motors run for extended shifts. In a typical paper machine drive application, for example, the control board maintains armature current within ±1% of setpoint across the full speed range. This precision eliminates the current hunting and oscillation that occurs with degraded or mismatched control boards — hunting that not only wastes energy through unnecessary current peaks but also accelerates mechanical wear on couplings, gearboxes, and motor bearings.

When a C98043-A7007-L4 board begins to degrade — evidenced by erratic firing pulse timing, increased motor temperature, or rising energy consumption at constant load — the impact on production efficiency is immediate. Motor speed regulation deteriorates, requiring operators to reduce line speed to maintain product quality. This reduction in throughput directly increases the energy cost per unit of output, even if the absolute power draw appears unchanged. Replacing a degraded board with a tested C98043-A7007-L4 restores the drive’s ability to hold tight speed and torque tolerances, recovering both energy efficiency and production rate simultaneously.

Predictive maintenance programs increasingly use drive-level data from the SIMOREG system to schedule C98043-A7007-L4 board replacements before failure occurs. By trending parameters such as firing angle drift, field current stability, and armature current ripple over time, maintenance engineers can identify boards approaching end-of-life with sufficient lead time to source replacements without emergency downtime. Each unit supplied by ZYPLC undergoes functional load testing prior to shipment, with test records available on request, ensuring that the replacement board performs to specification from the first power-on cycle.

In facilities operating multiple SIMOREG drives, maintaining a strategic inventory of C98043-A7007-L4 boards reduces mean time to repair (MTTR) from days to hours. The cost of a single unplanned drive outage — in lost production, emergency labor, and expedited freight — typically exceeds the cost of holding several spare boards in stock. ZYPLC maintains ready inventory of the C98043-A7007-L4 and related SIMOREG spare components, with standard lead times of 1–3 business days for in-stock items and full export documentation available for international shipments.

Energy Optimization FAQ

Q1: How does the C98043-A7007-L4 contribute to measurable energy savings in a SIMOREG drive system?
The board controls the firing angle of the drive’s thyristor bridge with high precision. Accurate firing angle control minimizes reactive power draw and reduces conduction losses, particularly during partial-load operation. In applications with variable load profiles — such as winding machines or rolling mills — this precision can reduce energy consumption by 5–15% compared to a drive operating with a degraded or incorrectly calibrated control board.

Q2: Is the C98043-A7007-L4 compatible with both the 6RA70 series and older SIMOREG generations?
The C98043-A7007-L4 is specifically designed for the SIMOREG DC Master 6RA70 platform. Compatibility with earlier SIMOREG generations (such as the 6RA24 or 6RA26) should be verified against the specific drive’s hardware configuration and firmware version. ZYPLC’s technical team can assist with compatibility verification prior to order placement.

Q3: What testing is performed on the C98043-A7007-L4 before shipment, and what does the 12-month warranty cover?
Each C98043-A7007-L4 board is functionally tested under load conditions simulating real drive operation before shipment. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Warranty claims are supported by ZYPLC’s technical team, with replacement or repair turnaround typically within 5–7 business days. Test reports are available upon request.

Q4: Can the C98043-A7007-L4 be replaced without recalibrating the entire SIMOREG drive system?
In most cases, yes. The C98043-A7007-L4 is a direct replacement board that retains the drive’s existing parameter set stored in the CUD1 control unit. However, it is recommended to verify key control parameters — including current controller gains, speed controller settings, and field weakening curves — after board replacement to confirm that the new board is operating within the drive’s calibrated envelope. ZYPLC can provide installation guidance and parameter checklists on request.
