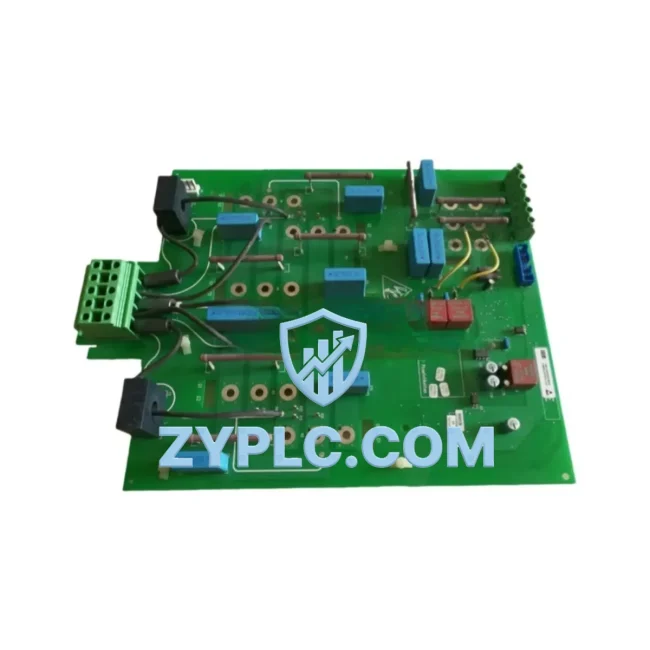

The Siemens C98043-A7010-L2 is a dedicated power supply board engineered for integration within the SIMOREG 6RA70 series DC drive platform. Rather than functioning as a standalone replacement component, this board occupies a critical position within the layered automation architecture — bridging the electrical power layer and the control signal layer to ensure stable, continuous operation across the entire drive system. Understanding its role requires examining how it interacts with adjacent modules, communication networks, and supervisory control systems in real industrial environments.

Architecture Specification Table

Coordinated Control System Design

In a fully integrated 6RA70 DC drive system, the C98043-A7010-L2 power supply board does not operate in isolation. Its output voltages directly power the CUD1 basic control board and, where fitted, the CUD2 technology board — both of which handle closed-loop speed and torque regulation, ramp function generation, and process interface logic. Without stable internal supply voltages, neither the CUD1 nor the CUD2 can maintain reliable PID control or respond accurately to reference signals from the supervisory PLC layer.

At the network communication layer, the CBP2 PROFIBUS communication board relies on the internal power rail maintained by the C98043-A7010-L2 to sustain its fieldbus interface. In distributed automation architectures where a Siemens S7-300 or S7-400 PLC acts as the PROFIBUS master, any instability in the drive’s internal power supply directly affects the quality and continuity of cyclic data exchange — including speed setpoints, actual value feedback, and fault status words transmitted via the DP protocol.

At the I/O and signal conditioning layer, the SLB (Serial Link Board) and the ADB (Analog-to-Digital Board) within the 6RA70 chassis also depend on the regulated voltages provided by this board. These modules handle encoder feedback processing, tachometer signal conditioning, and analog reference input scaling — all of which are essential for precise armature current control and field weakening in DC motor applications.

From a power layer perspective, the C98043-A7010-L2 works in conjunction with the gate drive board (e.g., C98043-A7002-L4 or equivalent thyristor firing board) to ensure that the SCR firing pulses are generated with correct timing and amplitude. Any degradation in the internal supply voltage can cause misfiring of the thyristor bridge, resulting in torque ripple, overcurrent trips, or armature voltage asymmetry — all of which are difficult to diagnose without understanding the upstream power supply dependency.

For installations requiring redundancy, engineering teams often maintain a stocked spare of the C98043-A7010-L2 alongside the CUD1 control board and the CBP2 communication module. This three-component spare strategy covers the most statistically common failure modes in aging 6RA70 installations and minimizes mean time to repair (MTTR) in critical production environments. The 12-Month Warranty provided with each unit supports this long-term maintenance planning approach.

Application in Layered Automation Systems

The C98043-A7010-L2 sees deployment across a wide range of heavy industrial sectors where DC drive technology remains the preferred solution for high-torque, variable-speed applications.

In steel and metallurgy plants, 6RA70 converters equipped with this power supply board drive rolling mill main drives, coiler motors, and edger drives — applications where precise torque control and rapid current response are non-negotiable. The board’s role in maintaining stable gate drive voltages is directly linked to the quality of the rolled product and the protection of the motor armature winding.

In the mining sector, winder and hoist drives built around the SIMOREG 6RA70 platform depend on the internal power supply integrity for safe load handling. Regulatory requirements in many jurisdictions mandate that hoist drive systems maintain full control authority at all times — making the reliability of components like the C98043-A7010-L2 a safety-critical consideration, not merely a performance one.

In paper and pulp manufacturing, section drives on paper machines use 6RA70 converters for draw control between press sections, dryer sections, and calender stacks. The C98043-A7010-L2 supports the consistent internal voltage environment needed for the CUD1 board to execute the tension and draw ratio control algorithms that determine paper quality and web stability.

In water treatment and pumping stations, DC drives based on the 6RA70 platform are used for large pump motors where variable flow control is required. The power supply board’s contribution to system uptime is particularly valued in these applications, where unplanned downtime can affect municipal water supply or industrial process water availability.

Across all these sectors, the contextual integration of the C98043-A7010-L2 within the broader SIMOREG architecture — rather than its treatment as a generic spare part — is what determines whether a drive system achieves its designed performance envelope over its full service life.

Architecture Engineering FAQ

Q1: Is the C98043-A7010-L2 compatible with all variants of the SIMOREG 6RA70 series, and how do I confirm compatibility before installation?
The C98043-A7010-L2 is designed for use within the SIMOREG 6RA70 converter family. Compatibility should be confirmed by cross-referencing the drive’s nameplate data (specifically the order number suffix and hardware revision level) with the Siemens spare parts documentation for the specific 6RA70 variant in use. In general, this board is applicable across the mid-to-high current range of the 6RA70 series (e.g., 6RA7075 through 6RA7095), but engineering verification against the drive’s internal wiring diagram is recommended before installation in safety-critical applications.

Q2: What commissioning steps are required after replacing the C98043-A7010-L2 in an operating 6RA70 drive system?
After physical installation, the replacement board should be powered up with the drive in a de-energized state first to verify that all internal supply voltages are within specification using a calibrated multimeter at the designated test points on the CUD1 board. Once voltage levels are confirmed, the drive should be re-commissioned following the standard SIMOREG startup procedure — including parameter verification (P051 access level, P060 fixed settings), encoder feedback check, and a no-load current test before reconnecting the motor load. The 12-Month Warranty covers the board against functional defects arising under these normal commissioning and operating conditions.

Q3: How should long-term maintenance planning account for the C98043-A7010-L2 in an aging 6RA70 fleet?
For facilities operating multiple 6RA70 drives, a condition-based maintenance strategy should include periodic inspection of the C98043-A7010-L2 for electrolytic capacitor aging, solder joint integrity, and thermal stress indicators — particularly on drives that have been in service for more than ten years. Maintaining at least one spare unit per drive family (grouped by current rating) is recommended to support rapid exchange during unplanned outages. Pairing this spare with a stocked CUD1 control board and CBP2 communication module provides comprehensive coverage of the most common failure modes. The 12-Month Warranty on each replacement unit supports a rolling spare stock strategy without the risk of holding out-of-warranty inventory.
