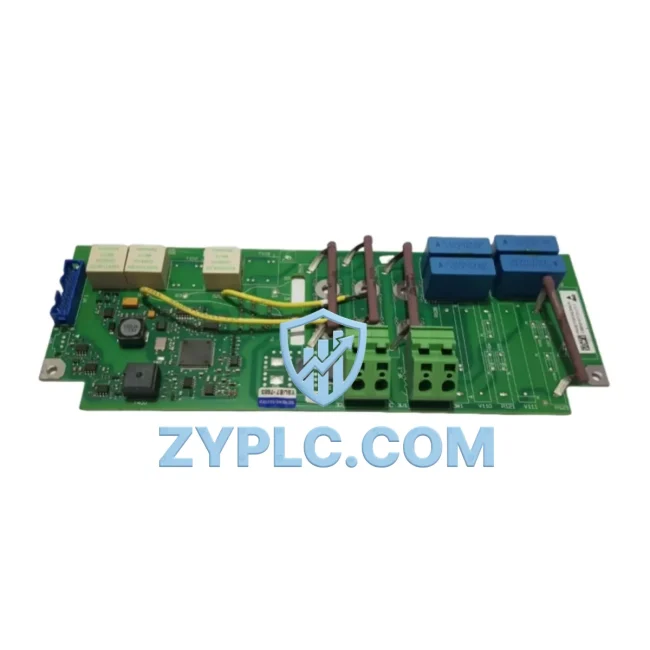

Siemens C98043-A7116-L100 System-Ready Drive Board for SIMOREG Architecture

Siemens C98043-A7116-L100 System-Ready Drive Board for SIMOREG DC Master Architecture

The Siemens C98043-A7116-L100 is a precision-engineered drive board designed for seamless integration within the SIMOREG DC Master series — one of Siemens’ most established DC drive platforms for demanding industrial automation environments. Rather than functioning as a standalone replacement component, the C98043-A7116-L100 is best understood as a critical node within a layered control system architecture, where its role spans the interface between the control layer, power conversion layer, and feedback signal layer. In complex automation systems — whether in steel rolling mills, paper machines, extruders, hoisting equipment, or large-scale process lines — the reliability of the drive board directly determines the stability of the entire drive chain.

In a fully configured SIMOREG DC Master system, the C98043-A7116-L100 drive board operates in close coordination with the central processor board (such as the C98043-A7002 or C98043-A7004 series), the firing pulse board, the current feedback board, and the field supply board. Each of these modules communicates through the internal backplane of the SIMOREG 6RA70 or 6RA24 chassis, and the integrity of the drive board is essential for maintaining accurate thyristor firing sequences, armature current regulation, and speed feedback loop stability. Any degradation in the drive board’s signal processing capability will cascade across the entire closed-loop control structure, making the C98043-A7116-L100 a high-priority component for both preventive maintenance programs and emergency spare parts inventories.

From a system architecture perspective, the C98043-A7116-L100 sits at the intersection of the power electronics layer and the digital control layer. It receives setpoint commands from the processor board, translates them into precise gate trigger signals for the thyristor bridge, and simultaneously monitors current and voltage feedback to ensure the drive operates within its defined parameters. This dual role — command execution and real-time feedback monitoring — makes the drive board indispensable for achieving the dynamic response characteristics that SIMOREG DC Master systems are known for in high-inertia load applications.

For system integrators and maintenance engineers working with Siemens SIMOREG platforms, maintaining a verified spare of the C98043-A7116-L100 is a standard practice in industries where unplanned downtime carries significant financial consequences. The board is compatible with a range of SIMOREG 6RA70 converter units and is designed to be replaced without requiring full system reconfiguration, provided that the replacement unit has been properly tested and matched to the existing firmware and parameter set stored in the processor board. This plug-and-restore capability significantly reduces mean time to repair (MTTR) in field service scenarios.

Beyond the drive board itself, a complete and resilient SIMOREG DC Master architecture typically includes the C98043-A7002 processor board for closed-loop PID control and PROFIBUS-DP communication, the C98043-A7110 firing pulse board for thyristor gate signal generation, the C98043-A7006 current sensing board for armature and field current measurement, and the C98043-A7008 field supply board for separately excited DC motor field winding control. On the network and supervisory layer, the system may interface with a Siemens S7-300 or S7-400 PLC via PROFIBUS-DP, with operator visualization handled through a Siemens OP7 or TP177 HMI panel. Power distribution within the control cabinet is typically managed through Siemens SITOP PSU series power supplies, ensuring stable 24VDC logic supply to all control boards. Terminal connectivity and signal marshalling are handled through Siemens ET 200S distributed I/O or direct terminal block assemblies within the drive cabinet.

The C98043-A7116-L100 is also relevant in redundancy-conscious system designs. In critical process applications — such as continuous casting lines, mine hoists, or large pump drives — engineers often specify a hot-standby or cold-standby drive configuration where a second SIMOREG converter unit is kept ready for rapid switchover. In these architectures, maintaining matched spare boards including the C98043-A7116-L100 ensures that the standby unit can be brought online without delay, preserving the redundancy investment made at the system design stage.

From a commissioning and long-term maintenance standpoint, the C98043-A7116-L100 benefits from Siemens’ well-documented SIMOREG service infrastructure. Engineers familiar with the SIMOREG DC Master parameter set (P-parameters and r-parameters) will find that board replacement follows a structured procedure: parameter backup via the SIMOREG operator panel or DriveMonitor software, board exchange, parameter restore, and functional verification through a controlled test run. This process is well-supported by Siemens service documentation and is executable by trained field engineers without factory support, reducing dependency on OEM intervention for routine maintenance events.

All C98043-A7116-L100 units supplied through ZYPLC are sourced from verified industrial channels, subjected to functional testing prior to dispatch, and covered by a 12-Month Warranty. Our inventory management approach ensures that critical SIMOREG spare boards are available for rapid dispatch to minimize production downtime. Contextual Integration support is available for customers who require assistance with board matching, parameter compatibility verification, or system-level commissioning guidance. Whether you are building a new SIMOREG-based drive system, maintaining an existing installation, or establishing a strategic spare parts inventory, ZYPLC provides the technical depth and supply reliability that industrial operations demand.

Architecture Specification Table

Coordinated Control System Design

The C98043-A7116-L100 drive board achieves its full performance potential only when integrated within a correctly specified SIMOREG DC Master system. A typical coordinated architecture includes the following components working in concert:

The C98043-A7002 processor board serves as the system’s computational core, executing the closed-loop speed and current control algorithms and managing PROFIBUS-DP communication with the supervisory PLC. The C98043-A7110 firing pulse board generates the precise gate trigger signals that the drive board distributes to the thyristor bridge, with timing accuracy directly affecting output voltage quality and harmonic performance. The C98043-A7006 current sensing board provides the armature and field current measurements that the drive board uses for real-time regulation, forming the inner current control loop that underpins all speed control performance.

On the power supply side, the C98043-A7008 field supply board manages the separately excited field winding of the DC motor, and its coordination with the drive board ensures correct flux control across the full speed range, including field weakening operation above base speed. The Siemens SITOP PSU series 24VDC power supplies provide the stable logic supply voltage that all control boards — including the C98043-A7116-L100 — require for reliable operation.

At the supervisory level, a Siemens S7-300 or S7-400 PLC communicates with the SIMOREG processor board via PROFIBUS-DP, issuing speed setpoints, enabling commands, and receiving drive status feedback. Operator interaction is typically handled through a Siemens TP177 or OP7 HMI panel, providing real-time visualization of drive parameters and alarm states. For distributed I/O applications, Siemens ET 200S modules extend the I/O capacity of the control system without requiring additional cabling runs to the main PLC rack, improving system modularity and reducing installation costs.

Application in Layered Automation Systems

The Siemens C98043-A7116-L100 drive board finds application across a broad spectrum of heavy industrial and process automation environments where DC drive technology remains the preferred solution for high-torque, variable-speed applications.

In steel and metals processing, SIMOREG DC Master systems equipped with the C98043-A7116-L100 are used in rolling mill main drives, coiler and uncoiler drives, and leveler line drives, where precise torque control and rapid dynamic response are essential for product quality. In paper and pulp manufacturing, the drive board supports winder and unwinder drives, where tension control accuracy directly affects web quality and waste reduction. In mining and mineral processing, SIMOREG-based hoist drives and conveyor drives rely on the C98043-A7116-L100 for the current regulation precision needed to manage heavy, variable loads safely.

In petrochemical and refinery applications, large pump and compressor drives using SIMOREG DC Master technology benefit from the drive board’s ability to maintain stable operation under varying load conditions and ambient temperatures. In water treatment infrastructure, pump station drives using SIMOREG converters provide reliable flow control, with the C98043-A7116-L100 ensuring consistent performance over extended operational periods between scheduled maintenance intervals. In packaging and converting lines, the drive board supports register control and tension zone management in multi-drive systems where synchronization between individual drive axes is critical to production quality.

Architecture Engineering FAQ

Q1: Is the C98043-A7116-L100 compatible with all SIMOREG 6RA70 converter variants, and are there any firmware or hardware revision considerations before installation?
The C98043-A7116-L100 is designed for use within the Siemens SIMOREG DC Master 6RA70 series and is compatible with a range of converter ratings within that platform. However, hardware revision levels (L-suffix variants) may affect direct interchangeability, and it is recommended to verify the revision level of the existing board before ordering a replacement. ZYPLC’s technical team can assist with revision matching based on the converter’s nameplate data and existing board markings. Our 12-Month Warranty covers all supplied units, and Contextual Integration support is available to guide customers through compatibility verification prior to installation.

Q2: What is the recommended procedure for replacing the C98043-A7116-L100 in a live production environment, and how can parameter data be preserved during the exchange?
The recommended replacement procedure begins with a full parameter backup using the SIMOREG operator panel (PMU) or Siemens DriveMonitor software connected via the RS232 service interface. Once the parameter set is saved, the converter should be powered down following the standard SIMOREG shutdown sequence, and the drive board replaced in accordance with the ESD handling procedures specified in the SIMOREG service manual. After installation of the C98043-A7116-L100, parameters are restored from the backup, and a controlled test run is performed to verify current regulation, speed response, and fault-free operation before returning the drive to production service. This procedure minimizes production interruption and eliminates the risk of parameter loss during board exchange.

Q3: How should maintenance engineers plan their spare parts inventory strategy for SIMOREG DC Master systems to ensure long-term operational continuity?
For SIMOREG DC Master installations in critical production environments, a tiered spare parts strategy is recommended. The C98043-A7116-L100 drive board should be classified as a Tier 1 critical spare — held on-site or at a nearby warehouse — given its central role in the drive’s control architecture and the lead times associated with sourcing original Siemens boards through standard channels. Complementary Tier 1 spares typically include the processor board, firing pulse board, and current sensing board. ZYPLC maintains stock of key SIMOREG board assemblies and offers a 12-Month Warranty on all supplied components, supporting both planned maintenance programs and emergency breakdown response. Our Contextual Integration service can assist engineering teams in developing a comprehensive spare parts list tailored to their specific SIMOREG installation.
