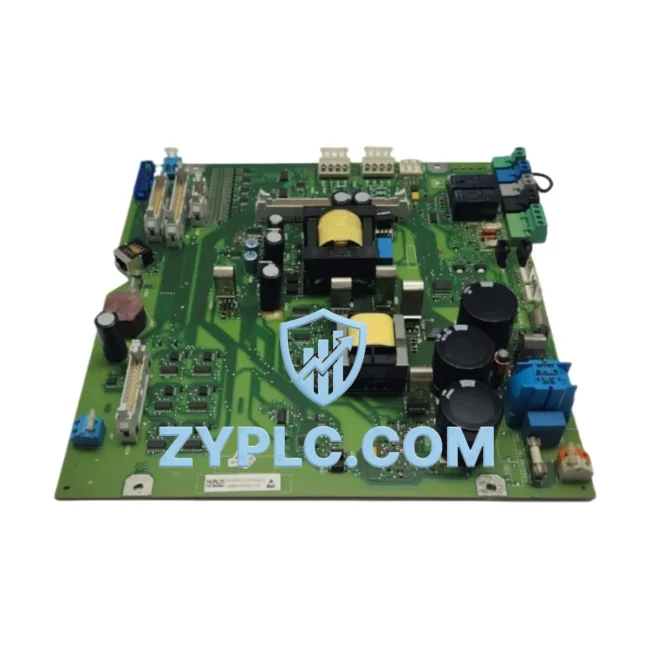

Siemens C98043-A7117-L1 6RY1803-0CM01 System-Ready Power Supply for SIMOREG DC Master

Siemens C98043-A7117-L1 6RY1803-0CM01 System-Ready Power Supply for SIMOREG DC Master Architecture

The Siemens C98043-A7117-L1 (order reference 6RY1803-0CM01) is a dedicated internal power supply board engineered for the SIMOREG DC Master series of fully digital DC drive converters. Within a layered industrial automation architecture, this component occupies a critical position at the power layer — converting and conditioning internal voltages that sustain the control electronics, gate firing circuits, and field supply regulation of the entire drive unit. Its role is not limited to power delivery alone; it directly underpins the operational stability of every upstream and downstream subsystem connected to the SIMOREG DC Master platform.

Modern DC drive systems demand a high degree of internal coherence. The SIMOREG DC Master — available in current ratings from 15 A up to 2000 A — is deployed across heavy industrial environments where consistent armature and field voltage regulation is non-negotiable. The C98043-A7117-L1 power supply board ensures that the drive’s internal logic, including the CUD1 central control unit board and the CUD2 technology option board, receives clean, regulated supply rails at all times. Any degradation at this power layer propagates immediately to the control layer, making the integrity of this board foundational to system uptime.

Architecture Specification Table

Coordinated Control System Design

The C98043-A7117-L1 does not operate in isolation — it is one node in a tightly coordinated drive architecture. At the control layer, the CUD1 central unit board (C98043-A7100-L1) relies on stable internal supply voltages to execute closed-loop speed and torque regulation algorithms. The optional CUD2 technology board extends this control capability with additional analog and digital I/O channels, and it too depends on the power supply board for its operating voltage.

At the I/O layer, the SIMOREG DC Master interfaces with external signal conditioning modules and terminal expansion boards. Proper power supply operation ensures that encoder feedback signals — typically from incremental encoders connected via the SBP pulse encoder board — are processed without noise-induced errors. The field supply section of the drive, governed by the field supply board C98043-A7110, also draws from the regulated internal rails to maintain precise field current control, which is essential for accurate flux management in separately excited DC motors.

At the network layer, the SIMOREG DC Master communicates over PROFIBUS-DP using the integrated interface on the CUD1 board or via optional communication boards such as the CBP2 PROFIBUS communication board. Stable internal power is a prerequisite for reliable fieldbus communication — voltage fluctuations at the power supply board level can cause intermittent PROFIBUS timeouts that are difficult to diagnose without understanding the internal architecture.

For multi-drive installations, the SIMOREG DC Master supports peer-to-peer communication via the SCB1 serial communication board, enabling master-follower torque sharing configurations. In these architectures, the power supply board’s reliability directly affects the synchronization quality of the entire drive group. Similarly, in regenerative braking applications, the 6RA7095 and 6RA7096 four-quadrant converter variants place additional demands on internal electronics, making the health of the C98043-A7117-L1 board a key maintenance checkpoint.

At the human-machine interface layer, operators interact with the SIMOREG DC Master through the PMU operator panel or via a remote OP1S operator panel. Both panels communicate with the CUD1 board, and their display and parameter access functions are contingent on the control electronics receiving proper supply voltages from the C98043-A7117-L1 board. In commissioning workflows, engineers use the DriveMonitor or STARTER software over a PC link to parameterize the drive — a process that requires the drive’s internal electronics to be fully powered and stable throughout the session.

Application in Layered Automation Systems

The SIMOREG DC Master platform, supported by the C98043-A7117-L1 power supply board, finds application across a broad spectrum of heavy industrial processes. In steel and metals manufacturing, DC drives control rolling mill main drives, coiler and decoiler tension drives, and leveler drives where precise torque control and four-quadrant operation are required. The power supply board’s role in maintaining control electronics integrity is critical in these high-cycle, high-inertia applications.

In paper and pulp production, SIMOREG DC Master drives regulate section drives on paper machines, where speed synchronization across multiple drive sections must be maintained within tight tolerances. Any internal power supply instability would manifest as speed deviations that compromise paper quality and machine efficiency.

In the petrochemical and refining sector, DC drives are used for extruder drives, compressor drives, and pump drives in hazardous area installations. The SIMOREG DC Master’s robust internal architecture, anchored by reliable power supply boards, supports continuous operation in demanding ambient conditions.

For mining and mineral processing applications, SIMOREG DC Master drives power conveyor drives, hoist drives, and crusher drives. These applications demand high availability and rapid fault recovery — characteristics that depend on the integrity of internal components including the C98043-A7117-L1 board. Maintenance teams in these environments benefit from having verified replacement boards in stock, reducing mean time to repair (MTTR) when drive faults occur.

In water and wastewater treatment facilities, DC drives are used for pump and blower applications where variable speed control reduces energy consumption. The long service life of SIMOREG DC Master drives in these installations means that spare power supply boards are a standard part of the facility’s maintenance inventory.

Architecture Engineering FAQ

Q1: Is the C98043-A7117-L1 compatible with all SIMOREG DC Master variants, including four-quadrant models?
The C98043-A7117-L1 (6RY1803-0CM01) is designed for use within the SIMOREG DC Master 6RA70 series. Compatibility with specific current ratings and converter variants (two-quadrant or four-quadrant) should be verified against the drive’s hardware configuration and the Siemens spare parts documentation for the specific unit serial number. Our technical team can assist with cross-referencing the board to your exact drive variant prior to order confirmation.

Q2: What are the recommended installation and commissioning steps when replacing this power supply board?
Before replacing the C98043-A7117-L1, the drive must be fully de-energized and isolated from the AC supply, with capacitor discharge time observed per Siemens safety guidelines. After board installation, internal supply voltages should be verified at the designated test points on the CUD1 board before re-enabling the drive. Parameter settings stored in the CUD1 are retained in non-volatile memory and do not require re-entry after a power supply board replacement, though a full functional test including speed reference response and field current regulation is recommended before returning the drive to production.

Q3: What does the 12-Month Warranty cover, and how does it support long-term maintenance planning?
Our 12-Month Warranty covers the C98043-A7117-L1 board against defects in materials and workmanship under normal operating conditions. This warranty period aligns with typical annual maintenance cycles in industrial facilities, allowing maintenance planners to incorporate board replacement into scheduled shutdowns with confidence. In the event of a warranty claim, our team provides rapid replacement support to minimize drive downtime. We also maintain stock of related SIMOREG DC Master spare boards to support broader drive system maintenance requirements.
