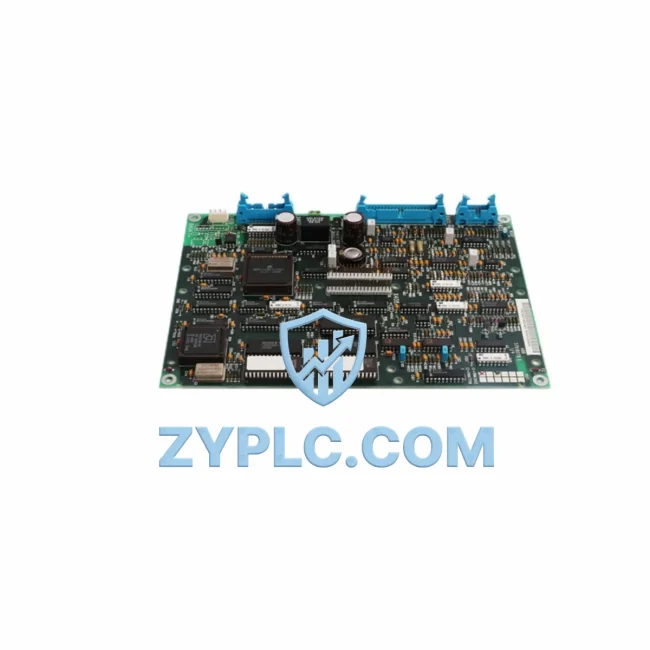

Siemens SNAT6030BEB System-Ready Drive Control for SIMOREG DC Master Architecture

Siemens SNAT6030BEB System-Ready Drive Control for SIMOREG DC Master Architecture

The Siemens SNAT6030BEB is a precision-engineered DC drive control board designed as a core functional component within the SIMOREG DC Master drive platform. Rather than operating as a standalone unit, the SNAT6030BEB is architected to serve as the intelligence layer of a complete DC drive system — coordinating signal processing, closed-loop speed and torque regulation, and inter-module communication across the full control hierarchy. In modern industrial automation environments, where system consistency, uptime, and scalability are non-negotiable, this board delivers the architectural reliability that engineers and maintenance teams depend on.

Understanding the SNAT6030BEB requires viewing it within the broader SIMOREG DC Master system context. The SIMOREG DC Master series — including the 6RA70 and 6RA24 converter families — is built around a modular architecture that separates power conversion, control logic, I/O interfacing, and communication into discrete, replaceable layers. The SNAT6030BEB occupies the control board layer, receiving feedback signals from current and speed sensors, executing PID regulation algorithms, and issuing firing pulse commands to the thyristor power section. This division of function ensures that control logic can be serviced or upgraded independently of the power stack, reducing system downtime and simplifying fault isolation.

Architecture Specification Table

Coordinated Control System Design

The SNAT6030BEB does not function in isolation — its value is realized through coordinated integration with the surrounding system architecture. In a typical SIMOREG DC Master installation, the control board works in concert with the SNAT6030A interface board, which handles analog and digital I/O signal conditioning, and the SNAT6030C pulse amplifier board, which translates the firing commands from the control board into gate signals for the thyristor bridge. Together, these three boards form the complete control assembly of the SIMOREG DC Master converter.

At the power layer, the SIMOREG DC Master converter — such as the 6RA7031 or 6RA7075 — provides the rectified DC output to the motor armature and field circuits. The SNAT6030BEB governs the firing angle of the thyristors within these converters, directly controlling the output voltage and therefore the motor speed and torque. For field excitation control, the board coordinates with the SNAT6030FEX field excitation module, enabling field weakening operation for extended speed ranges in applications such as winding machines and rolling mills.

At the network and communication layer, the CBP2 PROFIBUS communication board connects the SIMOREG DC Master to the plant-level PROFIBUS-DP network, enabling the SNAT6030BEB’s setpoint and actual value data to be exchanged with a Siemens SIMATIC S7-300 or S7-400 PLC acting as the supervisory controller. This integration allows the PLC to issue speed references, read drive status, and trigger fault responses — all within a deterministic communication cycle. For installations using SIMOLINK fiber-optic ring topology, the SNAT6030BEB supports synchronization across multiple drives in coordinated multi-motor systems.

At the human-machine interface layer, operators interact with the drive system through a PMU (Parameterization Unit) or an OP1S operator panel, both of which connect directly to the SIMOREG DC Master and allow parameter access, fault diagnostics, and drive commissioning without requiring a separate engineering workstation. The SNAT6030BEB stores drive parameters in non-volatile memory, ensuring that configuration is retained across power cycles and simplifying recommissioning after board replacement.

For redundancy-critical applications, the SIMOREG DC Master architecture supports hot-standby configurations where a secondary converter can be brought online rapidly in the event of a primary drive fault. The SNAT6030BEB’s parameter storage and standardized board interface make it straightforward to maintain a spare board in inventory, pre-parameterized and ready for rapid swap-out — a key advantage in continuous-process industries where unplanned downtime carries significant production cost.

Application in Layered Automation Systems

The SNAT6030BEB finds application across a wide range of heavy industrial sectors where DC drive technology remains the preferred solution for high-torque, variable-speed motor control.

In steel and metals processing, SIMOREG DC Master converters equipped with the SNAT6030BEB control board are deployed in rolling mill main drives, coiler and uncoiler drives, and leveler line drives. The board’s precise torque regulation capability is essential for maintaining strip tension and preventing material defects during high-speed rolling operations. The ability to coordinate field weakening through the SNAT6030FEX module allows the drive to operate across a wide speed range without sacrificing torque at the low end.

In paper and pulp manufacturing, the SNAT6030BEB supports multi-drive coordinated control across the paper machine sections — wire, press, dryer, and calender — where speed synchronization between sections is critical to web tension control and product quality. The PROFIBUS-DP integration via the CBP2 board allows the SIMATIC PLC to manage speed ratios across all drive sections from a central control system.

In mining and mineral processing, SIMOREG DC Master drives with SNAT6030BEB control boards are used in conveyor drives, hoist drives, and crusher drives, where the high starting torque capability of DC motors and the precise current limiting function of the control board protect mechanical components from shock loading during startup and load transitions.

In chemical and petrochemical plants, the SNAT6030BEB supports extruder drives, agitator drives, and compressor drives in hazardous area installations where the converter is located in a safe area control room and the motor is installed in the process area. The board’s stable closed-loop regulation ensures consistent process output even under varying load conditions.

In water and wastewater treatment, SIMOREG DC Master drives are used in pump and blower applications where variable flow control is required. The SNAT6030BEB’s speed regulation accuracy ensures that flow rates are maintained within process tolerances, reducing energy consumption compared to throttle-controlled fixed-speed systems.

Architecture Engineering FAQ

Q1: Is the SNAT6030BEB compatible with all SIMOREG DC Master converter ratings, and can it be used as a direct replacement in an existing installation?

The SNAT6030BEB is designed for use within the SIMOREG DC Master 6RA70 series and is compatible across a range of converter current ratings within that platform. As a control board, it interfaces with the SIMOREG backplane and the associated SNAT6030A and SNAT6030C boards through standardized connectors, making it suitable as a replacement board in existing installations. Before installation, it is recommended to verify the firmware version compatibility with the existing drive system and to back up the current parameter set using the OP1S operator panel or SIMOVIS/DriveMonitor software. Our technical team can assist with compatibility verification prior to shipment.

Q2: How does the SNAT6030BEB support system redundancy and what is the recommended spare parts strategy for minimizing downtime?

The SNAT6030BEB supports rapid board-level replacement as the primary redundancy strategy for SIMOREG DC Master installations. Because drive parameters are stored on the board, maintaining a pre-parameterized spare board allows maintenance teams to restore drive operation within minutes of a control board fault. For critical continuous-process applications, we recommend holding at least one spare SNAT6030BEB in local inventory, alongside the associated SNAT6030A and SNAT6030C boards. All units supplied by ZYPLC are covered by a 12-Month Warranty and are tested prior to shipment to ensure functional readiness. Contextual Integration support is available to assist with parameter transfer and commissioning during board replacement.

Q3: What commissioning and diagnostic tools are required for installing the SNAT6030BEB in a SIMOREG DC Master system, and what long-term maintenance considerations apply?

Commissioning the SNAT6030BEB in a SIMOREG DC Master system requires the Siemens DriveMonitor or STARTER software for parameter upload/download and fault diagnostics, along with the OP1S operator panel or PMU for on-site parameter access. The drive optimization procedure involves setting motor nameplate data, encoder feedback parameters, and current controller gains — a process that typically takes 2–4 hours for an experienced drive engineer. For long-term maintenance, periodic inspection of the board’s connector contacts, capacitor condition, and firmware version is recommended. ZYPLC provides Contextual Integration support to assist customers with commissioning documentation, parameter file management, and technical troubleshooting throughout the 12-Month Warranty period and beyond.
