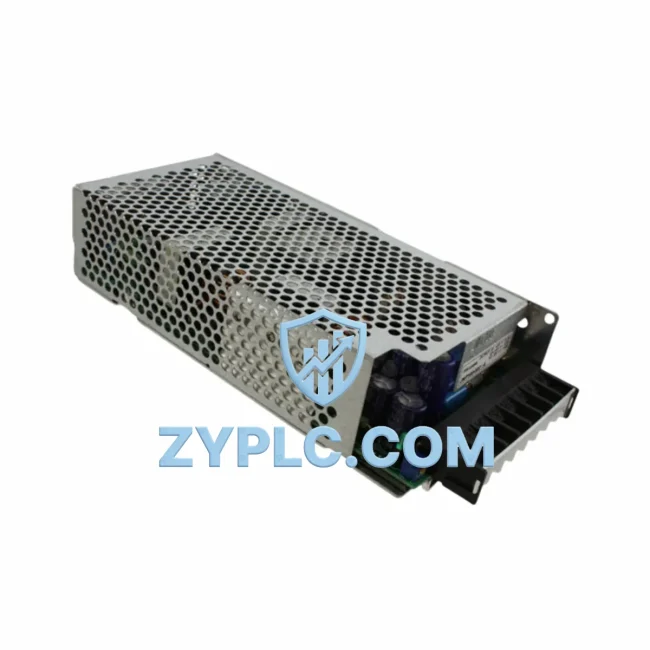

TDK-Lambda JWT100-522/B Energy-Saving Power Supply for Optimized JWT Automation
In modern industrial environments where energy costs and equipment uptime directly impact profitability, the TDK-Lambda JWT100-522/B power supply module delivers the precision, reliability, and efficiency that demanding automation systems require. Designed for the JWT series platform, this unit provides stable dual-output DC power to PLCs, servo drives, I/O modules, and HMI panels — forming the energy backbone of a well-optimized production line.
The JWT100-522/B is engineered to minimize power conversion losses, ensuring that every watt drawn from the mains is efficiently delivered to connected loads. In facilities where dozens of control cabinets operate continuously across multiple shifts, even marginal improvements in power supply efficiency translate into measurable reductions in electricity consumption and cooling overhead. This module supports that goal by maintaining tight output regulation under varying load conditions, reducing thermal stress on downstream components and extending the operational lifespan of the entire control system.
Efficiency Performance Table
| Parameter |
Specification |
| Model / SKU |
JWT100-522/B |
| Series |
JWT Series |
| Brand |
TDK-Lambda |
| Output Power |
100W (dual output) |
| Output Voltage |
+5V / ±12V (typical JWT configuration) |
| Conversion Efficiency |
Up to 85% (typical at full load) |
| Input Voltage Range |
85–264V AC universal input |
| Compatible Systems |
PLC racks, servo amplifiers, I/O expansion units, HMI panels, motion controllers |
| Application Environment |
Industrial automation, process control, CNC, robotics, packaging lines |
| Operating Temperature |
0°C to +50°C |
| Energy-Saving Value |
Reduced heat dissipation, lower cooling load, stable regulation under dynamic loads |
| Origin |
Japan |
| Warranty |
12 Months |
Energy-Aware Automation Architecture
The JWT100-522/B does not operate in isolation — it is a foundational component within a broader energy-aware automation architecture. In a typical production cell, the power supply feeds logic voltage rails to a Mitsubishi MELSEC Q-series PLC or a Siemens S7-300 CPU module, which orchestrates the entire control sequence. Analog and digital I/O signals are distributed through TDK-Lambda CUS series auxiliary power rails, ensuring that field devices receive clean, regulated voltage even during transient load events.
On the drive side, the JWT100-522/B supports the control electronics of Yaskawa Sigma-7 servo amplifiers and Mitsubishi FR-A800 series variable frequency drives (VFDs), which regulate motor speed and torque in response to real-time production demands. By maintaining stable logic power, the JWT100-522/B ensures that drive enable signals, encoder feedback lines, and safety relay circuits remain uninterrupted — a critical requirement for high-cycle-rate applications such as stamping, injection molding, and conveyor indexing.
Power quality monitoring is handled upstream by Hioki PW3390 power analyzers or Schneider Electric PowerLogic PM series meters, which log consumption data at the panel level. This data feeds into energy management dashboards, allowing maintenance engineers to correlate power draw spikes with specific machine states — identifying opportunities to reduce idle-state consumption or reschedule high-load operations to off-peak tariff windows.
Communication between the PLC, drives, and monitoring systems typically runs over PROFIBUS-DP, EtherNet/IP, or CC-Link IE networks, with gateway modules such as the Anybus X-gateway bridging protocol boundaries where legacy and modern equipment coexist. The JWT100-522/B’s stable output ensures that communication interface cards and network switches mounted in the same cabinet receive consistent power, preventing packet loss or node dropouts that could disrupt coordinated motion sequences.
Power Optimization in Real Production Lines
Consider a mid-scale automotive parts assembly line running three shifts per day. The control cabinets housing PLC racks, servo drives, and safety controllers draw continuous power throughout each shift. If the installed power supplies operate at 70% efficiency rather than 85%, the additional 15% of wasted energy manifests as heat — heat that must be removed by cabinet cooling fans or air conditioners, adding further to the facility’s energy bill.
Replacing aging or inefficient power supply modules with the TDK-Lambda JWT100-522/B directly addresses this inefficiency. The improved conversion ratio reduces cabinet temperatures, which in turn lowers the duty cycle of cooling equipment and extends the mean time between failures (MTBF) of heat-sensitive components such as capacitors, optocouplers, and relay coils. Predictive maintenance intervals can be extended, and unplanned downtime events — which in high-volume production environments can cost thousands of dollars per hour — become less frequent.
From a production rhythm perspective, stable and clean DC power prevents the micro-interruptions and voltage sags that cause PLC watchdog resets or servo fault trips. These nuisance faults, even when self-recovering, introduce cycle time variability that degrades overall equipment effectiveness (OEE). By ensuring that the power foundation is solid, the JWT100-522/B contributes to consistent line throughput and predictable takt time adherence.
All units supplied by ZYPLC undergo pre-shipment functional testing, including output voltage verification, load regulation checks, and ripple measurement, before dispatch. Each JWT100-522/B is backed by a 12-month warranty, and our inventory is maintained to support rapid fulfillment for both planned maintenance schedules and emergency replacement scenarios.
Energy Optimization FAQ
Q1: How does the JWT100-522/B contribute to energy savings compared to older power supply modules?
The JWT100-522/B achieves up to 85% conversion efficiency, meaning less input power is wasted as heat compared to older linear or lower-grade switching supplies. In continuous-duty industrial applications, this efficiency gain reduces both electricity consumption and the thermal load on cabinet cooling systems, delivering compounding savings over the equipment lifecycle.
Q2: Is the JWT100-522/B compatible with my existing PLC rack and servo drive system?
The JWT100-522/B is designed for the TDK-Lambda JWT series platform and is compatible with standard 19-inch rack and DIN-rail mounted control systems. It is commonly used alongside Mitsubishi, Siemens, Omron, and Yaskawa control platforms. If you are unsure about compatibility with your specific system configuration, please contact our technical team with your cabinet layout and load requirements.
Q3: What is the replacement and testing process when ordering from ZYPLC?
Each unit is tested prior to shipment for output voltage accuracy, load regulation, and ripple performance. Upon receipt, we recommend verifying output voltages under no-load and full-load conditions before installation. The module is a direct form-factor replacement for JWT series slots, minimizing installation time and reducing the risk of wiring errors during changeover.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental range. ZYPLC provides warranty support including failure diagnosis, replacement dispatch, and technical guidance throughout the warranty period.
