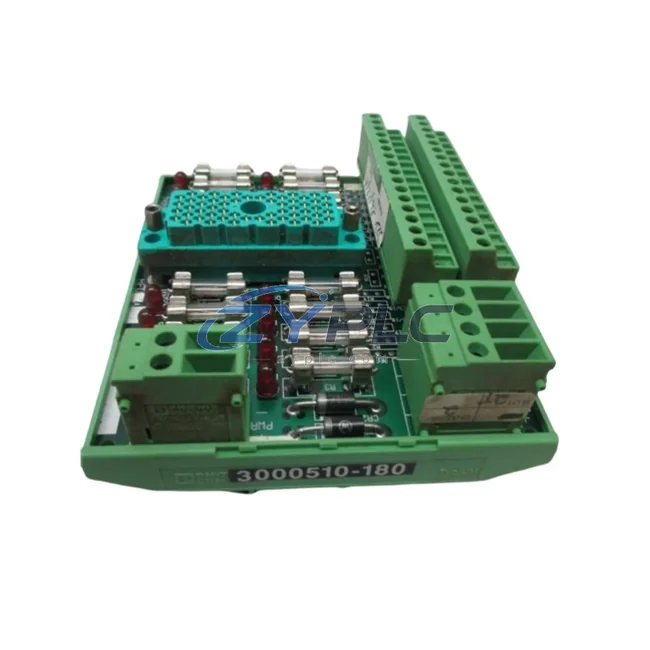

TRICONEX 3000510-180 Termination Board for Tricon TMR

TRICONEX 3000510-180 Termination Board for Tricon TMR: Compatibility and Replacement Notes

The TRICONEX 3000510-180 is a dedicated termination board engineered for deployment within Tricon Triple Modular Redundant (TMR) safety instrumented systems. Rather than functioning as a standalone component, this termination board occupies a critical junction in the overall control system architecture — bridging field-level signal wiring to the I/O modules housed within the Tricon chassis. Its role is to ensure signal integrity, simplify field wiring, and maintain the structural consistency that TMR safety architectures demand across control, I/O, network, power, and execution layers.

In a fully realized Tricon TMR system, every layer of the automation hierarchy must operate in coordinated harmony. The 3000510-180 termination board serves as the physical and electrical interface between field instrumentation and the Tricon I/O subsystem, enabling clean, organized, and maintainable wiring practices that are essential for long-term system reliability in safety-critical environments such as oil and gas, petrochemical processing, power generation, and chemical manufacturing.

Product Specification Table

System Compatibility Notes

The TRICONEX 3000510-180 termination board is most effectively understood within the context of the complete Tricon TMR control system. At the control layer, the Tricon Main Chassis houses the Tricon Communication Module (TCM) and the Tricon processor modules — typically the Tricon 4351A or 4352A Main Processor — which execute the safety logic and manage all I/O communications. These processors rely on accurate, noise-free signal data delivered through properly terminated field wiring, which is precisely where the 3000510-180 plays its foundational role.

At the I/O layer, the termination board interfaces directly with Tricon I/O modules such as the 3703E Analog Input Module, the 3805E Digital Output Module, or the 3664 Analog Output Module. Each of these modules depends on a correctly matched termination board to route field signals from sensors, transmitters, and actuators into the TMR voting logic. Without a properly specified termination board like the 3000510-180, signal integrity across all three redundant legs of the TMR architecture cannot be guaranteed.

At the network and communication layer, the Tricon system communicates with supervisory SCADA platforms and DCS systems via the Tricon Communication Module (TCM 4351) using protocols such as Modbus TCP, OPC, and TriStation peer-to-peer. The termination board’s role here is indirect but essential: clean field signal termination reduces noise that could otherwise propagate into the communication stack and cause spurious alarms or diagnostic faults.

At the power layer, the Tricon system relies on redundant power supplies — such as the Tricon 8312 Power Supply Module — to maintain continuous operation across all three TMR legs. The 3000510-180 termination board is designed to operate within the electrical environment sustained by these redundant power architectures, ensuring that field wiring terminations remain stable even during power supply switchover events.

At the human-machine interface layer, operators interact with the Tricon system through TriStation 1131 engineering workstations or integrated HMI platforms. Accurate process data displayed on these interfaces depends on the uninterrupted signal chain from field device through termination board to I/O module to processor — a chain in which the 3000510-180 is a non-negotiable link.

At the execution layer, final control elements such as solenoid valves, motor starters, and variable frequency drives receive commands from the Tricon system through digital output modules connected via termination boards. The 3000510-180 ensures that these output signals are cleanly routed and properly terminated, reducing the risk of spurious trips or failed actuations in safety-critical scenarios.

In summary, the 3000510-180 works in coordinated architecture with components including the Tricon 4351A Main Processor, TCM 4351 Communication Module, 3703E Analog Input Module, 3805E Digital Output Module, 3664 Analog Output Module, 8312 Power Supply Module, Tricon chassis backplane assemblies, and TriStation 1131 engineering software — forming a complete, validated TMR safety system.

Industrial Application Notes

The TRICONEX 3000510-180 termination board finds application across a wide range of industries where safety instrumented systems (SIS) are mandated by IEC 61511 or IEC 61508 standards.

In oil and gas processing, Tricon TMR systems equipped with 3000510-180 termination boards are deployed in emergency shutdown (ESD) systems, high-integrity pressure protection systems (HIPPS), and fire and gas detection systems. The termination board’s ability to support clean, organized field wiring is critical in environments where maintenance access is limited and wiring errors can have catastrophic consequences.

In petrochemical and chemical manufacturing, the 3000510-180 supports process safety management (PSM) compliance by enabling reliable signal termination for temperature, pressure, flow, and level transmitters connected to Tricon safety loops. Its compatibility with the full range of Tricon I/O modules allows engineers to design flexible, scalable SIS architectures that can grow with plant expansion.

In power generation — including nuclear, thermal, and combined-cycle plants — Tricon TMR systems with properly specified termination boards provide the redundancy and fault tolerance required for turbine protection, boiler management, and reactor safety systems. The 3000510-180 supports the high channel density and signal integrity demands of these applications.

In water and wastewater treatment, Tricon-based SIS platforms using 3000510-180 termination boards protect critical infrastructure such as pump stations, chemical dosing systems, and filtration controls, where system availability and signal accuracy are essential for regulatory compliance and public safety.

In mining and metallurgy, the termination board supports Tricon deployments in conveyor protection systems, crusher controls, and smelter safety interlocks, where harsh electrical environments demand robust, well-terminated field wiring solutions.

Product Compatibility FAQ

Q1: Is the TRICONEX 3000510-180 compatible with all Tricon I/O modules, and how do I confirm the correct match for my system?
The 3000510-180 is designed for specific Tricon I/O module types within the Tricon TMR chassis system. Compatibility is determined by the I/O module’s signal type (analog or digital), channel count, and connector interface. Always cross-reference the Tricon I/O module’s product datasheet and the termination board selection guide to confirm the correct pairing. Our technical team can assist with system-level compatibility verification prior to purchase.

Q2: Can the 3000510-180 be installed in an existing Tricon TMR system without requiring a full system shutdown or reconfiguration?
In most cases, termination board replacement or addition can be performed during a planned maintenance window without requiring full system reconfiguration, provided the replacement board matches the original specification and field wiring is correctly re-terminated. However, for safety-critical SIS applications, all field wiring changes should be performed in accordance with the site’s management of change (MOC) procedure and validated by a qualified functional safety engineer before returning the system to service.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance of the 3000510-180 in an active Tricon TMR system?
The warranty terms confirmed during quotation covers functional defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from improper installation, electrical overstress, or unauthorized modification. For long-term maintenance, we recommend maintaining a spare 3000510-180 in your site’s critical spares inventory to minimize downtime during unplanned maintenance events. Our team provides pre-sales technical consultation, post-sales support, and can assist with sourcing additional Tricon system components to support your ongoing maintenance strategy.
