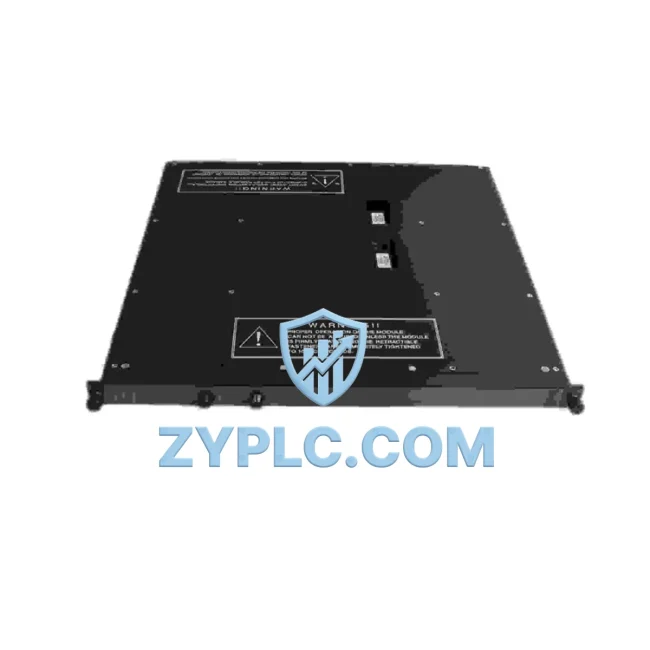

The Triconex 4201N is a high-efficiency power supply module engineered for the Tricon Triple Modular Redundant (TMR) safety and control platform. In modern industrial facilities where energy accountability is no longer optional, the 4201N delivers stable, regulated DC power to the Tricon chassis while minimizing conversion losses and heat dissipation — two of the most overlooked contributors to elevated energy costs on the plant floor. Whether deployed in oil & gas processing, chemical manufacturing, power generation, or continuous process industries, the 4201N supports uninterrupted control system operation with a power architecture designed to reduce idle consumption and sustain peak efficiency across extended production cycles.

Unlike generic power supplies, the 4201N is purpose-built for the Tricon backplane, ensuring full compatibility with Triconex Main Chassis, Expansion Chassis, and Remote Expansion Chassis configurations. Its regulated output maintains voltage stability even under fluctuating load conditions — a critical requirement when the downstream control nodes include Triconex 3008 Main Processors, 3703E Analog Input Modules, 3805E Digital Output Modules, and 3624 Pulse Input Modules, all of which demand consistent supply voltage to maintain scan cycle integrity and I/O response accuracy.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 4201N does not operate in isolation — its energy efficiency contribution is best understood within the broader Tricon control architecture. In a fully configured Tricon system, the 4201N supplies regulated power to the TMR backplane, which in turn feeds the Triconex 3008 Main Processor responsible for executing the safety logic and managing inter-chassis communication. Alongside the processor, the Triconex 3700A Analog Input Module continuously samples field signals from pressure transmitters, flow meters, and temperature sensors, enabling the control system to make real-time adjustments that prevent energy-wasting process deviations before they escalate.

On the output side, the Triconex 3805E Digital Output Module drives actuators, solenoid valves, and motor starters with precise on/off commands, eliminating the unnecessary energization cycles that inflate electricity consumption in poorly timed control sequences. For variable-speed drive applications, the Tricon platform integrates with external Schneider Electric Altivar ATV320 Variable Frequency Drives via hardwired I/O or Modbus RTU communication, allowing the safety controller to command motor speed reductions during low-demand periods — a direct mechanism for cutting kWh consumption without sacrificing throughput.

Power quality monitoring is handled upstream by Schneider Electric PowerLogic PM5000 Series Power Meters, which feed real-time energy data — including power factor, harmonic distortion, and peak demand — back to the SCADA layer. This data loop allows plant engineers to correlate Tricon control decisions with measurable energy outcomes, closing the gap between safety system operation and energy management objectives. The Triconex 4351B Communication Module facilitates this data exchange over Ethernet/IP or Modbus TCP, ensuring that energy telemetry reaches the historian and DCS without latency.

For facilities running hybrid architectures, the Tricon platform coexists with Schneider Electric Modicon M580 ePAC Controllers on the process automation layer, with the 4201N-powered Tricon system handling safety-critical shutdowns while the M580 manages continuous regulatory control. This division of responsibility prevents the safety system from being burdened with routine process tasks, keeping its power consumption predictable and its scan cycle deterministic. Additional I/O expansion is supported through Triconex 3625 Pulse Input Modules and 3808 Digital Input Modules, both of which rely on the stable DC rail provided by the 4201N to maintain signal integrity across long cable runs in electrically noisy plant environments.

Power Optimization in Real Production Lines

In a refinery control room where the Tricon system governs emergency shutdown sequences for high-pressure reactors, the 4201N’s redundant power architecture eliminates the need for external UPS systems on the control chassis — reducing both capital expenditure and the standby power draw associated with maintaining a separate battery backup infrastructure. The module’s dual-supply configuration allows one power supply to be hot-swapped during maintenance without interrupting the TMR voting logic, meaning planned maintenance windows no longer require full system de-energization. This directly reduces the energy cost of restart sequences, which in heavy process industries can involve significant motor inrush currents and pneumatic system re-pressurization cycles.

On continuous production lines where the Tricon system monitors conveyor drives, compressor controls, and heat exchanger bypass valves, the 4201N’s stable output voltage ensures that the 3703E Analog Input Modules maintain their ±0.1% measurement accuracy without requiring recalibration after power fluctuations. Accurate measurement is the foundation of efficient control: a flow controller that reads 2% high will consistently over-pump, wasting both energy and process fluid. By anchoring the measurement chain to a stable power source, the 4201N indirectly contributes to tighter process control and lower specific energy consumption per unit of output.

Predictive maintenance programs benefit from the 4201N’s built-in diagnostics, which report power supply health status to the Tricon Main Processor. Maintenance teams using Triconex TriStation 1131 Programming Software can monitor supply voltage trends over time, identifying gradual degradation before it causes a nuisance trip. Avoiding unplanned shutdowns is one of the highest-value energy optimization strategies available to plant operators: a single unplanned trip on a large compressor train can consume more energy in the restart sequence than weeks of optimized steady-state operation would save.

All units supplied by ZYPLC are sourced from verified industrial channels, subjected to functional power-on testing and output voltage verification prior to dispatch, and covered by a 12-month warranty. Stock is maintained for immediate shipment to minimize project lead times and reduce the energy and logistics cost of expedited freight.

Energy Optimization FAQ

Q1: How does the Triconex 4201N contribute to reducing plant energy consumption?
The 4201N provides stable, regulated DC power to the Tricon TMR chassis with minimal conversion losses. By maintaining consistent voltage to all connected I/O and processor modules, it prevents the measurement drift and control instability that lead to energy-wasting process deviations such as over-pumping, over-heating, or excessive valve cycling. Its redundant architecture also eliminates the need for external UPS hardware on the control chassis, removing a continuous standby power load from the facility’s electrical balance.

Q2: Is the 4201N compatible with both the Tricon Main Chassis and Expansion Chassis?
Yes. The Triconex 4201N is designed for use across the Tricon platform family, including the Main Chassis, Expansion Chassis, and Remote Expansion Chassis. It is compatible with Tricon systems running Triconex TriStation 1131 v4.x and later firmware versions. For specific chassis revision compatibility, consult the Triconex hardware compatibility matrix or contact our technical team before ordering.

Q3: What is the recommended replacement or upgrade path if the 4201N is end-of-life in my system?
The 4201N remains an active spare part supported by ZYPLC’s industrial inventory program. For systems being migrated to newer Tricon CX or Tricon v10 architectures, the power supply form factor and backplane interface differ; however, the 4201N continues to serve legacy Tricon v9 and v10 chassis configurations. Our technical team can advise on direct replacements or cross-compatible alternatives based on your chassis revision and firmware version.

Q4: What testing and quality assurance process does ZYPLC apply before shipping the 4201N?
Every Triconex 4201N unit dispatched by ZYPLC undergoes a pre-shipment functional test protocol that includes power-on verification, output voltage measurement under load, and visual inspection for physical damage or component degradation. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Expedited shipping options are available for urgent maintenance requirements, and our team maintains buffer stock to support same-week dispatch for most orders.
