Vacon 60VB00459 Energy-Saving Gate Driver Board NXS NXP

Vacon 60VB00459 Energy-Saving Gate Driver Board for Optimized NXS NXP Automation

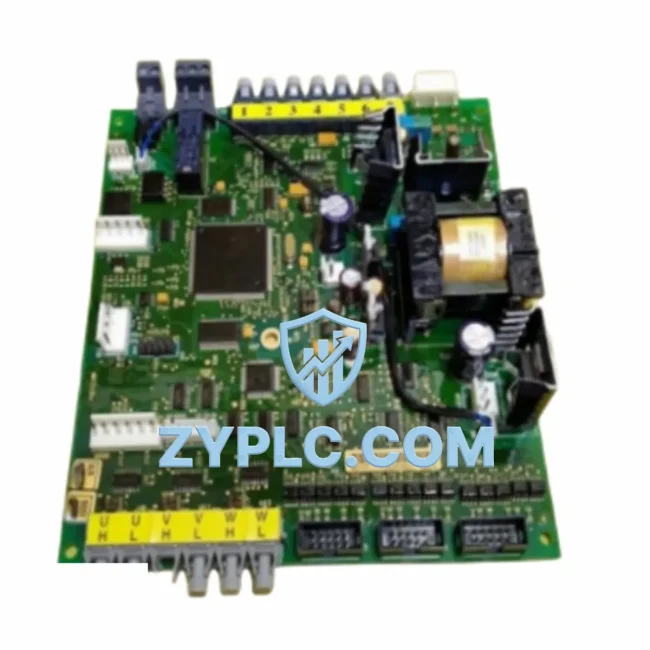

The Vacon 60VB00459 is a precision-engineered gate driver board designed for Vacon NXS and NXP series variable frequency drives (VFDs). As a core switching control component, it governs IGBT firing sequences with microsecond-level accuracy, directly influencing inverter efficiency, motor torque linearity, and overall drive energy consumption. In modern industrial environments where energy costs and equipment uptime are tightly linked to profitability, replacing or maintaining this board with a genuine, tested unit is one of the most cost-effective interventions a maintenance team can make.

Efficiency Performance Table

Energy-Aware Automation Architecture

The Vacon 60VB00459 gate driver board sits at the heart of the Vacon NXP and NXS drive’s power conversion stage. When this board operates correctly, it ensures that each IGBT in the inverter bridge switches cleanly and at precisely the right moment — minimizing switching losses, reducing thermal stress on the power module, and maintaining the sinusoidal output waveform that AC induction motors and permanent magnet motors depend on for efficient torque production.

In a typical energy-optimized production line, the Vacon NXP drive equipped with a healthy 60VB00459 board works in concert with upstream and downstream components. The Vacon NXP control board (such as the NXOPTA1 or NXOPTD2 option boards) feeds speed and torque references to the gate driver stage, while the Vacon NXP power unit supplies the DC bus voltage that the gate driver switches across the motor phases. Any degradation in gate signal integrity — caused by a failing driver board — introduces asymmetric switching, increased harmonic distortion, and elevated motor temperature, all of which translate directly into wasted energy.

For facilities running multiple drives on a shared network, the Vacon NXP fieldbus option boards (PROFIBUS, PROFINET, or Modbus TCP variants) relay real-time speed feedback and energy consumption data to the plant’s SCADA or DCS system. When the 60VB00459 is functioning at OEM specification, the drive’s internal energy counter and power factor readings remain accurate, enabling the control system to make valid load-balancing decisions across motor groups. Pairing the NXP drive with a Vacon NXP brake chopper unit or a Vacon NXP active front end (AFE) module further recovers regenerative energy during deceleration cycles — but only when the gate driver board is delivering clean switching signals to the main inverter.

On the monitoring side, facilities using Vacon NXP keypad panels (such as the Vacon NXP graphical keypad) can read drive output power, motor current, and DC bus voltage in real time. These readings are only meaningful when the gate driver stage is operating correctly. A degraded 60VB00459 board often manifests as erratic current readings, unexpected overcurrent trips (F1), or elevated drive temperature alarms — all of which mask the true energy consumption profile of the motor and make predictive maintenance scheduling unreliable.

In pump and fan applications — among the highest-energy consumers in any facility — the Vacon NXS drive with a properly functioning gate driver board enables precise flow control through speed regulation, eliminating the energy waste of throttle valves and dampers. The Vacon NXS I/O extension board expands analog and digital signal capacity for multi-pump sequencing, while the Vacon NXS EMC filter ensures that the clean switching waveforms produced by the 60VB00459 do not propagate conducted emissions back into the supply network — protecting both the drive and connected measurement equipment.

Power Optimization in Real Production Lines

A failing gate driver board in a Vacon NXP or NXS drive does not always cause an immediate fault trip. In many cases, the degradation is gradual: gate pulse timing drifts, IGBT turn-on and turn-off losses increase, and the motor begins drawing more current than the process demands. On a production line running 16–24 hours per day, this hidden inefficiency can add thousands of kilowatt-hours of unnecessary consumption per year per drive — a cost that is invisible until the board fails completely and causes an unplanned shutdown.

Replacing the Vacon 60VB00459 with a tested, OEM-specification unit restores the drive’s switching precision. In motor control applications — whether controlling a 75 kW conveyor motor, a 110 kW compressor, or a 200 kW pump — the restored gate signal quality reduces motor slip, lowers stator copper losses, and allows the drive’s internal energy optimizer (available in Vacon NXP application software) to function as designed. The result is measurable: lower kWh consumption per production cycle, reduced cooling load on the motor and drive cabinet, and longer IGBT module service life.

From a maintenance cost perspective, proactive replacement of the gate driver board — rather than waiting for a catastrophic IGBT failure — avoids the far greater expense of replacing the entire power unit. A single unplanned stoppage on a high-throughput line can cost more in lost production than an entire year’s worth of preventive component replacement. Each Vacon 60VB00459 unit supplied by ZYPLC is tested under load conditions before shipment, with a documented 12-month warranty covering functional performance — giving maintenance planners a reliable basis for scheduling and budgeting.

For facilities managing multiple Vacon NXP or NXS drives, maintaining a small buffer stock of the 60VB00459 board reduces mean time to repair (MTTR) from days to hours. Combined with the drive’s built-in fault logging and the real-time diagnostics available through the Vacon NXP keypad or fieldbus interface, a stocked spare board enables the maintenance team to respond to gate driver faults immediately — restoring full production capacity without waiting for international shipping lead times.

Energy Optimization FAQ

Q1: How does a degraded gate driver board affect drive energy efficiency?
A degraded Vacon 60VB00459 board causes imprecise IGBT switching, which increases switching losses, raises motor current draw, and generates excess heat in both the drive and the motor. This directly increases energy consumption per production cycle. Replacing the board with a tested OEM unit restores switching precision and recovers the drive’s rated efficiency.

Q2: Is the Vacon 60VB00459 compatible with both NXS and NXP drive frames?
Yes. The 60VB00459 gate driver board is designed for use within the Vacon NXS and NXP drive families. Compatibility depends on the specific power frame and drive configuration. If you are unsure whether this board matches your exact drive variant, contact ZYPLC with your drive nameplate data for confirmation before ordering.

Q3: What is the recommended replacement interval, and how should the board be tested before installation?
Vacon does not publish a fixed replacement interval for the gate driver board, as service life depends on operating environment, switching frequency, and thermal cycling. ZYPLC recommends inspection whenever the drive logs overcurrent (F1), overvoltage (F2), or IGBT fault codes. Each 60VB00459 unit shipped by ZYPLC has been functionally tested and is supplied with a 12-month warranty. Installation should be performed by a qualified drive technician following Vacon NXP/NXS service documentation.

Q4: What is covered under the 12-month warranty, and what is the return process?
The 12-month warranty covers functional failure of the Vacon 60VB00459 gate driver board under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with your order reference and a description of the fault. ZYPLC will arrange inspection and, where applicable, replacement or credit.
