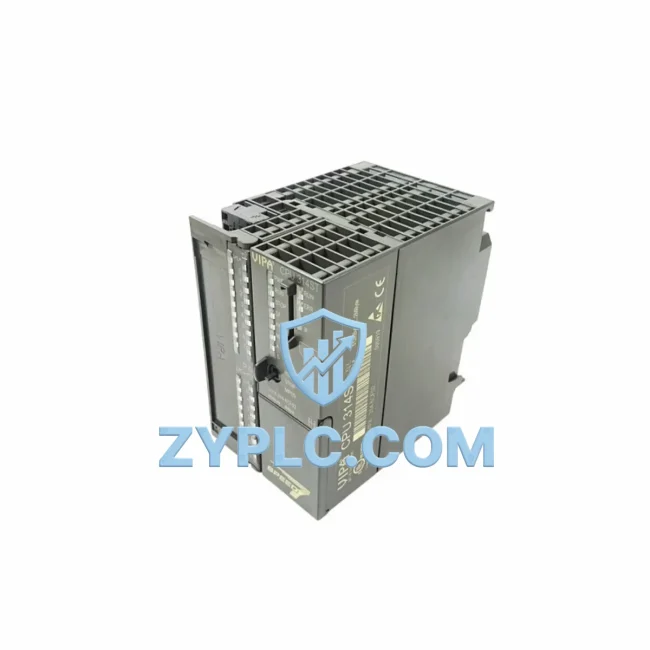

VIPA 314-6CF02 System-Ready CPU for SPEED7 300S Architecture

VIPA 314-6CF02 System-Ready CPU for SPEED7 300S Architecture: Control System Architecture and Upstream-Downstream Coordination

The VIPA 314-6CF02 is a high-performance CPU module purpose-built for deployment within the SPEED7 300S control platform, a modular, rack-based automation architecture widely adopted across manufacturing, energy, petrochemical, and process industries. Rather than functioning as a standalone controller, the 314-6CF02 is engineered to serve as the central processing node within a layered automation hierarchy — coordinating signal acquisition from distributed I/O modules, managing real-time communication across Profibus DP and Ethernet networks, and synchronizing execution logic with HMI interfaces, drive systems, and field instrumentation.

In a complete SPEED7 300S system, the 314-6CF02 occupies the control layer, where it arbitrates data flow between the field layer below and the supervisory layer above. Its onboard Profibus DP master/slave interface enables direct integration with remote I/O stations, frequency inverters, and intelligent field devices without requiring additional communication processors. The integrated Ethernet port supports MPI-over-TCP and S7 communication protocols, allowing seamless contextual integration with SCADA platforms, engineering workstations, and peer controllers in distributed architectures.

System designers working with the SPEED7 300S platform will recognize the 314-6CF02 as a drop-in compatible replacement for Siemens S7-300 series CPUs in many configurations, owing to VIPA’s SPEED7 instruction set compatibility. This compatibility extends to the use of standard S7-300 backplane racks, signal modules, and function modules — significantly reducing re-engineering effort during system upgrades or component substitutions. The CPU’s expanded onboard memory (up to 1 MB work memory) and accelerated processing speed compared to equivalent S7-300 CPUs make it particularly well-suited for applications with dense ladder logic, structured text routines, or high-frequency interrupt-driven tasks.

Architecture Specification Table

Coordinated Control System Design

The 314-6CF02 achieves its full performance potential when integrated within a coordinated SPEED7 300S system architecture. At the power layer, the VIPA 307-1EA00 power supply module provides stable DC 24 V rail power to the CPU and adjacent signal modules, ensuring consistent voltage regulation even under variable load conditions common in industrial environments. The CPU slots into a standard VIPA or Siemens-compatible S7-300 backplane rack — such as the UR2 or UR1 rack configurations — alongside digital input modules (e.g., VIPA 321-1BH02 DI 16×DC 24V) and digital output modules (e.g., VIPA 322-1BH01 DO 16×DC 24V/0.5A) that handle field-level signal conditioning.

For analog process control applications, the 314-6CF02 coordinates with analog input modules such as the VIPA 331-7KF02 (8 AI, configurable for 4–20 mA or 0–10 V signals) and analog output modules like the VIPA 332-5HD01 (4 AO), enabling closed-loop PID control of temperature, pressure, flow, and level transmitters. In architectures requiring extended I/O reach, the CPU’s Profibus DP master port connects to remote I/O stations — for example, VIPA ET 200 compatible distributed I/O nodes — extending the control footprint across large plant floors without additional cabling infrastructure.

At the human-machine interface layer, the 314-6CF02 communicates natively with VIPA-compatible HMI panels via MPI or Ethernet, supporting real-time process visualization, alarm management, and operator parameter adjustment. For drive coordination, the CPU’s Profibus DP interface enables direct parameter exchange with variable frequency drives and servo controllers, supporting coordinated motion profiles in packaging lines, conveyor systems, and pump stations. Communication gateways — such as Profibus-to-Modbus or Profibus-to-HART converters — can be integrated at the network layer to bridge legacy field instruments into the SPEED7 architecture without replacing existing field wiring.

Application in Layered Automation Systems

Manufacturing & Assembly Lines: In automotive and electronics manufacturing, the 314-6CF02 manages multi-axis coordination between robotic end-effectors, conveyor drives, and vision inspection systems. Its high-speed interrupt processing ensures sub-millisecond response to quality rejection signals, while its Ethernet connectivity supports MES integration for production order tracking and OEE reporting.

Power Generation & Electrical Utilities: Substations and power distribution facilities deploy the 314-6CF02 as the primary logic controller for switchgear sequencing, transformer protection interlocks, and load-shedding automation. The CPU’s robust Profibus DP master capability allows integration with IED (Intelligent Electronic Devices) and protection relays across the substation bus.

Petrochemical & Refinery Process Control: In continuous process environments, the 314-6CF02 executes PID control loops for reactor temperature management, distillation column pressure regulation, and flow balancing across multi-stream pipelines. Its compatibility with HART-enabled analog modules supports smart transmitter diagnostics without interrupting live process control.

Water & Wastewater Treatment: Municipal water treatment facilities use the 314-6CF02 to automate dosing pump sequencing, filtration backwash cycles, and effluent quality monitoring. The CPU’s onboard Ethernet port enables remote SCADA monitoring across geographically distributed pump stations and treatment cells.

Mining & Metallurgy: In ore processing and smelting operations, the 314-6CF02 controls conveyor belt drives, crusher sequencing, and furnace temperature profiles. Its wide operating temperature tolerance and IP20 protection class support deployment in control cabinets adjacent to high-heat process equipment.

Architecture Engineering FAQ

Q1: Is the VIPA 314-6CF02 directly compatible with existing Siemens S7-300 racks and signal modules?
Yes. The 314-6CF02 is designed for physical and functional compatibility with standard S7-300 backplane racks and most S7-300 signal modules (SM 321/322/331/332 series). The SPEED7 instruction set is a superset of the S7-300 instruction set, meaning existing STEP 7 programs can typically be loaded and executed with minimal modification. Engineers should verify module-specific compatibility for specialty function modules (FM) and communication processors (CP) prior to system commissioning.

Q2: How does the 314-6CF02 support redundant or high-availability control architectures?
While the 314-6CF02 is a standard (non-redundant) CPU, high-availability architectures can be achieved at the system level by implementing hot-standby configurations using paired VIPA SPEED7 CPUs with synchronization via dedicated Ethernet links, or by deploying the CPU within a distributed control architecture where critical subsystems have independent local controllers. For applications requiring IEC 61508 SIL-rated safety functions, the 314-6CF02 should be paired with dedicated safety modules and a certified safety CPU within the same rack or via a safety-rated Profibus DP segment.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance?
All VIPA 314-6CF02 units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. The warranty covers repair or replacement of defective units within the warranty period. For long-term maintenance, ZYPLC maintains stock of VIPA SPEED7 300S series modules — including CPUs, power supplies, and I/O modules — to support rapid spare-parts fulfillment for installed base systems. Engineers requiring extended support contracts or application-level commissioning assistance are encouraged to contact ZYPLC directly.
