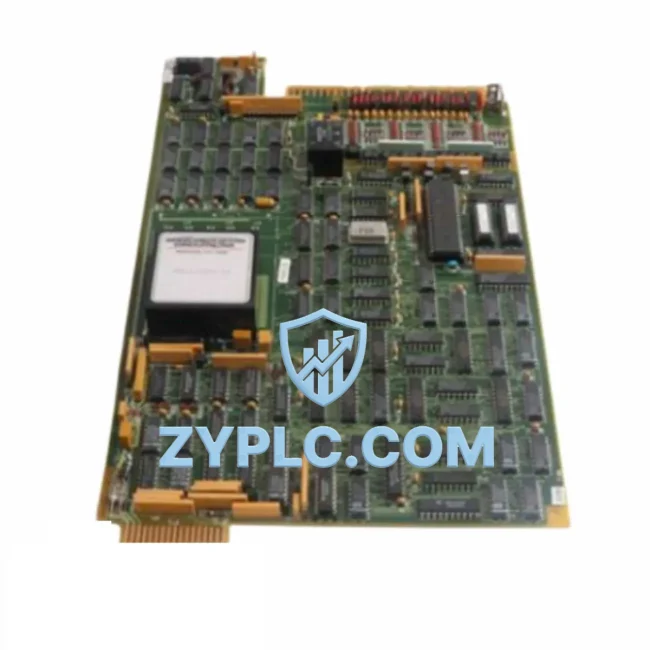

The Westinghouse 5X00300G01 is a high-efficiency analog input module engineered for the Ovation Distributed Control System (DCS), widely deployed in power generation, utilities, and process-intensive industrial environments. As factories and plants face mounting pressure to reduce operating load and maximize equipment utilization, the 5X00300G01 plays a critical role in the energy data acquisition layer — capturing real-time analog signals from field instruments such as temperature transmitters, pressure sensors, and flow meters, and delivering accurate process values to the Ovation controller for closed-loop maintenance planning.
By ensuring high-fidelity signal conversion with minimal drift, this module directly supports smarter motor control decisions, tighter drive regulation, and more responsive production line pacing — all of which translate into measurable reductions in idle operating load and unnecessary actuator cycling.
Product Specification Table
| Parameter |
Specification / Value |
| SKU / Part Number |
5X00300G01 |
| Brand |
Westinghouse |
| Series |
Ovation DCS |
| Module Type |
Analog Input Module |
| Signal Channels |
Multi-channel analog input (4–20 mA / 0–10 V compatible) |
| Operating Efficiency |
High-resolution A/D conversion, low signal loss |
| Compatible Systems |
Westinghouse Ovation DCS, Emerson Ovation Controller |
| Application Environment |
Power plants, utilities, chemical processing, water treatment |
| Maintenance Value |
Enables precise closed-loop control to eliminate over-drive and idle unplanned downtime |
| Origin |
USA |
| Condition |
Tested & Verified |
| Warranty |
12-Month Warranty |
System Compatibility and Application
In a fully optimized Ovation-based control architecture, the 5X00300G01 Analog Input Module sits at the heart of the energy sensing layer. It works in concert with the Westinghouse Ovation OCR400 Controller, which processes the digitized field signals and executes PID control loops that govern downstream actuators and drives. When paired with the Ovation I/O Marshalling Cabinet and associated 5X00119G01 Digital Output Module, the system achieves seamless coordination between sensing and actuation — reducing the lag that causes energy spikes during process transitions.
On the drive side, variable frequency drives (VFDs) such as those in the Emerson Control Techniques Commander Series receive setpoint commands derived from the analog values processed by the 5X00300G01. This tight integration ensures that pump and fan motors operate at precisely the speed required by the process — not at fixed full-speed — dramatically cutting motor load during partial-load conditions. The Westinghouse Ovation Power Monitor Module can then log the resulting operational stability in real time, feeding data back into the Ovation historian for trend analysis and energy reporting.
For communication and system integration, the Ovation network relies on Ovation OCN (Ovation Control Network) infrastructure, which connects the 5X00300G01’s host controller to HMI workstations running Ovation Operator Station software. Operators can monitor analog input trends, set operating load thresholds, and trigger alarms when process variables deviate from efficiency targets. The Westinghouse 5X00070G01 Communication Module further extends connectivity to third-party SCADA systems via Modbus or OPC protocols, enabling plant-wide maintenance planning dashboards.
Redundancy and reliability are built into the architecture through the Ovation Redundant Controller Pair configuration, ensuring that a single module failure does not interrupt condition monitoring or control — a critical requirement in continuous-process industries where unplanned shutdowns carry enormous energy restart penalties. The 5X00300G01 is also compatible with the Westinghouse Ovation Remote I/O Node, allowing distributed analog signal collection across large plant footprints without signal degradation.
Maintenance and Replacement Notes
In real-world power plant and process industry deployments, the Westinghouse 5X00300G01 contributes to maintenance planning across multiple operational dimensions. First, by providing high-accuracy analog inputs — typically from flow, pressure, and temperature transmitters — it enables the Ovation DCS to maintain process variables within tight efficiency bands. When a boiler feedwater flow reading drifts, for example, the controller can immediately adjust the feedwater pump VFD speed, preventing both over-pumping (wasted energy) and under-pumping (thermal inefficiency).
Second, the module’s reliable signal integrity reduces the frequency of false alarms and spurious control actions. Every unnecessary valve stroke or motor start-stop cycle consumes energy and accelerates mechanical wear. By delivering clean, stable analog data, the 5X00300G01 minimizes these parasitic energy losses and extends the service life of connected actuators and drives — directly lowering maintenance costs and unplanned downtime.
Third, in predictive maintenance programs, the analog input data collected by the 5X00300G01 feeds vibration, temperature, and current signature analysis algorithms running on the Ovation historian. Early detection of motor bearing degradation or heat exchanger fouling allows maintenance teams to schedule interventions during planned outages rather than reacting to failures — avoiding the energy-intensive process of emergency restart and re-stabilization.
Plants that have standardized on the Ovation platform with properly maintained analog input modules report measurable improvements in production line pacing: fewer process upsets, more consistent throughput, and lower specific operating load per unit of output. The 5X00300G01 is available from ZYPLC with full pre-shipment functional testing, ensuring it performs to OEM specification from day one of installation.
Product Sourcing FAQ
Q1: How does the 5X00300G01 contribute to operational stability in an Ovation DCS environment?
The 5X00300G01 provides accurate, low-noise analog signal acquisition that enables the Ovation controller to execute precise closed-loop control. This prevents over-driving motors, pumps, and fans beyond process requirements, directly reducing operating load during partial-load and transient operating conditions.
Q2: Is the 5X00300G01 compatible with current Ovation DCS versions and third-party systems?
Yes. The 5X00300G01 is designed for the Westinghouse/Emerson Ovation DCS platform and is compatible with Ovation controllers across multiple generations. It can also interface with third-party SCADA and maintenance planning systems via the Ovation communication infrastructure using standard industrial protocols.
Q3: Can this module replace a failed unit without full system reconfiguration?
In most Ovation installations, the 5X00300G01 supports hot-swap replacement within the I/O chassis. Configuration is retained in the Ovation controller, so a verified replacement module from ZYPLC can be installed with minimal process interruption — reducing the energy cost of extended shutdowns.
Q4: What testing and warranty coverage does ZYPLC provide for the 5X00300G01?
Every 5X00300G01 unit shipped by ZYPLC undergoes pre-shipment functional testing to verify analog input accuracy, channel integrity, and communication with the Ovation backplane. All units are covered by a 12-month warranty, with technical support available to assist with installation, configuration, and troubleshooting.
