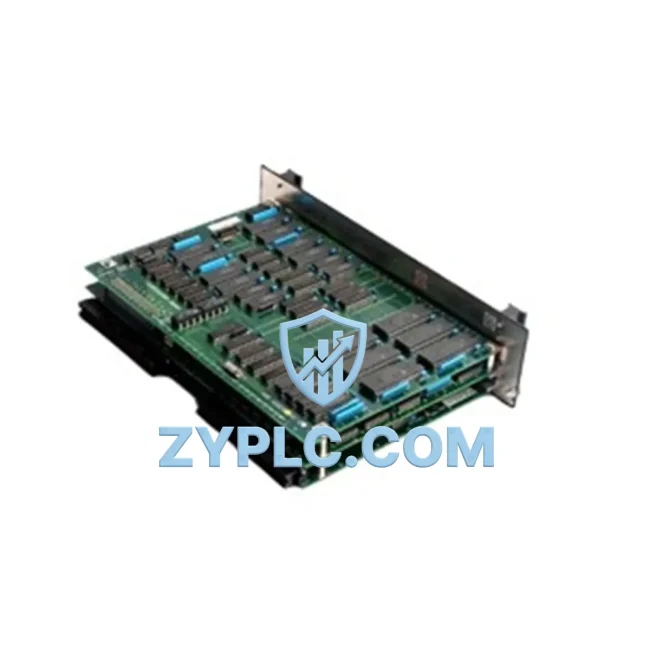

Yokogawa CP11*C ASS9291AS-0 System-Ready CPU for CENTUM VP Architecture

Yokogawa CP11*C ASS9291AS-0 System-Ready CPU for CENTUM VP Architecture

The Yokogawa CP11*C ASS9291AS-0 is a high-performance CPU module engineered for deployment within the CENTUM VP distributed control system (DCS) platform — one of the most widely adopted process automation architectures in the global industrial sector. Rather than functioning as a standalone controller, this module is designed to operate as the computational core of a multi-layer control hierarchy, coordinating signal acquisition, logic execution, and upstream communication across the full breadth of a plant-wide automation system. Its role spans from real-time process regulation at the field level to structured data exchange with supervisory and historian layers, making it a foundational component in any CENTUM VP-based control architecture.

In a properly engineered CENTUM VP system, the CP11*C ASS9291AS-0 CPU module occupies the control layer, where it interfaces directly with I/O modules such as the AAI141-S analog input module and the AAI543-H analog output module, both of which are mounted within the same field control station (FCS) chassis. The CPU continuously polls these I/O modules via the internal V-net/IP or ESB bus, processes the incoming signals against configured control strategies, and issues output commands within deterministic scan cycle times. This tight integration between the CPU and its I/O subsystem is what enables the CENTUM VP platform to achieve the sub-100ms response times required in fast-loop process control applications such as flow regulation, pressure control, and temperature cascade loops.

At the network layer, the CP11*C ASS9291AS-0 communicates upstream with the CENTUM VP engineering workstation and operator console via the Vnet/IP Ethernet-based control network. This dual-redundant network architecture ensures that a single cable or switch failure does not interrupt the flow of process data to the human-machine interface layer. The module supports seamless integration with Yokogawa’s FAST/TOOLS SCADA platform and can exchange data with third-party systems via OPC-DA or OPC-UA gateways, enabling Contextual Integration across heterogeneous plant environments. When paired with the ALR111 communication module or the ACM12 gateway unit, the CP11*C ASS9291AS-0 can also participate in FOUNDATION Fieldbus or HART pass-through architectures, extending its reach to intelligent field devices without requiring additional controller hardware.

Power integrity is a critical design consideration in any high-availability DCS deployment. The CP11*C ASS9291AS-0 is powered through the FCS chassis backplane, which receives conditioned DC supply from the Yokogawa PW481 or PW482 power supply modules. These units are typically deployed in a 1+1 redundant configuration, ensuring that a power supply failure does not cause a controller outage. The CPU module itself supports hot-standby redundancy when paired with a second CP11*C ASS9291AS-0 unit in a dual-CPU FCS configuration, with automatic bumpless switchover in the event of a primary CPU fault. This redundancy architecture is a standard requirement in safety-critical applications such as offshore platform control, refinery distillation column management, and nuclear auxiliary system monitoring.

From a system expansion perspective, the CP11*C ASS9291AS-0 supports connection to multiple I/O nest units via the ESB bus extender, allowing engineers to distribute I/O across physically separated marshalling cabinets without introducing additional CPU resources. This modular expansion capability is particularly valuable in brownfield retrofit projects, where existing cable infrastructure must be preserved while the control system is upgraded. The module’s compatibility with the full range of CENTUM VP I/O cards — including the ADV151-P digital input module, the ADV551-P digital output module, and the AAT141-S temperature input module — ensures that a single CP11*C ASS9291AS-0 CPU can manage a diverse mix of signal types within a unified control domain.

For maintenance engineers and system integrators, the CP11*C ASS9291AS-0 offers comprehensive diagnostic transparency through the CENTUM VP system viewer utility. Real-time CPU load, memory utilization, communication error counters, and I/O module health status are all accessible from the engineering workstation without requiring physical access to the control cabinet. This remote diagnostics capability significantly reduces mean time to repair (MTTR) in large-scale installations where the FCS cabinets may be located in hazardous or difficult-to-access areas. Firmware updates can be applied online during system operation, subject to Yokogawa’s recommended maintenance procedures, minimizing planned downtime in continuous-process environments.

In layered automation architectures, the CP11*C ASS9291AS-0 serves as the execution engine for function block programs developed in accordance with IEC 61131-3 standards. Control strategies including PID, ratio control, feedforward compensation, and model predictive control (MPC) integration are all supported within the CENTUM VP function block library. The module’s deterministic execution environment ensures that control loop timing is maintained even under peak I/O load conditions, a requirement that is non-negotiable in applications such as boiler drum level control, compressor surge protection, and reactor temperature management.

Architecture Specification Table

Coordinated Control System Design

A complete CENTUM VP control system built around the CP11*C ASS9291AS-0 CPU module typically incorporates a carefully selected set of companion modules and subsystems. At the I/O layer, the AAI141-S 16-channel analog input module and the AAI543-H 8-channel analog output module provide the primary signal interface to field transmitters and control valves. Digital I/O is handled by the ADV151-P 32-channel digital input module and the ADV551-P 32-channel digital output module, which together cover the discrete signal requirements of motor control centers, solenoid valve banks, and limit switch arrays.

For temperature-intensive applications such as furnace control or heat exchanger management, the AAT141-S thermocouple input module is mounted in the same FCS chassis, allowing the CP11*C ASS9291AS-0 to process thermocouple signals directly without external signal conditioning hardware. Communication with field devices operating on FOUNDATION Fieldbus H1 segments is facilitated by the ALR111 fieldbus communication module, which connects to the CPU via the ESB bus and manages the H1 segment scheduling independently of the main CPU scan cycle.

At the power layer, the PW481 and PW482 power supply modules are deployed in redundant pairs within each FCS cabinet, with automatic load sharing and fault detection. The FCS chassis backplane — available in 6-slot and 12-slot configurations — provides the physical mounting and electrical interconnection for all modules, including the CP11*C ASS9291AS-0 CPU. For large-scale systems requiring more than one FCS chassis, the ESB bus extender unit allows up to four nest units to be connected to a single CPU domain, significantly increasing the I/O capacity without adding CPU overhead.

At the human-machine interface layer, Yokogawa’s CENTUM VP operator console communicates with the CP11*C ASS9291AS-0 via the Vnet/IP network, presenting real-time process graphics, trend displays, and alarm management functions to plant operators. The engineering workstation, running CENTUM VP Builder software, provides the configuration and diagnostic interface for the CPU module, enabling online modification of control strategies, I/O assignments, and communication parameters without requiring a system shutdown.

Application in Layered Automation Systems

The CP11*C ASS9291AS-0 CPU module is deployed across a broad spectrum of process industries where the CENTUM VP platform has established a strong installed base. In petroleum refining, the module manages crude distillation unit (CDU) control loops, coordinating feed rate, cut-point temperature, and reflux ratio control strategies within a single FCS domain. Its hot-standby redundancy capability is essential in this application, where an unplanned controller outage can result in significant product quality deviation and safety system activation.

In the power generation sector, the CP11*C ASS9291AS-0 is used in boiler control systems, managing drum level three-element control, combustion air-fuel ratio regulation, and steam temperature control. The module’s deterministic scan cycle ensures that fast-responding loops such as drum level control maintain their configured execution frequency even during periods of high system load. In combined-cycle power plants, multiple FCS units — each built around a CP11*C ASS9291AS-0 CPU — are networked via Vnet/IP to provide plant-wide coordinated control from a single operator console.

In the water and wastewater treatment sector, the module is applied in membrane bioreactor (MBR) control systems, managing aeration blower speed, membrane flux, and chemical dosing sequences. Its compatibility with HART-enabled field devices allows plant engineers to access transmitter diagnostics and calibration data directly from the CENTUM VP engineering workstation, reducing the need for field calibration visits. In mining and minerals processing, the CP11*C ASS9291AS-0 is used in flotation cell control, thickener underflow density regulation, and conveyor belt load management, where its robust operating temperature range and vibration tolerance are important selection criteria.

In pharmaceutical and fine chemical manufacturing, the module supports batch process control in accordance with ISA-88 batch standards, managing recipe execution, phase sequencing, and equipment arbitration within a CENTUM VP batch management framework. Its audit trail and electronic batch record capabilities support 21 CFR Part 11 compliance requirements in regulated manufacturing environments.

Architecture Engineering FAQ

Q1: Is the CP11*C ASS9291AS-0 compatible with both new CENTUM VP installations and existing CENTUM CS 3000 system upgrades?
The CP11*C ASS9291AS-0 is a CENTUM VP native CPU module and is not directly interchangeable with CENTUM CS 3000 hardware. However, Yokogawa provides a structured migration path from CS 3000 to CENTUM VP that preserves existing I/O wiring and field device connections. During a migration project, the CS 3000 FCS chassis and CPU modules are replaced with CENTUM VP equivalents, including the CP11*C ASS9291AS-0, while the field wiring termination panels are retained. Control strategies developed in CS 3000 can be exported and imported into CENTUM VP Builder with appropriate engineering review, significantly reducing migration engineering effort. ZYPLC can supply CP11*C ASS9291AS-0 units with a 12-Month Warranty to support both new installations and migration projects.

Q2: What redundancy configuration is recommended for the CP11*C ASS9291AS-0 in a high-availability process control application?
For applications requiring continuous availability — such as offshore platform control, refinery critical unit management, or power plant boiler control — Yokogawa recommends deploying the CP11*C ASS9291AS-0 in a dual-CPU hot-standby configuration within a redundant FCS chassis. In this configuration, two CP11*C ASS9291AS-0 modules occupy designated primary and secondary CPU slots within the FCS chassis, with the secondary module continuously synchronized to the primary’s memory state. In the event of a primary CPU fault, the secondary assumes control within one scan cycle, with no detectable bump in process output. The Vnet/IP control network should also be configured in dual-redundant mode, with separate physical network paths to eliminate single points of failure at the communication layer. Power supply redundancy using paired PW481 or PW482 modules completes the high-availability architecture.

Q3: How does the 12-Month Warranty apply to the CP11*C ASS9291AS-0, and what support is available for long-term spare parts management?
All CP11*C ASS9291AS-0 units supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions as defined by Yokogawa’s published environmental and electrical specifications. In the event of a warranty claim, ZYPLC provides advance replacement service to minimize system downtime, with the defective unit returned for evaluation after the replacement is received. For long-term spare parts management, ZYPLC maintains stock of CP11*C ASS9291AS-0 modules and companion CENTUM VP components to support planned maintenance cycles and emergency replacement requirements. Customers operating large CENTUM VP installations are encouraged to contact ZYPLC to discuss consignment stock arrangements and multi-year supply agreements that align with their planned maintenance schedules.
