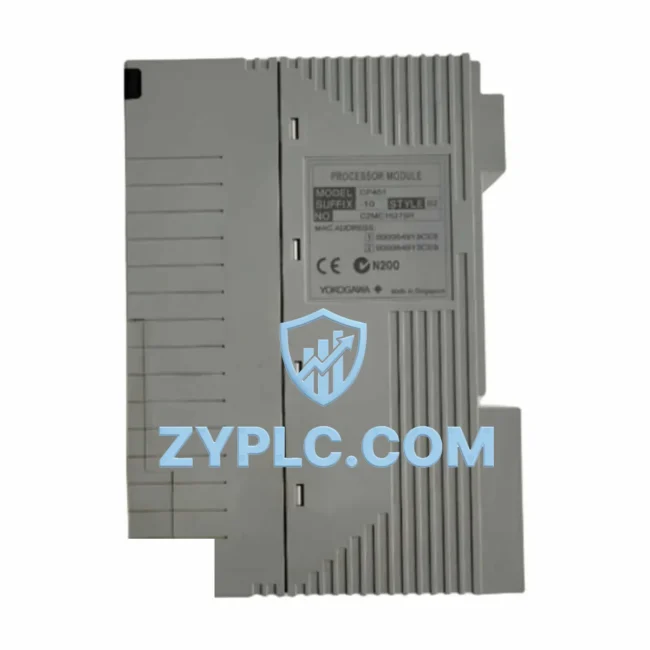

Yokogawa CP451-10 S2 System-Ready Processor Module for CENTUM CS3000 Architecture

Yokogawa CP451-10 S2 System-Ready Processor Module for CENTUM CS3000 Architecture

The Yokogawa CP451-10 S2 is a high-performance central processing unit designed for deployment within the CENTUM CS3000 Distributed Control System (DCS) architecture. As the computational core of the control domain, this processor module governs real-time data acquisition, control algorithm execution, and inter-subsystem communication across the full automation hierarchy. Its role extends beyond standalone processing — the CP451-10 S2 is engineered for Contextual Integration within layered control environments, enabling seamless coordination between field instrumentation, I/O subsystems, operator interfaces, and plant-wide supervisory networks.

In modern industrial automation, the processor module is the architectural anchor of the control system. The CP451-10 S2 fulfills this role by providing deterministic scan cycle performance, robust memory management, and native compatibility with the CENTUM CS3000 platform’s redundancy and expansion frameworks. Whether deployed in simplex or dual-redundant configurations, this module ensures continuous process control with minimal engineering overhead and maximum system uptime.

Architecture Specification Table

Coordinated Control System Design

The CP451-10 S2 processor module does not operate in isolation — its value is realized through tight integration with the surrounding CENTUM CS3000 system architecture. At the control layer, the CP451-10 S2 interfaces directly with the EB401 Engineering Builder and HIS (Human Interface Station) platforms, enabling real-time parameter tuning, loop configuration, and alarm management without interrupting live process execution. The processor’s V-net communication backbone connects seamlessly to the BCV (Bus Converter) and ACG (Advanced Control Gateway) modules, extending control reach across multi-domain plant networks.

At the I/O layer, the CP451-10 S2 governs signal acquisition through compatible I/O modules such as the AAI141 Analog Input Module, AAI841 Analog Output Module, and ADV151 Digital Input Module, all mounted on the same FCS rack backplane. These modules feed real-time process values — temperature, pressure, flow, and discrete states — directly into the processor’s control algorithms, enabling closed-loop regulation with sub-second response times.

For power integrity, the CP451-10 S2 relies on the PW481 or PW482 Power Supply Modules, which provide regulated DC power to the FCS rack. In redundant architectures, dual power supplies are configured in parallel to eliminate single points of failure at the power layer. The processor module itself supports CPU redundancy through a paired CP451-10 S2 standby unit, with automatic bumpless switchover in the event of a primary processor fault — a critical requirement in continuous process industries.

Network-layer connectivity is managed through the CP461-50 Communication Processor or equivalent gateway modules, which bridge the CENTUM CS3000 V-net to plant-level Ethernet, OPC DA/UA servers, and historian systems. This architecture supports full Contextual Integration — allowing the CP451-10 S2’s process data to be consumed by MES, SCADA, and ERP platforms without custom middleware. Terminal modules such as the TB820 Terminal Board provide the physical wiring interface between field cables and I/O modules, completing the signal chain from sensor to processor.

Application in Layered Automation Systems

The CP451-10 S2 processor module is deployed across a broad spectrum of process-critical industries where control system reliability, deterministic performance, and long-term maintainability are non-negotiable requirements.

In petroleum refining and petrochemical processing, the CP451-10 S2 manages continuous distillation column control, reactor temperature regulation, and compressor surge protection — applications where millisecond-level control response and redundant failover are mandatory. The module’s dual-redundant CPU architecture ensures zero-interruption control during planned maintenance windows.

In electric power generation and grid substations, the CP451-10 S2 coordinates turbine governor control, boiler combustion management, and auxiliary system sequencing. Its deterministic scan cycle and V-net communication stability make it suitable for high-availability power plant DCS environments where unplanned downtime carries significant operational and financial consequences.

In water treatment and municipal utilities, the processor governs multi-stage filtration, chemical dosing, and pump station sequencing across geographically distributed facilities. The module’s compatibility with remote I/O expansion and gateway communication enables centralized supervisory control over wide-area process networks.

In metallurgical and mining operations, the CP451-10 S2 supports furnace temperature profiling, conveyor sequencing, and ore processing control — environments characterized by high electrical noise, wide temperature variation, and demanding continuous-duty cycles. The module’s industrial-grade design and Japan-origin manufacturing ensure long-term reliability under these conditions.

In pharmaceutical and food processing, the CP451-10 S2 supports batch recipe execution, CIP (Clean-in-Place) sequencing, and environmental monitoring — applications requiring precise process repeatability and full audit trail capability through integrated historian connectivity.

Architecture Engineering FAQ

Q1: Is the CP451-10 S2 compatible with existing CENTUM CS3000 FCS racks, and can it be installed without a full system shutdown?
The CP451-10 S2 is fully compatible with standard CENTUM CS3000 Field Control Station (FCS) racks and backplanes. In dual-redundant configurations, the standby processor can be replaced or upgraded while the primary unit maintains live process control, enabling hot-swap maintenance without process interruption. For simplex installations, a controlled shutdown of the affected FCS domain is required, but other FCS domains on the same V-net continue operating independently. Always verify firmware revision compatibility with your system’s EB401 Engineering Builder version before installation.

Q2: What communication protocols does the CP451-10 S2 support, and how does it integrate with third-party SCADA or MES systems?
The CP451-10 S2 communicates natively over Yokogawa’s V-net (and Vnet/IP in upgraded architectures), ER Bus for inter-FCS communication, and the internal FCS backplane bus for I/O module coordination. Integration with third-party SCADA, MES, or historian platforms is achieved through the CP461-50 Communication Processor or ACG gateway modules, which expose OPC DA/UA, Modbus TCP, and other standard industrial protocols. This Contextual Integration capability allows plant-wide data aggregation without modifying the core DCS control logic.

Q3: What does the 12-Month Warranty cover, and what is the recommended spare parts strategy for long-term CENTUM CS3000 system maintenance?
Every CP451-10 S2 unit supplied by ZYPLC is covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. Each unit undergoes functional testing and verification prior to shipment. For long-term system maintenance, we recommend maintaining at least one spare CP451-10 S2 processor per FCS domain, particularly in redundant architectures where a failed standby unit reduces system resilience. Complementary spare modules — including PW481 power supplies, AAI141 analog input modules, and TB820 terminal boards — should be stocked in proportion to system scale and criticality. Contact our engineering team for a tailored spare parts recommendation based on your installed base.
