Yokogawa NFAP135-S00 Pulse Input Module for STARDOM Systems

Yokogawa NFAP135-S00 Industrial Network Interface for STARDOM Systems: Bridging Field Devices and Smart Factory Data Links

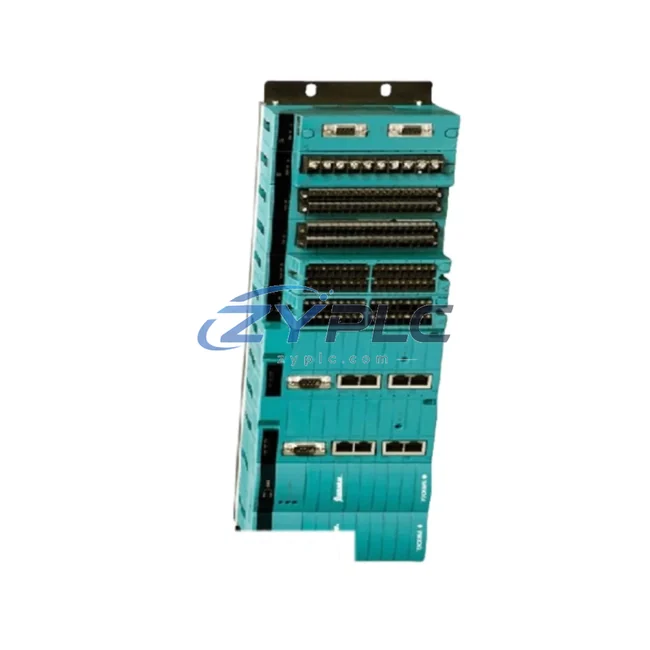

The Yokogawa NFAP135-S00 is a high-precision Pulse Input Module engineered for the STARDOM FCN/FCJ distributed control platform. Designed to serve as a critical node in industrial data acquisition chains, the NFAP135-S00 captures pulse signals from flow meters, encoders, turbine meters, and frequency-output sensors, converting raw field-level data into structured digital values that feed directly into the STARDOM controller’s real-time processing engine. In smart factory environments where every millisecond of data latency matters, this module delivers the signal integrity and protocol compatibility required to sustain continuous, uninterrupted production monitoring.

As industrial sites evolve toward fully connected architectures, the NFAP135-S00 plays a foundational role in the data pipeline — from signal acquisition at the sensor level, through protocol conversion and network transmission, to real-time visualization on SCADA and HMI platforms. Its native integration with the STARDOM FCN autonomous controller ensures that pulse data is processed locally at the edge, reducing dependency on centralized servers and enabling faster alarm response and remote diagnostics.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the NFAP135-S00 sits at the front end of the data acquisition chain. Flow transmitters, turbine meters, and rotary encoders generate pulse outputs that are wired directly into the module’s input channels. The STARDOM FCN autonomous controller — the computational core of the STARDOM platform — processes these pulse counts in real time, executing IEC 61131-3 function block logic to calculate flow rates, totalized volumes, and frequency deviations without requiring a round-trip to a central DCS server.

From the FCN controller, processed data is transmitted upstream via Modbus TCP or OPC-UA to SCADA platforms such as Yokogawa’s FAST/TOOLS or third-party systems like Wonderware and Ignition. Operators monitoring the STARDOM HMI or a connected Yokogawa OmniWin workstation receive live pulse-derived metrics — flow totals, batch counts, and speed readings — with sub-second refresh rates. When a pulse deviation exceeds a configured threshold, the FCN’s onboard alarm engine triggers an alert that propagates through the network to the SCADA alarm console and, if configured, to remote notification systems via the plant’s Ethernet backbone.

For sites running mixed-protocol environments, the Yokogawa NFCP141 communication module or an external Modbus-to-PROFIBUS gateway can bridge the STARDOM network segment to legacy PLCs or third-party remote I/O racks. Similarly, the NFAI141 analog input module and NFDO141 digital output module within the same STARDOM I/O family can be co-deployed alongside the NFAP135-S00 to build a comprehensive mixed-signal acquisition node — handling 4–20 mA analog loops, discrete digital states, and high-frequency pulse inputs within a single FCN chassis. This modular architecture allows engineers to expand the I/O footprint incrementally without redesigning the control network.

At the edge layer, the FCN controller’s built-in Ethernet port connects to an industrial managed switch — such as a Hirschmann MACH series or Moxa EDS series — which segments the control network from the enterprise IT backbone. This network segmentation protects real-time pulse data from IT traffic interference while still allowing the Yokogawa Exaquantum historian or a plant-level MES to pull aggregated production data on a scheduled basis. Variable frequency drives (VFDs) monitoring motor speed via pulse feedback can also feed their tachometer outputs into the NFAP135-S00, giving the SCADA system a unified view of both process flow and mechanical drive performance.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols and isolated control islands. A plant may operate legacy Modbus RTU devices alongside newer FOUNDATION Fieldbus instruments, with pulse-output flow meters that speak neither protocol natively. The NFAP135-S00 addresses this by acting as a protocol-agnostic pulse acquisition front-end: it captures raw pulse signals regardless of the upstream sensor’s communication type, and the STARDOM FCN controller handles the protocol translation and data normalization before forwarding structured values to the SCADA layer.

Data silos are further broken down through the FCN’s OPC-UA server capability, which exposes all I/O data — including pulse totals from the NFAP135-S00 — as standardized OPC-UA nodes accessible to any compliant SCADA, MES, or cloud analytics platform. This eliminates the need for custom middleware or proprietary data bridges, reducing integration cost and maintenance overhead. For remote sites or unmanned substations, the FCN’s autonomous operation mode ensures that pulse data continues to be logged and alarms continue to be evaluated even when the SCADA communication link is temporarily interrupted — a critical feature for pipeline monitoring, water treatment, and remote energy metering applications.

Production line transparency is achieved by mapping pulse-derived metrics — such as parts-per-minute counts from encoder feedback or batch totals from filling line flow meters — directly into the plant’s MES dashboard. Quality control teams gain real-time visibility into throughput rates, and maintenance engineers can use historical pulse trend data to detect bearing wear or pump degradation before a failure occurs. System expansion is straightforward: additional NFAP135-S00 modules can be added to the FCN chassis as new pulse sources are commissioned, and the STARDOM platform’s distributed architecture allows multiple FCN nodes to be networked together, scaling the control system to cover entire production facilities without architectural redesign.

Industrial Connectivity FAQ

Q1: What communication protocols does the Yokogawa NFAP135-S00 support for SCADA integration?
The NFAP135-S00 operates within the STARDOM FCN/FCJ platform, which natively supports Modbus RTU, Modbus TCP, FOUNDATION Fieldbus, and OPC-UA. Pulse data acquired by the module is processed by the FCN controller and made available to SCADA systems via these standard industrial protocols, ensuring compatibility with Yokogawa FAST/TOOLS, Ignition, Wonderware, and other leading SCADA platforms without requiring custom drivers.

Q2: How does the NFAP135-S00 ensure network stability and minimize communication latency?
The STARDOM FCN controller processes pulse inputs locally at the edge, executing control logic and alarm evaluation without depending on a central server. This edge-processing architecture reduces round-trip latency to sub-millisecond levels for local control actions. Network stability is further ensured by the FCN’s autonomous operation mode, which maintains data logging and alarm management even during temporary SCADA communication interruptions.

Q3: Can the NFAP135-S00 be integrated into an existing multi-vendor control system alongside non-Yokogawa PLCs and HMIs?
Yes. The STARDOM FCN’s OPC-UA server and Modbus TCP gateway capabilities allow the NFAP135-S00’s pulse data to be shared with any OPC-UA or Modbus-compatible device, including Siemens S7 PLCs, Allen-Bradley ControlLogix systems, and third-party HMI panels. Protocol conversion modules within the STARDOM ecosystem can further bridge to PROFIBUS, DeviceNet, or other fieldbus networks as required.

Q4: What warranty and pre-shipment testing does the NFAP135-S00 come with?
Every NFAP135-S00 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation and undergoes pre-shipment functional testing to verify pulse input channel integrity, backplane communication, and firmware version compatibility. Units are sourced from authorized supply chains and shipped with full traceability documentation. For urgent project requirements, expedited shipping and availability confirmed by RFQ availability can be confirmed directly with our sales team.
