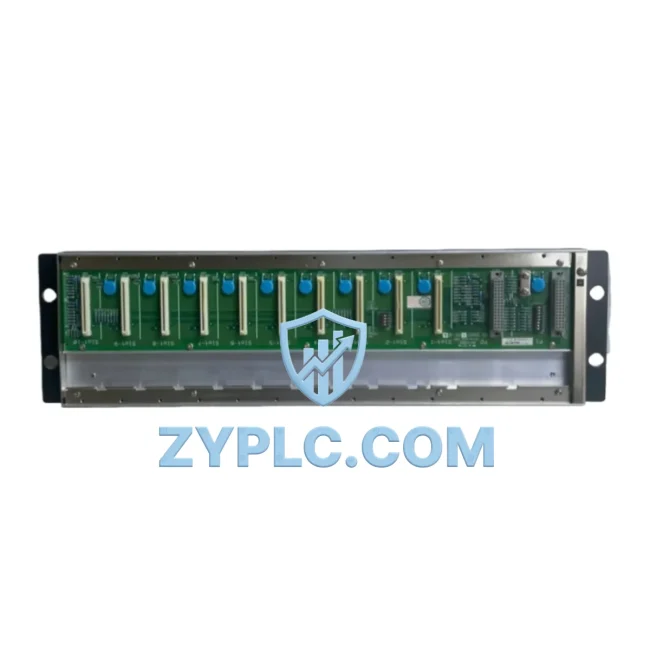

Yokogawa NFBU200-S00 Fieldbus Module

Yokogawa NFBU200-S00 Fieldbus Module: Precision Control for CENTUM VP Automation

The Yokogawa NFBU200-S00 is a high-performance Fieldbus Communication Module engineered for integration within the CENTUM VP and CENTUM CS Distributed Control System (DCS) platforms. Designed to meet the rigorous demands of process-intensive industries — including oil & gas, chemical processing, power generation, and pharmaceutical manufacturing — this module serves as a critical node in industrial automation systems. By enabling deterministic, low-latency fieldbus communication between field instruments and the control layer, the NFBU200-S00 directly contributes to reduced operating load, improved equipment utilization, and optimized production line throughput.

In modern industrial facilities, communication latency and signal instability between field devices and the DCS are among the leading causes of inefficient energy use. Actuators overshoot, control loops oscillate, and motors run at non-optimal speeds — all because the control system lacks timely, accurate data. The NFBU200-S00 eliminates this bottleneck by providing a stable, high-integrity fieldbus link that feeds real-time process data into the CENTUM VP control engine, enabling tighter PID loop tuning, faster disturbance rejection, and more precise motor and drive management.

Product Specification Table

System Compatibility and Application

The NFBU200-S00 does not operate in isolation — its true value is realized when deployed as part of a cohesive, energy-optimized control architecture. Within a typical CENTUM VP system, the module interfaces directly with the CENTUM VP Field Control Station (FCS), which executes the plant’s control strategies. The FCS relies on accurate, low-jitter fieldbus data from the NFBU200-S00 to maintain stable PID control over critical process variables such as flow, pressure, temperature, and level.

On the field device side, the NFBU200-S00 communicates with Foundation Fieldbus-enabled instruments including Yokogawa EJX910A multivariable transmitters for differential pressure and flow measurement, and Yokogawa YTA710 temperature transmitters for precise thermal monitoring. These instruments feed live process data into the control loop, allowing the CENTUM VP to dynamically adjust valve positions and drive setpoints in real time — eliminating the unplanned downtime associated with fixed-speed operation and manual setpoint management.

For motor and drive control, the fieldbus data processed through the NFBU200-S00 is used to command Yokogawa-compatible variable frequency drives (VFDs) and servo amplifiers. When a flow transmitter signals that demand has dropped, the control system — informed by the NFBU200-S00’s real-time data path — can immediately reduce motor speed via the VFD, cutting operating load proportionally to the cube of speed reduction. This dynamic drive adjustment is one of the most impactful operational-efficiency mechanisms in process automation, and it depends entirely on the communication integrity that the NFBU200-S00 provides.

The architecture is further strengthened by integration with the Yokogawa STARDOM FCN/FCJ autonomous controller, which can serve as a local control node for remote or satellite process units, feeding aggregated data back to the central CENTUM VP via OPC-UA or Modbus TCP. Power monitoring at the MCC (Motor Control Center) level is handled by dedicated power quality analyzers and energy metering modules connected through the Yokogawa MW100 data acquisition unit, which logs operating load trends and feeds them into the plant’s maintenance planning dashboard.

For I/O expansion and signal conditioning, the NFBU200-S00 works alongside CENTUM VP I/O modules such as the AAI143-S00 analog input module and ADV151-P00 digital output module, ensuring that both fieldbus and conventional 4–20 mA signals are seamlessly integrated into the same control strategy. The Yokogawa HIS (Human Interface Station) running CENTUM VP Operator Station software provides operators with real-time energy dashboards, alarm management, and trend displays — giving plant personnel the visibility needed to identify and eliminate unplanned downtime at the loop level.

Communication redundancy is supported through the Yokogawa NFBU200-S00’s compatibility with redundant fieldbus segment configurations, ensuring that a single cable fault does not interrupt control — a critical feature for continuous-process plants where an unplanned shutdown can consume more energy in restart procedures than weeks of normal operation.

Maintenance and Replacement Notes

In a refinery crude distillation unit, for example, the NFBU200-S00 enables the CENTUM VP to maintain precise column pressure control by continuously polling Foundation Fieldbus pressure transmitters and adjusting overhead condenser fan VFD speeds in real time. Without reliable fieldbus communication, operators resort to conservative, fixed-speed fan operation — running fans at 100% capacity regardless of actual heat load. With the NFBU200-S00 in place, fan speed tracks actual process demand, reducing motor load by Actual operating results depend on the installed system, load profile, and commissioning parameters.

In pharmaceutical batch manufacturing, the module supports precise temperature control of jacketed reactors by linking Yokogawa YTA710 temperature transmitters and control valves on the same fieldbus segment. The CENTUM VP executes model-predictive control (MPC) strategies that anticipate thermal load changes and pre-position valves — reducing heating/cooling energy overshoot and shortening batch cycle times. Shorter cycles mean more batches per shift, improving equipment utilization without adding energy input.

Predictive maintenance is another key operational-efficiency benefit enabled by the NFBU200-S00. Foundation Fieldbus devices transmit not only process values but also device health diagnostics — valve signature data, transmitter self-test results, and actuator torque trends — directly through the fieldbus segment. The CENTUM VP collects this data and, via integration with Yokogawa PRM (Plant Resource Manager), generates maintenance alerts before failures occur. Avoiding unplanned shutdowns eliminates the energy-intensive restart sequences that follow emergency trips, which can consume 3–5× the normal startup energy in steam-based processes.

All units supplied by ZYPLC undergo pre-shipment functional testing, including communication integrity verification, segment load testing, and power consumption measurement. Each NFBU200-S00 is shipped with a warranty terms confirmed during quotation, backed by Availability confirmed by RFQ inventory for shipment arranged after confirmation to minimize plant downtime.

Product Sourcing FAQ

Q1: How does the NFBU200-S00 contribute to measurable operational stability in a CENTUM VP plant?
The NFBU200-S00 enables deterministic, real-time fieldbus communication between field instruments and the CENTUM VP FCS. This allows the control system to execute tighter PID and MPC strategies, reducing control loop oscillation and enabling dynamic VFD speed adjustment. Plants typically report Actual operating results depend on the installed system, load profile, and commissioning parameters.

Q2: Is the NFBU200-S00 compatible with both CENTUM VP and CENTUM CS 3000 systems?
Yes. The NFBU200-S00 is designed for use within Yokogawa’s CENTUM platform family, including CENTUM VP and CENTUM CS 3000 Field Control Stations. It supports Foundation Fieldbus H1 (IEC 61158) protocol and is compatible with standard FF-H1 field devices from multiple manufacturers, making it suitable for mixed-vendor fieldbus segments.

Q3: What is the recommended replacement or upgrade path if the NFBU200-S00 is end-of-life on my system?
For systems requiring modernization, Yokogawa’s CENTUM VP migration path supports direct slot-compatible replacement of legacy CENTUM CS modules with current-generation equivalents. ZYPLC can advise on compatible replacement modules based on your FCS configuration and fieldbus segment topology. Contact our technical team with your FCS model and current I/O card list for a tailored recommendation.

Q4: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Every NFBU200-S00 unit supplied by ZYPLC undergoes pre-shipment testing including power-on verification, fieldbus communication segment simulation, and functional I/O checks. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with test records available upon request. Expedited shipping is available for urgent plant maintenance requirements.
