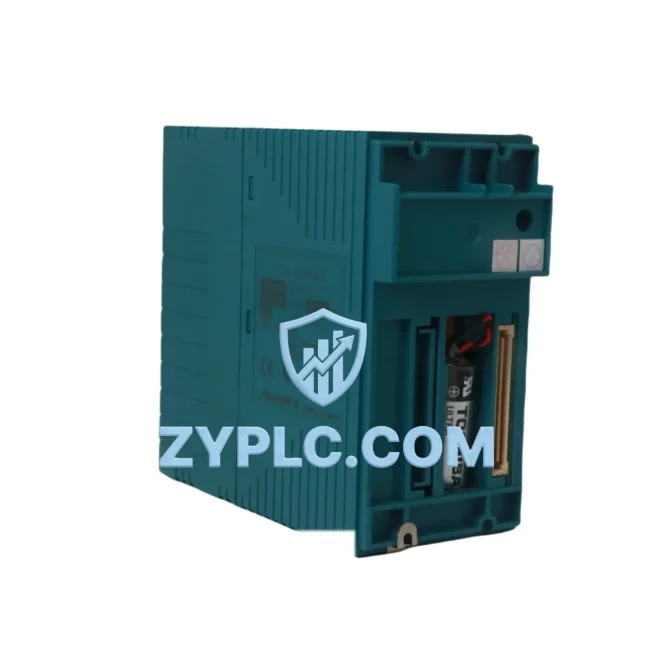

Yokogawa NFCP100-S00 System-Ready CPU for CENTUM VP Architecture

Yokogawa NFCP100-S00 System-Ready CPU for CENTUM VP Architecture: Control System Architecture and Upstream-Downstream Coordination

The Yokogawa NFCP100-S00 is a field-proven CPU processor module engineered for deployment within the CENTUM VP Distributed Control System (DCS) platform — one of the most widely adopted process automation architectures in the global industrial sector. Rather than functioning as a standalone component, the NFCP100-S00 is designed from the ground up to serve as the computational core of a layered, multi-tier control architecture, coordinating signal acquisition, logic execution, data routing, and supervisory communication across every layer of the automation hierarchy.

In a complete CENTUM VP control system, the NFCP100-S00 occupies the control layer — the nerve center that bridges field-level I/O signals with plant-wide supervisory systems. It interfaces directly with I/O modules such as the AAI141-S00 analog input module and the ADV151-P00 digital input module, receiving real-time process data from sensors, transmitters, and field devices. Simultaneously, it communicates upstream with the CENTUM VP engineering and operator stations via the Vnet/IP control network, ensuring that process variables, alarm states, and control outputs are continuously synchronized across the entire system.

The module is housed within the CENTUM VP field control station (FCS) cabinet, typically mounted on an AFV10D or AFV30D node unit. Its architecture supports hot-standby redundancy when paired with a secondary NFCP100-S00 unit and the appropriate redundancy communication module, enabling bumpless switchover in the event of a primary CPU fault — a critical requirement in continuous process industries such as petrochemical refining, LNG processing, and power generation.

Architecture Specification Table

Coordinated Control System Design

The NFCP100-S00 achieves its full operational value when integrated within a coherent, multi-module CENTUM VP architecture. At the I/O layer, it coordinates with analog output modules such as the AAV141-S00 to drive control valves and actuators based on PID loop calculations executed within the CPU itself. Digital I/O modules including the ADV551-P00 provide discrete signal handling for motor starters, solenoid valves, and interlock circuits, all managed under the NFCP100-S00’s scan cycle.

At the network layer, the Vnet/IP dual-redundant control bus connects the NFCP100-S00 to other FCS nodes across the plant, as well as to the CENTUM VP HIS (Human Interface Station) running on operator workstations. This architecture ensures that process data flows continuously from the field to the control room without single points of network failure. For plants requiring integration with third-party systems or legacy HART field devices, the ALF111 Fieldbus communication module or an AIP829 HART multiplexer can be incorporated into the same FCS cabinet, with the NFCP100-S00 managing all inter-module data exchange.

Power integrity is maintained through the AFR20D redundant power supply module, which provides dual-feed power to the node unit and ensures that a single power supply failure does not interrupt CPU operation. The NFCP100-S00 monitors power supply status in real time and generates system alarms through the CENTUM VP alarm management framework when anomalies are detected.

For plants operating in a redundant FCS configuration, the NFCP100-S00 pairs with a secondary CPU unit and communicates via a dedicated redundancy bus. In the event of a primary CPU fault, the standby unit assumes control within milliseconds, maintaining process continuity without operator intervention. This design is particularly valued in ethylene crackers, offshore platform control systems, and large-scale water treatment facilities where unplanned shutdowns carry significant safety and financial consequences.

Application in Layered Automation Systems

The NFCP100-S00 has been deployed across a broad spectrum of process industries, each with distinct architectural requirements. In oil and gas upstream operations, it manages wellhead pressure control, separator level loops, and emergency shutdown (ESD) interlock logic within a unified CENTUM VP architecture, reducing the need for separate safety PLC platforms in non-SIL-rated applications. In power generation facilities — including combined-cycle gas turbine plants and coal-fired boilers — the module handles boiler drum level control, turbine bypass valve sequencing, and auxiliary system coordination, interfacing with the plant DCS historian via OPC-DA for long-term performance trending.

In the chemical and petrochemical sector, the NFCP100-S00 supports multi-loop reactor temperature control, distillation column pressure management, and batch sequencing for specialty chemical production. Its deterministic scan cycle and high-capacity I/O addressing make it suitable for processes where tight loop timing is essential to product quality. In municipal water treatment and wastewater management systems, the module coordinates pump station control, chemical dosing loops, and SCADA integration via Modbus TCP gateways, enabling centralized monitoring across geographically distributed treatment facilities.

Mining and mineral processing operations benefit from the NFCP100-S00’s robustness in high-vibration, high-dust environments when properly housed within IP54-rated FCS cabinets. Conveyor sequencing, crusher load management, and flotation cell level control are typical applications. In food and beverage and pharmaceutical packaging lines, the module’s support for recipe management and batch control within the CENTUM VP framework enables compliance with FDA 21 CFR Part 11 audit trail requirements when configured with the appropriate historian and operator station software.

Architecture Engineering FAQ

Q1: Is the NFCP100-S00 compatible with both CENTUM VP R4 and R6 system versions, and can it be integrated into an existing FCS cabinet alongside older I/O modules?
The NFCP100-S00 is designed for CENTUM VP platform compatibility and is generally interoperable with R4 and later system revisions, subject to firmware version alignment. When integrating into an existing FCS cabinet, it is essential to verify node unit compatibility (AFV10D or AFV30D) and confirm that existing I/O modules — such as AAI141-S00 analog inputs or ADV151-P00 digital inputs — are supported under the target system revision. ZYPLC recommends providing your current system configuration details so that compatibility can be confirmed prior to shipment. All units supplied carry a 12-Month Warranty and are tested against standard functional parameters before dispatch.

Q2: What redundancy architecture is supported, and what additional components are required to implement hot-standby CPU redundancy?
Hot-standby CPU redundancy requires a matched pair of NFCP100-S00 modules installed in the same or adjacent node units, connected via the CENTUM VP redundancy communication bus. The AFR20D or AFR30D redundant power supply modules must also be present to ensure power-layer redundancy. The Vnet/IP dual-redundant network infrastructure — including dual network switches and dual cable paths — completes the redundancy architecture. ZYPLC can supply matched NFCP100-S00 pairs along with associated power and communication modules, all covered under the same 12-Month Warranty, to simplify procurement for redundant FCS configurations.

Q3: How does ZYPLC support long-term maintenance and spare parts availability for the NFCP100-S00 in aging CENTUM VP installations?
ZYPLC maintains stock of the NFCP100-S00 and associated CENTUM VP components specifically to support lifecycle extension for plants operating legacy DCS installations where OEM supply has become constrained. Each unit undergoes functional testing prior to shipment and is backed by a 12-Month Warranty, providing assurance for both planned maintenance replacements and emergency breakdown scenarios. For plants managing multi-year maintenance schedules, ZYPLC can discuss consignment stock arrangements and priority supply agreements to ensure that critical spare parts are available when needed, minimizing unplanned downtime risk across the full control system architecture.

—
