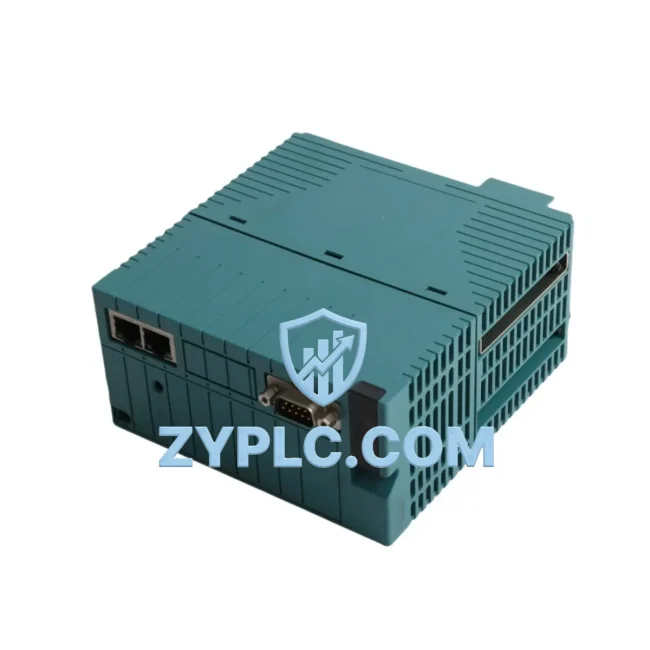

Yokogawa NFCP501-W16 S1 Energy-Saving CPU Module for CENTUM VP

Yokogawa NFCP501-W16 S1 Energy-Saving CPU Module for Optimized CENTUM VP Automation

In modern distributed control systems, the central processing unit is not merely a computational node — it is the energy intelligence hub of the entire automation architecture. The Yokogawa NFCP501-W16 S1 CPU Module, designed for the CENTUM VP platform, plays a decisive role in how efficiently a plant consumes power, schedules control cycles, and responds to process deviations. By placing this module at the core of your DCS cabinet, engineers gain a high-throughput, low-overhead controller that directly reduces unnecessary scan cycles, minimizes idle processing loads, and enables tighter integration with energy monitoring subsystems across the plant floor.

The NFCP501-W16 S1 is engineered to operate within Yokogawa’s field-proven CENTUM VP architecture, a platform widely deployed in oil refining, petrochemical processing, power generation, water treatment, and pharmaceutical manufacturing. Its processing efficiency allows the control system to handle complex regulatory loops — including cascade, feedforward, and ratio control — without the thermal overhead or power spikes associated with legacy CPU modules. This translates directly into measurable reductions in cabinet cooling demand and overall panel energy consumption.

Efficiency Performance Table

Energy-Aware Automation Architecture

The NFCP501-W16 S1 does not operate in isolation. Its energy optimization value is fully realized when it is integrated within a well-designed CENTUM VP control architecture. In a typical FCS node, this CPU module works in tandem with the Yokogawa NFCP502 dual-redundant CPU pair, ensuring that failover events do not cause process upsets or energy-wasting restarts. The redundant configuration eliminates the need for cold-standby systems that consume power without contributing to production.

On the I/O side, the NFCP501-W16 S1 communicates with Yokogawa NFAI141 analog input modules and NFAO141 analog output modules mounted on the same FCS backplane. These modules handle 4–20 mA signals from field transmitters — including flow meters, pressure sensors, and temperature elements — feeding real-time process data into the CPU’s control algorithms. Efficient signal processing at this layer reduces the number of unnecessary control corrections, which in turn reduces actuator wear and energy waste at the field device level.

For motor-driven loads — pumps, compressors, fans, and conveyors — the CENTUM VP system interfaces with Yokogawa WT series power analyzers and third-party variable frequency drives (VFDs) via FOUNDATION Fieldbus or HART protocol. The NFCP501-W16 S1 executes PID and advanced control strategies that continuously adjust drive setpoints based on actual process demand, avoiding the fixed-speed operation that wastes energy during partial-load conditions. Integration with Yokogawa EJA series differential pressure transmitters further enables flow-based energy calculations at the control loop level.

At the network layer, the NFCP501-W16 S1 connects to the plant-wide Vnet/IP control bus, enabling seamless data exchange with Yokogawa CENTUM VP HIS (Human Interface Stations). Operators can monitor real-time energy KPIs — including specific energy consumption per unit of production — directly from the HIS console without requiring additional SCADA middleware. This reduces the software overhead and the associated server power consumption in the control room.

For plants implementing predictive maintenance strategies, the NFCP501-W16 S1 supports integration with Yokogawa PRM (Plant Resource Manager), which collects HART device diagnostics and valve signature data. By detecting early signs of actuator degradation or pump cavitation, the system allows maintenance teams to schedule interventions before failures occur — avoiding the energy-intensive process of emergency restarts and unplanned production losses.

The power supply architecture supporting the NFCP501-W16 S1 typically includes Yokogawa NFPS501 or equivalent FCS power supply modules, which are designed for high efficiency and low heat dissipation. Redundant power supply configurations ensure that a single PSU failure does not interrupt control, eliminating the need for oversized UPS systems that consume standby power continuously.

Power Optimization in Real Production Lines

In a petroleum refinery operating multiple distillation columns, the NFCP501-W16 S1 manages hundreds of regulatory control loops simultaneously. By executing model-based control strategies — including advanced process control (APC) overlays — the CPU module enables the plant to operate closer to optimal energy setpoints. Reflux ratios, reboiler duties, and overhead condenser loads are continuously adjusted based on feed composition and product quality targets, reducing steam and cooling water consumption by measurable margins.

In a water treatment facility, the same CPU module coordinates pump scheduling across multiple lift stations. Rather than running all pumps at full speed, the CENTUM VP system — driven by the NFCP501-W16 S1 — implements demand-based pump sequencing. Pumps are started and stopped based on wet well levels and downstream flow requirements, and VFD-controlled pumps are modulated to match actual demand. This approach typically reduces pump energy consumption by 20–40% compared to fixed-speed operation.

In pharmaceutical batch manufacturing, the NFCP501-W16 S1 supports recipe-driven control with precise temperature and agitation profiles. By executing batch sequences with tight timing and setpoint adherence, the system minimizes the duration of energy-intensive heating and cooling phases, reducing utility consumption per batch without compromising product quality or regulatory compliance.

Across all these applications, the 12-Month Warranty provided with every NFCP501-W16 S1 unit ensures that plants can deploy this module with confidence. Each unit is tested before shipment to verify communication integrity, memory performance, and control loop execution accuracy. Spare units held in inventory are available for immediate deployment, minimizing the risk of extended downtime during unplanned failures.

Energy Optimization FAQ

Q1: How does the NFCP501-W16 S1 contribute to measurable energy savings in a CENTUM VP system?
The NFCP501-W16 S1 enables tighter control loop execution, which reduces process variability and allows the plant to operate closer to optimal energy setpoints. By minimizing over-control and unnecessary actuator movement, the module reduces wear on field devices and lowers the energy consumed by pumps, compressors, and heat exchangers operating under closed-loop control. Integration with VFDs and power analyzers further enables demand-based drive modulation.

Q2: Is the NFCP501-W16 S1 compatible with existing CENTUM VP FCS nodes, and can it replace older CPU modules without a full system upgrade?
Yes. The NFCP501-W16 S1 is designed for direct installation into CENTUM VP FCS node units. It is compatible with the standard CENTUM VP backplane and power supply architecture. In most cases, replacement of an existing CPU module can be performed during a scheduled maintenance window without requiring changes to I/O wiring, network configuration, or control application software. Compatibility should be verified against the specific FCS hardware revision and CENTUM VP software version in use.

Q3: What does the 12-Month Warranty cover, and what is the testing process before shipment?
Every NFCP501-W16 S1 unit supplied by ZYPLC is covered by a 12-Month Warranty against manufacturing defects and functional failures. Prior to shipment, each module undergoes functional testing including power-on verification, communication bus integrity check, and memory diagnostics. Units that do not pass testing are not shipped. The warranty covers repair or replacement of defective units within the warranty period, subject to standard terms and conditions.

Q4: What is the recommended spare parts strategy for NFCP501-W16 S1 in a critical process plant?
For plants where the CENTUM VP system controls critical process units — such as reactors, distillation columns, or compressor trains — maintaining at least one spare NFCP501-W16 S1 CPU module on-site is strongly recommended. CPU module failures, while infrequent, can result in FCS node shutdown and process interruption. A tested, warranted spare held in the instrument store allows maintenance teams to restore control within minutes rather than waiting for emergency procurement. ZYPLC maintains stock of this module and can support rapid delivery for urgent requirements.
