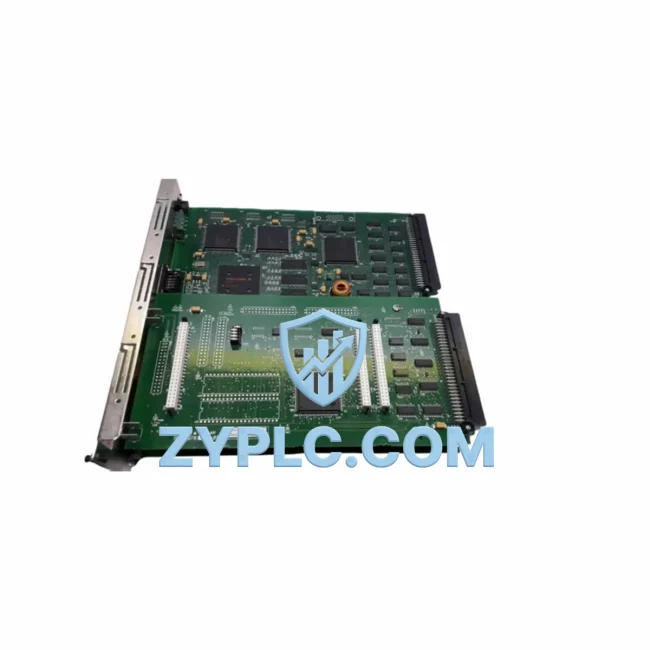

Yokogawa S9943AL Energy-Saving Circuit Board for Optimized Centum Automation
In modern industrial facilities where energy costs represent a significant share of operating expenditure, every component in the control architecture must justify its role not only in terms of signal processing but also in terms of power efficiency and system reliability. The Yokogawa S9943AL is a high-efficiency circuit board module designed for integration within the Centum VP distributed control system (DCS), one of the most widely deployed process automation platforms in the oil & gas, chemical, power generation, and pharmaceutical industries. By maintaining precise, low-latency communication between field instruments and the central controller, the S9943AL directly contributes to reducing unnecessary actuator cycling, minimizing energy waste from over-control, and improving overall equipment effectiveness (OEE) across the production line.
Efficiency Performance Table
| Parameter |
Specification / Value |
| SKU |
S9943AL |
| Brand |
Yokogawa |
| Series |
Centum VP |
| Product Type |
Circuit Board Module |
| Application Environment |
DCS Control Cabinets, Process Automation Panels |
| Compatible Systems |
Yokogawa Centum VP, Centum CS 3000 |
| Operating Temperature |
0°C to 60°C |
| Power Consumption |
Low-power design optimized for 24VDC bus architecture |
| Running Efficiency |
Supports high-cycle I/O scanning with minimal CPU overhead |
| Energy Saving Value |
Reduces actuator over-cycling; supports predictive maintenance loops |
| Origin |
Japan |
| Warranty |
12-Month Warranty — Tested & Verified Before Shipment |
Energy-Aware Automation Architecture
The S9943AL does not operate in isolation. Its value is fully realized when it functions as part of a tightly integrated Centum VP control architecture. In a typical energy-optimized plant layout, the S9943AL board interfaces with analog input modules such as the AAI143-H00 and AAI543-H00, which collect 4–20mA signals from flow transmitters, pressure sensors, and temperature elements distributed across the process. These signals feed into the field control station managed by the CP451-10 or CP345 controller cards, where the S9943AL supports the internal bus communication that keeps scan cycles fast and deterministic.
On the output side, the processed control signals are routed through digital output modules like the ADV151-P00 and ADV551-P00, which drive solenoid valves, motor starters, and variable frequency drives (VFDs). When paired with a properly tuned VFD on pump or fan motors, the control loop enabled by the S9943AL can reduce motor energy consumption by 20–40% compared to fixed-speed operation, simply by eliminating unnecessary full-load starts and maintaining setpoint with finer resolution.
Power quality and energy monitoring are handled upstream by modules such as the AMM12C multi-point power monitor and the PW482-10 and PW302 power supply units, which ensure stable 24VDC distribution to all I/O cards including the S9943AL. Stable power delivery is critical: voltage fluctuations that exceed the module’s tolerance can cause spurious outputs, leading to unnecessary actuator movement and wasted energy. The AIP827 isolated power supply module further conditions the bus voltage in high-noise environments such as motor control centers (MCCs) or near large transformer banks.
For system-level visibility, the Centum VP HMI workstation aggregates all field data collected through the S9943AL’s communication path, enabling operators to monitor real-time energy consumption trends, identify inefficient control loops, and schedule maintenance windows before equipment degradation leads to unplanned downtime. This closed-loop architecture — from field sensing through the S9943AL to the HMI dashboard — is the foundation of energy-aware industrial automation.
Power Optimization in Real Production Lines
Consider a continuous chemical processing plant running three parallel reactor trains, each with its own set of pumps, agitators, heat exchangers, and control valves. Without a reliable, low-latency DCS backbone, the control system may introduce dead time into the feedback loop, causing the PID controllers to oscillate and drive actuators harder than necessary. This translates directly into excess electrical consumption on motor-driven equipment and accelerated mechanical wear.
The Yokogawa S9943AL, by maintaining the integrity of the internal bus within the field control station, ensures that scan times remain consistent and that control outputs are updated at the correct frequency. In practice, this means pump VFDs receive smooth, incremental speed commands rather than abrupt step changes — reducing both energy peaks and mechanical stress. On a single 75kW pump running 8,000 hours per year, even a 5% reduction in average load translates to approximately 30,000 kWh saved annually.
Beyond energy savings, the S9943AL supports predictive maintenance strategies by enabling high-frequency data logging of process variables. Subtle changes in flow resistance, valve response time, or motor current draw — all captured through the Centum VP I/O network — can be trended over time to identify bearing wear, fouling, or valve seat degradation before they cause a process upset. Preventing a single unplanned shutdown on a mid-scale production line can save tens of thousands of dollars in lost output and emergency maintenance costs.
All units supplied by ZYPLC undergo full functional testing prior to shipment, including bus communication verification, I/O channel integrity checks, and power consumption measurement. Stock is maintained for immediate dispatch, with typical lead times of 1–3 business days for in-stock items. Each S9943AL module is covered by a 12-month warranty, giving procurement and maintenance teams confidence in both the product quality and the supply chain reliability.
Energy Optimization FAQ
Q1: How does the S9943AL contribute to energy savings in a Centum VP system?
The S9943AL maintains fast, stable internal bus communication within the field control station, which reduces control loop dead time. Tighter control loops mean actuators and drives operate closer to their optimal setpoints, reducing over-cycling and the associated energy waste. When integrated with VFD-driven motors and properly tuned PID loops, the overall system can achieve measurable reductions in electrical consumption.
Q2: Is the S9943AL compatible with both Centum VP and Centum CS 3000 systems?
The S9943AL is primarily designed for the Centum VP platform. Compatibility with Centum CS 3000 depends on the specific hardware revision and firmware version of the target system. ZYPLC recommends providing your system’s hardware configuration details so our technical team can confirm compatibility before purchase.
Q3: What is the replacement and testing process for the S9943AL?
Each S9943AL supplied by ZYPLC is tested prior to shipment using Yokogawa-compatible test rigs that verify bus communication, channel integrity, and power draw. Replacement is a hot-swap procedure in most Centum VP configurations, minimizing process interruption. Our team can provide installation guidance and post-installation support as needed.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and any issues identified during the post-installation commissioning period. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed directly through ZYPLC with a typical turnaround of 5–10 business days.
