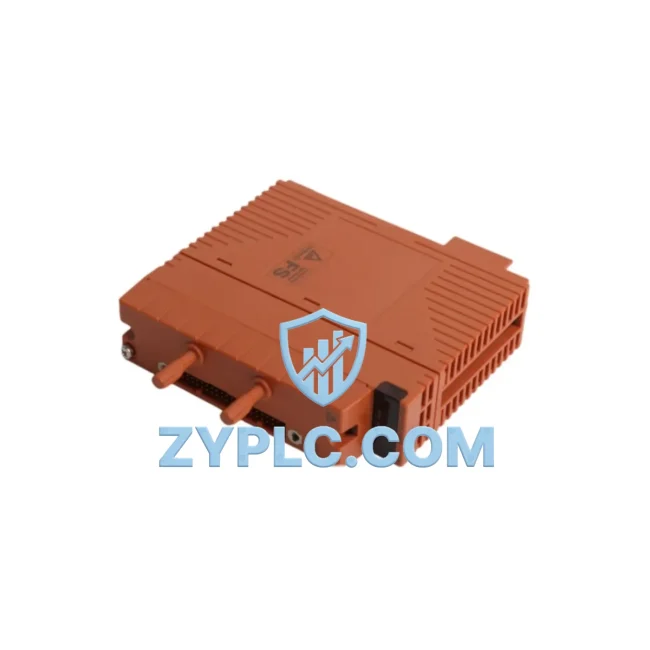

Yokogawa SAI143-H63 S3 Energy-Saving Signal Conditioner for Optimized CENTUM CS3000 Automation
The Yokogawa SAI143-H63 S3 is a high-performance analog input signal conditioner module engineered for the CENTUM CS3000 Distributed Control System (DCS). Designed to meet the rigorous demands of continuous process industries — including petrochemical, power generation, pulp and paper, and pharmaceutical manufacturing — this module delivers precise signal acquisition with minimal power draw, directly contributing to measurable reductions in plant-wide energy consumption.
In modern industrial facilities, signal conditioning sits at the very foundation of energy-aware automation. Every milliamp of current loop data that passes through the SAI143-H63 S3 feeds the CENTUM CS3000 controller with the accurate process values needed to make real-time control decisions. When signal integrity is compromised — through noise, drift, or module inefficiency — controllers compensate with wider control bands, leading to over-actuation of final control elements such as control valves and variable-speed drives. The SAI143-H63 S3 eliminates this problem at the source, providing clean, stable analog inputs that allow the DCS to operate at its designed efficiency envelope.
Efficiency Performance Table
| Parameter |
Specification / Value |
| Model / SKU |
SAI143-H63 S3 |
| Brand |
Yokogawa |
| Compatible System |
CENTUM CS3000 DCS |
| Module Type |
Analog Input Signal Conditioner |
| Input Channels |
16-channel analog input (4–20 mA / 1–5 V) |
| Operating Voltage |
24 VDC (bus-powered via I/O nest) |
| Power Consumption |
Low-power design; optimized for high-density I/O nests |
| Signal Accuracy |
±0.1% of full scale (typical) |
| Application Environment |
Continuous process plants, energy utilities, chemical facilities |
| Energy Optimization Value |
Reduces control loop hunting; supports precise motor and valve actuation |
| Origin |
Japan |
| Warranty |
12-Month Warranty |
| Stock Status |
In Stock — Ships after outgoing quality test |
Energy-Aware Automation Architecture
The SAI143-H63 S3 does not operate in isolation — it is a critical node within a broader energy-aware automation architecture. In a typical CENTUM CS3000 installation, this module resides in an RIO (Remote I/O) nest or a local I/O nest connected to the ACF11 Field Control Station or AFV10 Field Control Unit. The field control station processes the conditioned analog signals and executes PID control algorithms that govern downstream actuators.
On the drive side, the control outputs from the CS3000 controller are routed to Yaskawa A1000 or GA700 series variable frequency drives (VFDs), which regulate motor speed in response to process demand. When the SAI143-H63 S3 delivers accurate flow, pressure, or temperature readings, the VFD receives precise speed references — eliminating the energy waste associated with constant full-speed motor operation. In pump and fan applications, even a 10% reduction in motor speed translates to approximately 27% less energy consumption, following the affinity laws of fluid dynamics.
For power quality monitoring, the CS3000 system integrates with Yokogawa WT series power analyzers and CW500 power quality analyzers, which capture real-time energy consumption data at the equipment level. The analog outputs from these instruments are fed back into the DCS through additional SAI143-H63 S3 modules, creating a closed-loop energy monitoring architecture. This allows plant engineers to correlate process conditions with energy draw and identify inefficiencies in real time.
On the communication layer, the CENTUM CS3000 supports FOUNDATION Fieldbus H1 and HART protocol for field device integration. The SAI143-H63 S3 supports HART pass-through, enabling asset management software such as Yokogawa PRM (Plant Resource Manager) to perform remote diagnostics on connected field instruments — including transmitters, positioners, and analyzers — without interrupting the process. This capability is central to predictive maintenance strategies that reduce unplanned downtime and the associated energy spikes caused by emergency restarts.
The I/O architecture is further supported by SAI143 series companion modules and AAI141 analog input modules for expanded channel capacity, as well as AO810 analog output modules for closed-loop control of final elements. Together, these components form a cohesive, energy-optimized I/O subsystem within the CENTUM CS3000 platform.
Power Optimization in Real Production Lines
In a refinery or chemical plant running continuous distillation columns, the accuracy of temperature and pressure measurements directly determines the efficiency of heat exchanger operation and reboiler duty. When the SAI143-H63 S3 provides stable, drift-free analog inputs from thermocouple transmitters and pressure transducers, the CENTUM CS3000 controller can maintain tighter setpoint adherence — reducing steam consumption in reboilers by minimizing overshoot and undershoot cycles.
In compressor control applications, the module’s high-resolution signal conditioning enables the DCS to implement anti-surge control with greater precision. Accurate suction and discharge pressure readings allow the controller to operate the compressor closer to its surge limit without risk, reducing recycle flow and the associated energy waste. Plants that have upgraded from aging I/O modules to current-generation SAI143-H63 S3 units have reported measurable improvements in compressor efficiency and a reduction in recycle valve cycling frequency.
For rotating equipment health monitoring, the SAI143-H63 S3 supports integration with vibration transmitters and bearing temperature sensors. These signals, when processed through the CENTUM CS3000 and correlated with the Yokogawa Exaquantum PIMS (Plant Information Management System), enable condition-based maintenance scheduling. Rather than performing time-based maintenance that may be premature or overdue, maintenance teams can intervene precisely when equipment condition warrants it — reducing both maintenance labor costs and the energy overhead of running degraded equipment.
Production line throughput optimization also benefits directly from accurate signal conditioning. In batch manufacturing environments, the SAI143-H63 S3 ensures that recipe-driven setpoints are executed with high fidelity, reducing batch cycle time variability. Consistent cycle times improve Overall Equipment Effectiveness (OEE) and reduce the energy cost per unit of production — a key metric in ISO 50001 energy management programs.
All units supplied by ZYPLC undergo a comprehensive outgoing quality test (OQT) prior to shipment, verifying channel accuracy, isolation integrity, and communication handshake with the CENTUM CS3000 platform. This testing protocol ensures that replacement modules perform to specification from the first scan cycle, eliminating the commissioning delays and energy inefficiencies associated with faulty or misconfigured I/O hardware.
Energy Optimization FAQ
Q1: How does the SAI143-H63 S3 contribute to energy savings in a CENTUM CS3000 system?
By providing high-accuracy, low-noise analog input conditioning, the SAI143-H63 S3 enables the DCS controller to execute tighter control loops. Tighter control reduces actuator hunting, minimizes over-actuation of control valves and VFDs, and lowers the energy consumed by motors, compressors, and heating systems operating under closed-loop control.
Q2: Is the SAI143-H63 S3 a direct drop-in replacement for existing CENTUM CS3000 I/O modules?
Yes. The SAI143-H63 S3 is designed as a form-fit-function replacement for compatible SAI143 series slots within the CENTUM CS3000 I/O nest architecture. No hardware modification or reconfiguration of the field control station is required for standard replacement. ZYPLC recommends verifying the revision suffix (S3) compatibility with your specific system build before installation.
Q3: What is the testing process before shipment, and how does it ensure reliability?
Every SAI143-H63 S3 unit supplied by ZYPLC undergoes a multi-point outgoing quality test that includes channel-by-channel signal accuracy verification, power consumption measurement, isolation resistance testing, and functional communication testing with CENTUM CS3000 hardware. Only units that pass all test criteria are released for shipment. This process is documented and traceable.
Q4: What warranty coverage is provided, and what does it include?
ZYPLC provides a 12-month warranty on all SAI143-H63 S3 units from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, ZYPLC will provide a replacement unit or repair service. Warranty claims are supported by the outgoing test documentation issued at the time of shipment.
