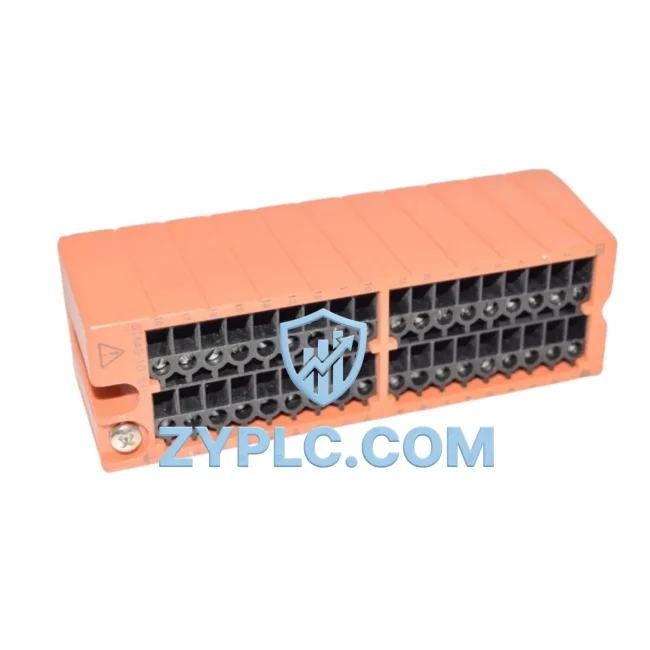

Yokogawa STA4S-10 S1 System-Ready Terminal Block for CENTUM VP Architecture

Yokogawa STA4S-10 S1 System-Ready Terminal Block for CENTUM VP Control Architecture

The Yokogawa STA4S-10 S1 is a precision-engineered terminal block module designed to serve as a critical signal interface layer within the CENTUM VP Distributed Control System (DCS) architecture. Rather than functioning as a standalone component, the STA4S-10 S1 is conceived as an integral node in a multi-layer automation hierarchy — bridging field instrumentation signals to the I/O subsystem with the reliability and signal integrity that continuous process industries demand. Its role in the control architecture spans the physical wiring layer, the I/O marshalling layer, and the signal conditioning layer, making it indispensable for engineers designing high-density, maintainable, and expandable control cabinets.

In a fully realized CENTUM VP system, the STA4S-10 S1 operates in close coordination with field I/O modules such as the AAI143-S and AAI543-H analog input/output cards, which handle signal conversion and transmission to the CENTUM VP controller nodes. The terminal block provides the physical termination point for field wiring, ensuring that signal paths from transmitters, actuators, and sensors are cleanly routed into the I/O subsystem without ground loops, cross-talk, or impedance mismatches. This Contextual Integration approach — where each component is selected and positioned based on its role in the broader system — is the foundation of reliable DCS engineering.

Architecture Specification Table

Coordinated Control System Design

The STA4S-10 S1 achieves its full value when integrated within a coordinated CENTUM VP system architecture. At the controller layer, the CENTUM VP FCS (Field Control Station) — such as the AFV10D or AFV30D — serves as the computational core, executing control logic and communicating with I/O subsystems via the ESB (Extended Serial Backplane) bus. The terminal block connects field wiring to I/O modules mounted on the node unit, ensuring that every signal path is properly terminated and isolated.

At the I/O layer, analog input cards such as the AAI143-S (16-channel 4–20 mA input) and analog output cards such as the AAO145-S interface directly with the marshalling panel where the STA4S-10 S1 resides. For discrete signals, digital input modules like the ADV151-P and digital output modules like the ADV551-P rely on similarly structured terminal blocks to maintain wiring discipline across hundreds of field loops. The STA4S-10 S1 ensures that each of these signal paths is cleanly terminated, labeled, and accessible for maintenance without disturbing adjacent circuits.

At the network layer, the CENTUM VP system communicates over Vnet/IP — Yokogawa’s proprietary high-speed control network — connecting FCS nodes, HMI stations (such as the HIS, Human Interface Station), and engineering workstations. While the STA4S-10 S1 operates at the physical wiring layer, its correct installation directly supports the data integrity of signals flowing up through the I/O cards to the Vnet/IP network. Any wiring fault at the terminal block level propagates as a signal anomaly at the controller level, underscoring the importance of using OEM-specified termination hardware.

At the power layer, the CENTUM VP system relies on redundant power supply modules — such as the PW481 or PW482 — to maintain continuous operation. Terminal blocks in the marshalling panel must be rated and configured to handle the power distribution requirements of loop-powered field devices, and the STA4S-10 S1 is designed to meet these requirements within the CENTUM VP cabinet environment. For redundant architectures, dual-redundant I/O modules and power feeds are routed through the marshalling panel, and the terminal block layout must support this redundancy without creating single points of failure.

At the HMI and supervisory layer, operators interact with the process through CENTUM VP HIS workstations, which display real-time data sourced from field instruments via the I/O subsystem. The accuracy and reliability of this data depends on the integrity of every connection in the signal chain — from the field transmitter, through the field cable, across the STA4S-10 S1 terminal block, into the I/O card, and up to the FCS controller. A properly installed and maintained terminal block is therefore not a peripheral concern but a foundational element of HMI data quality.

Application in Layered Automation Systems

The STA4S-10 S1 finds application across a wide range of process industries where CENTUM VP is the DCS platform of choice. In oil refining and petrochemical plants, the terminal block supports the dense I/O marshalling required for reactor control, distillation column management, and heat exchanger regulation — environments where signal integrity is critical for both process efficiency and safety. In power generation facilities, including thermal, hydro, and combined-cycle plants, the STA4S-10 S1 is used in turbine control panels and boiler management systems, where the CENTUM VP FCS must receive clean, noise-free signals from hundreds of temperature, pressure, and flow transmitters.

In water and wastewater treatment plants, the terminal block supports the I/O marshalling for pump control, chemical dosing, and filtration systems, where the CENTUM VP system must manage both analog process signals and discrete valve and motor control outputs. In pharmaceutical and fine chemical manufacturing, where GMP (Good Manufacturing Practice) compliance requires full traceability of control system components, the STA4S-10 S1’s OEM provenance and 12-Month Warranty provide the documentation and quality assurance that validation engineers require. In pulp and paper, mining, and metallurgical processing, the terminal block’s robust construction and compatibility with CENTUM VP I/O modules make it suitable for high-vibration, high-humidity cabinet environments.

For LNG terminals and offshore platforms, where the CENTUM VP system is often deployed in safety-instrumented configurations alongside Yokogawa’s ProSafe-RS SIS, the STA4S-10 S1 supports the marshalling of both standard control signals and safety-critical signals, with clear physical separation maintained in the cabinet layout. In all these applications, the terminal block’s role is to ensure that the control system’s I/O subsystem receives the clean, correctly terminated signals it needs to maintain process stability, regulatory compliance, and operational continuity.

Architecture Engineering FAQ

Q1: Is the STA4S-10 S1 compatible with all CENTUM VP I/O node configurations, including redundant I/O setups?
A: The STA4S-10 S1 is designed for use within the Yokogawa CENTUM VP system architecture and is compatible with standard I/O node configurations. For redundant I/O architectures — where dual I/O modules share a common field wiring termination — the marshalling panel layout must be designed to support dual termination paths. We recommend consulting the CENTUM VP system engineering guide and your project’s I/O list to confirm the correct terminal block model and wiring configuration for your specific redundancy scheme. Our technical team can assist with compatibility verification prior to order.

Q2: What is the recommended installation and commissioning procedure for the STA4S-10 S1 in a live CENTUM VP cabinet?
A: Installation should follow Yokogawa’s standard marshalling panel wiring practices, including proper cable segregation (signal vs. power), correct torque on screw terminals, and loop labeling per the project’s instrument index. During commissioning, each field loop should be verified using the CENTUM VP engineering workstation’s I/O check function, which allows technicians to force I/O values and verify signal continuity from the field device through the terminal block to the FCS controller. The 12-Month Warranty covers manufacturing defects; installation-related issues should be addressed during the commissioning phase with qualified DCS engineers.

Q3: How does ZYPLC’s 12-Month Warranty apply to the STA4S-10 S1, and what support is available for long-term maintenance?
A: All STA4S-10 S1 units supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. For long-term maintenance, ZYPLC maintains stock of CENTUM VP-compatible terminal blocks and I/O components to support planned maintenance shutdowns, emergency replacements, and system expansions. Our technical support team is available to assist with cross-referencing, compatibility verification, and sourcing of obsolete or long-lead Yokogawa components. Contact us at +86 19859288691 or plc.sales@zyplc.com for maintenance planning support.
