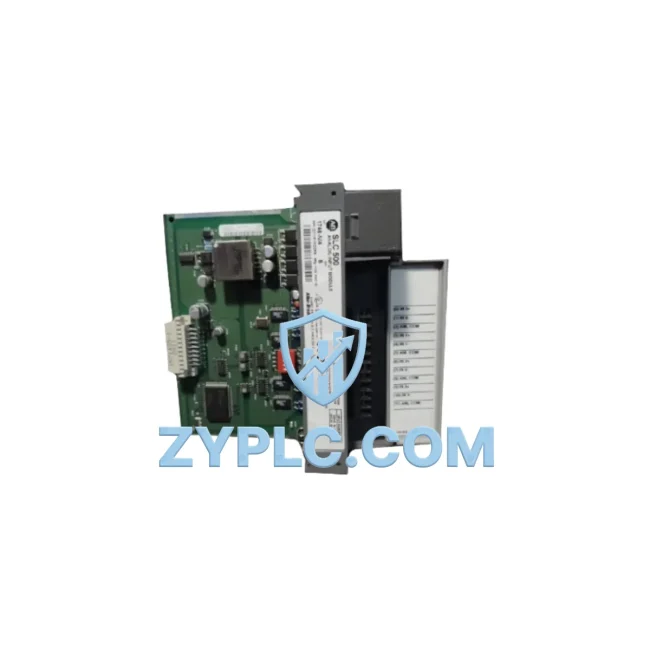

ZYPLC 1746-NI4/A Energy-Saving Analog Input for SLC 500

ZYPLC 1746-NI4/A Energy-Saving Analog Input Module for Optimized SLC 500 Automation

The Allen-Bradley 1746-NI4/A is a four-channel analog input module designed for the SLC 500 modular chassis platform. In energy-intensive manufacturing environments, the ability to accurately capture real-time process variables — voltage, current, temperature, and pressure — is the foundation of any effective energy reduction strategy. The 1746-NI4/A delivers that precision, enabling control engineers to close the loop between field-level energy consumption and supervisory decision-making. Whether integrated into a new line or retrofitted into an existing SLC 500 rack, this module provides the signal fidelity needed to drive measurable efficiency gains across the production floor.

At ZYPLC, every 1746-NI4/A unit is sourced from verified supply channels, subjected to full functional testing prior to shipment, and backed by a 12-month warranty. Stock is maintained on-hand for rapid dispatch, minimizing procurement lead times for maintenance teams and project engineers alike.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 1746-NI4/A does not operate in isolation — its value is realized within a broader energy-aware control architecture. In a typical SLC 500 installation, the module occupies a slot in a 1746-A4, 1746-A7, or 1746-A13 chassis alongside the processor and I/O modules. The SLC 5/04 or SLC 5/05 processor reads the analog input data every scan cycle, making it available for ladder logic routines that govern energy-sensitive decisions such as variable-speed drive setpoint adjustment, load shedding, and alarm thresholding.

On the drive side, the 1746-NI4/A is commonly paired with PowerFlex 40 or PowerFlex 400 variable frequency drives. A 4–20 mA feedback signal from a current transducer wired to the NI4 channel allows the SLC processor to monitor actual motor load in real time. When load drops below a defined threshold — indicating idle or lightly loaded conditions — the processor can command the drive to reduce output frequency, directly cutting motor energy consumption without operator intervention.

For facilities running energy metering at the panel level, the 1746-NI4/A integrates naturally with power monitoring devices such as the PowerMonitor 500 or PowerMonitor 1000. Voltage and current signals from these meters feed directly into the NI4 channels, giving the SLC 500 controller visibility into instantaneous kW demand, power factor, and harmonic distortion — data that is essential for demand charge management and utility compliance reporting.

On the output side, the 1746-NI4/A works in conjunction with 1746-NO4I or 1746-NO4V analog output modules to form complete closed-loop control strategies. A temperature signal captured on an NI4 channel, for example, can drive a proportional control algorithm whose output is written to an NO4 channel connected to a modulating valve or heating element — eliminating the energy waste associated with on/off bang-bang control.

Digital I/O modules such as the 1746-IB16 and 1746-OB16 complement the analog layer by handling discrete interlocks, motor starter commands, and status feedback. Together, the analog and digital I/O modules give the SLC 500 system a complete picture of machine state, enabling the processor to make energy-optimal decisions at every step of the production cycle.

For applications requiring communication with plant-level SCADA or MES systems, the SLC 5/05 processor’s built-in Ethernet/IP port — or an added 1747-AENTR EtherNet/IP adapter — allows energy data collected by the 1746-NI4/A to be forwarded upstream to FactoryTalk View SE or third-party historian platforms. This closes the loop between field-level measurement and enterprise energy management, supporting ISO 50001 compliance initiatives and continuous improvement programs.

In multi-axis servo applications, the 1746-NI4/A can capture torque feedback signals from Ultra 3000 or Kinetix 300 servo drives, providing the SLC processor with load data that informs predictive maintenance scheduling. Elevated torque readings over time indicate mechanical wear — catching these trends early prevents unplanned downtime and the associated energy spikes caused by emergency restarts and reheating of process equipment.

Power Optimization in Real Production Lines

Consider a mid-size injection molding facility running eight SLC 500-controlled presses. Each press draws between 15 and 45 kW depending on cycle phase. Without analog feedback, the control system has no visibility into actual power draw — it simply runs the hydraulic pump motor at full speed regardless of demand. By installing a 1746-NI4/A in each SLC rack and wiring current transducers to the pump motor circuits, the engineering team gains real-time load data. Ladder logic routines use this data to command the PowerFlex 40 drives to reduce pump speed during the cooling and ejection phases, where hydraulic demand is minimal. The result is a measurable reduction in per-cycle energy consumption — typically 15–25% on hydraulic systems — without any change to cycle time or part quality.

In conveyor and material handling applications, the 1746-NI4/A enables load-based speed control. Rather than running conveyors at fixed speed regardless of product volume, the SLC 500 reads belt load via strain gauge or current feedback on an NI4 channel and adjusts the PowerFlex 400 drive setpoint accordingly. Lightly loaded sections run slower, reducing motor wear and energy draw. Fully loaded sections maintain throughput. The net effect is a flatter energy demand curve, lower peak demand charges, and extended motor and drive service life.

Predictive maintenance is another area where the 1746-NI4/A delivers operational value. By trending analog signals over time — motor current, vibration amplitude from accelerometers, bearing temperature from RTDs — maintenance teams can identify degradation patterns weeks before failure. Scheduling maintenance during planned downtime rather than reacting to breakdowns eliminates the energy and productivity losses associated with emergency stops, cold restarts, and scrap production during unstable startup conditions.

All 1746-NI4/A units supplied by ZYPLC are tested for channel accuracy, input impedance, and communication integrity with the SLC backplane before shipment. Test records are retained and available upon request. With stock on hand and same-week shipping capability, ZYPLC supports both planned project deployments and urgent replacement scenarios.

Energy Optimization FAQ

Q1: How does the 1746-NI4/A contribute to measurable energy savings?
The module provides the analog signal acquisition layer that makes closed-loop energy control possible. By feeding real-time current, voltage, temperature, or pressure data into the SLC 500 processor, it enables control strategies — such as variable-speed drive modulation and load-based setpoint adjustment — that directly reduce energy consumption during low-demand periods. Without accurate analog input, the controller cannot distinguish between full-load and idle conditions, and energy waste is inevitable.

Q2: Is the 1746-NI4/A compatible with my existing SLC 500 system?
The 1746-NI4/A is compatible with all SLC 500 modular chassis (1746-A4, A7, A10, A13) and works with SLC 5/02, 5/03, 5/04, and 5/05 processors. It is configured via RSLogix 500 software. No hardware modifications to the chassis or backplane are required. If you are unsure about compatibility with a specific rack configuration, contact ZYPLC with your chassis and processor part numbers for confirmation.

Q3: Can the 1746-NI4/A replace a failed module without reprogramming?
In most cases, yes. The 1746-NI4/A is a direct slot-for-slot replacement for existing NI4 modules in the same chassis. Channel configuration is stored in the SLC processor program, so as long as the replacement module is the same catalog number and revision, the system will resume normal operation after power cycle without requiring program changes. ZYPLC recommends verifying the revision level of the original module before ordering to ensure full compatibility.

Q4: What does the 12-month warranty cover, and what is the testing process?
Every 1746-NI4/A supplied by ZYPLC undergoes functional testing that verifies analog input accuracy across all four channels, backplane communication integrity, and correct response to all supported input signal types (voltage and current). The 12-month warranty covers defects in materials and workmanship under normal operating conditions. In the event of a warranty claim, ZYPLC provides replacement or repair with priority handling to minimize production impact. Test documentation is available upon request for quality assurance purposes.
