ZYPLC 2198-D020-ERS3 Energy-Saving Servo Drive for Kinetix 5700

ZYPLC 2198-D020-ERS3 Energy-Saving Servo Drive for Kinetix 5700 Automation

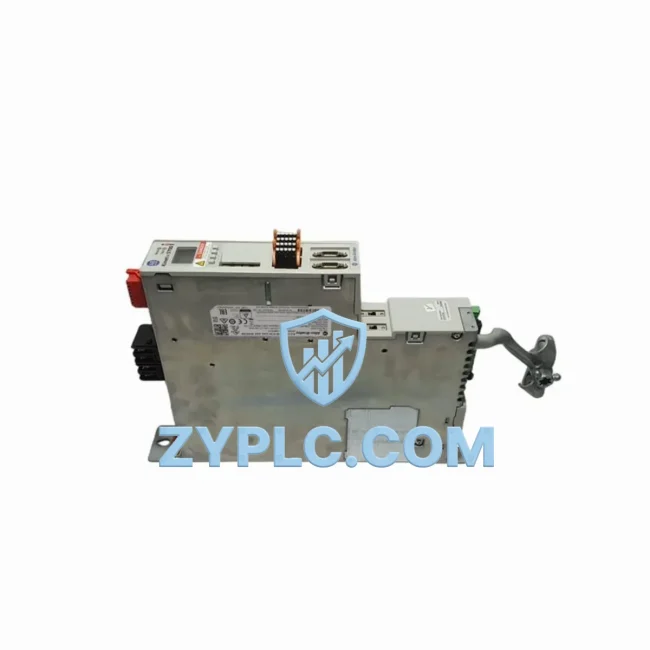

The Allen-Bradley 2198-D020-ERS3 is a high-performance dual axis inverter module within the Kinetix 5700 servo drive family, engineered to deliver precision motion control while significantly reducing energy consumption across demanding industrial production environments. Designed for integration into multi-axis servo systems, this inverter module enables factories to maximize equipment utilization, minimize idle-state power draw, and achieve tighter synchronization across production line cycles — all without sacrificing throughput or reliability.

At its core, the 2198-D020-ERS3 operates as a shared DC bus inverter, allowing multiple axes to exchange regenerative energy rather than dissipating it as heat. This architecture directly reduces net energy consumption per production cycle, making it a cornerstone component for plants pursuing measurable energy efficiency improvements in servo-driven machinery such as CNC machining centers, packaging lines, press feeders, and robotic assembly cells.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 2198-D020-ERS3 is designed to operate as part of a tightly integrated, energy-aware automation architecture. In a typical Kinetix 5700 system, the inverter module connects to a 2198-P070 DC Bus Power Supply, which conditions and distributes DC power across all inverter axes on the shared bus. This topology means that when one axis decelerates and generates regenerative energy, that energy is immediately available to accelerate another axis — a closed-loop energy exchange that reduces the total power drawn from the grid during high-cycle-rate operations.

Motion coordination is handled through an Allen-Bradley ControlLogix L8x controller running Logix 5000 firmware with Integrated Motion on EtherNet/IP. The controller issues real-time position, velocity, and torque commands to the 2198-D020-ERS3 via the EtherNet/IP network, enabling sub-millisecond loop closure and eliminating the energy waste associated with overshooting or hunting in poorly tuned servo loops. Paired with a 2198-S086-ERS3 single axis inverter for auxiliary axes, the system can manage complex multi-axis profiles with minimal energy overhead.

On the feedback side, the 2198-D020-ERS3 supports high-resolution encoder feedback from VPL-series and VPC-series servo motors, providing accurate velocity and position data that the drive uses to optimize torque delivery. Efficient torque management means the motor draws only the current it needs — no more — which directly translates to lower energy consumption per machine cycle. For applications requiring even finer energy monitoring, the system can be supplemented with a PowerMonitor 5000 unit installed at the panel level, providing real-time power factor, harmonic distortion, and energy consumption data that feeds into the plant’s energy management dashboard.

I/O integration is handled through 1734 POINT I/O modules connected via EtherNet/IP, enabling the controller to respond to machine state changes — such as a guard door opening or a conveyor jam — by immediately commanding the servo axes to a safe, low-power hold state rather than continuing to draw full current. This event-driven power management approach reduces unnecessary energy consumption during unplanned stoppages. For operator interaction and energy monitoring visualization, a PanelView Plus 7 HMI provides real-time display of drive status, axis load, and energy consumption trends, allowing line operators to identify inefficient operating patterns before they become costly.

Where legacy communication infrastructure exists, the 2198-D020-ERS3 system can be bridged to DeviceNet or ControlNet networks via gateway modules, ensuring that energy optimization upgrades can be implemented without requiring a complete network overhaul. The result is a scalable, protocol-flexible servo architecture that delivers measurable energy savings from day one of commissioning.

Power Optimization in Real Production Lines

In high-throughput manufacturing environments, the 2198-D020-ERS3 delivers energy optimization benefits that compound across shifts and production campaigns. Consider a packaging line running 24 hours a day with frequent acceleration and deceleration cycles: without a shared DC bus architecture, each deceleration event dissipates kinetic energy as heat through braking resistors. With the Kinetix 5700 shared bus topology, that same energy is captured and redistributed to the next acceleration event, reducing peak demand charges and lowering the facility’s overall energy bill.

The drive’s integrated auto-tuning capability reduces commissioning time and ensures that servo loops are optimized for the actual mechanical load — eliminating the energy waste caused by over-tuned or under-tuned drives that hunt, oscillate, or apply excessive torque. Once tuned, the 2198-D020-ERS3 maintains consistent cycle times with minimal deviation, which directly improves production line takt time and reduces the energy cost per unit produced.

Predictive maintenance is another area where the 2198-D020-ERS3 contributes to energy efficiency. The drive continuously monitors motor current, voltage, and thermal conditions, logging anomalies that may indicate bearing wear, coupling misalignment, or load imbalance. Early detection of these conditions allows maintenance teams to schedule corrective action during planned downtime rather than responding to unplanned failures — which typically consume significantly more energy due to emergency restart cycles, scrap production, and extended idle periods while repairs are completed.

From a supply chain perspective, ZYPLC maintains ready stock of the 2198-D020-ERS3 and compatible Kinetix 5700 components, ensuring that replacement units can be dispatched rapidly to minimize production downtime. Every unit shipped by ZYPLC undergoes a comprehensive outgoing functional test covering power-up, communication handshake, and basic motion verification before dispatch, backed by a 12-Month Warranty from the date of shipment.

Energy Optimization FAQ

Q1: How much energy can the 2198-D020-ERS3 save compared to a conventional servo drive without a shared DC bus?
In multi-axis applications with frequent acceleration/deceleration cycles, the shared DC bus architecture of the Kinetix 5700 system can reduce net energy consumption by 15–30% compared to standalone drives with braking resistors, depending on the duty cycle and load profile. Actual savings vary by application and should be validated with a site energy audit.

Q2: Is the 2198-D020-ERS3 compatible with existing ControlLogix and CompactLogix systems?
Yes. The 2198-D020-ERS3 communicates via EtherNet/IP using Integrated Motion on EtherNet/IP (IMC), which is natively supported by ControlLogix L7x/L8x and CompactLogix L3x controllers running Logix 5000 v20 or later. No additional communication modules are required for EtherNet/IP-based systems.

Q3: Can the 2198-D020-ERS3 replace an older Kinetix 6500 or Kinetix 6000 drive in an existing system?
Direct drop-in replacement is not supported due to differences in bus architecture and connector pinout. However, the 2198-D020-ERS3 can be integrated into a system alongside legacy drives via the ControlLogix controller, and ZYPLC’s technical team can advise on migration strategies that minimize rewiring and reprogramming effort while maximizing energy efficiency gains.

Q4: What does the 12-Month Warranty cover, and what is the testing process before shipment?
The 12-Month Warranty covers defects in materials and workmanship under normal operating conditions from the date of shipment. Prior to dispatch, every 2198-D020-ERS3 unit undergoes a full outgoing functional test including power-on self-test, EtherNet/IP communication verification, and axis enable/disable cycling. Test records are available upon request. For warranty claims or technical support, contact ZYPLC directly.
