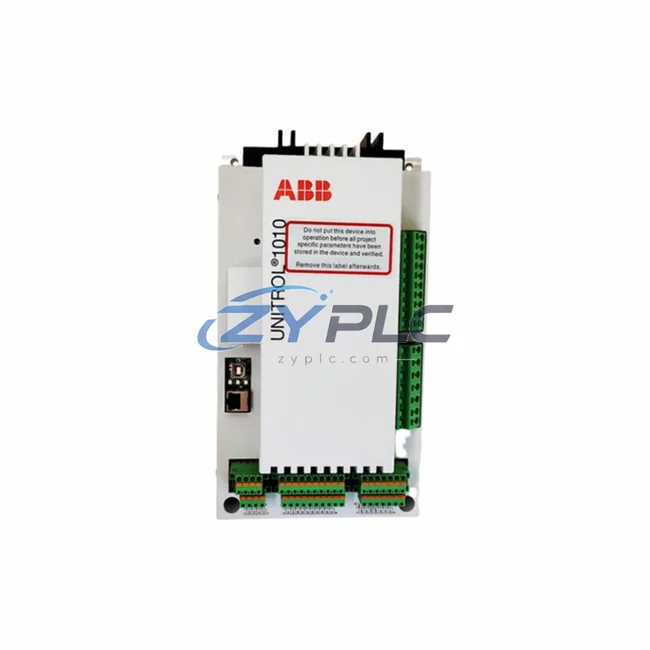

ABB 3BHE035301R0001 Excitation Module for Unitrol 1010

ABB 3BHE035301R0001 Excitation Module for Unitrol 1010

The ABB 3BHE035301R0001 UNS0121A-Z V1 is a precision-engineered excitation control module designed for seamless integration within the ABB Unitrol 1010 automatic voltage regulator (AVR) platform. In modern power generation and industrial automation environments, excitation control is not an isolated function — it is the cornerstone of generator stability, reactive power management, and grid synchronization. This module occupies a critical position in the control architecture, interfacing directly with the AVR control layer, the field current regulation circuit, and the supervisory SCADA or DCS layer above it.

Understanding the role of the 3BHE035301R0001 requires viewing it within the full system hierarchy. At the control layer, the Unitrol 1010 AVR platform coordinates excitation response based on terminal voltage feedback, reactive power setpoints, and power system stabilizer (PSS) signals. The UNS0121A-Z V1 module serves as the functional core of this regulation loop, processing analog and digital I/O signals to maintain generator field voltage within tightly defined parameters. Its integration with the UNS0110A-Z power interface board and the UNS0115A-Z measurement module ensures that signal conditioning, scaling, and fault detection are handled coherently across the excitation chain.

At the I/O layer, the module interfaces with current transformers (CTs) and voltage transformers (VTs) mounted on the generator terminals, receiving real-time electrical measurements that feed the closed-loop AVR algorithm. The accuracy of these measurements directly determines the quality of voltage regulation, particularly during load transients, fault ride-through events, and islanding conditions. The 3BHE035301R0001 is designed to maintain regulation accuracy within ±0.5% under steady-state conditions, making it suitable for both utility-scale synchronous generators and industrial co-generation units.

From a network and communications perspective, the Unitrol 1010 platform supports integration with plant-level control systems via PROFIBUS DP and Modbus RTU protocols. The UNS0121A-Z V1 module participates in this communication architecture by providing status registers, fault codes, and setpoint acknowledgment signals that are accessible to the plant DCS or SCADA system. This enables operators to monitor excitation performance, adjust reactive power output, and initiate controlled shutdown sequences from a centralized human-machine interface (HMI) — such as the ABB CP600 or Panel Builder 600 series — without requiring local intervention at the excitation panel.

Power supply integrity is equally critical in excitation system design. The Unitrol 1010 architecture typically draws auxiliary power from a dedicated 24 VDC or 110 VAC supply rail, isolated from the main generator bus to ensure control availability during grid disturbances. The UNS0121A-Z V1 module is designed to operate within this auxiliary power envelope, and its low power consumption profile supports the use of redundant power supply modules — such as the ABB UNS0116A-Z — to eliminate single points of failure in the excitation control cabinet.

Redundancy is a defining requirement in mission-critical power generation applications. The Unitrol 1010 platform supports hot-standby redundancy configurations where a secondary AVR channel — equipped with an identical 3BHE035301R0001 module — monitors the primary channel and assumes control within milliseconds of a detected fault. This bumpless transfer capability is essential for continuous operation in power plants, offshore platforms, and data center backup generation systems where generator trips are operationally unacceptable.

For maintenance engineers, the modular architecture of the Unitrol 1010 system significantly reduces mean time to repair (MTTR). The 3BHE035301R0001 is a plug-in module with a defined connector interface, allowing replacement without rewiring or recalibration of the surrounding hardware. Firmware parameters stored in the UNS0110A-Z or the system’s non-volatile memory can be reloaded to the replacement module via the ABB CMT (Commissioning and Maintenance Tool), restoring the excitation system to its pre-fault configuration in minimal time. This maintainability advantage is particularly valuable in remote installations — mining operations, hydroelectric plants, and offshore wind substations — where specialist engineering support may not be immediately available.

In layered automation systems, the 3BHE035301R0001 also contributes to system-wide diagnostics. Its onboard self-test routines continuously monitor internal voltage references, communication link integrity, and analog input validity. Fault events are logged with timestamps and transmitted to the plant historian via the DCS gateway, supporting root cause analysis and predictive maintenance programs. This diagnostic transparency reduces unplanned downtime and supports compliance with IEC 60034-16 and IEEE Std 421.5 standards for excitation system performance.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and have undergone functional verification testing prior to dispatch. Our inventory of ABB Unitrol series components — including the UNS0121A-Z, UNS0110A-Z, UNS0115A-Z, UNS0116A-Z, and associated terminal modules — is maintained to support rapid deployment for both planned upgrades and emergency replacement scenarios. Global logistics support ensures delivery to power generation facilities, industrial plants, and OEM integrators worldwide.

Product Specification Table

System Compatibility Notes

The 3BHE035301R0001 UNS0121A-Z V1 does not operate in isolation. Its performance is intrinsically linked to the coordinated function of adjacent modules and system components within the Unitrol 1010 architecture. The UNS0110A-Z power interface board provides the thyristor firing signals that translate the AVR’s control output into actual field current adjustment — a direct upstream dependency on the UNS0121A-Z V1’s regulation output. The UNS0115A-Z measurement module supplies the conditioned voltage and current feedback signals that the control module processes in real time.

At the cabinet level, the UNS0116A-Z redundant power supply module ensures that control power remains available even during auxiliary supply disturbances, protecting the integrity of the excitation regulation loop. Terminal modules and marshalling blocks within the excitation panel provide the physical interface between the Unitrol 1010 backplane and the field wiring from CTs, VTs, and protection relays. Proper selection and installation of these terminal components — including ABB’s SACE series protection relays and surge suppression devices — is essential for long-term system reliability.

For plants operating with multiple generators in parallel, the Unitrol 1010 system’s reactive power sharing function requires coordination between the AVR modules of each generator unit. The 3BHE035301R0001 participates in this cross-unit coordination via the reactive droop compensation circuit, ensuring stable reactive power distribution without oscillation. In combined heat and power (CHP) plants and industrial co-generation facilities, this coordination function is critical for maintaining power factor compliance and avoiding reactive power circulation between generator units.

HMI integration is achieved through the ABB CP600 operator panel or equivalent SCADA workstation, which communicates with the Unitrol 1010 via the plant fieldbus network. Operators can monitor excitation current, terminal voltage, reactive power output, and AVR mode status in real time, and can initiate manual/auto mode transitions, setpoint adjustments, and forced excitation tests from the HMI without interrupting generator operation.

Industrial Application Notes

The ABB 3BHE035301R0001 UNS0121A-Z V1 finds application across a broad spectrum of industrial and utility power generation environments. In thermal power plants — coal, gas, and combined-cycle — the Unitrol 1010 AVR system is deployed on synchronous generators ranging from 10 MVA to several hundred MVA, where precise voltage regulation is essential for grid code compliance and reactive power dispatch. The module’s compatibility with power system stabilizer (PSS) algorithms makes it particularly valuable in large interconnected grids where inter-area oscillation damping is required.

In hydroelectric power stations, the excitation system must respond rapidly to load rejection events, where the generator suddenly loses its electrical load and terminal voltage rises sharply. The fast response capability of the UNS0121A-Z V1 control module — combined with the thyristor bridge firing speed of the UNS0110A-Z — ensures that ceiling voltage is reached within the time constants required by IEC 60034-16, protecting the generator from overvoltage damage.

In the oil and gas sector, offshore platform generators and onshore processing facility power systems rely on the Unitrol 1010 for isolated network voltage control. The module’s support for reactive droop and reactive current compensation is essential in these islanded networks, where there is no external grid reference to stabilize voltage. Mining operations with large variable-speed drives present similar challenges, as the harmonic content and rapid load changes generated by drive systems can destabilize poorly tuned AVR systems — a risk mitigated by the advanced control algorithms embedded in the 3BHE035301R0001.

Water treatment and municipal utility facilities operating backup diesel generators also benefit from the Unitrol 1010 architecture, particularly in applications where the generator must synchronize with the utility grid or operate in parallel with other generation sources. The module’s synchronization support functions and reactive power sharing capability simplify the engineering of these multi-source power systems.

Product Compatibility FAQ

Q1: Is the 3BHE035301R0001 UNS0121A-Z V1 compatible with all Unitrol 1010 system configurations, including redundant dual-channel setups?
A: Yes. The UNS0121A-Z V1 is the standard regulation module for the Unitrol 1010 platform and is fully compatible with both single-channel and hot-standby redundant configurations. In dual-channel systems, two identical modules are installed — one active, one in standby — with automatic bumpless transfer on fault detection. Ensure that both modules carry the same firmware version and parameter set, which can be verified and synchronized using the ABB CMT commissioning tool.

Q2: What commissioning steps are required when replacing a 3BHE035301R0001 module in a live excitation system?
A: Replacement should be performed with the generator offline and the excitation system de-energized. After installing the new UNS0121A-Z V1 module, reconnect the system and use the ABB CMT tool to upload the saved parameter file from the previous module or the site commissioning record. Verify analog input calibration (CT and VT scaling), communication link integrity, and AVR mode transitions before returning the generator to service. A no-load voltage build-up test and a reactive power step response test are recommended to confirm correct regulation behavior.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term spare parts availability for Unitrol 1010 components?
A: The warranty terms confirmed during quotation covers functional defects in the 3BHE035301R0001 UNS0121A-Z V1 module under normal operating conditions. ZYPLC maintains a dedicated inventory of Unitrol 1010 series components — including the UNS0110A-Z, UNS0115A-Z, UNS0116A-Z, and associated modules — to support both planned maintenance programs and emergency replacement requirements. Our technical team can assist with cross-referencing obsolete part numbers, identifying compatible replacement modules, and providing documentation support for site commissioning. Contact us at plc.sales@zyplc.com or +86 19859288691 for availability and lead time confirmation.
