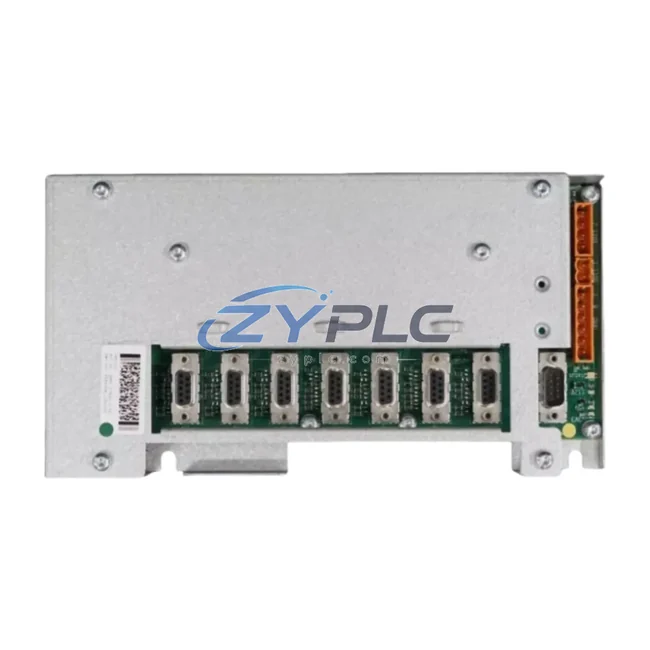

ABB 3HNE07835-1 PROFINET Gateway for IRC5

ABB 3HNE07835-1: PROFINET Communication Gateway for Industrial Data Link and Smart Factory Connectivity

In modern industrial automation, seamless data flow between field devices, robot controllers, remote I/O systems, HMI panels, SCADA platforms, and upper-level MES/ERP systems is no longer optional — it is the foundation of operational efficiency. The ABB 3HNE07835-1 is a dedicated PROFINET communication gateway engineered for the ABB IRC5 robot controller platform, providing a robust, high-speed network interface that bridges the robot control layer with the broader plant-wide automation network. Whether deployed in automotive body shops, electronics assembly lines, food and beverage packaging systems, or precision manufacturing cells, this module ensures that the IRC5 controller participates fully in the PROFINET IO ecosystem — delivering real-time process data, alarm feedback, and remote diagnostic capability to every connected system in the architecture.

The 3HNE07835-1 is not simply a plug-in card; it is a system-level connectivity solution. By integrating this gateway into the IRC5 controller cabinet, engineers establish a direct, deterministic communication channel between the robot and the plant’s PROFINET network backbone. This eliminates the data isolation that commonly occurs when robot cells operate as standalone islands, disconnected from the SCADA supervisory layer or the PLC-coordinated production sequence. With the 3HNE07835-1 in place, the IRC5 controller becomes a fully transparent node on the PROFINET network, capable of exchanging cyclic process data, acyclic parameter records, and alarm status with the host PLC or SCADA gateway in real time.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the 3HNE07835-1 requires viewing it within the complete data flow of a layered automation system. At the field level, the IRC5 robot controller manages servo drives, end-of-arm tooling, and safety I/O through its internal axis computer and I/O boards — components such as the ABB DSQC652 digital I/O board and the ABB DSQC643 analog I/O unit. These field-level signals are processed by the IRC5’s main computer, and the 3HNE07835-1 then packages this data into PROFINET frames for transmission to the network layer.

At the control layer, a Siemens S7-1500 PLC or Siemens S7-300 CPU typically acts as the PROFINET IO controller, orchestrating the production sequence and collecting status data from all connected IO devices — including the IRC5 robot cell via the 3HNE07835-1. The PLC’s PROFINET interface module, such as a Siemens CP 1543-1 communications processor, manages the network traffic and forwards aggregated data upstream to the SCADA layer. In parallel, a Siemens KTP900 Basic HMI panel or equivalent operator interface retrieves real-time robot status — cycle count, fault codes, program state — directly from the PROFINET network, giving floor operators immediate visibility without requiring a dedicated robot teach pendant connection.

At the network infrastructure layer, an industrial managed Ethernet switch — such as a Siemens SCALANCE X208 or Phoenix Contact FL SWITCH 2008 — provides the physical PROFINET backbone, supporting ring redundancy via MRP (Media Redundancy Protocol) to ensure that a single cable fault does not interrupt production. The 3HNE07835-1 connects to this switch via standard Cat5e or Cat6 shielded cable, maintaining 100 Mbps full-duplex communication with deterministic cycle times suitable for motion-coordinated applications.

At the supervisory layer, a Wonderware System Platform SCADA or Ignition SCADA gateway subscribes to robot data tags published through the PROFINET network, enabling trend logging, OEE calculation, predictive maintenance alerts, and remote diagnostic access. Engineers can monitor robot joint temperatures, motor current draw, and program execution state from the control room or via remote VPN access — without interrupting the production cycle. This end-to-end data chain, from the IRC5’s internal I/O through the 3HNE07835-1 to the SCADA dashboard, is the core value proposition of this communication gateway in a smart factory environment.

For applications requiring additional protocol bridging — for example, connecting the PROFINET network to a Modbus TCP historian or an EtherNet/IP MES interface — a Moxa MGate MB3660 protocol gateway or equivalent device can be inserted at the network boundary, ensuring that the robot data remains accessible across heterogeneous system architectures without requiring custom middleware development.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the data island problem: robot cells, CNC machines, conveyor systems, and process equipment each operate with their own proprietary communication protocols, making it difficult to aggregate production data into a unified monitoring platform. The ABB 3HNE07835-1 directly addresses this challenge for IRC5-based robot cells by providing a standardized PROFINET IO interface that integrates seamlessly with the plant’s existing network infrastructure.

Before the 3HNE07835-1 is installed, the IRC5 controller may communicate only through its native ABB DeviceNet or analog I/O interfaces, limiting data exchange to simple start/stop signals and fault outputs. After installation, the robot becomes a fully addressable PROFINET IO device, capable of publishing dozens of process variables — including program number, step counter, weld current feedback, gripper status, and safety zone state — to the PROFINET controller in real time. This transformation from a data island to a transparent network node is the foundation of production line digitalization.

For remote monitoring applications, the PROFINET network’s routable architecture allows plant engineers to access robot status data from remote SCADA workstations or mobile HMI applications, reducing the need for on-site intervention during fault diagnosis. Alarm conditions detected by the IRC5 — such as motor overtemperature, position error, or safety circuit interruption — are immediately propagated through the 3HNE07835-1 to the PROFINET controller and then to the SCADA alarm management system, enabling rapid response and minimizing unplanned downtime.

System expansion is equally straightforward. As production capacity grows and additional IRC5 robot cells are added to the line, each new controller equipped with a 3HNE07835-1 gateway joins the existing PROFINET network as an additional IO device, without requiring changes to the network infrastructure or the SCADA configuration beyond adding new device instances. This scalability makes the 3HNE07835-1 a long-term investment in the plant’s connectivity architecture, supporting both current production requirements and future expansion plans.

All units supplied by ZYPLC undergo pre-shipment functional testing, verifying PROFINET communication establishment, cyclic data exchange, and alarm signal transmission before dispatch. Each unit is covered by a warranty terms confirmed during quotation from the date of shipment, providing assurance of product quality and long-term supply reliability for maintenance and spare parts planning.

Industrial Connectivity FAQ

Q1: Does the ABB 3HNE07835-1 support both PROFINET RT and IRT communication modes?
The 3HNE07835-1 is designed for the ABB IRC5 PROFINET IO interface and supports PROFINET RT (Real-Time) communication for standard cyclic data exchange with update cycles suitable for robot cell coordination. For applications requiring IRT (Isochronous Real-Time) with sub-millisecond synchronization — typically used in motion control applications — compatibility depends on the specific IRC5 software version and PROFINET controller configuration. We recommend confirming the IRC5 firmware version and PROFINET controller IRT support before deployment in high-speed synchronized motion applications.

Q2: Is the 3HNE07835-1 compatible with Siemens TIA Portal for PROFINET device configuration?
Yes. The 3HNE07835-1 can be configured as a PROFINET IO device within Siemens TIA Portal using the corresponding GSDML device description file, which defines the module’s IO data structure, slot configuration, and alarm capabilities. Once the GSDML file is imported into TIA Portal, the IRC5 robot controller appears as a standard PROFINET IO device in the network view, and its process data can be mapped directly to PLC data blocks for use in the control program. This integration is compatible with Siemens S7-1200, S7-1500, and S7-300/400 PROFINET controllers.

Q3: What pre-shipment testing is performed on the 3HNE07835-1, and what does the warranty terms confirmed during quotation cover?
Each 3HNE07835-1 unit supplied by ZYPLC undergoes functional verification testing prior to shipment, including PROFINET communication establishment, cyclic IO data exchange validation, and physical interface inspection. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Units that fail during the warranty period are replaced or repaired at no additional cost. Warranty claims are processed through ZYPLC’s technical support team, with replacement units dispatched from RFQ-confirmed sourcing to minimize customer downtime.

Q4: Can the 3HNE07835-1 be used in a PROFINET network with ring redundancy (MRP)?
The 3HNE07835-1 connects to the PROFINET network via a standard RJ45 Ethernet port and relies on the network infrastructure — specifically the managed industrial Ethernet switches forming the ring — to implement MRP redundancy. The gateway itself does not need to be an MRP manager or client node; it connects to the ring network as a standard IO device through one of the switch ports. In the event of a cable fault in the ring, the MRP protocol restores network connectivity within the configured recovery time (typically under 200ms for standard MRP), and the 3HNE07835-1 resumes PROFINET communication automatically without requiring manual intervention or controller restart.
